Garage plan BG04

Usable area: 25.81 m² / The cost of the realization: 16 800 EUR

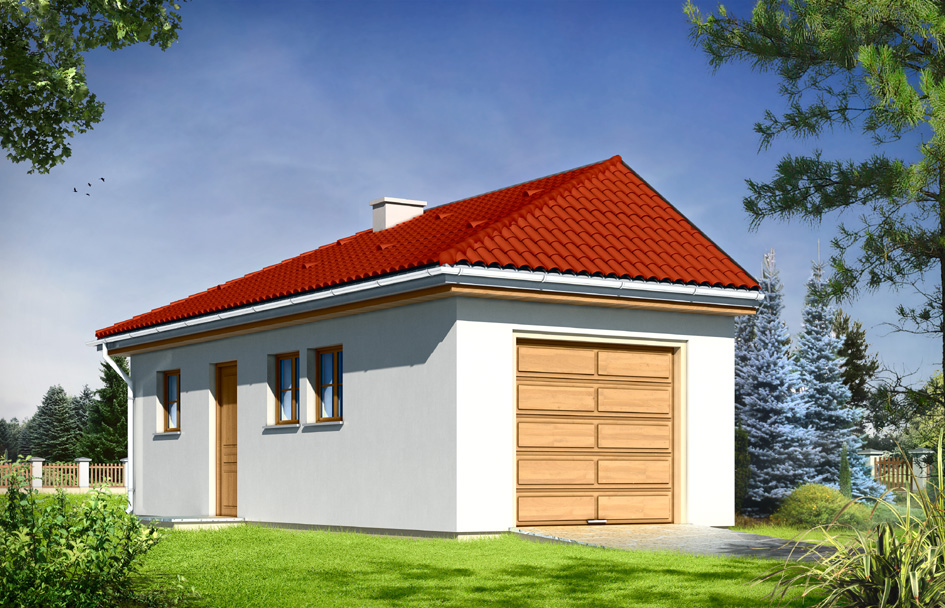

Show mirror image

Price: 210 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Variants (0) Detailed drawings List of materials Comments (0)

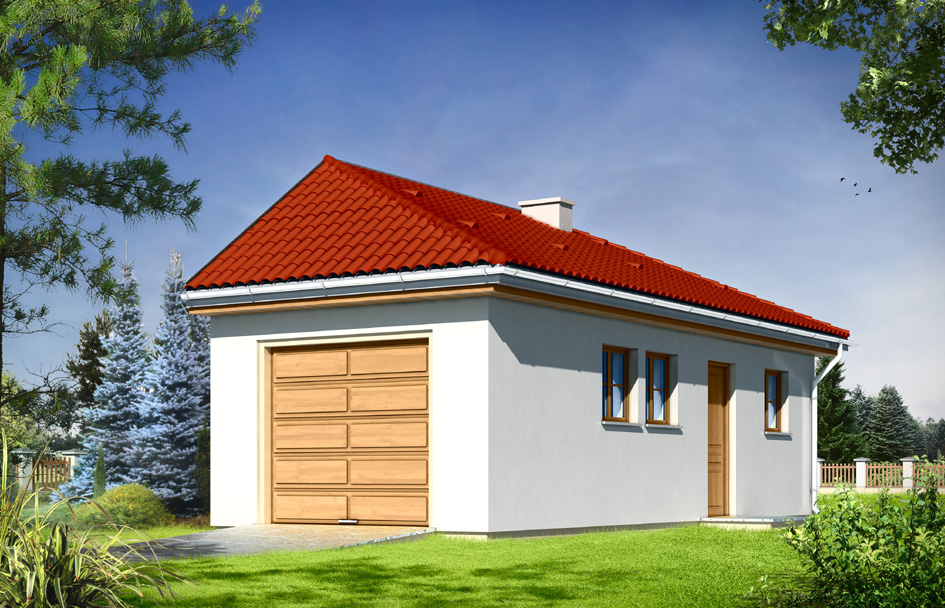

Single garage with utility room and additional output from the side elevation covered with a hipped roof.

Specifications:

Cubature - 130,70 m³
Net area - 25,81 m²
Total area - 34,70 m²
Built-up area - 34,70 m²
Height of the building - 4,51 m / 14,79 ft
building dimensions - 3,78 x 9,18 m
Roof slope - 36 degrees

Materials:

• Foundations - concrete benches
• Foundation walls - blocks
• Walls - cellular concrete + polystyrene
• Roof trusses - wooden structure
• Elevation - thin-layer plaster
• Roof covering – tile

The costs of implementing:

The raw state open	6 900,00 EUR
The raw state closed	9 600,00 EUR
The cost of finishing works	7 200,00 EUR
Execution of turnkey home	16 800,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Projekt Garażu BG04 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
