Garage plan BG08

Usable area: 25.81 m2   /   The cost of the realization: 26 500 EUR

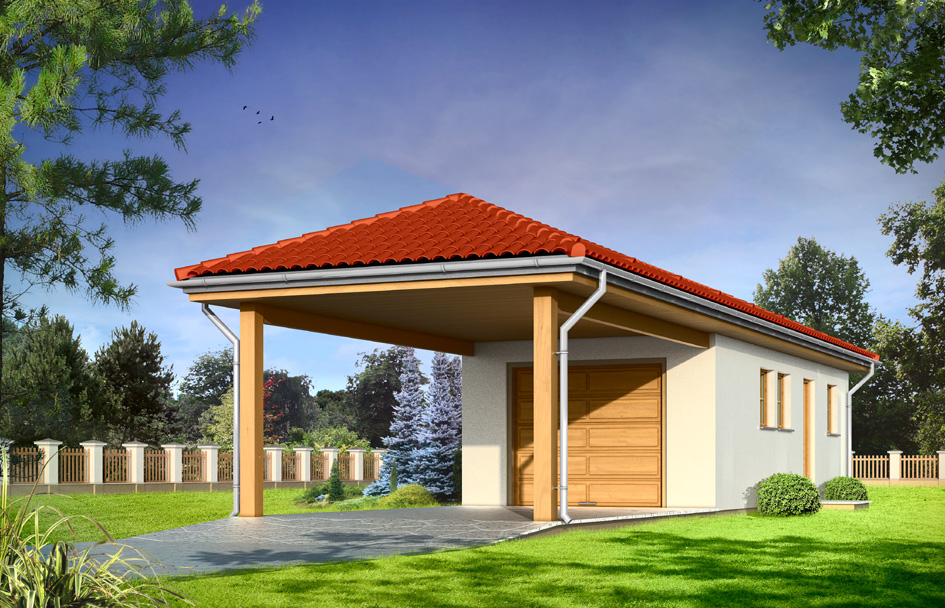

Garage BG08 - front visualization

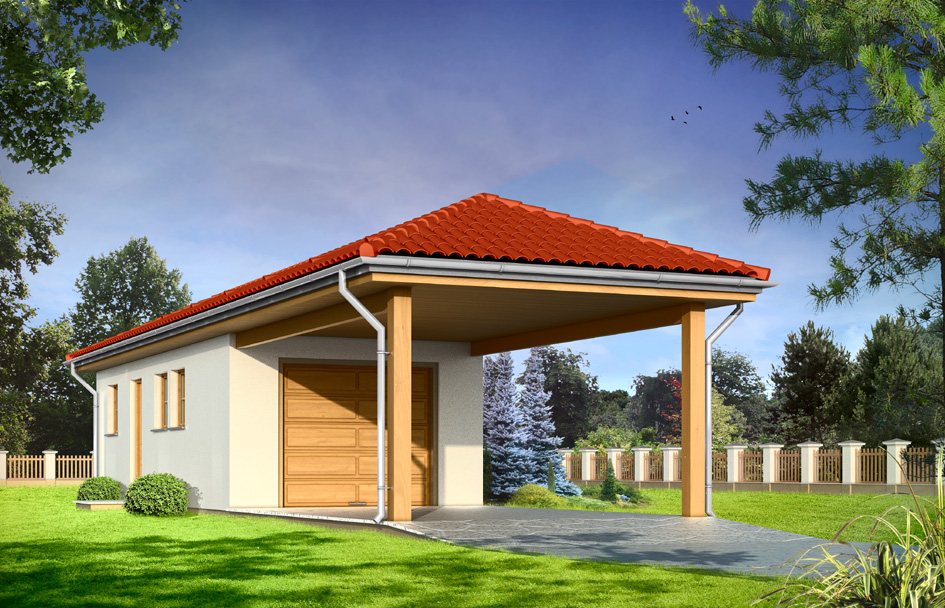

Show mirror image


Single garage with utility room at the back (also available as an outbuilding) covered with a hipped roof with an additional output from the side elevation and with a carport in the front acting as extra parking position.

Specifications:
  • Kubatura - 120 m3
  • Pow. netto - 25,81 m2 + 22,05 m2 (wiata)
  • Pow. całkowita - 33,97 m2 + 22,05 m2 (wiata)
  • Pow. zabudowy - 34,70 m2
  • Wysokość garażu - 3,67 m / 12,04 ft
  • Wymiary budynku - 3,70 x 15,14 m
  • Kąt nachylenia - 24 stopnie
Materials:

• Foundations - concrete benches
• Foundation walls - blocks
• Walls - cellular concrete + polystyrene
• Roof trusses - wooden structure
• Elevation - thin-layer plaster
• Roof covering – tile




The costs of implementing:
The raw state open 10 900,00 EUR
The raw state closed 15 100,00 EUR
The cost of finishing works 11 400,00 EUR
Execution of turnkey home 26 500,00 EUR

Net notified costs, do not include VAT


Additions to the project:

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Garage BG08 - detailed file
