Garage plan BG09

Usable area: 18.6 m² / The cost of the realization: 12 800 EUR

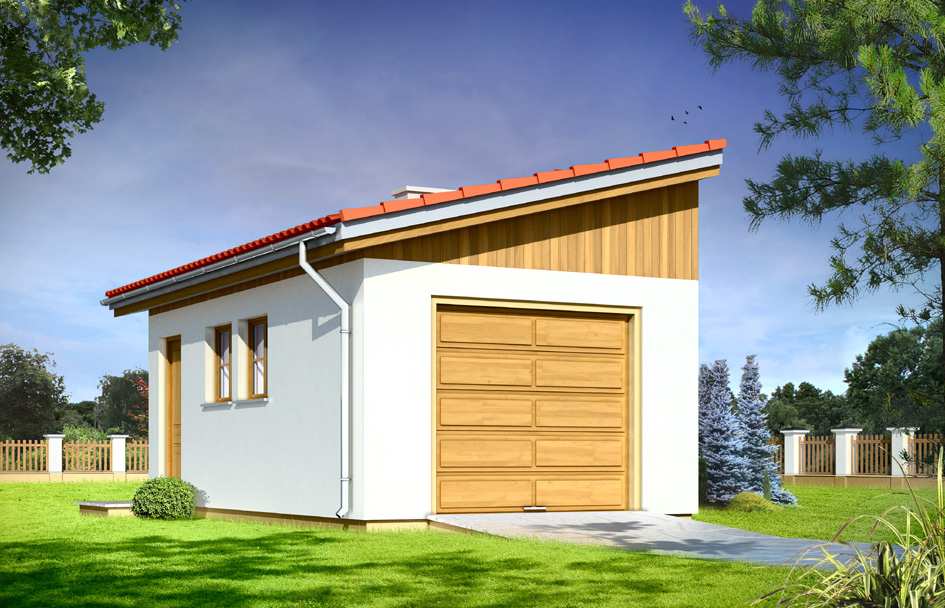

Show mirror image

Price: 210 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Variants (0) Detailed drawings List of materials Comments (0)

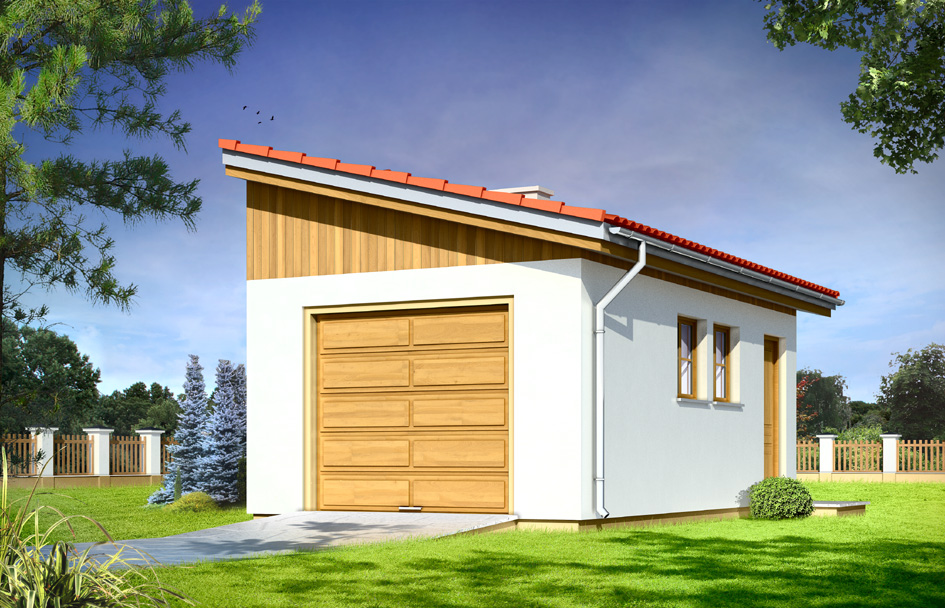

Single garage covered with a pent roof with an additional output from the side elevation.

Specifications:

Cubature - 81 m³
Net area - 18,60 m²
Total area - 25,25 m²
Built-up area - 25,25 m²
Height of the building - 3,69 m / 12,10 ft
building dimensions - 3,78 x 6,68 m
Roof slope - 14 degrees

Materials:

• Foundations - concrete benches
• Foundation walls - blocks
• Walls - cellular concrete + polystyrene
• Roof trusses - wooden structure
• Elevation - thin-layer plaster
• Roof covering – tile

The costs of implementing:

The raw state open	5 300,00 EUR
The raw state closed	7 300,00 EUR
The cost of finishing works	5 500,00 EUR
Execution of turnkey home	12 800,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Projekt Garażu BG09 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
