Garage plan BG14

Usable area: 36 m² / The cost of the realization: 20 700 EUR

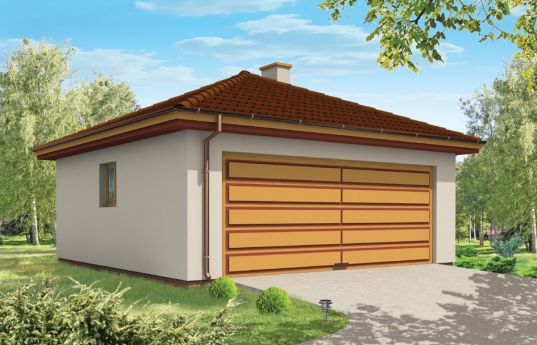

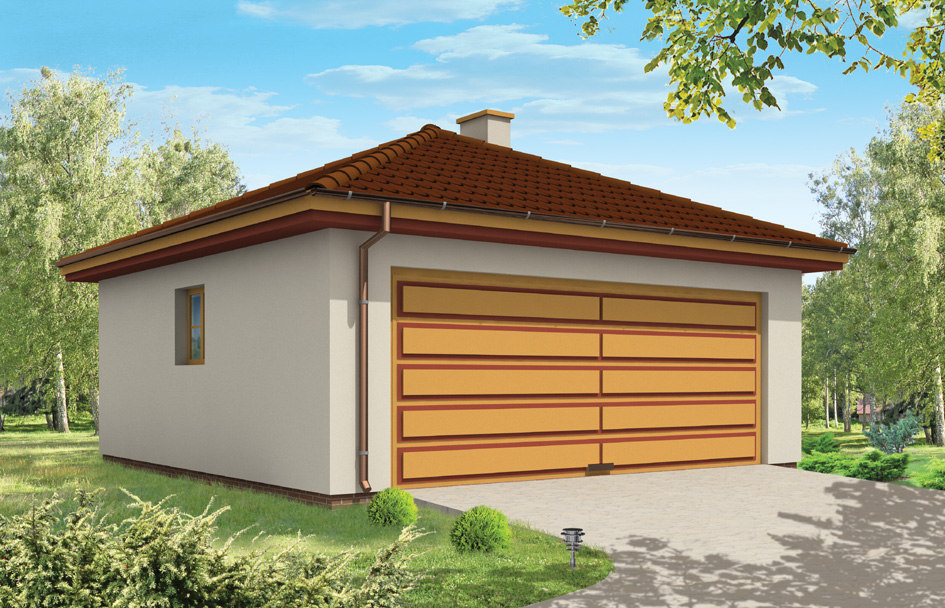

Show mirror image

Price: 260 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Animation Variants (0) Detailed drawings List of materials Comments (0)

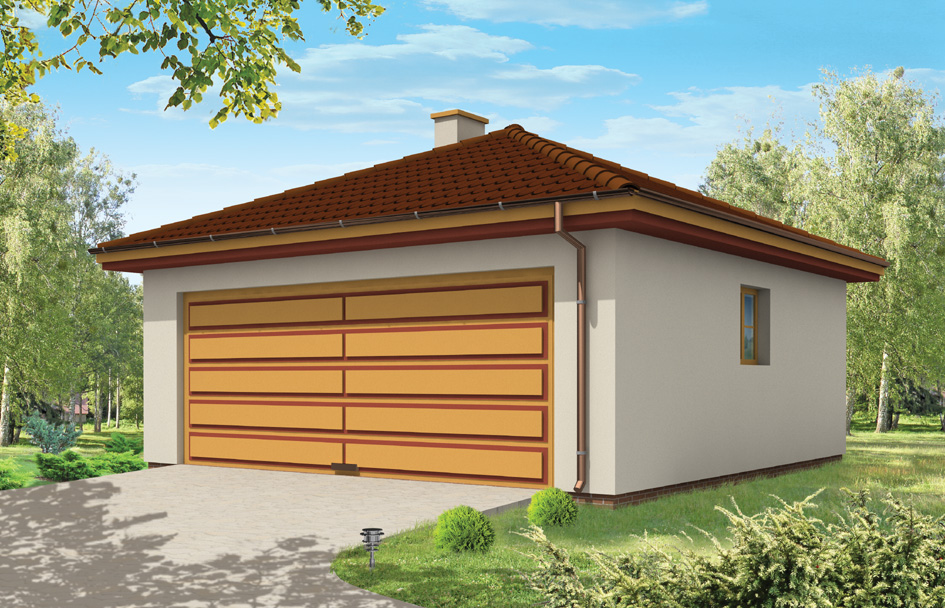

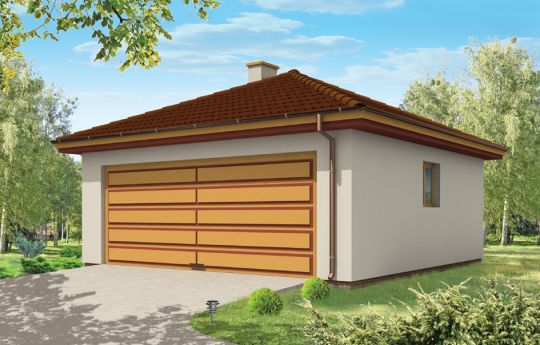

Garage for two cars covered with a hipped roof.

Specifications:

Cubature - 122 m³
Net area - 36,00 m²
Total area - 44,62 m²
Built-up area - 44,62 m²
Height of the building - 4,54 m / 14,89 ft
building dimensions - 6,68 x 6,68 m
Roof slope - 24 degrees

Materials:

• Foundations - concrete benches
• Foundation walls - blocks
• Walls - cellular concrete + polystyrene
• Roof trusses - wooden structure
• Elevation - thin-layer plaster
• Roof covering – tile

The costs of implementing:

The raw state open	8 500,00 EUR
The raw state closed	11 800,00 EUR
The cost of finishing works	8 900,00 EUR
Execution of turnkey home	20 700,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Projekt Garażu BG14 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
