House plan Villa comfortable

Usable area: 324.67 m2   /   The cost of the realization: 251 110 EUR

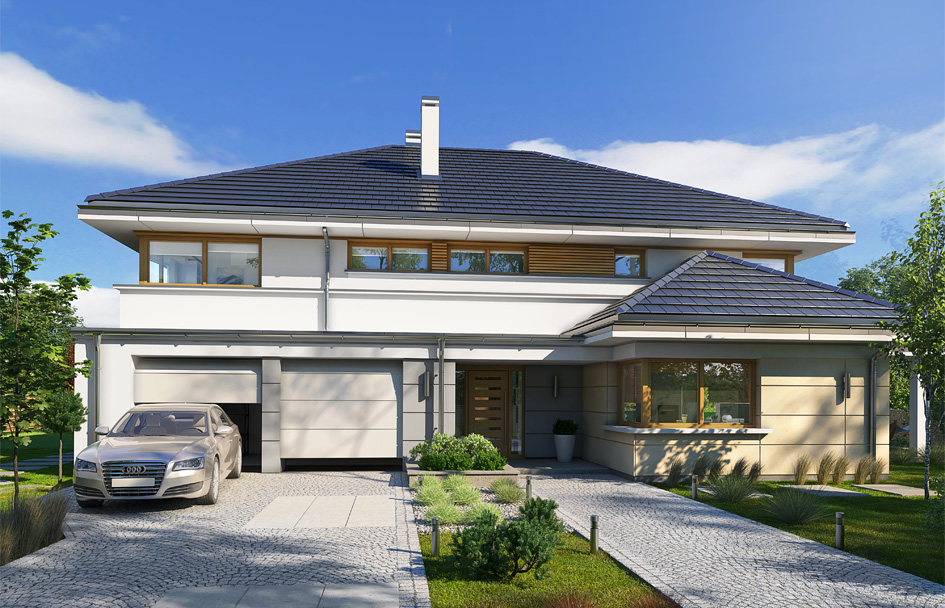

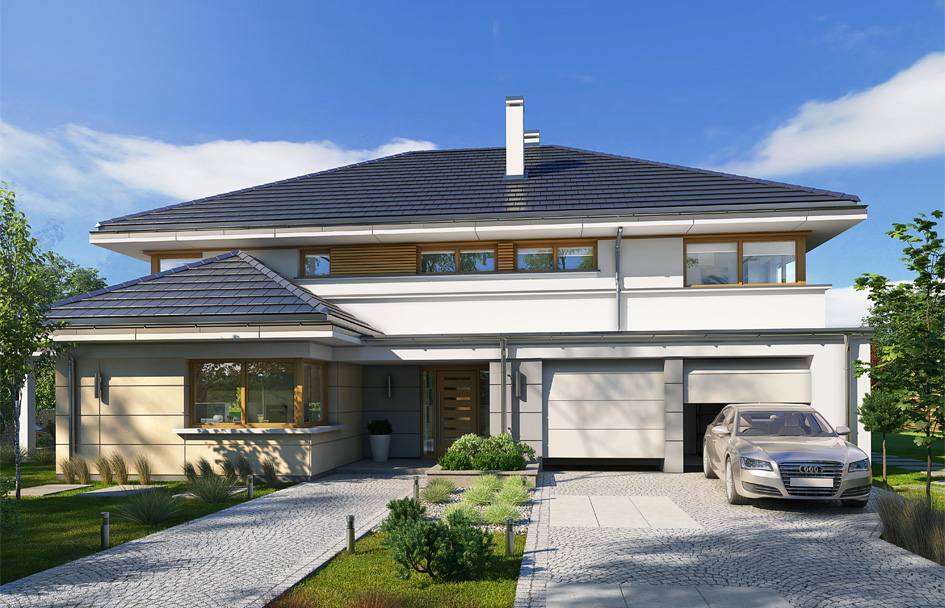

Projekt domu Willa komfortowa - wizualizacja frontu

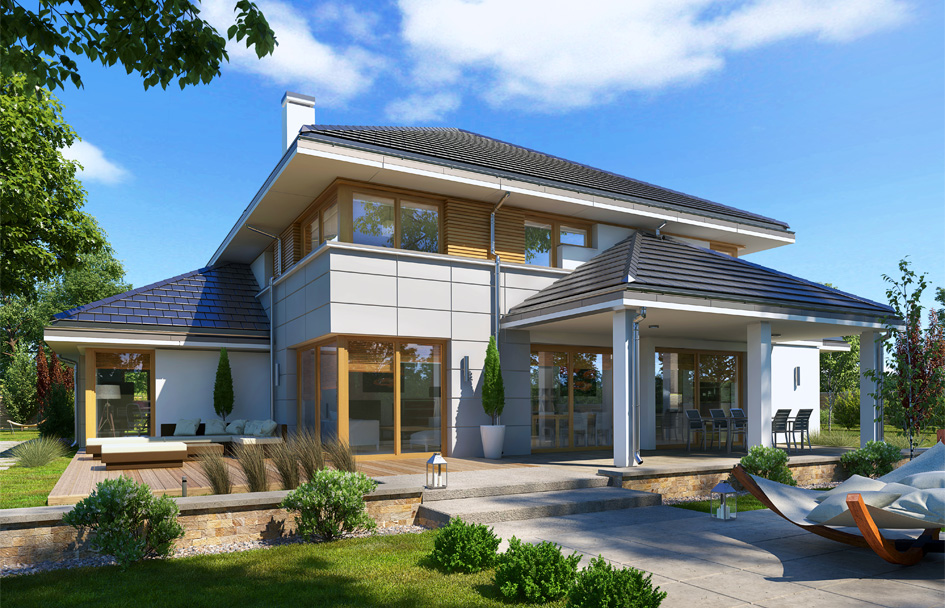

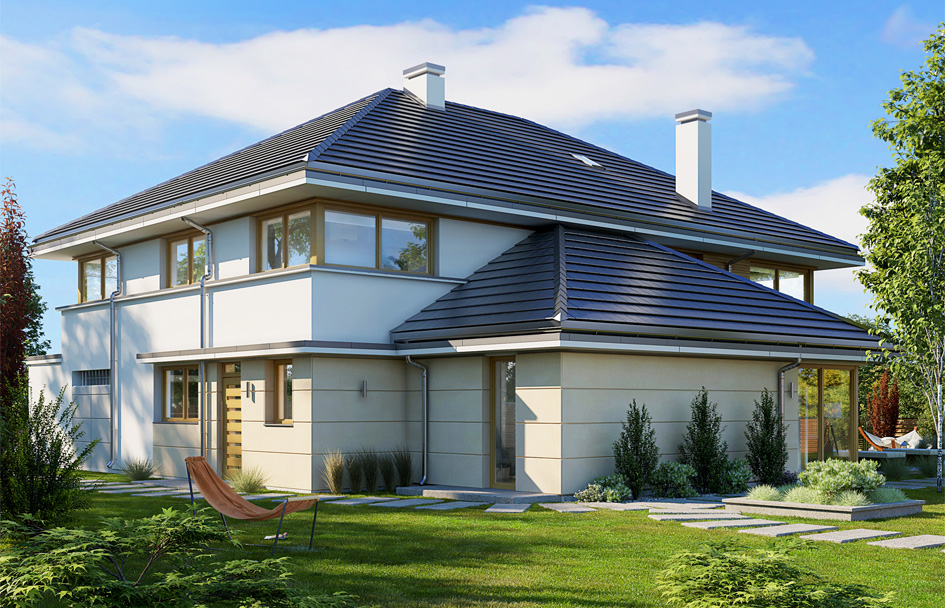

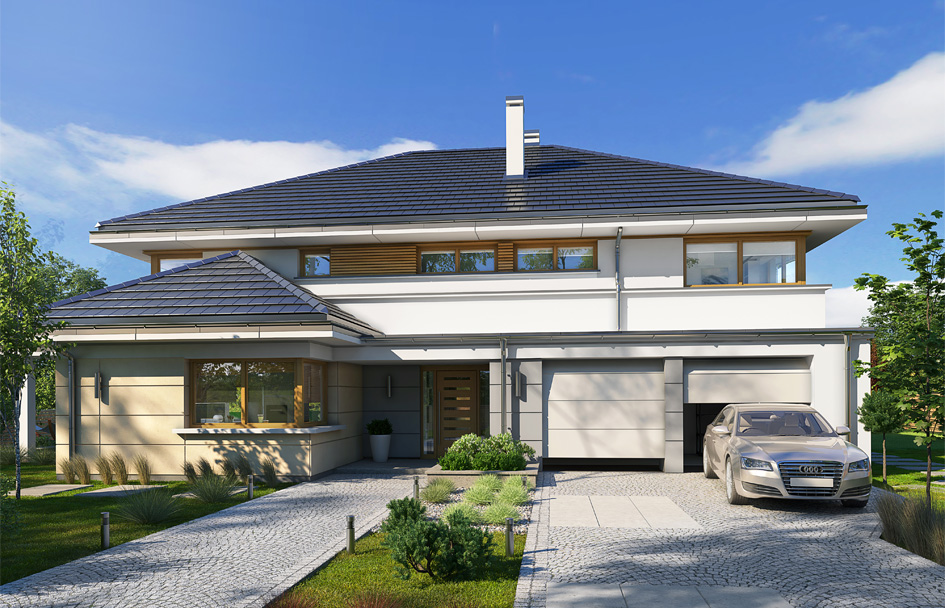

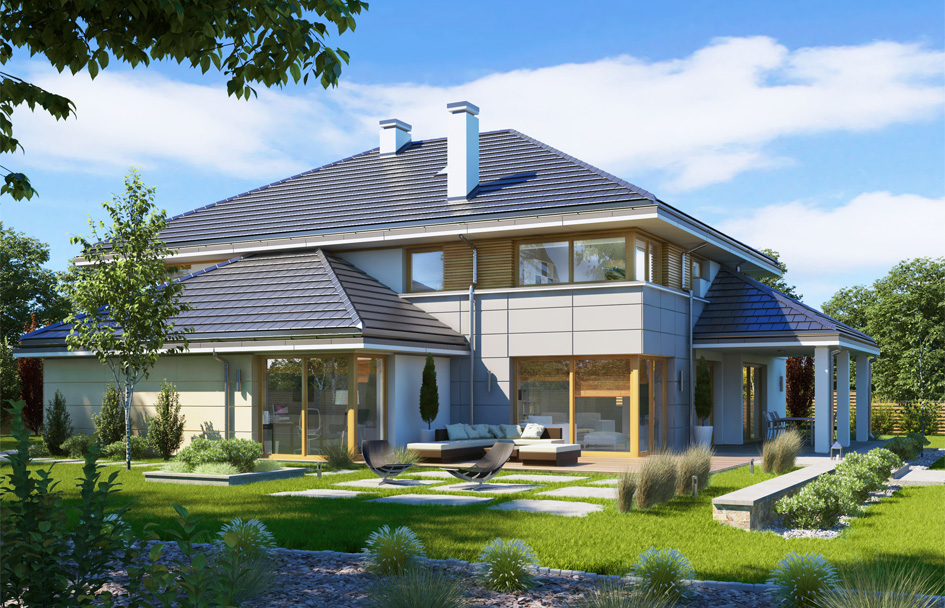

Show mirror image


Vila comfortable house plan is a sister project of our popular project "Villa with pool". However, it differs from its origin project mainly because there is no pool area. The house is a comfortable residence for a two- or three-generation family. On the first floor we have five bedrooms, and on the ground floor we have a parents' apartment, and an additional separate apartment - for seniors, or nanny or a housekeeper living in the house. Really the interior is very spacious and can be used in many ways. An additional flat can also be an office, a study or a home-based company. Architecture of the house: the building is multi-storey, its main body is covered by a hip roof. One-storey annexes are added to the main block of the house. Elevations are divided into horizontal stripes finished with different materials - stone and plaster. The windows, mostly corner, underline the modern villa style. The whole creates a very attractive, representative city residence. A real headquarters. We enter the house through a wide entrance door with transoms, watched from the corner window in the kitchen to the vestibule and further to the lobby. The lobby with representative stairs connects here with a beautiful living room connected to the dining room. From the living room through the corner glazing there is a view of the surrounding terraces and garden. The kitchen is slightly separated from the rest of the house - it can be closed with sliding tucked doors. From the dining room we go to a beautiful garden covered terrace. On the other side of the house we have a garage and utility part with a double garage and boiler room, an additional apartment - an apartment, and a parents' apartment with a bathroom and a double wardrobe. On the first floor there are five rooms, two bathrooms and a dressing room. The hall on the first floor is connected to the hall on the ground floor empty next to the stairs. It adds to the interior of the charm and the representative appearance and sense of large space. A comfortable villa to a great proposition for investors who need a complex utility program and many rooms, and - what can I say - for lucky people who can afford a large house. If you are looking for a house with an area of over 300 m2, then our project may be a good choice. The building has a fairly simple shape, it does not have a very complicated structure, it is well insulated, it has modern installations. It will be rather difficult to build and quite inexpensive in later operation.

Specifications:
  • Cubature: 1462 m3 / 51623,22 ft3
  • Built-up area: 277,46 m2 / 2985,47 ft2
  • Total area: 445,33 m2 / 4791,75 ft2
  • Net area: 329,14 m2 + garage 41,44 m2 / 3541,55 ft2 + garage 445,89 ft2
  • Usable area: 324,67 m2 /  3493,45 ft2
  • Roof area: 377,88 m2 + flat roof 21,62 m2 / 4065,99 ft2 + flat roof 232,63 ft2
  • Roof slope: 30 degrees
  • Height of the building: 9,37 m (9,57 m with foundation) / 30,73 ft (31,39 with foundation)
  • Building dimensions: 17,13 x 22,47 m / 56,19 x 73,70 ft
  • Plot dimensions: 27,00 x 30,47 m / 88,56 x 99,94 ft
  • Height of rooms: 2,8 m / 9,18 ft
Materials:
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls – brick walls – porotherm 25 blocks + polystyrene + thin-layer plaster
  •     Ceiling - monolithic reinforced concrete
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - ceramic tile






The costs of implementing:
The raw state open 80 140,00 EUR
The raw state closed 131 590,00 EUR
The cost of finishing works 119 530,00 EUR
Execution of turnkey home 251 110,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Willa Komfortowa - pliki szczegółowe

Willa Komfortowa - pliki szczegółowe - lustro
