Usable area: 151.42 m2 / The cost of the realization: 98 900 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (9) Detailed drawings
List of materials
Comments (3)

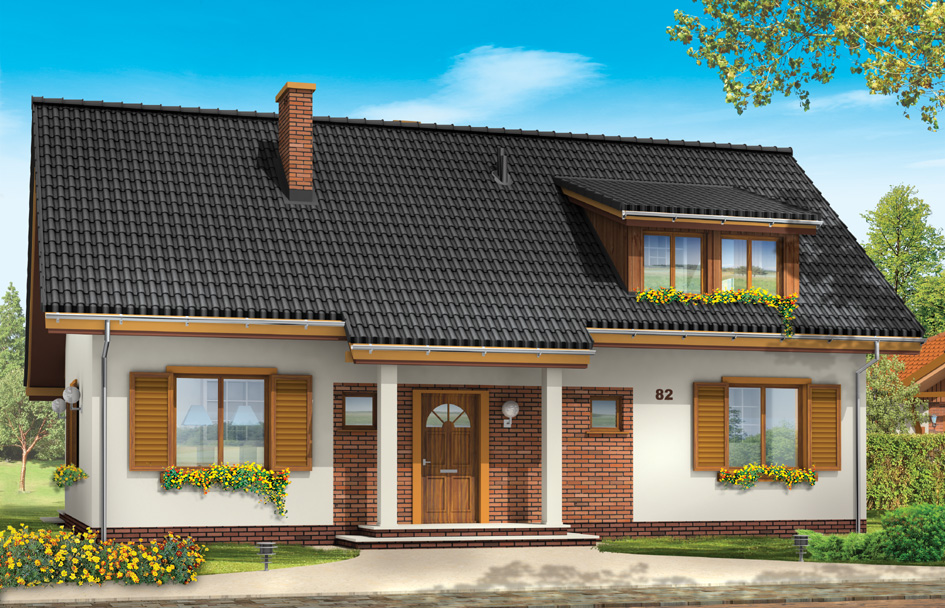

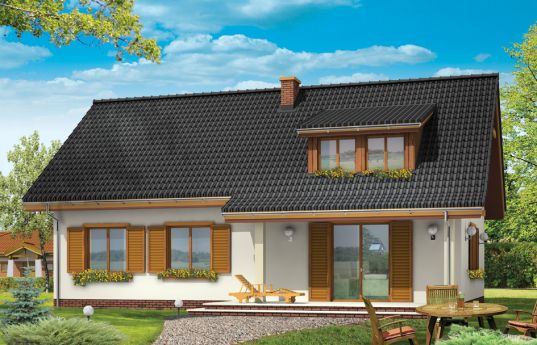

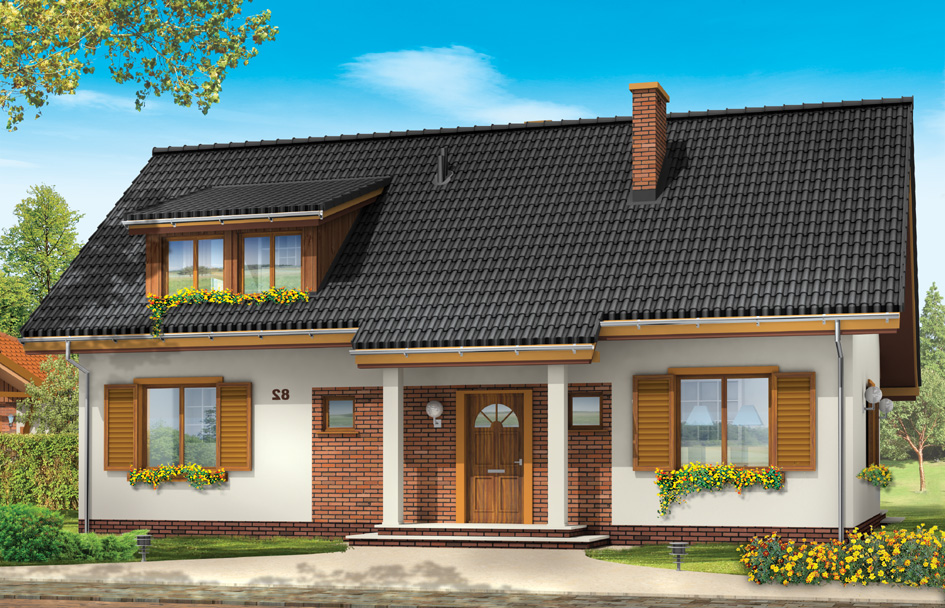

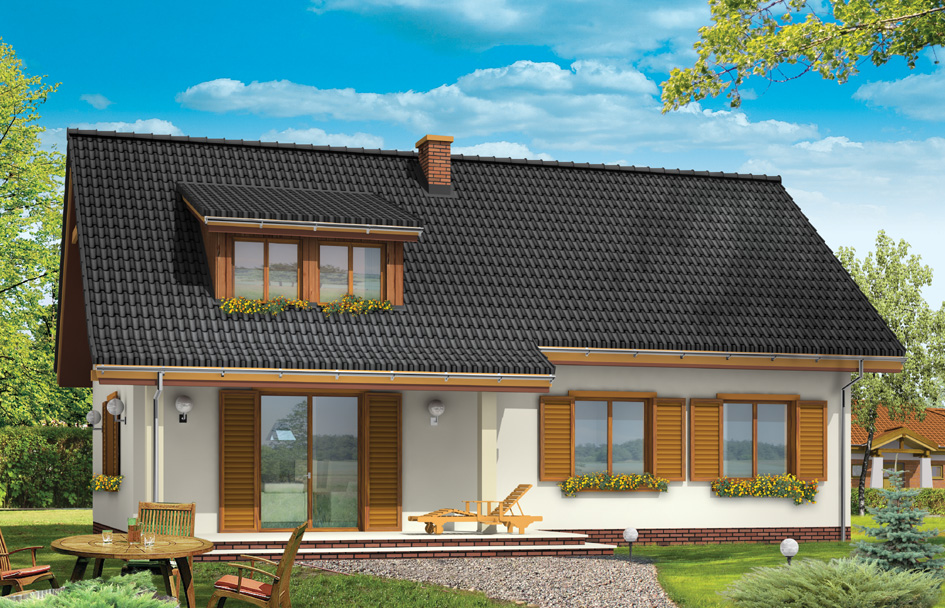

Epigram house plan is a building for a family of 4-7 people, with the possibility of development and changing housing needs. Thanks to the extra room in your attic and the proximity of the stairs from the entrance house can be successfully divided up into two independent apartments. Simplicity of design Epigram house and easy to make roof is indisputable advantages of the project. On the ground floor except the living room connected with a kitchen and hall there are also three bedrooms. At the attic there are additionally three nice rooms. The house can inhabit by a large family or two families. You can also living on the ground floor take advantage of an attic as a undivided studio for any function - such as recreation or work-related. There is also a mirror version of Epigram house plan.
Specifications:
- Cubature: 512 m3/ 18078,72 ft3
- Built-up area : 110,42 m2/ 1188,12ft2
- Total area: 185,04 m2/ 1991,03 ft2
- Net area: 154,46 m2/ 1661,99 ft2
- Usable area: 151,42 m2/ 1629,28 ft2
- Roof area: 195 m2/ 2098,20 ft2
- Roof slope: 40 degrees
- Height of the building: 7,31 m (7,61 m with foundation)/ 23,98 ft
- Wide of the building: 13,24 m/ 43,43 ft
- Length of the building: 8,34 m/ 27,35 ft
- Minimum plot width: 21,24 m/ 69,67 ft
- Minimum plot length: 16,39 m/ 53,76 ft
- Height of rooms: 2,6 m/ 8,53 ft
Materials:
Materials:
• Foundations - concrete benches and walls with concrete blocks
• Exterior walls - double layer of aerated concrete + wool
• Internal walls - aerated concrete
• Ceiling – monolithic reinforced concrete panels
• Elevation - thin-layer plaster
• Roof - tile
The costs of implementing:
| The raw state open | 32 900,00 EUR |
| The raw state closed | 47 500,00 EUR |
| The cost of finishing works | 51 500,00 EUR |
| Execution of turnkey home | 98 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Fraszka - detailed file
House plan Fraszka - detailed file - mirror
