Natty house plan with porch

Usable area: 145.34 m2   /   The cost of the realization: 128 800 EUR

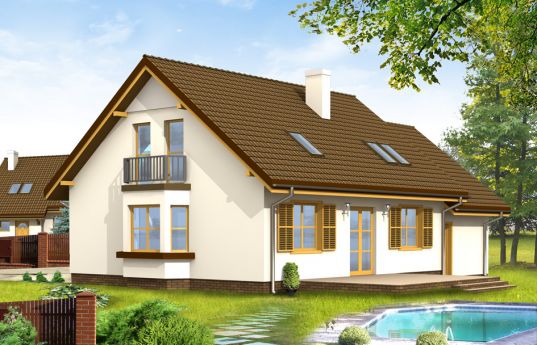

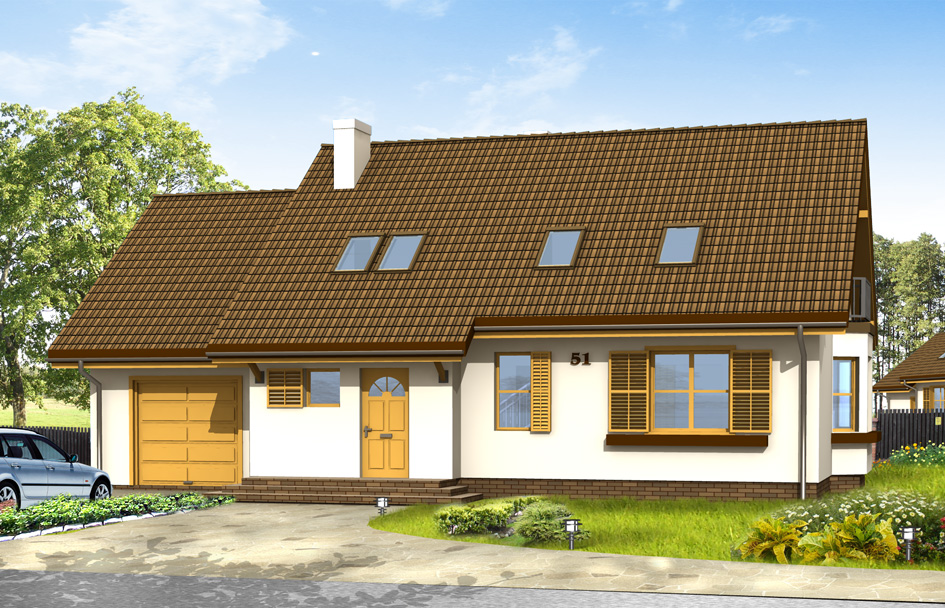

House plan Natty with porch - front visualization

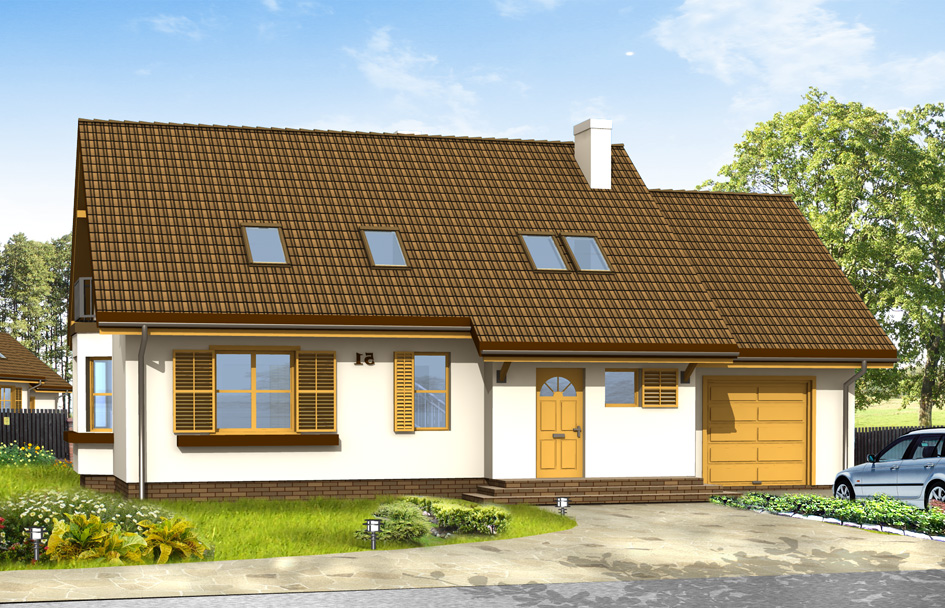

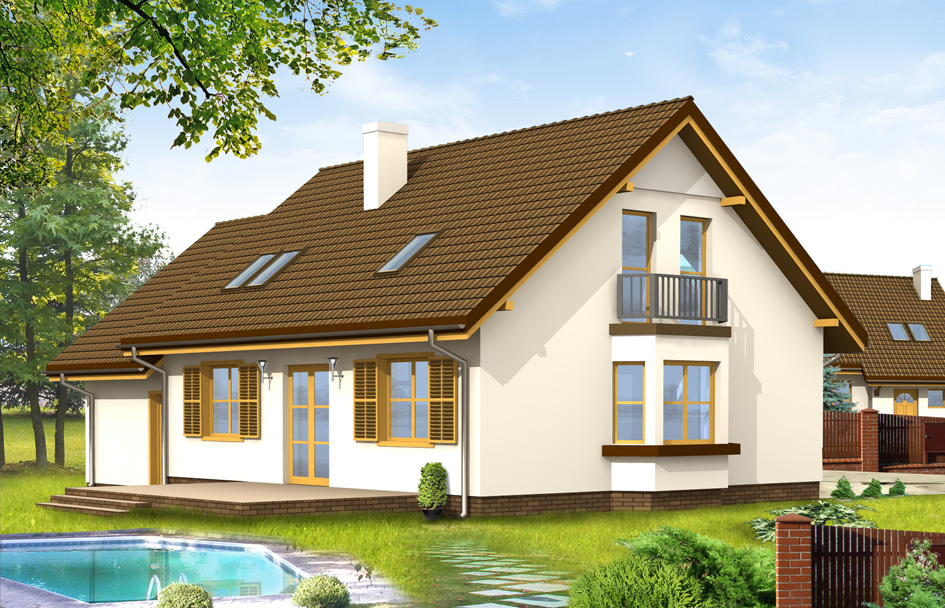

Show mirror image


Natty house plan with porch is a perfect house for the family of four to five people. It is a variant version of Natty house plan. The house was expanded to 1m and porch has been added. Functional interior and representative architecture is the main benefits of this house plan. On the ground floor besides living room an extra room and bathroom was designed. On the attic there are three bedrooms, a large bathroom and attic above the garage. We have this house plan also in a mirror version.

Specifications:
  • Cubature: 598 m3 / 21115,38 ft3
  • Built-up area: 138,2  m2 / 1487,03 ft2
  • Total area: 193,66 m2 / 2083,78 ft2
  • Net area: 149,60 m2 + garage 23,00 m2 + attic 14,4 m2 / 1609,70 ft2 + garage 247,48ft2 + attic 154,94 ft2
  • Usable area:
    • 145,34 m2 wg PN-70/B-02365 / 1563,86 ft2 wg PN-70/B-02365
    • 149,60 m2 + garage+ attic wg PN-ISO 9836:1997 / 1609,70 ft2 + garage+ attic wg PN-ISO 9836:1997
  • Roof area: 214,7 m2 / 2310,17 ft2
  • Roof slope: 38 degrees
  • Height of the building: 7,70 m (8,10 m with foundation) / 25,26 m (26,57 m with foundation)
  • Wide of the building: 15,81 m / 51,86 ft
  • Length of the building: 9,73 m / 31,91 ft
  • Minimum plot width: 23,81 m / 78,10 ft
  • Minimum plot length: 17,73 m / 58,15 ft
  • Height of rooms: 2,68 m / 8,79 ft
Materials:
  • Foundations – poured concrete
  • External walls - aerated concrete 24 cm + foamed polystyrene 12 cm
  • Ceiling - Reinforced concrete Teriva
  • Elevation - thin-layer acrylic plaster
  • Roof -  tile or meatal roofing tile






The costs of implementing:
The raw state open 41 600,00 EUR
The raw state closed 62 500,00 EUR
The cost of finishing works 66 400,00 EUR
Execution of turnkey home 128 800,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Natty with porch - detailed file

House plan Natty with porch - detailed file - mirror
