Garage plan BG11

Usable area: 44.84 m² / The cost of the realization: 18 300 EUR

Show mirror image

Price: 280 EUR

Description Plans Elevations Situations Variants (0) Detailed drawings List of materials Comments (0)

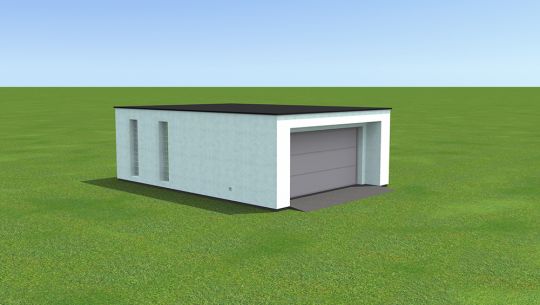

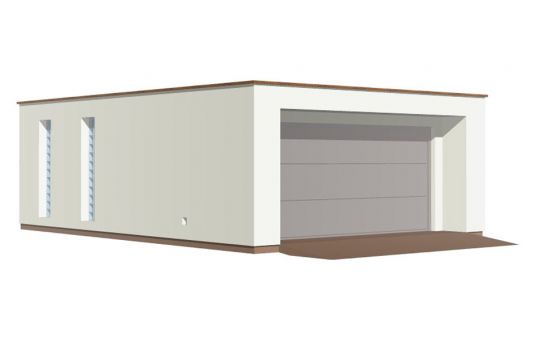

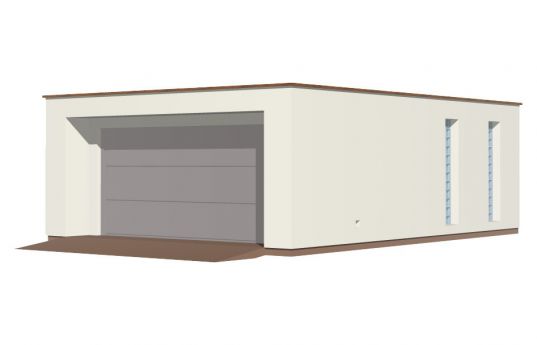

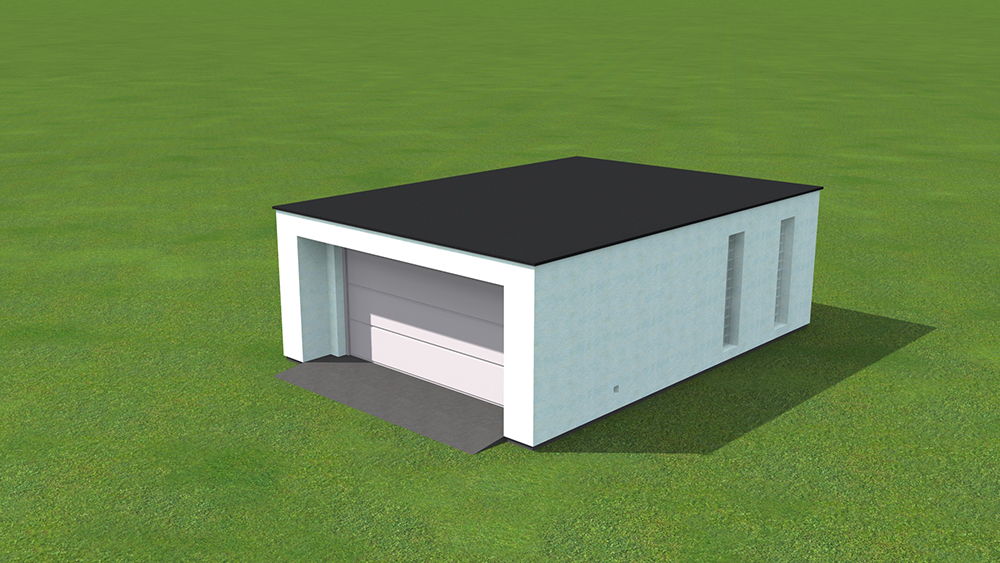

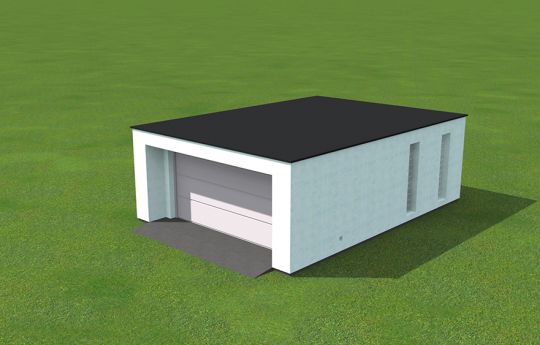

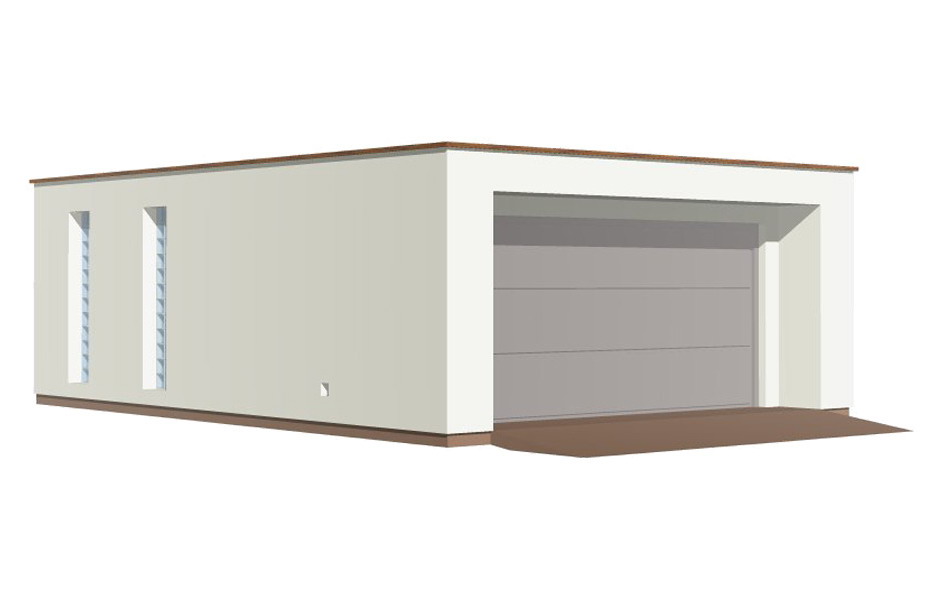

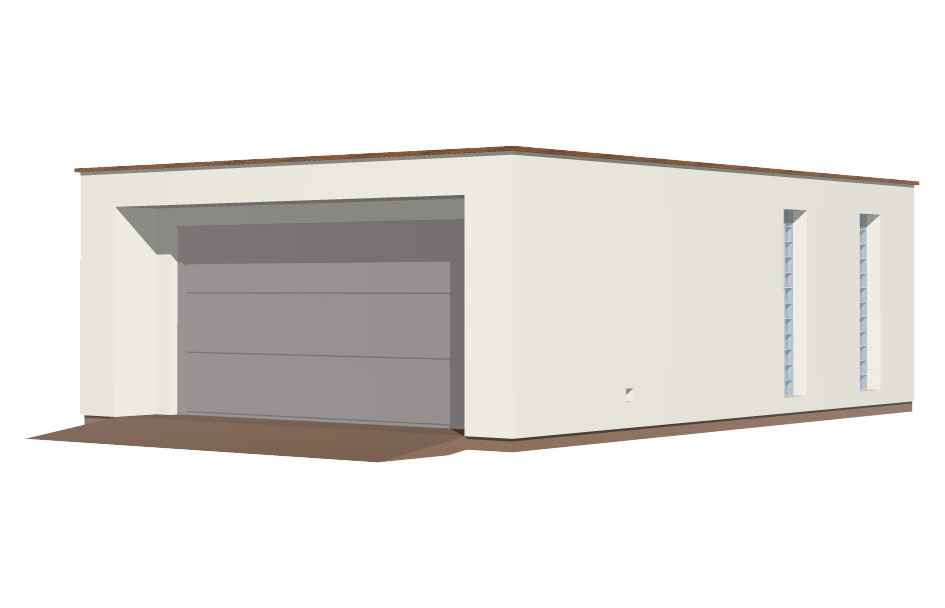

Garage for two cars covered with a flat roof with an extra storage room behind the garage with the separate exit from the back elevation.

Specifications:

Cubature - 209 m³
Net area - 44,84 m²
Total area - 60,41 m²
Built-up area - 64,26 m²
Height of the building - 3,11 m / 10,20 ft
Building dimensions - 6,80 x 9,45 m
Roof slope - flat roof

Materials:

Foundations - concrete benches and foundation walls with concrete blocks
Walls - porotherm + polystyrene
Roof - Top membrane
Elevation - thin-layer plaster

The costs of implementing:

The raw state open	7 500,00 EUR
The raw state closed	10 400,00 EUR
The cost of finishing works	7 900,00 EUR
Execution of turnkey home	18 300,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Projekt Garażu BG11 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
