House plan Park Residence 3C

Usable area: 201.36 m2   /   The cost of the realization: 202 420 EUR

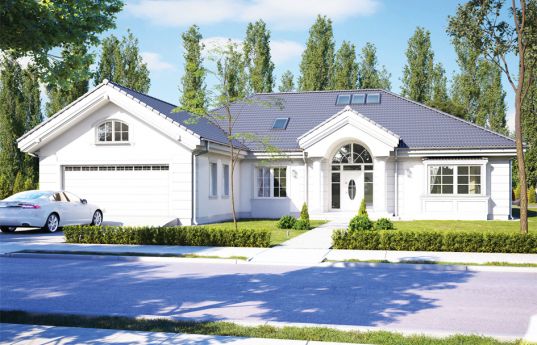

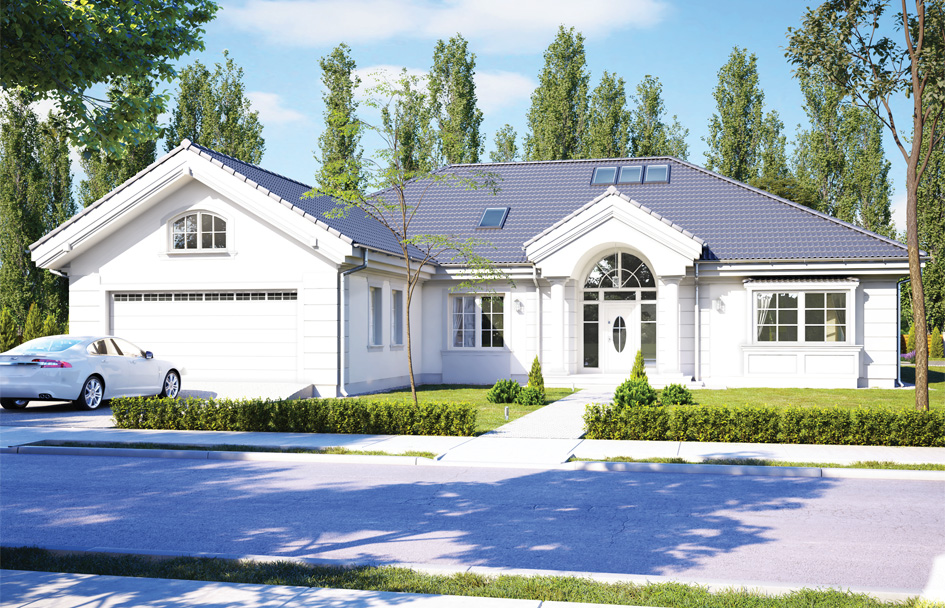

Projekt domu Rezydencja parkowa 3 C - wizualizacja frontu logo
Show mirror image

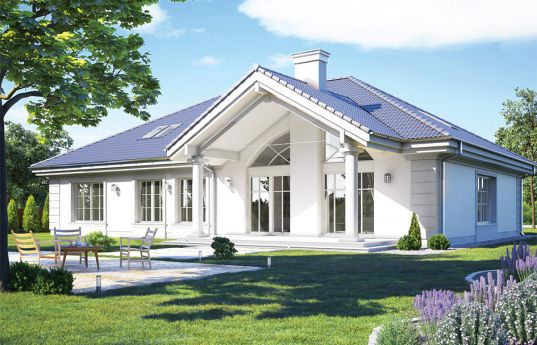

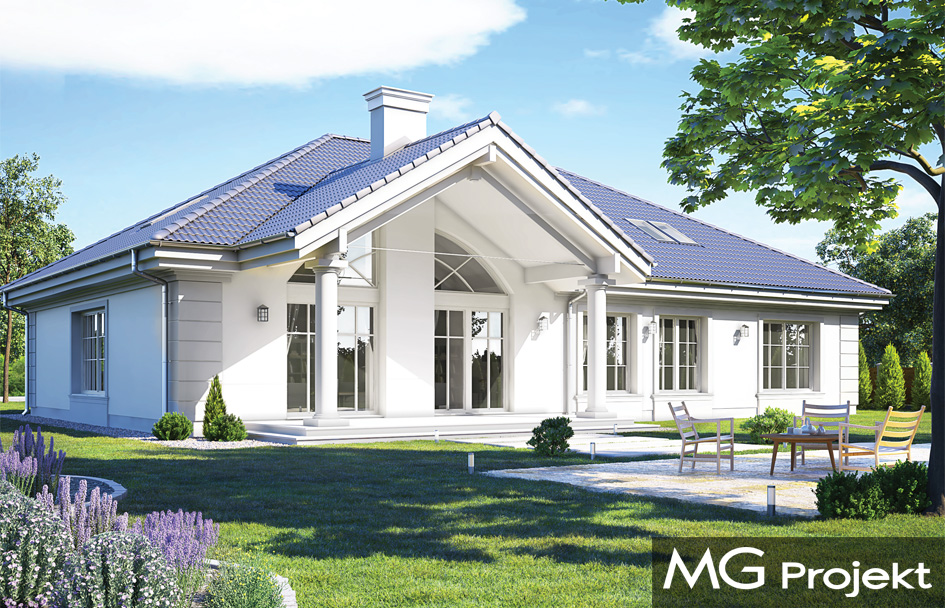

Park Residence 3C is another variant of the popular project from the Park Reservation series. The building was designed to be more compact - with a block tighter by almost 3 meters from the base block. The usable floor space and the building area of the house is smaller, so the building cost of the house is lower by almost 15%. The building is a suburban elegant residence modeled on the residential pre-war houses. The house combines a classic, timeless form with a modern function and the materials and technologies used. The front of the house is decorated with a representative entrance portal with beautiful entrance doors. From the side of the garden façade we have a beautiful roof terrace in the large living room window, opening the interior to the garden. The interior of the house is planned as a one-storey flat only on the ground floor. On the upper floor there is an attic, which can be left as a free space, or managed in any way as a usable attic. On the ground floor, we have a division of the interior into three parts: the living, the night and the economic-garage part. The living area has a beautiful living room with a spatial opening, dining room, hall, kitchen with island and pantry, and a large comfortable hall with a cloakroom and a passage to the garage. In the night part, we have two bedrooms, with bathroom, wardrobe and laundry room, and stairs to the attic. In the economic part we have a nice locker room connecting the garage with the hall, a very large utility room / boiler room, and a garage for two cars. The house has been designed for a family of three who likes to have a large space and because it is not a big family does not want to nest in a hundred-meter house. The house does not have many rooms - because there is no need here, but it is very comfortable and convenient. The rooms are large and adjustable. In addition, we still have a large attic space to adapt. The house is comfortable and quite big. Thanks to energy-saving solutions and modern installations, the house will also be inexpensive in maintenance.

Specifications:
  • Cubature: 1370 m3 / 48374,70 ft3
  • Built-up area: 305,85 m2 / 3290,95 ft2
  • Total area: 376,09 m2 / 4046,73 ft2
  • Net area: 216,48 m2 + garage 42,60 m2 + attic 54,11 m2 / 2329,32 ft2 + garage 458,38 ft2 + 582,22 ft2
  • Usable area: 201,36 m2 /  2166,63 ft
  • Roof area: 433,59 m2 / 4665,43 ft2
  • Roof slope: 30 degrees
  • Height of the building: 7,22 m (7,52 m with foundation) / 23,68 ft (24,67 ft with foundation)
  • Building dimensions: 20,30 m x 22,52 m / 66,58 x 73,87 ft
  • Plot dimensions: 28,30 x 29,52 m / 92,82 x 96,83 ft
  • Height of rooms: 3,0 m / 9,84 ft
Materials:
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  •     Ceiling - monolithic
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - ceramic tile




The costs of implementing:
The raw state open 71 700,00 EUR
The raw state closed 116 840,00 EUR
The cost of finishing works 85 580,00 EUR
Execution of turnkey home 202 420,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Rezydencja parkowa 3 C - pliki szczegółowe

Rezydencja parkowa 3 C - pliki szczegółowe - odbicie lustrzane
