Cassiopeia 7 house plan

Usable area: 175.95 m2   /   The cost of the realization: 143 750 EUR

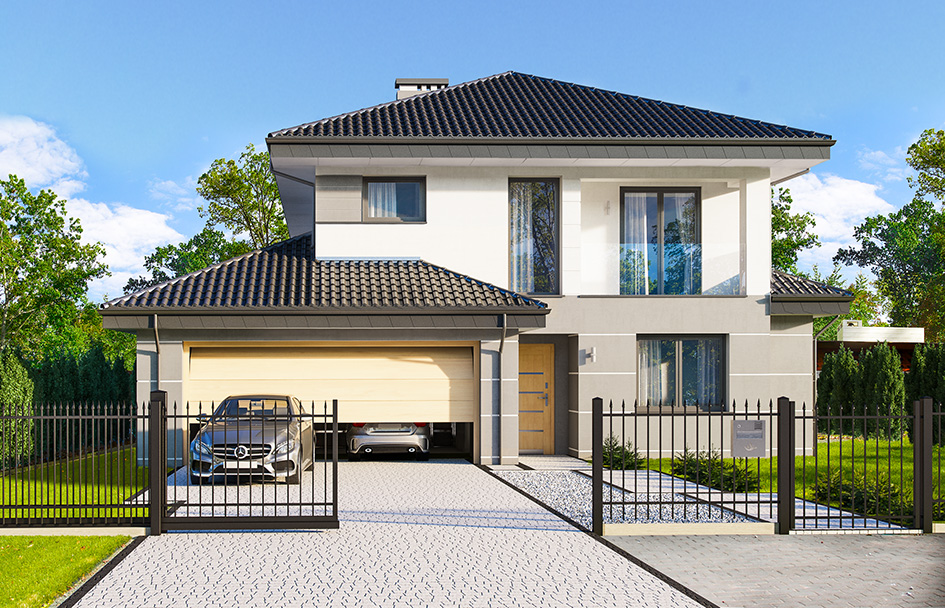

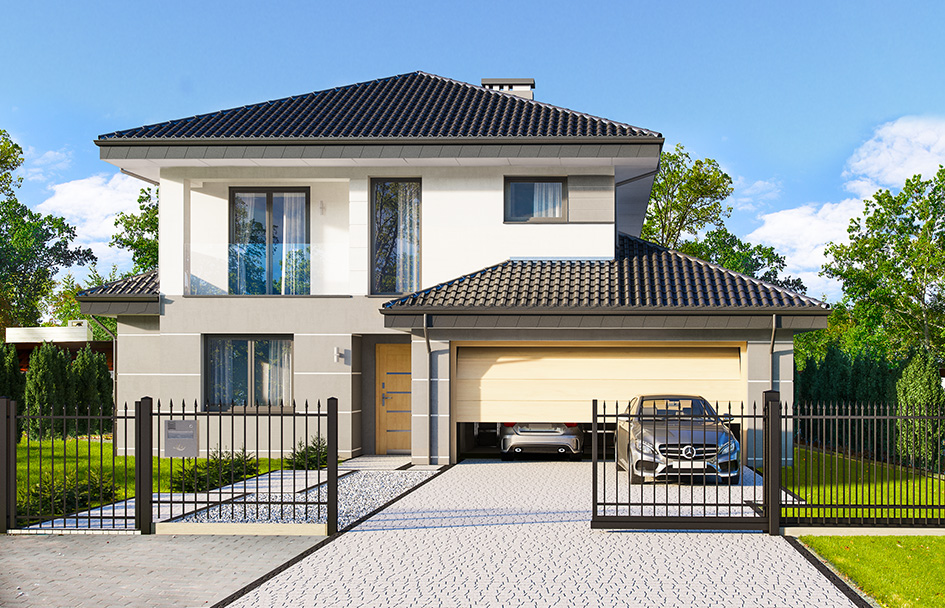

House plan Cassiopeia 7 - front visualization
Show mirror image

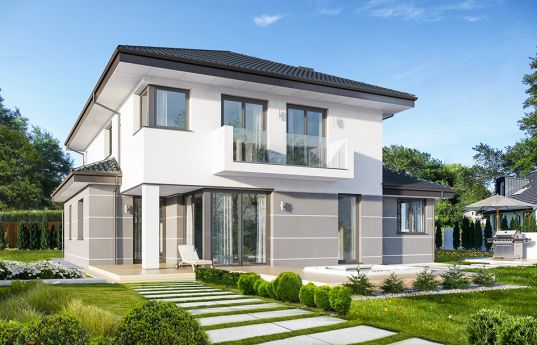

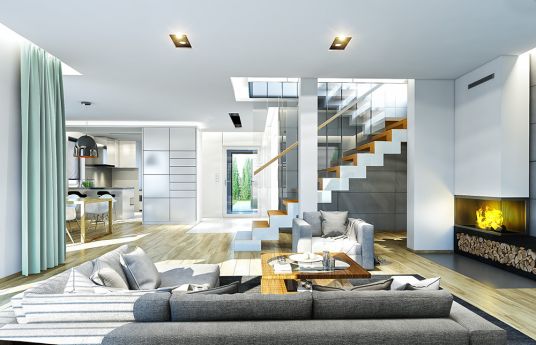

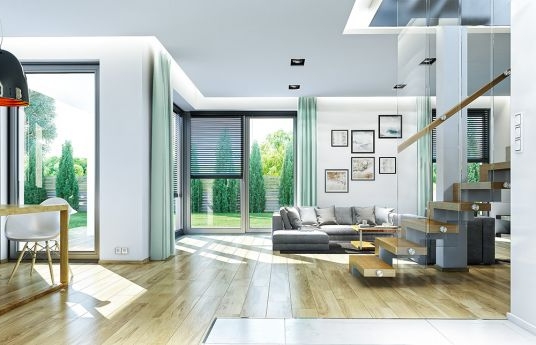

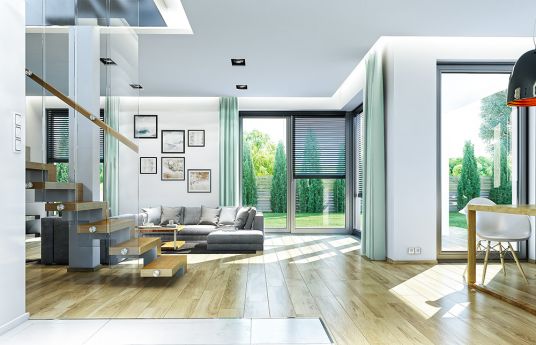

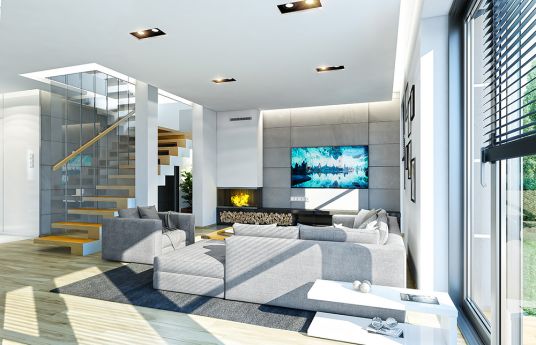

Cassiopeia 7 is a completely new house plan with the popular house plan Cassiopeia. This house plan is fundamentally different from the other houses in this collection and has a new original and modern architectural expression. It was achieved by combining the simplicity, savings additives and details and using interesting colors and materials. Cassiopeia 7 is a storey building, for the family of four- seven people. Body of the house is storeys, covered with a hipped roof, with build another single-storey part with double garage. Cassiopeia 7 is large, comfortable and prestigious villa, designed for investors who dream of freedom of space. At the same time the building has practically designed interior, and its construction is fairly simple and easy to build. Elevations of the house are divided into horizontal stripes. The lower ground floor strip has a gray rustication, walls of the first floor are white. Large windows, arcades and balconies also decorate the body of the building. The whole creates a modern and dynamic silhouette of the house. Interior: ground floor is primarily a really big living room, with dining room and hall, creating a large living space. At the entrance to the house from the front was designed a large kitchen with a table for quick meals. From the atrium we get to the double garage and the boiler room. Behind the stairs, slightly separated from the living room is located in an extra room with bathroom: office or bedroom hospitality. This can also be room for seniors. On the first floor was designed as many as four bedrooms and two bathrooms. Children’s bedrooms have built in wardrobes. Parents' bedroom is a separate apartment with its own bathroom, dressing room and a covered balcony. Cassiopeia 7 is a comfortable, functionally designed house, with a modern and representative architecture.

Specifications:
  • Cubature: 792 m3/27965 ft3
  • Built-up area: 168,79 m2/1816,18 ft2
  • Total area: 276,43 m2/2974,39 ft2
  • Net area: 183,54 m2 + garage/1974,89 ft2 + garage
  • Usable area: 175,95 m2/1893,22 ft2
  • Roof area: 250,68 m2/2697,32 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,25 m (8,55 m with foundation)/27,06 ft (28,04 ft with foundation)
  • Building dimensions: 12,73 m/41,75 ft x 15,02 m/49,27 ft
  • Plot dimensions: 19,73 m/64,71 ft x 23,02 m/75,51 ft
  • Height of rooms: 2,70 m/8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling - Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile




The costs of implementing:
The raw state open 45 710,00 EUR
The raw state closed 70 600,00 EUR
The cost of finishing works 73 160,00 EUR
Execution of turnkey home 143 750,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Cassiopeia 7 - detailed drawings

House plan Cassiopeia 7 - detailed drawings - mirror
