House plan House on Park Street 6

Usable area: 122.39 m2   /   The cost of the realization: 169 070 EUR

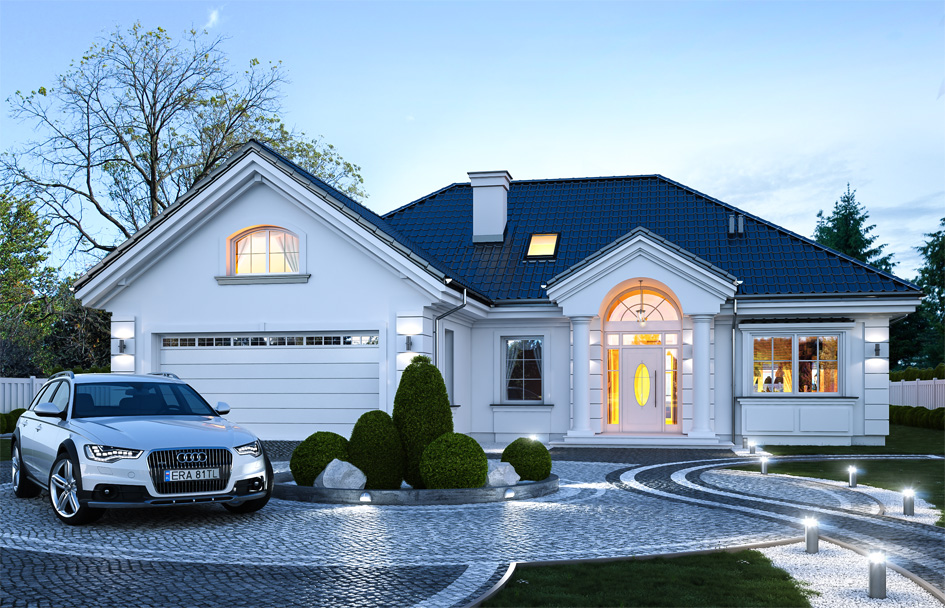

Projekt domu Dom na parkowej 6 - wizualizacja frontowa

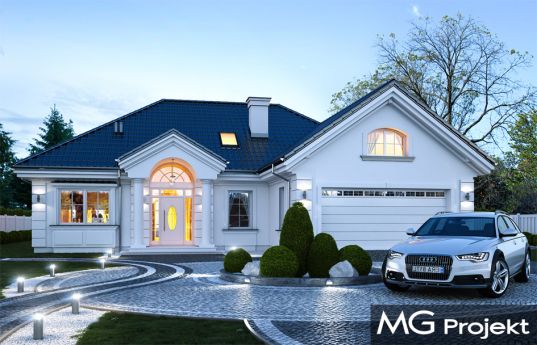

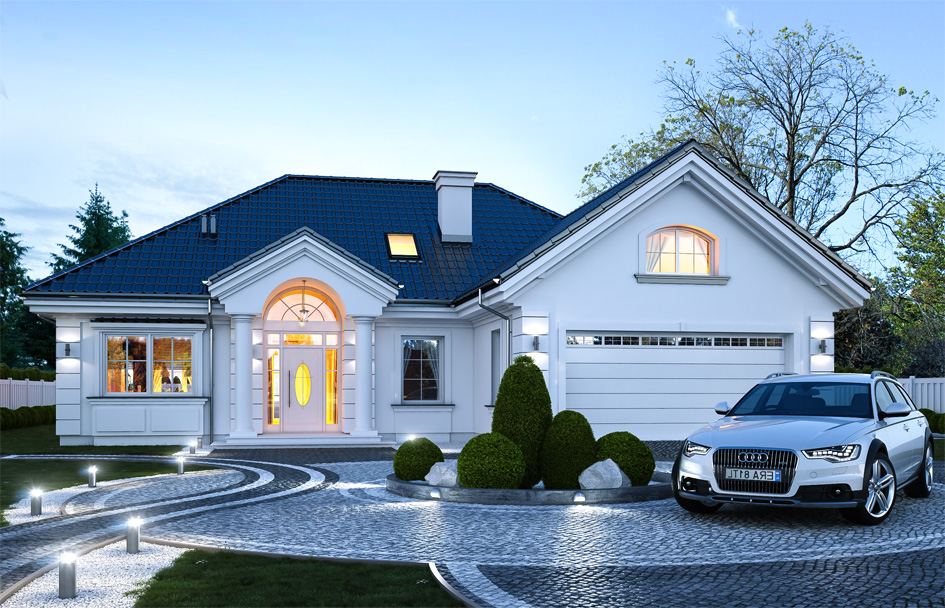

Show mirror image

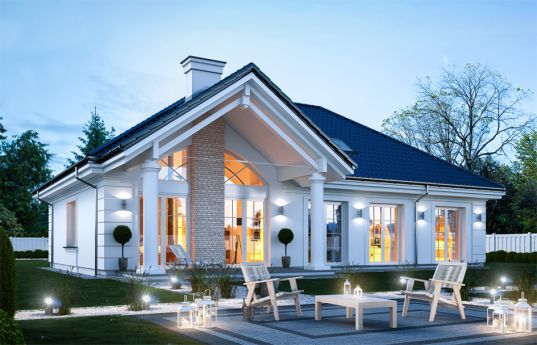

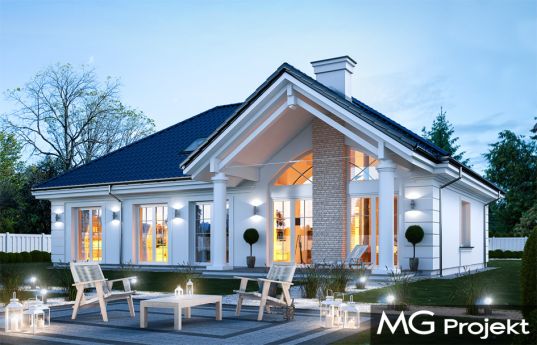

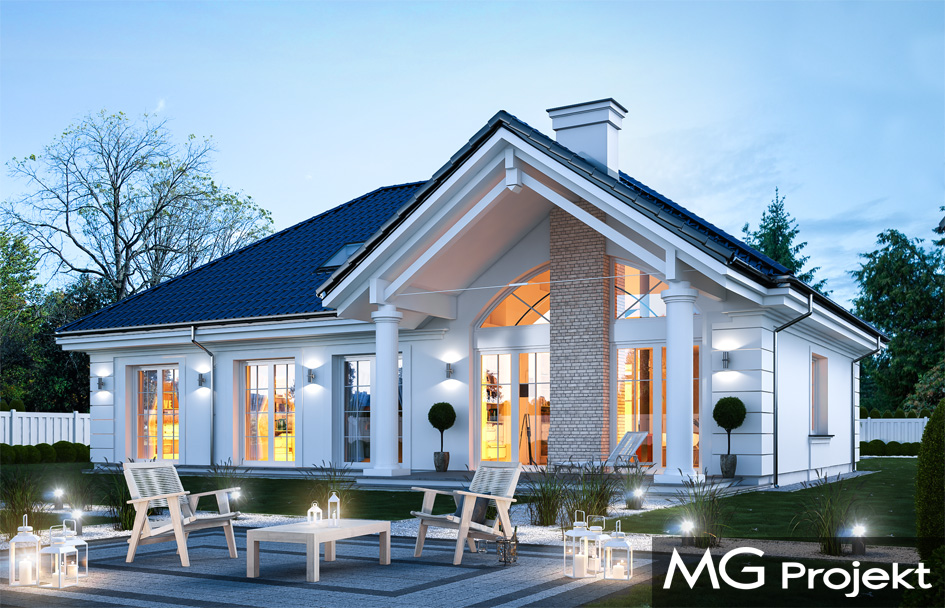

House on Park Street 6 is another variant version of the popular house plan from the series "House on Park Street". This version is bigger hen other house plans. A single-family house for a 3-6-person family, one-storey, with an attic, which can be easily adapted and used for a usable attic. The building has a rectangular shape, covered with a fall roof. From the side of the front elevation, a two-station garage is added to it. The representative front of the house, reminiscent of American residences from the rich suburbs, is decorated with beautiful, roofed roofs above the entrance door. This is the central element of the front elevation that focuses the whole attention. Similarly from the garden side: the main element decorating the elevation is a beautiful roof over the terrace, and large glazed living room. The architecture of the house, saturated with classical details, although subdued, creates an elegant home with a timeless appearance. Interior: the entire utility part of the house is located on the ground floor. The attic can be arranged as an additional usable space, or it can be left as an attic. If it is used as an usable attic, then there are two rooms, a bathroom and a entresol above the space above the living room. We come to the house through a comfortable hall with a cloakroom, with a raised ceiling, from which we get to the lobby, or to the side - to the boiler room and garage. In front of the entrance, we enter the open living space of a combined living room and dining room, and a separate beautiful kitchen with a pantry. Above the living room we have open ceiling adding to the living room more space. The opening is connected with the entresol in the attic. In the night part of the house we have three bedrooms, toilet and bathroom. Children's bedrooms have built-in wardrobes. Parents' bedroom - a dressing room. All bedrooms have beautiful windows overlooking the garden. Above the garage there is an additional utility attic. The house is simple to build and energy-saving. This is a perfect proposition for people who do not plan to spend a very large amount on building a house, or do not want to give up their dreams without having a large plot of land.

Specifications:
  • Cubature: 742 m3 / 26200,02 ft3
  • Built-up area: 203,91 m2 / 2194,07 ft2
  • Total area: 264,40 m2 / 2844,94 ft2
  • Net area: 128,55 m2 /1383,20 ft2+ garage 34,22 m2 / 368,21 ft2+ attic 56,09 m2 / 603,53 ft2
  • Usable area: 122,39 m2 /  13,16,92 ft2
  • Roof area: 314,90 m2 / 3388,32 ft2
  • Roof slope: 35 degrees
  • Height of the building: 7,31 m (7,61 m with foundation) / 23,98 ft (24,96 ft with foundation)
  • Dimensions of the plot: 16,50 m x 15,35 m / 54,12 x 50,35 ft
  • Minimal dimensions of the plot: 23,50 x 24,85 m / 77,08 x 81,51 ft
  • Height of rooms: 2,8 m / 9,18 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  monolithic
  • Elevation - thin-layer plaster on polystyrene
  • Roof -  tile or metal roofing tile




The costs of implementing:
The raw state open 52 020,00 EUR
The raw state closed 82 650,00 EUR
The cost of finishing works 86 420,00 EUR
Execution of turnkey home 169 070,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Dom na Parkowej 6 - pliki szczegółowe

Projekt domu Dom na Parkowej 6 - pliki szczegółowe - odbicie lustrzane
