Usable area: 64.1 m2 / The cost of the realization: 66 900 EUR
Show mirror image
Price: 830 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

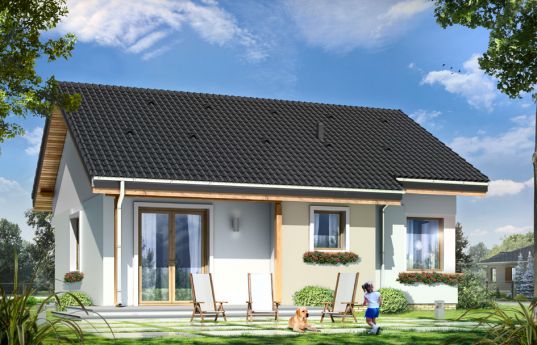

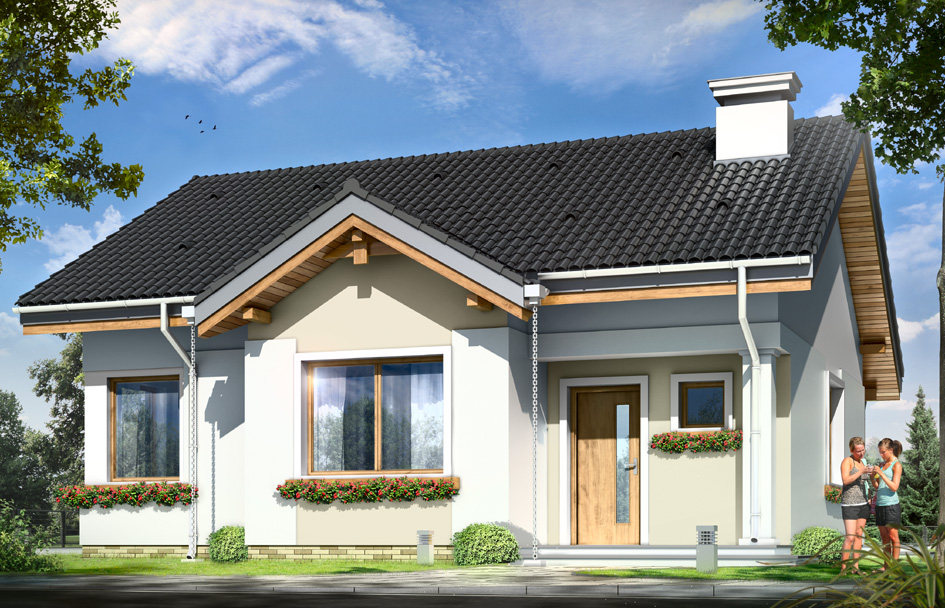

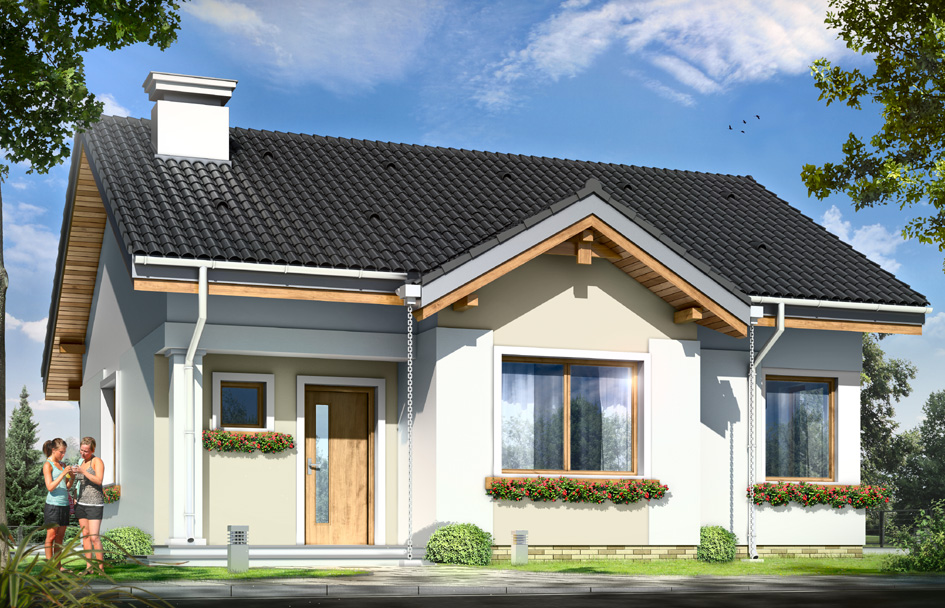

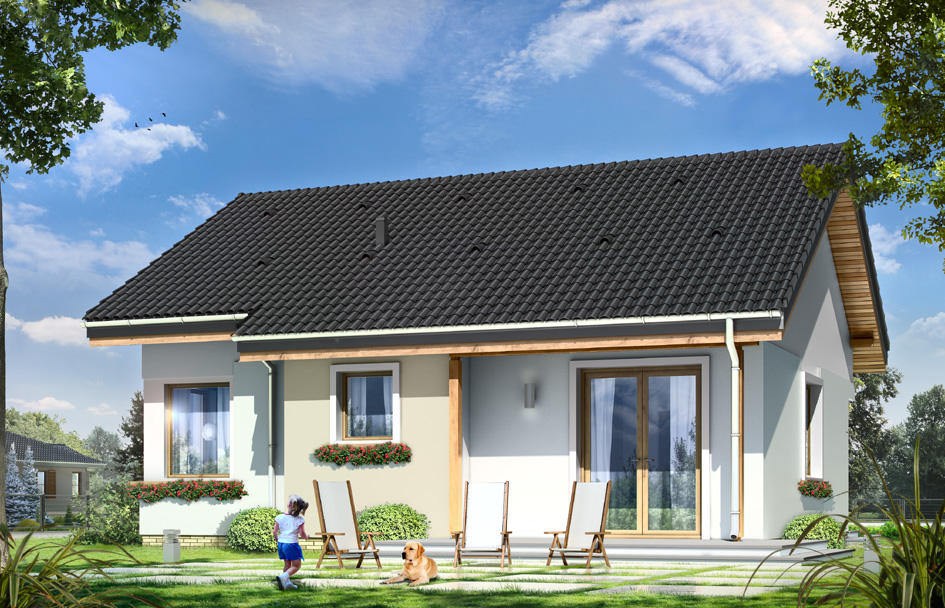

Cypisek house plan is a proposal for the small family of 3 – 4 people. Cypisek is a house with a rectangular shape, covered by a gable, symmetrical roof. Simple body of the house was decorated with interesting details, such as a roofed kitchen bay window, corner arcade entrance of the column, corner bedroom window, or arcade garden on a terrace. Chosen with taste, modern materials and colors in combination with the traditional body of this building give a unique effect. The interior of the house hides three bedroom, comfortable apartment, with an additional entrance porch and a boiler room. In the living room there is a corner fireplace visible from anywhere in the living area and large glass doors opening the house to the terrace and garden. The attic above the ground floor can be quite easy adapt to usable attic. There is also a mirror version of Cypisek.
Specifications:
- Cubature: 465 m3/ 16419,15 ft3
- Built-up area: 85,73 m2/ 922,45 ft2
- Total area: 85,73 m2/ 922,45 ft2
- Net area: 66,19 m2/ 712,20 ft2
- Usable area: 64,1 m2/ 689,72 ft2
- Roof area: 131,54 m2/ 1415,37 ft2
- Roof slope: 30 degrees
- Height of the building: 6,14 m (6,39 m with foundation)/ 20,14 ft (20,96 ft with foundation)
- Wide of the building: 10,05 m / 32,96 ft
- Length of the building: 9,83 m / 32,24 ft
- Minimum plot width: 18,05 m / 59,20 ft
- Minimum plot length: 17,83 m / 58,48 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - brick walls - porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 25 900,00 EUR |
| The raw state closed | 36 000,00 EUR |
| The cost of finishing works | 31 000,00 EUR |
| Execution of turnkey home | 66 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Cypisek - detailed file - mirror
House plan Cypisek - detailed file
