Usable area: 79.31 m2 / The cost of the realization: 86 300 EUR

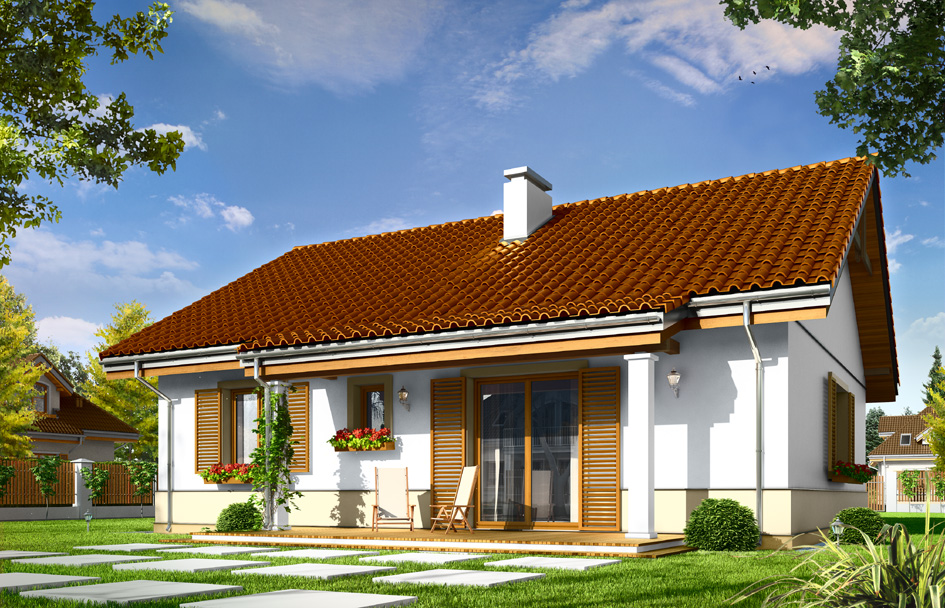

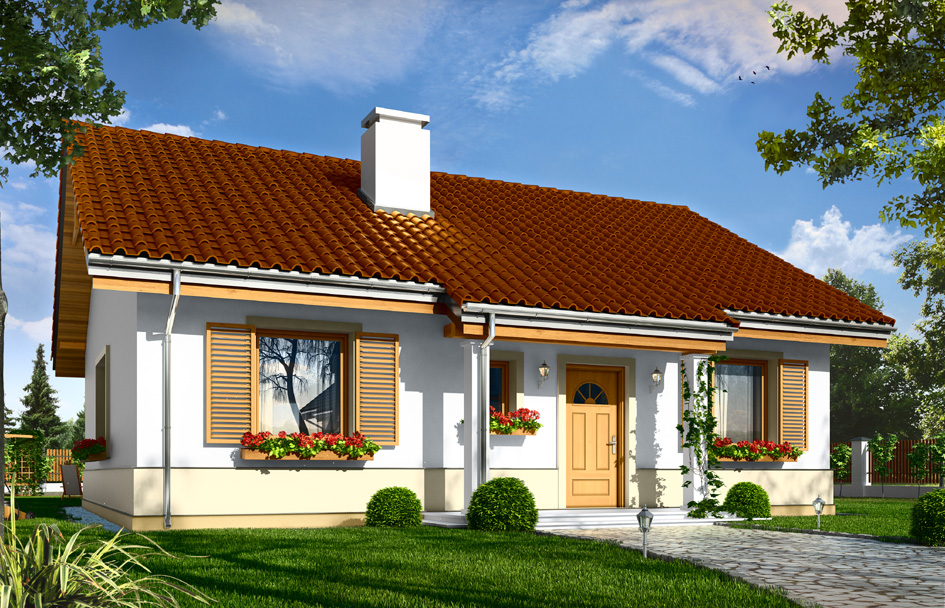

Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

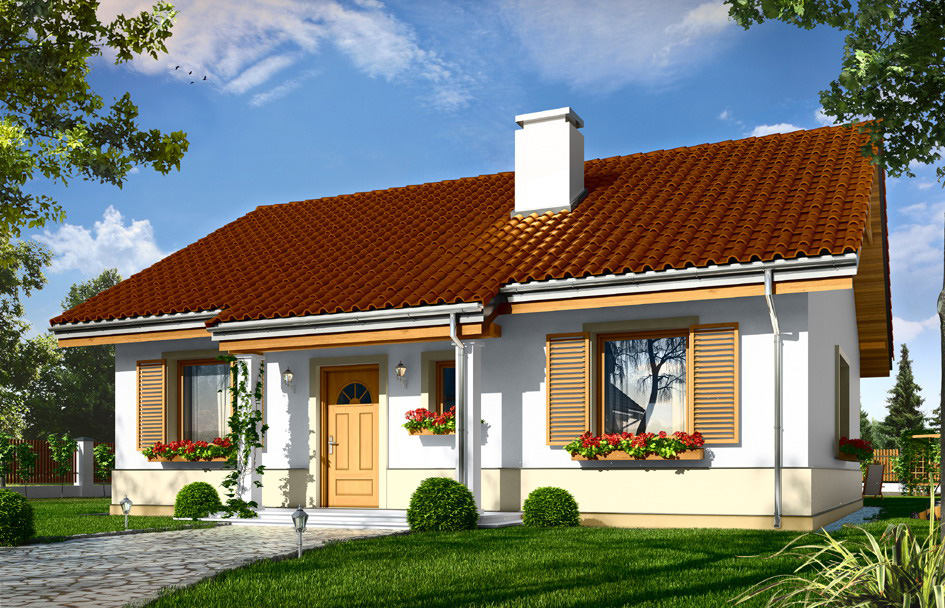

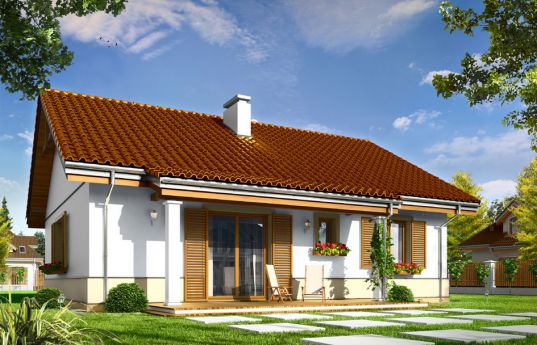

Frog house plan is a detached house for 3-5 persons, with a simple block, designed on the plan close to a square, covered with a gable roof. House exists in several variants: for three people - with two bedrooms, for four people - with three bedrooms, with not adapted attic, or with adapt attic. Frog is very easy and inexpensive to build house, and during the subsequent exploitation will be inexpensive to maintain. Thanks to the materials and technology is a warm and energy efficient - thanks to a package of mechanical ventilation with recuperation manages to very reduced heating costs. The architecture of the house is traditional. The front elevation is decorated with entrance porch and from the garden by roofed terrace. Windows with shutters, bands and pedestals - all these elements interestingly diversified appearance of house. Symmetrical and proportional roof with eaves covers single-storey rectangular body. The interior of the house was designed maximum functionally and practically. Each version of the project has a different number of bedrooms, but the layout of the rooms is similar. The interior is divided into a living area - living room, hall and kitchen, and night area - with bedrooms and a bathroom. In addition next to the atrium was designed boiler room (gas boiler, which can be adapted on the boiler room for the solid fuel). In the living room is a fireplace and wide exit to the terrace and garden. Each of bedrooms have a large built-in wardrobes, which can easily be turned into a dressing room. We have a variant version with two or three bedrooms on the ground floor, and the version with stairs and a adapted attic (with two additional rooms). There is also available mirror version of this house plan.
Specifications:
- Cubature: 429 m3 /15147,99 ft3
- Built-up area: 107,65 m2 (with arcade: 125,15 m2) / 1158,31 ft2 (with arcade: 1346,61 ft2)
- Total area: 107,65 m2 / 1158,31 ft2
- Net area: 83,25 m2 / 895,77 ft2
-
Usable area:
- 79,31 m2 wg PN-70/B-02365 / 853,38 ft2 wg PN-70/B-02365
- 83,25 m2 wg PN-ISO 9836:1997 / 895,77 ft2 wg PN-ISO 9836:1997
- Roof area: 168,79 m2 / 1816,18 ft2
- Roof slope: 30 degrees
- Height of the building: 6,20 m (6,40 m with foundation) / 20,34 ft (20,99 ft with foundation)
- Wide of the building: 11,19 m / 36,70 ft
- Length of the building: 9,62 m / 31,55 ft
- Minimum plot width: 18,29 m / 59,99 ft
- Minimum plot length: 18,22 m / 59,76 ft
- Height of rooms: 2,6 m / 8,53 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - wooden beams
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 28 400,00 EUR |
| The raw state closed | 39 900,00 EUR |
| The cost of finishing works | 46 400,00 EUR |
| Execution of turnkey home | 86 300,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Frog- detailed file
House plan Frog - detailed file- mirror
