Usable area: 201.34 m2 / The cost of the realization: 158 600 EUR
Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (39) Detailed drawings
List of materials
Comments (3)

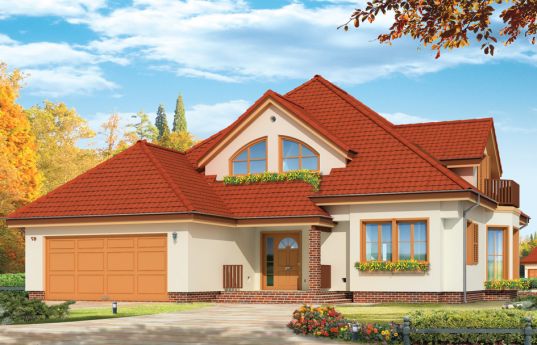

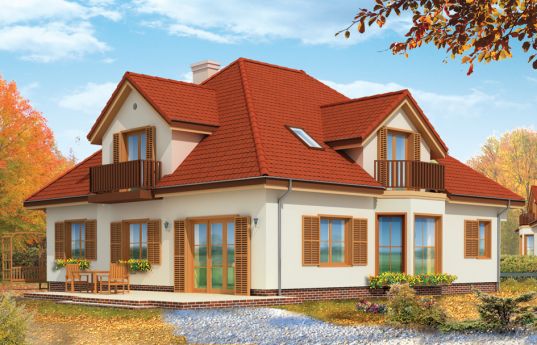

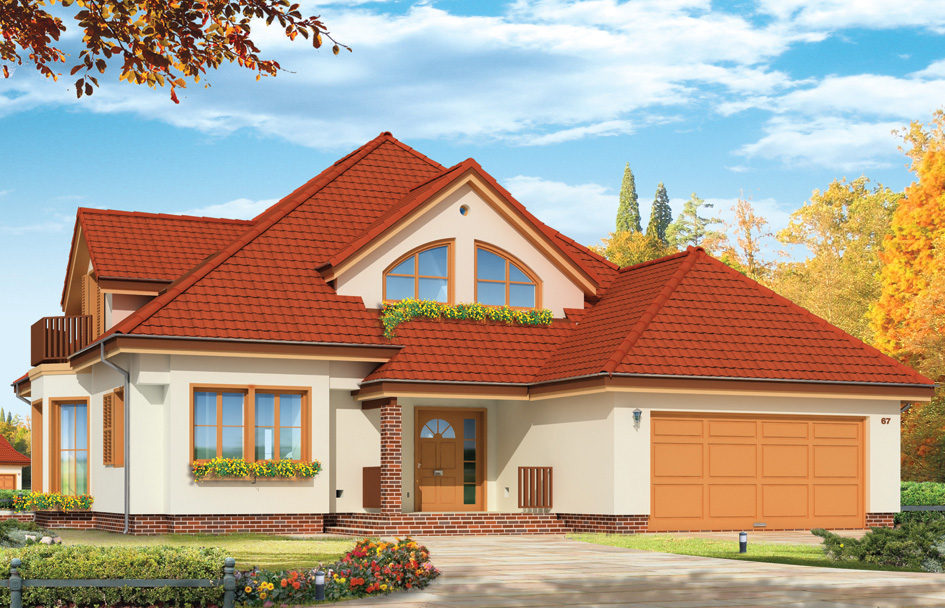

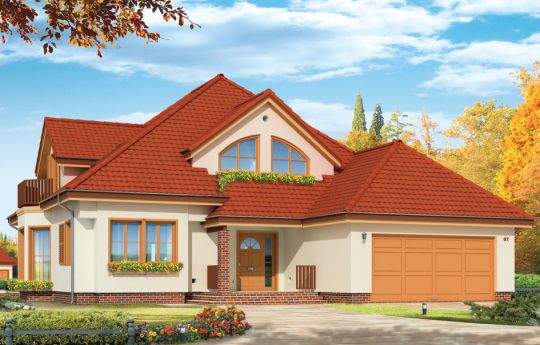

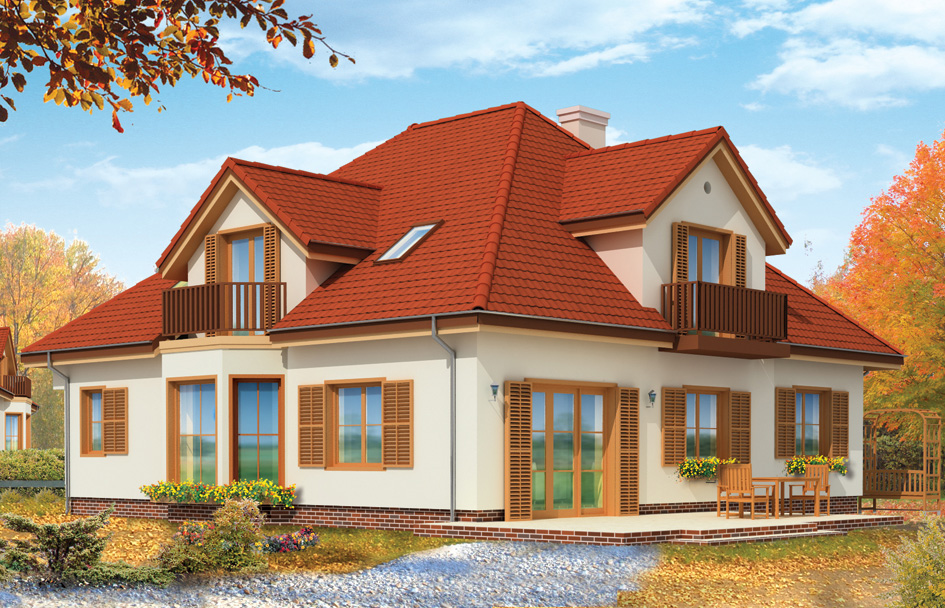

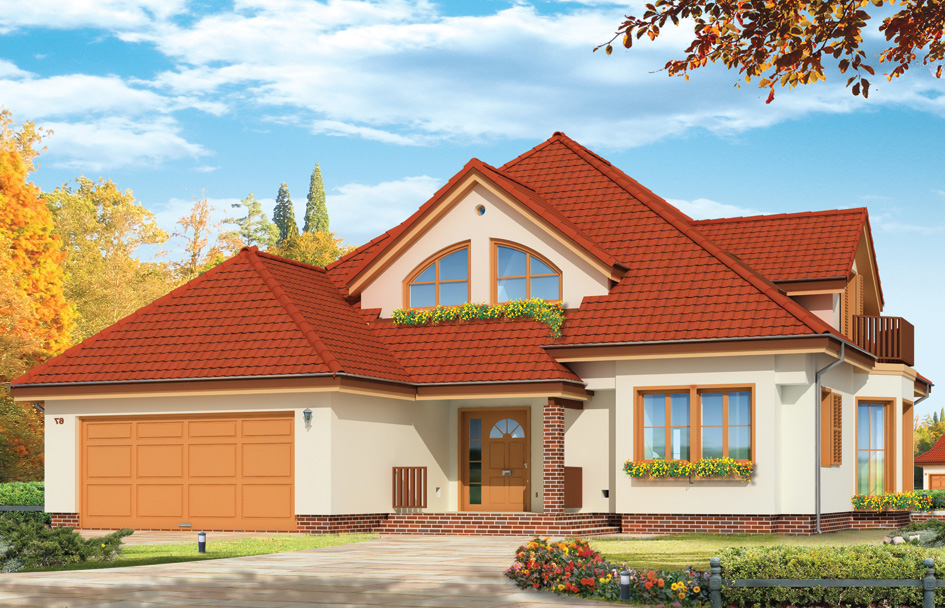

Hornówek 2 house plan is a variant version of the project Hornówek. Spacious and comfortable house with a garage for two cars built in the body of the building, designed for 4-5 person family. The house is ideal for narrow plot. There are some changes that have been made in the house plan, in relation to the basic version. A large bay window in the dining room with a low set windows was designed, rear porch was liquidated - arcade, lounge opening directly into the garden through the wide glass doors. There is available a mirror version of this house plan.
Specifications:
- Cubature 904 m3/31920,24 ft2
- Built-up area: 197,81 m2/ 2128,44 ft2
- Total area: 303,37 m2/ 3264,26 ft2
- Net area: 211,59 m2 + garage/ 2276,71 ft2+ garage
- Usable area: 201,34 m2/ 2166,42 ft2
- Roof area: 303 m2/ 3260,28 ft
- Roof slope: 37 and 45 degrees
- Height of the building: 8,70 m (9,10 m with foundation)/ 28,54 ft (29,85 ft with foundation)
- Wide of the building: 15,15 m/ 49,69 ft
- Length of the building: 16,87 m/ 55,33 ft
- Minimum plot width: 22,15 m/ 72,65 ft
- Minimum plot length: 24,87 m/ 81,57 ft
- Height of rooms: 2,80 and 2,70 m/ 9,18 ft and 8,86 ft
Materials:
• Foundations - concrete benches, walls of concrete blocks
• Exterior walls - bilayer walls with porothermu
• Ceiling – Teriva
• Roofing – tile
• Cladding - thin-layer plaster
The costs of implementing:
| The raw state open | 52 600,00 EUR |
| The raw state closed | 81 600,00 EUR |
| The cost of finishing works | 77 000,00 EUR |
| Execution of turnkey home | 158 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Hornówek 2 - detailed file - mirror
House plan Hornówek 2 - detailed file
