Joanna 2

Usable area: 262.45 m2   /   The cost of the realization: 229 200 EUR
House plan Joanna 2 - ground floor plan

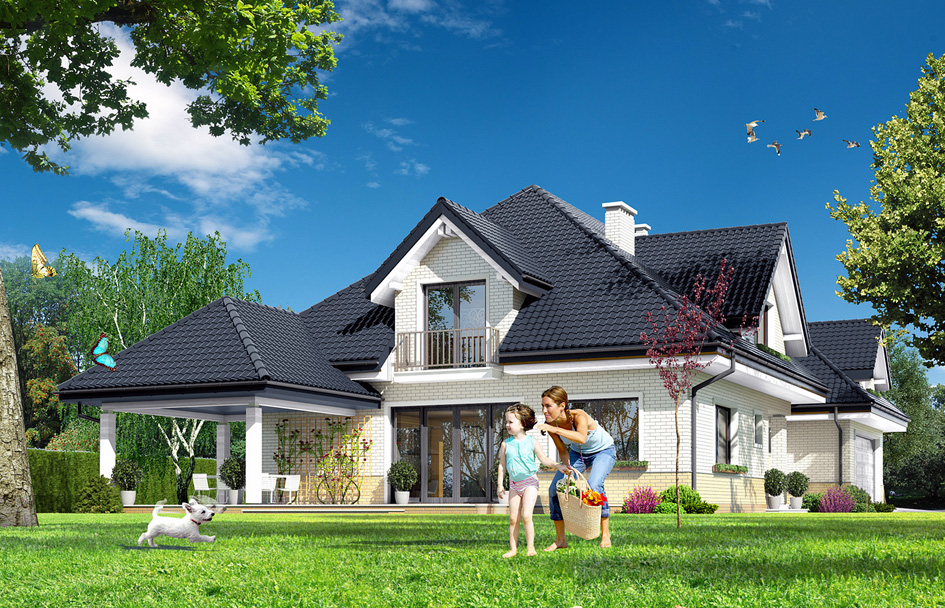

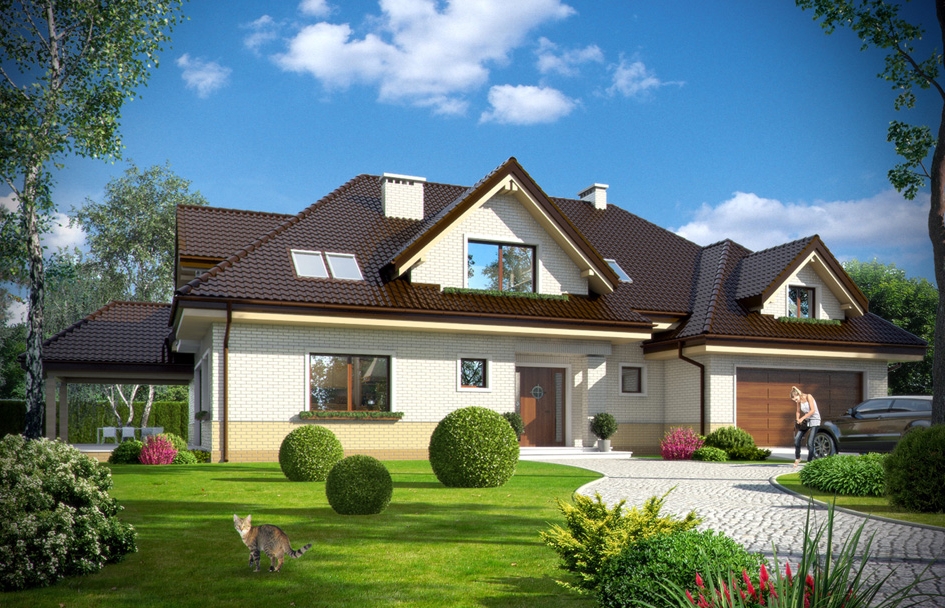

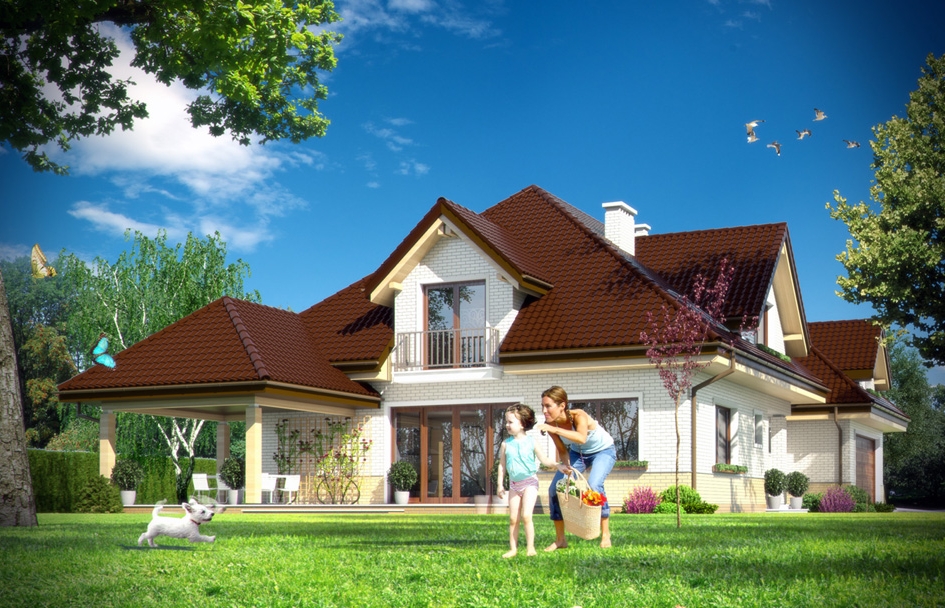

Show mirror image

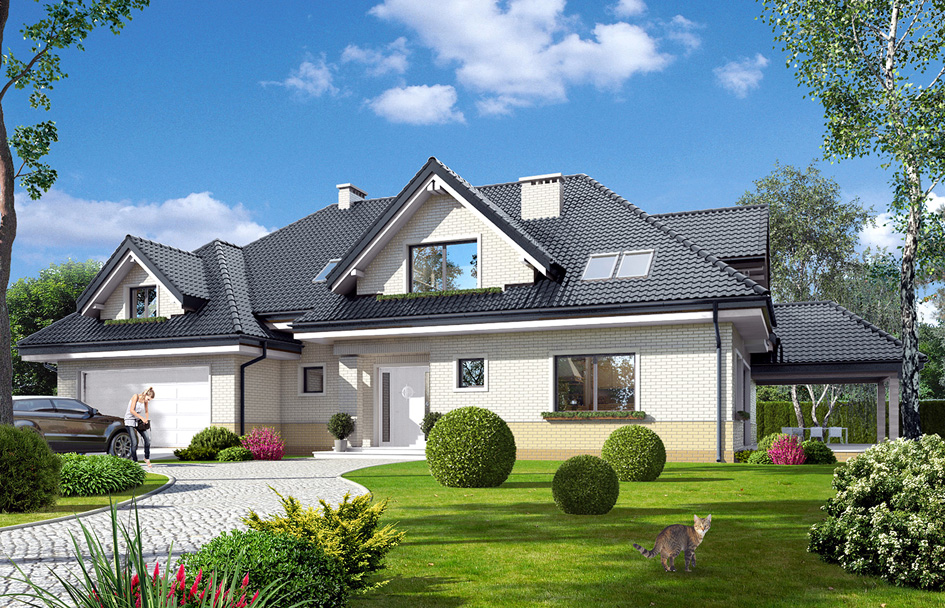

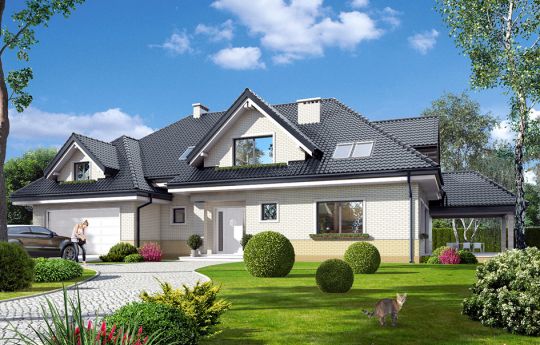

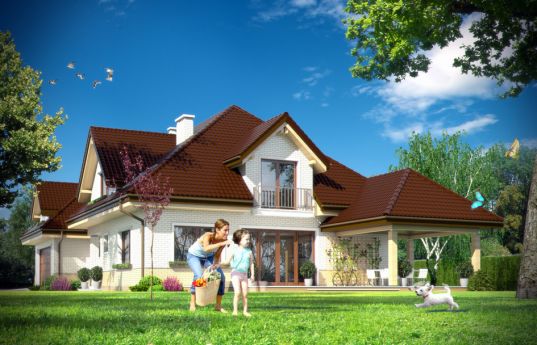

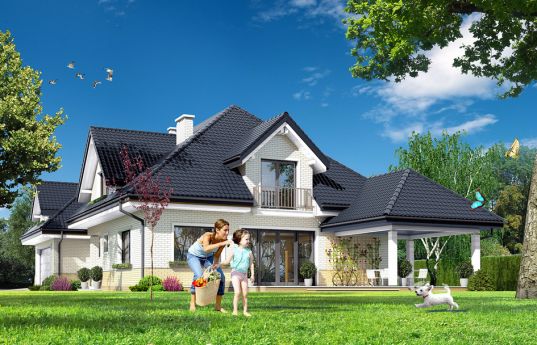

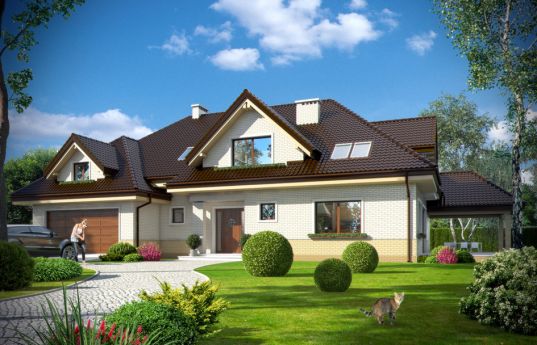

Joanna 2 house plan is a new version of the Joanna basic. This time, the house was enlarged. Exterior styling is changed. Elevation is decorated with clinker cladding. House gained a new different colors. Joanna 2 is the ideal suburban or rural residence, for investors seeking large space. It's a big house with lots of rooms and with a beautiful open, daily space and a very extensive part of the garage with utility part. Body of house is a typical for Polish roofer, with hipped roof covering a building in the shape of the letter "T". The traditional body of the house with attic and dormer windows has been combined with modern materials and colors. The whole creates a house with a modern but toned style. The interior was divided into daily and the utility part on the ground floor and in the attic was designed bedrooms and a spare recreational space and storage. On the ground floor the main room is the living room, connected with hall, kitchen and pantry. From the living room we go out to the partially roofed terrace. On the ground floor there is provided additional room with a bathroom, dressing room and utility part consisting of the garage, boiler room, and two additional storage rooms. In the attic we have a beautiful apartment parents with dressing rooms, bath room and terrace, children's bedrooms, a great common bathroom, extra guest room, and recreational space above the garage, with additional two attics. The house is truly luxurious.

Specifications:
  • Cubature: 1230 m3 / 43431,3 ft
  • Built-up area:
    • without arcades 259,39 m2 / 2791,04 ft2
    • with arcades 281,86 m2 / 3032,81 ft2
  • Total area: 442,34 m2 / 4759,58 ft2
  • Net area: 274,22 m2 + garage 70,42 m2+ attic 14,21 m2 / 2950,61 ft2 + garage 757,72 ft2+ attic 152,90 ft2
  • Usable area:
    • 262,45 m2 wg PN-70/B-02365 / 2823,96 ft2
    • 274,22 m2 + garage wg PN-ISO 9836:1997 / 2950,61 ft2
  • Roof area: 477,6 m2 / 5138,98 ft2
  • Roof slope: 42 degrees
  • Height of the building: 8,73 m (9,03 m with foundation) / 28,63 ft (29,62  ft with foundation)
  • Wide of the building: 20,00 m / 65,6 ft
  • Length of the building: 15,60 m / 51,17 ft
  • Minimum plot width: 31,36 m / 102,86 ft
  • Minimum plot length: 23,60 m / 77,40 ft
  • Height of rooms: 2,8 i 2,7 m / 9,18 and 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof -  tile






The costs of implementing:
The raw state open 80 700,00 EUR
The raw state closed 131 300,00 EUR
The cost of finishing works 97 900,00 EUR
Execution of turnkey home 229 200,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Joanna 2 - detailed file

House plan Joanna 2 - detailed file - mirror
