By using this website you consent to the use of cookies, according to the current browser settings.Agnes house plan
Usable area: 178.94 m2 / The cost of the realization: 151 200 EUR

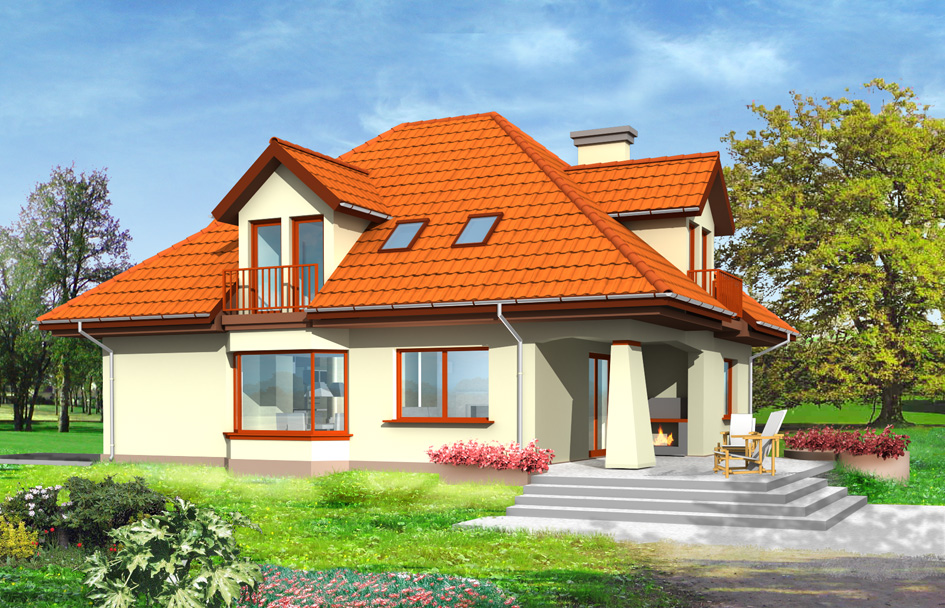

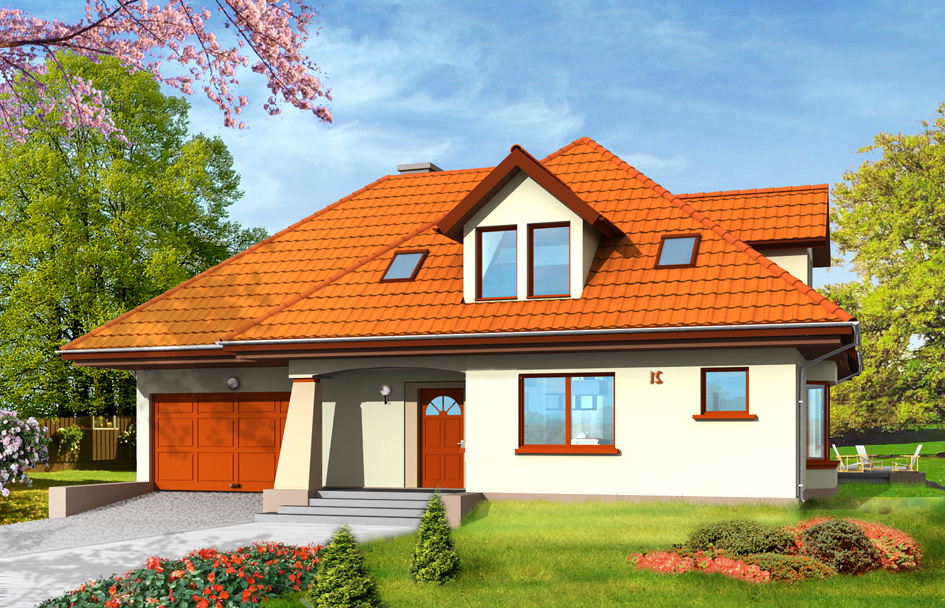

Show mirror image
Price: 1040 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (65) Detailed drawings
List of materials
Comments (3)

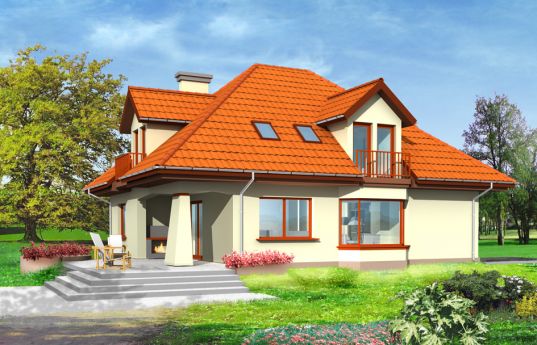

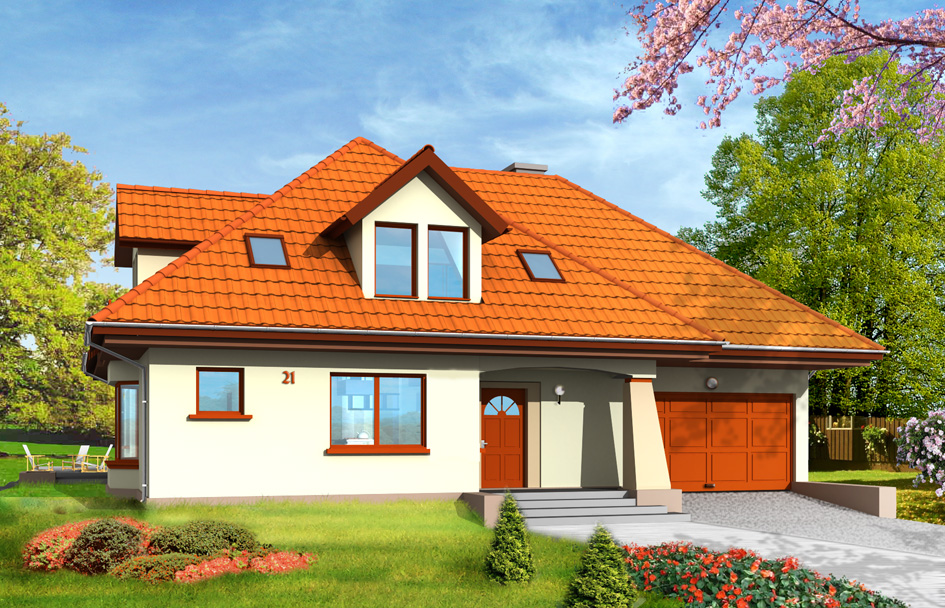

Agnes house plan has been created for a young family with children – this house plan is attractive on the outside and functional in the inside. The arcade supported by column with buttress give the entry presentable appearance. The bay window of the dining room and arcade with outdoor fireplace decorate the house from the garden. A hipped roof with dormers and balconies, diversify the body of the building. The interior of the house has a large living room, large garage and functional bedrooms in the attic. Agnes house plan is also is also available in a mirror version
Specifications:
- Cubature: 904m2 / 31920,24 ft3
- Built-up area: 170,48 m2 / 1834,36 m2
- Total area: 295,24 m2 / 3176,78 ft2
- Net area: 178,94 m2 + garage + attic/ 1925,39 ft2 garage + attic
- Usable area: 178,94 m2 / 1925,39 ft2
- Roof area: 330,5 m2 / 3556,18 ft2
- Roof slope: 40 degrees
- Height of the building: 8,70 m (9,40 m with foundation)/ 28,54 ft (30,83 ft with foundation)
- Wide of the building: 16,65 m /54,61 ft
- Length of the building: 13,11 m / 43,00 ft
- Minimum plot width: 23,65 m / 77,57 ft
- Minimum plot length: 22,11 m / 72,52 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
• Foundations - reinforced concrete
• External walls – bilayer porotherm 25 + 12 polystyrene (or wool)
• Ceiling - reinforced concrete Teriva
• Elevation - thin-layer plaster
• Roof - metal roofing tile or ceramic tile
The costs of implementing:
| The raw state open | 52 900,00 EUR |
| The raw state closed | 76 900,00 EUR |
| The cost of finishing works | 74 300,00 EUR |
| Execution of turnkey home | 151 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Agnes - detailed file
House plan Agnes - detailed file - mirror
