By using this website you consent to the use of cookies, according to the current browser settings.Joanna house plan
Usable area: 221.7 m2 / The cost of the realization: 195 800 EUR

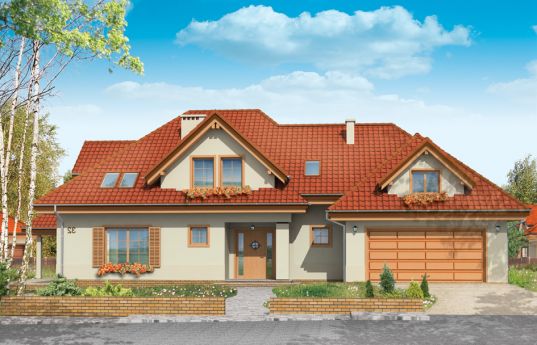

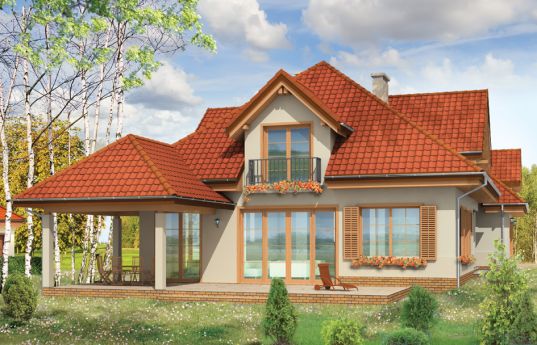

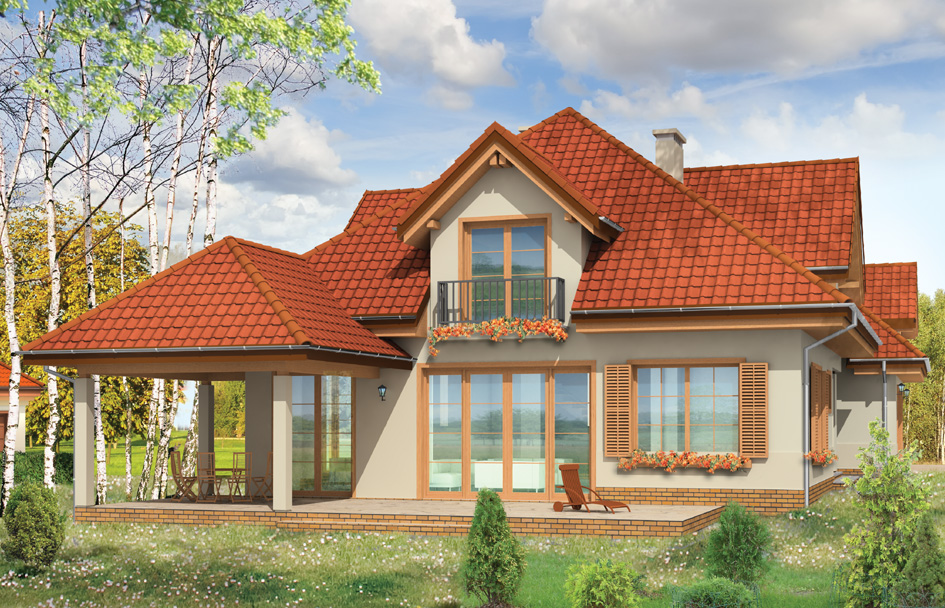

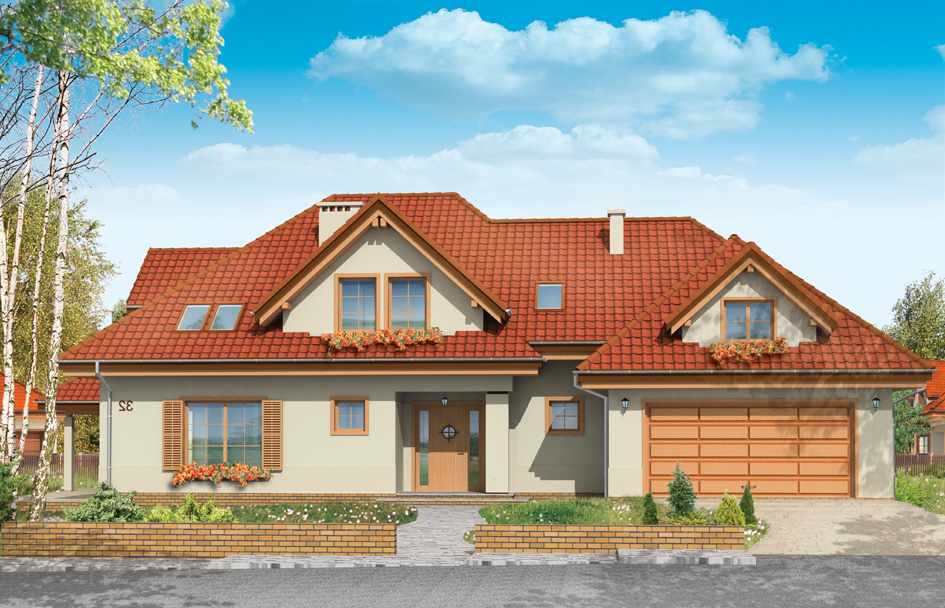

Show mirror image
Price: 1210 EUR
Description
Plans
Elevations
Situations
Variants (0)
Realizations (23) Detailed drawings
List of materials
Comments (3)

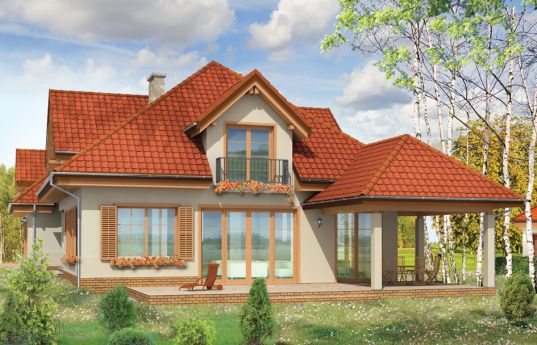

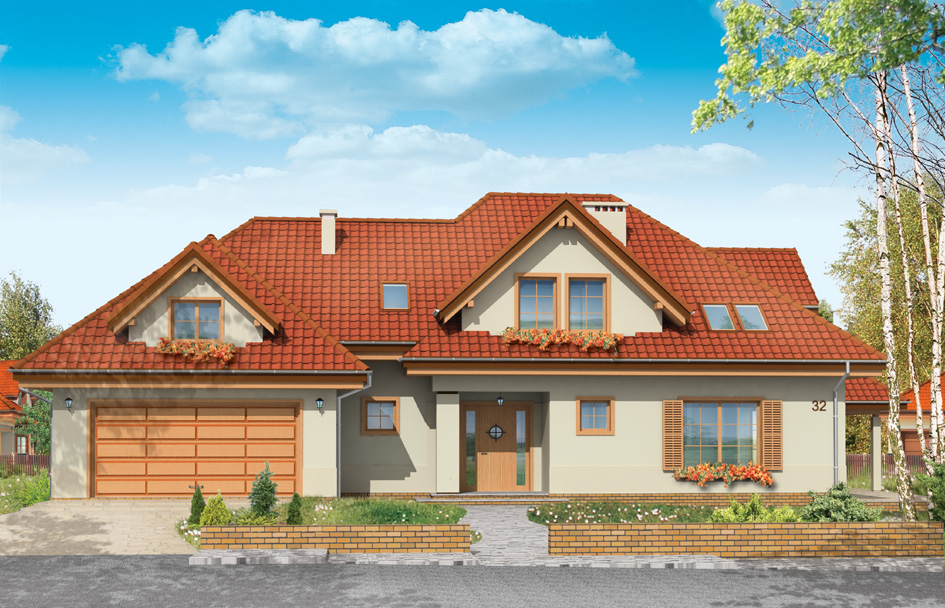

Joanna house plan is a large, comfortable one-story house with an attic with the vast and expanded block. It is an offer for customers who like hipped roofs and large dormer windows. The main body is connected by a link with the body of the garage. The house plan features a traditional, conservative architecture - with a modern elements. The interior of the house: on the ground floor there is a one space of living area, a living room with dining room, large kitchen, hall connecting part of the garage (storage room) and the rest of the ground floor rooms. In this house plan, on the attic there are three bedrooms, two bathrooms, a sports room and an attic above the garage, which can be adapted as a home theater room or sports room
Specifications:
- Cubature: 1081 m3/ 38170,11 ft3
- Built-up area: 216,73 m2/ 2332,01 ft2
- Total area: 367,7 m2/ 3956,45 ft2
- Net area : 234,01 m2 + garage + attic/ 2517,95 ft2 + garage + attic
- Usable area: 221,7 m2/ 3956,45 ft2
- Roof area: 411,8 m2/ 4430,97 ft2
- Roof slope: 38 i 42 degrees
- Height of the building: 9,03 m (9,31 m with foundation)/ 29,62 ft ( 30,54 ft with foundation)
- Wide of the building: 24,35 m/ 79,87 ft
- Length of the building: 13,75 m/ 45,1 ft
- Minimum plot width: 30,95 m/ 101,52 ft
- Minimum plot length: 21,75 m/ 71,34 ft
- Height of rooms: 2,8 and 2,7 m/ 9,18 ft and 8,56 ft
Materials:
- Foundations - poured concrete
- External walls - bilayer porotherm 25 + 15 polystyrene (or mineral wool)
- Ceiling - reinforced concrete TERIVA
- Roof - metal tile or tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 64 500,00 EUR |
| The raw state closed | 100 100,00 EUR |
| The cost of finishing works | 95 800,00 EUR |
| Execution of turnkey home | 195 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Joanna - detailed file
House plan Joanna - detailed file - mirror
Related Projects
2012.10.01 1
Nice house plan, we really like it, we will not make any changes.
2012.03.10 0
Hello everyone! I already ordered the project. We are currently awaiting for a building permit. This house is ideal in every respect, and most importantly, that we can build it without taking a loan.
2012.03.04 0
I was looking for a simple, functional home, and reviewing the offers of various architectural studios. This house is quite ok. The area of the house and the layout of the rooms perfectly suits us. I think that will be just right for my family.
