Usable area: 129.48 m2 / The cost of the realization: 123 000 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

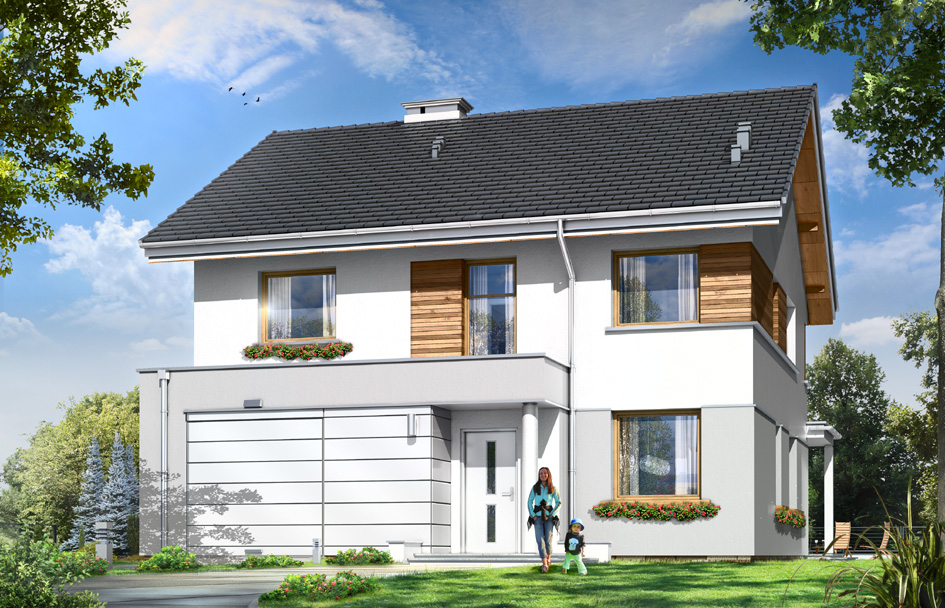

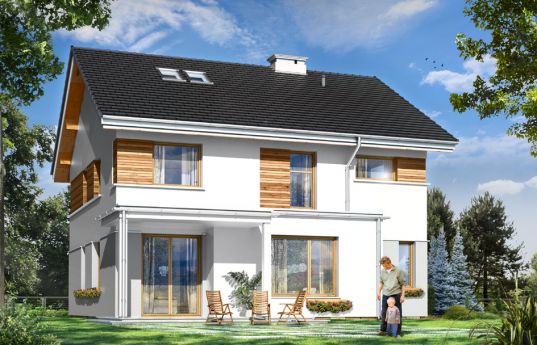

Miranda is a small storey house for a family of four people. This house characterized by a compact, easy-to-build body and modern architecture. Miranda house is created on a square covered by a gable roof. Slightly protruding garage with entrance arcade, pergola over a garden terrace, wall cladding around the windows - all these elements enrich the silhouette, giving it an attractive look. Miranda interior is divided into living and utility part on the ground floor, and bedrooms on the first floor. Living room is combined with dining area, hall with exposed staircase and open kitchen, and create a single daily space. Garage available from the atrium, and a large boiler are part of the utility part. There are three comfortable bedrooms on the first floor, with walk-in closet in the parents’ bedroom, and a bathroom with laundry facilities. This house, though small size, accommodates all the necessary facilities. The rooms are spacious, and thanks to the first floor there are no bevels. Above the floor is an attic for possible adaptation. Miranda house is also available in a mirror version.
Specifications:
- Cubature: 732 m3 / 25846,92 ft3
- Built-up area: 110,21 m2 / 1185,86 ft2
- Total area: 205,12 m2 / 2207,09 ft2
- Net area: 136,83 m2 + garage / 1472,29 ft2 + garage
- Usable area: 129,48 m2 / 1393,20 ft2
- Roof area: 145,98 m2 + 26,01 m2 (flat roof) / 1570,74 ft2 + 279,87 ft2 (flat roof)
- Roof slope: 30 degrees
- Height of the building: 8,85 m (9,00 m with foundation) / 29,03 ft (29,52 ft with foundation)
- Wide of the building: 10,08 m / 33,06 ft
- Length of the building: 12,06 m / 39,56 ft
- Minimum plot width: 17,98 m / 58,97 ft
- Minimum plot length: 20,76 m / 68,09 ft
- Height of rooms: 2,6 m / 8,53 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 45 000,00 EUR |
| The raw state closed | 61 500,00 EUR |
| The cost of finishing works | 61 500,00 EUR |
| Execution of turnkey home | 123 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Miranda - detailed file

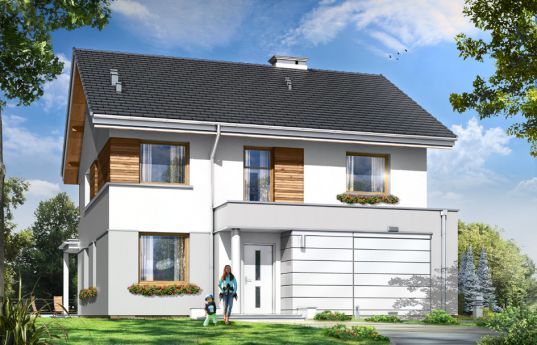

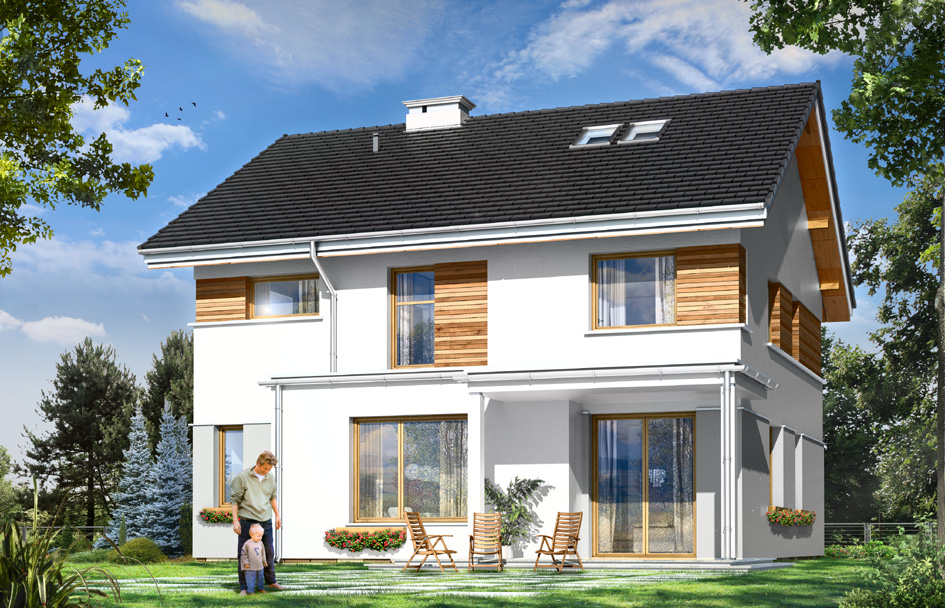

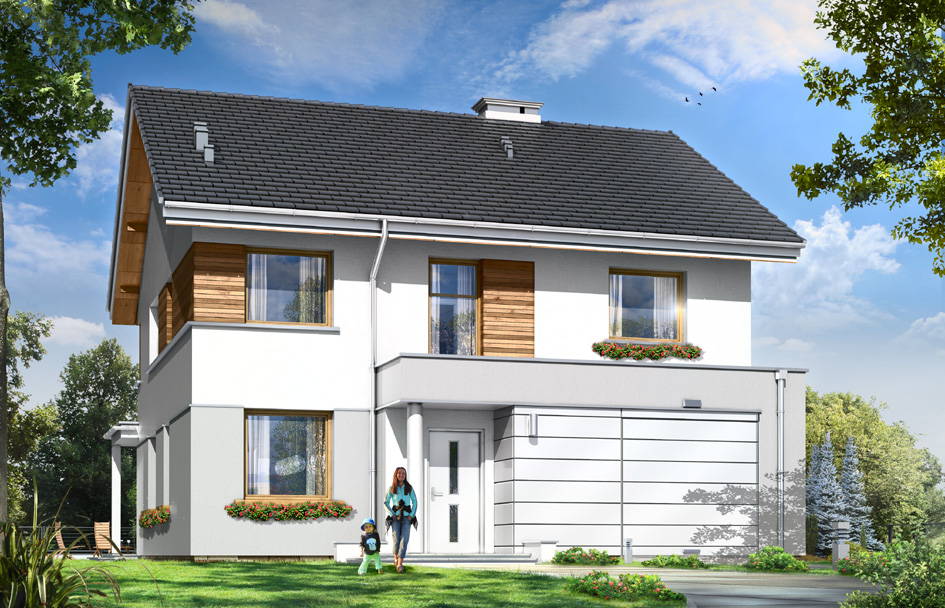

House plan Miranda - detailed file - mirror
