Emerald 4 house plan

Usable area: 143.94 m2   /   The cost of the realization: 138 300 EUR

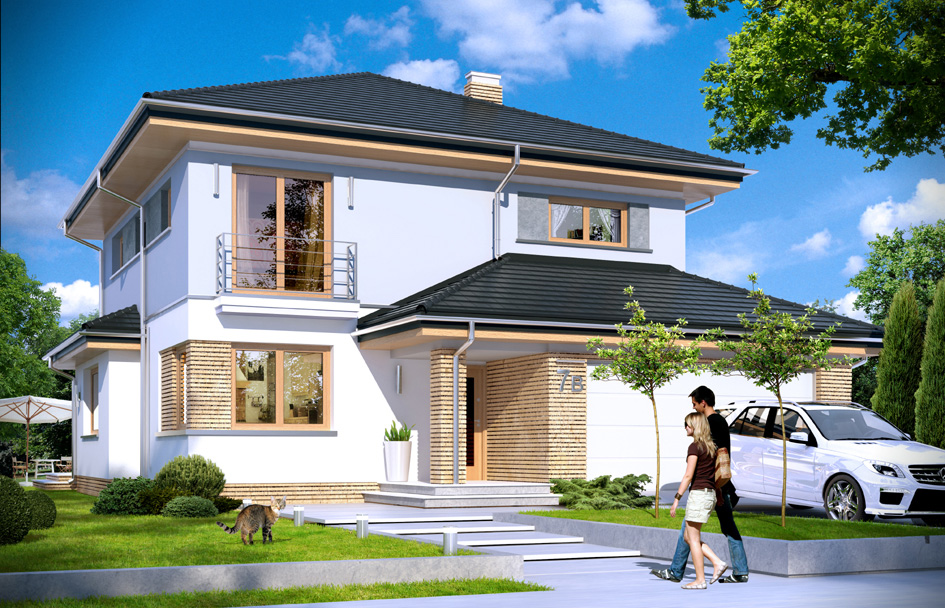

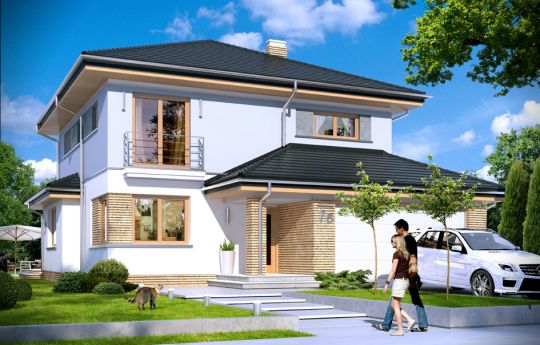

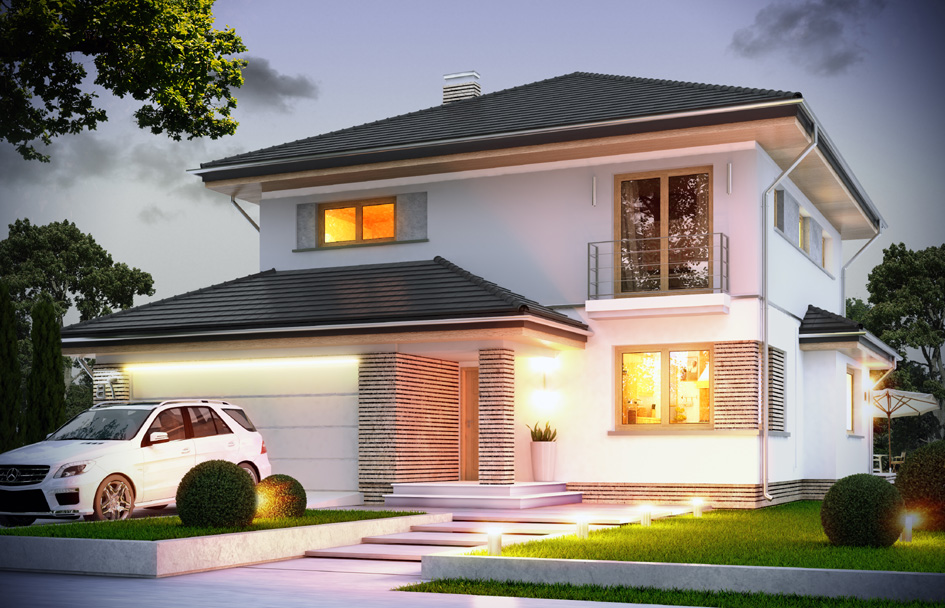

House plan Emerald 4 - front visualization

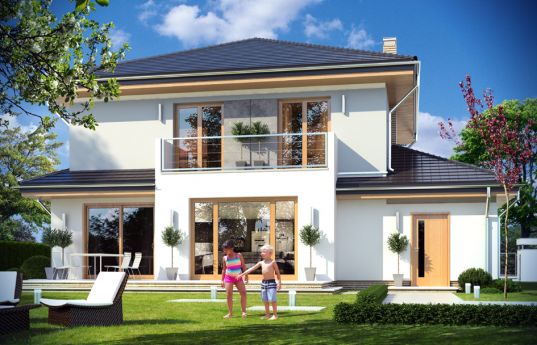

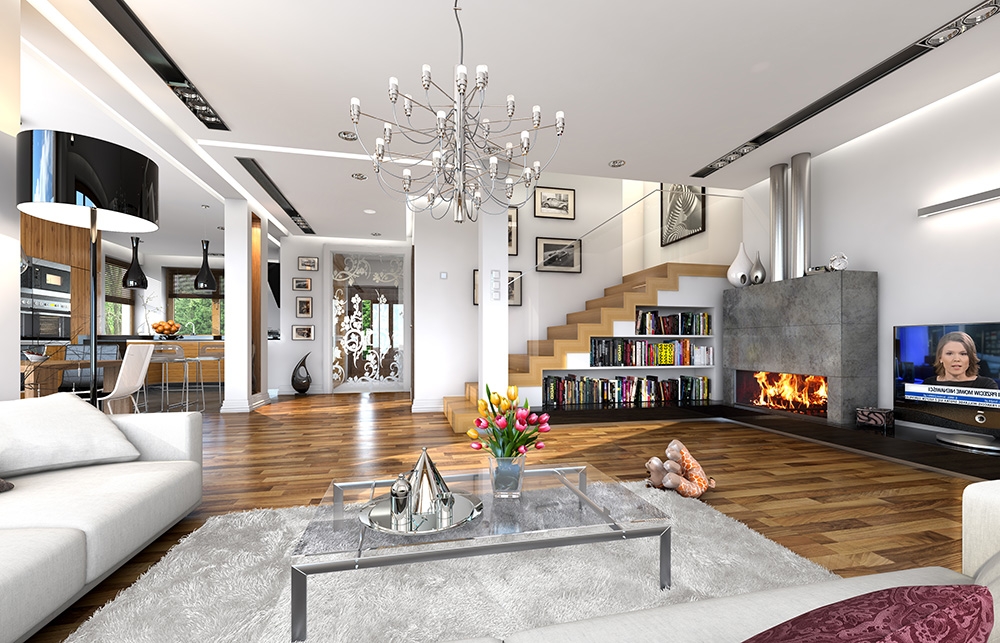

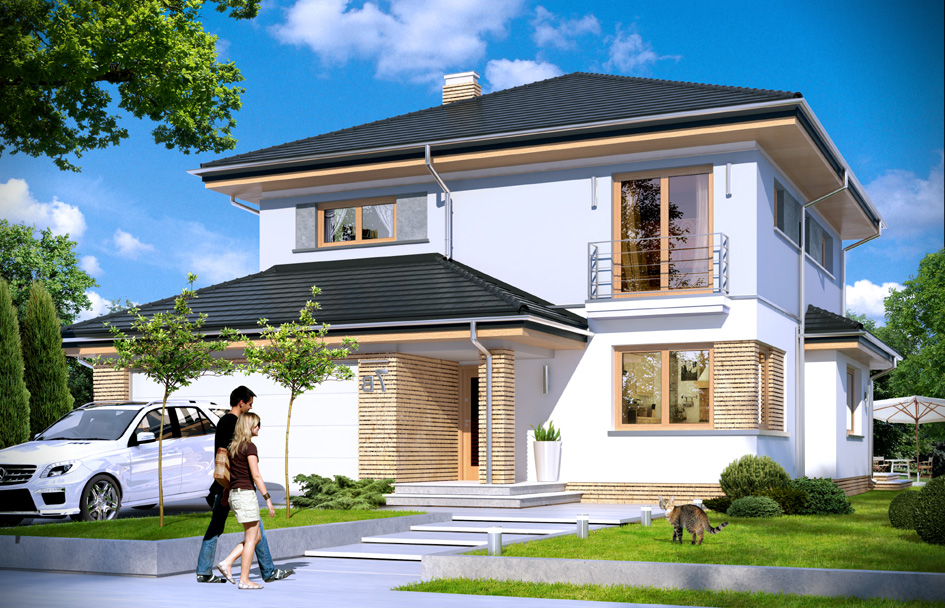

Show mirror image

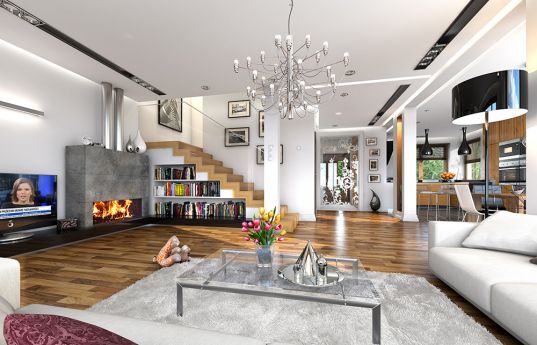

Emerald 4 house plan is a variant version of Emerald house plan. Emerald 4 is a suitable house for a family of 4 to 5 people. It is a story building , built on a square body, covered by envelope roof, with built-in garage and with storey outhouse and bay windows. A small area of the house was closed in an attractive modern block, with a nice glazing and interesting facades. The interior of the house is divided into living and utility part on the ground floor and bedrooms upstairs. Downstairs we designed spacious living room, slightly separated from the dining room, kitchen and lobby. The stairs to the second floor decorate the living room and the lobby. The whole creates a single space large interior open wide glazing to the garden and terrace. Double garage accessible from the atrium has two additional utility rooms - including the boiler room. On the first floor there are three bedrooms (parents - with dressing room and children - with built-in wardrobes), large family bathroom and an additional room - a room or a dressing room. Above the floor is a loft - magazine. The house has been designed with energy-saving solutions, so subsequent exploitation should not be expensive. Construction of the house also should not cause many problems - the house is quite simple, it has an uncomplicated design, compact shape. Emerald 4 is a grate house plan for those who appreciate good architecture and a nice effect, but at the same time do not want to spend on future building the house.

Specifications:
  • Cubature: 711 m3 / 25105,41 ft3
  • Built-up area: 148,43 m2 (with arcade: 153,14 m2) / 1597,11 ft2 (with arcade: 1647,79 ft2)
  • Total area: 245,65 m2 / 2643,19 ft2
  • Net area: 158,78 m2 + garagr 32,32 m2 / 1708,47 ft2 + garagr 347,76 ft2
  • Usable area:
    • 143,94 m2 wg PN-70/B-02365 / 1548,79 ft2 wg PN-70/B-02365
    • 158,78 m2 + garage wg PN-ISO 9836:1997 / 1708,47 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 215,04 m2 / 2313,83 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,75 m (9,10 m with foundation) / 28,7 ft (29,85 ft  with foundation)
  • Wide of the building: 13,56 m / 44,48 ft
  • Length of the building: 13,31 m / 43,66 ft
  • Minimum plot width: 21,56 m / 70,72 ft
  • Minimum plot length: 21,31 m / 69,90 ft
  • Height of rooms: 2,8 i 2,65 m / 9,18 and 8,69 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Roof -  tile
  • Elevation - thin-layer plaster on polystyrene






The costs of implementing:
The raw state open 43 300,00 EUR
The raw state closed 65 300,00 EUR
The cost of finishing works 73 000,00 EUR
Execution of turnkey home 138 300,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Emerald 4 - detailed file

House plan Emerald 4 - detailed file - mirror

Comment
Emerald 4 house plan 4966 Irena Gradzik
2014.01.08 1 Pozytywny komentarz Negatywny komentarz

Hi all, I see that this hause plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.

Emerald 4 house plan 4968 Dorota G.
2014.01.02 0 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Emerald 4 house plan 4970 Jarek
2014.01.02 0 Pozytywny komentarz Negatywny komentarz

Hello I have a question, if anyone already put raw state of this house? I would like to assess the size of the house in live before buying the same.
