Sydney house plan

Usable area: 267.35 m2   /   The cost of the realization: 202 800 EUR

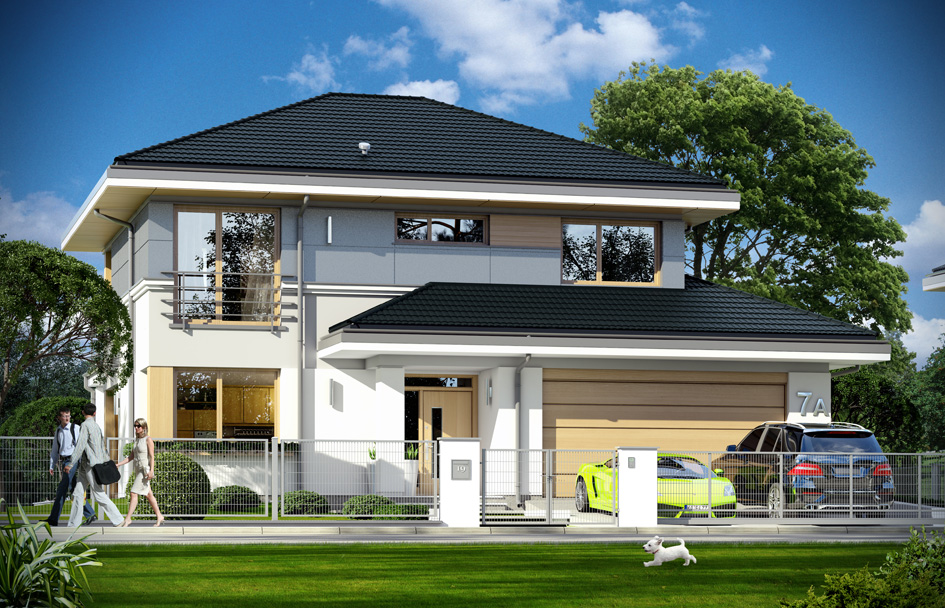

House plan Sydney - front visualization

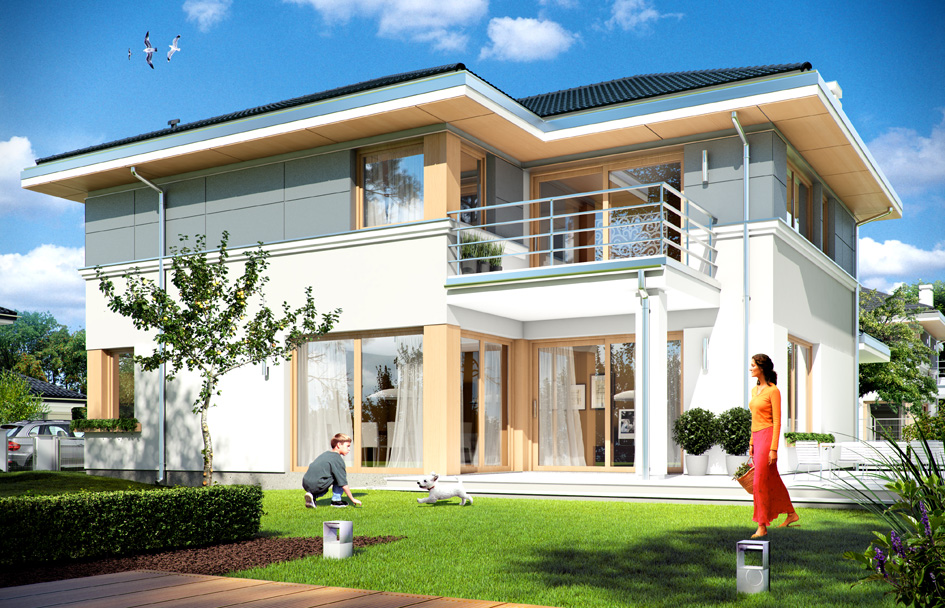

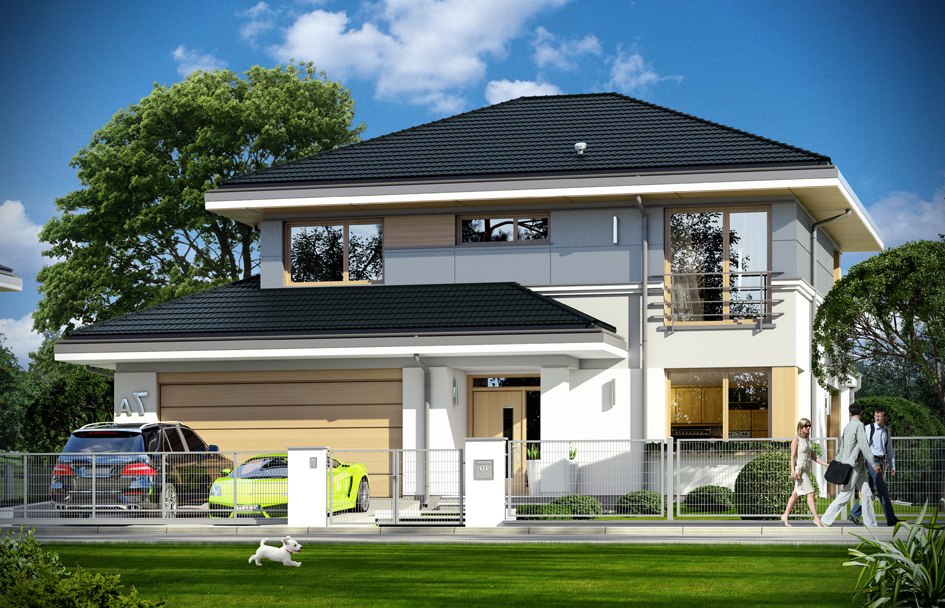

Show mirror image


Sydney house plan is storeyed comfortable city villa, with a basement and double garage, suitable for a family of 4-6 people. "Sydney" is a comfortable modern house, with an interesting shape and functional interiors. House is energy efficient, built from good materials and technologies in order to increase the comfort of the residents. Large glazed areas, wall cladding, colors, everything is maintained in a modern style. Additional roofs, balconies, corner windows diversified the body of house. Daily interior was divided into a living area on the ground floor and bedrooms upstairs. In addition there is a basement that besides technical rooms accommodates additional recreational space. On the ground floor was designed open space consisting of living room, dining room, hall and large kitchen. From the living room and dining room we go out by large glazed doors on garden terrace. On the ground floor there are also an extra room, bathroom and garage. On the first floor are four bedrooms, including a parents’ apartment with its own bathroom, dressing room and terrace. "Sydney" is a real house, with a basement and attic. The building, despite its large surface is very sensibly designed, its construction is clear, quiet, simple and has a compact shape. House should be relatively easy and inexpensive to build and cheap in later exploitation.

Specifications:
  • Cubature: 1051 m3 / 37110,81 ft3
  • Built-up area:
    • without arcades 166,16 m2 / 1787,88 ft2
    • with arcades 178,63 m2 / 1922,06 ft2
  • Total area: 415,83 m2 / 4474,33 ft2
  • Net area: 289,18 m2 + grage 34,22 m2 /3111,58 ft2 + grage 368,21 ft2
  • Usable area:
    • 267,35 m2 wg PN-70/B-02365 / 2876,69 ft2 wg PN-70/B-02365
    • 289,18 m2 + garage wg PN-ISO 9836:1997 / 3111,58 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 245,4 m2 / 2640,50 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,40 m (8,90 m with foundation) / 27,55 ft (29,19 ft with foundation)
  • Wide of the building 13,09 m / 42,94 ft
  • Length of the building: 14,40 m / 47,23 ft
  • Minimum plot width: 21,09 m / 65,90 ft
  • Minimum plot length: 22,40 m / 73,47 ft
  • Height of rooms: 2,8 i 2,7 m / 9,18 and 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling - Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 72 000,00 EUR
The raw state closed 117 000,00 EUR
The cost of finishing works 85 800,00 EUR
Execution of turnkey home 202 800,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Sydney - detailed file

House plan Sydney - detailed file - mirror
