Usable area: 133.87 m2 / The cost of the realization: 120 100 EUR
Show mirror image
Price: 1040 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (3)
Realizations (49) Detailed drawings
List of materials
Comments (3)

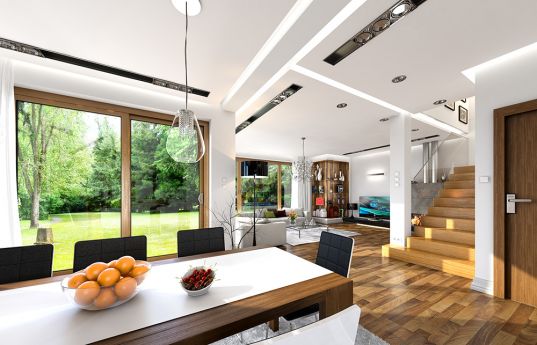

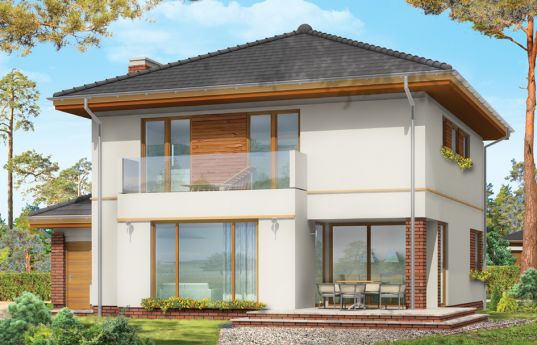

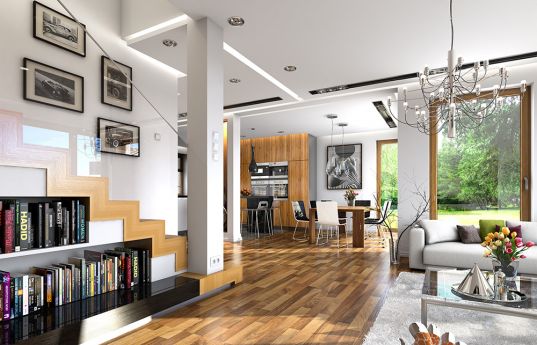

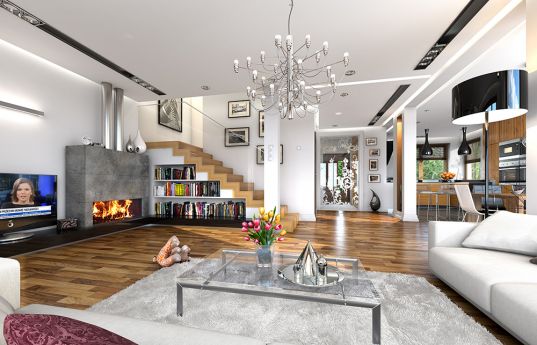

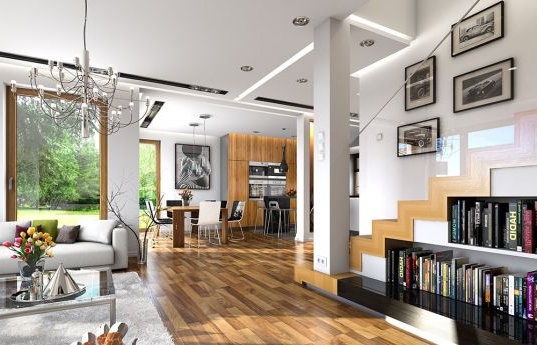

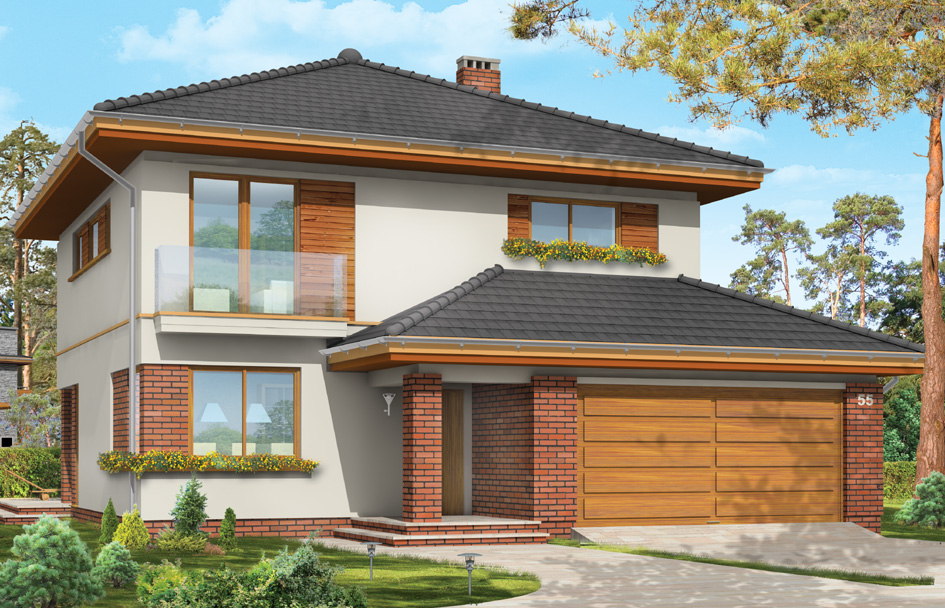

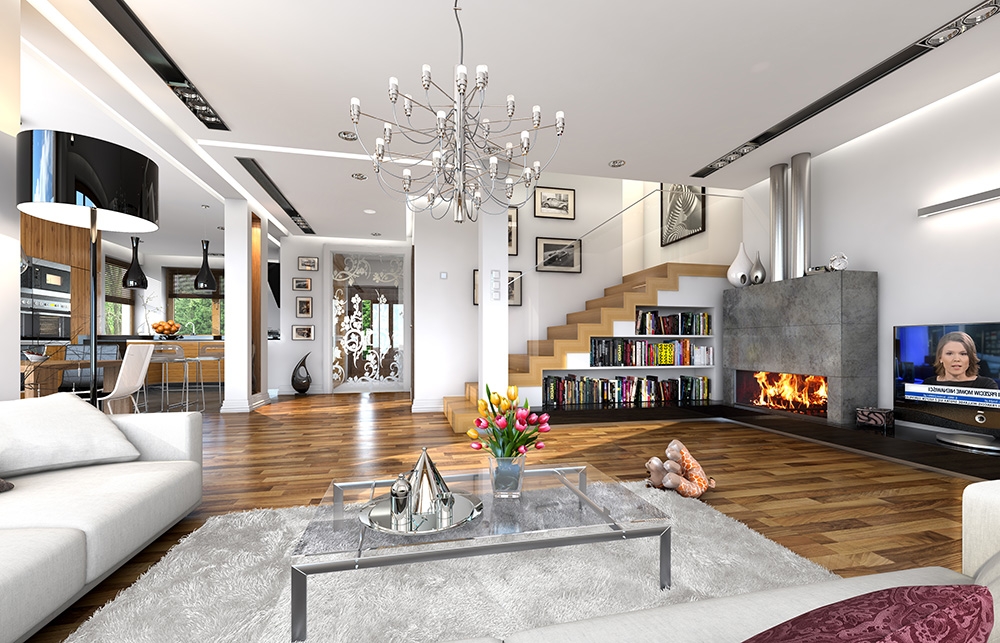

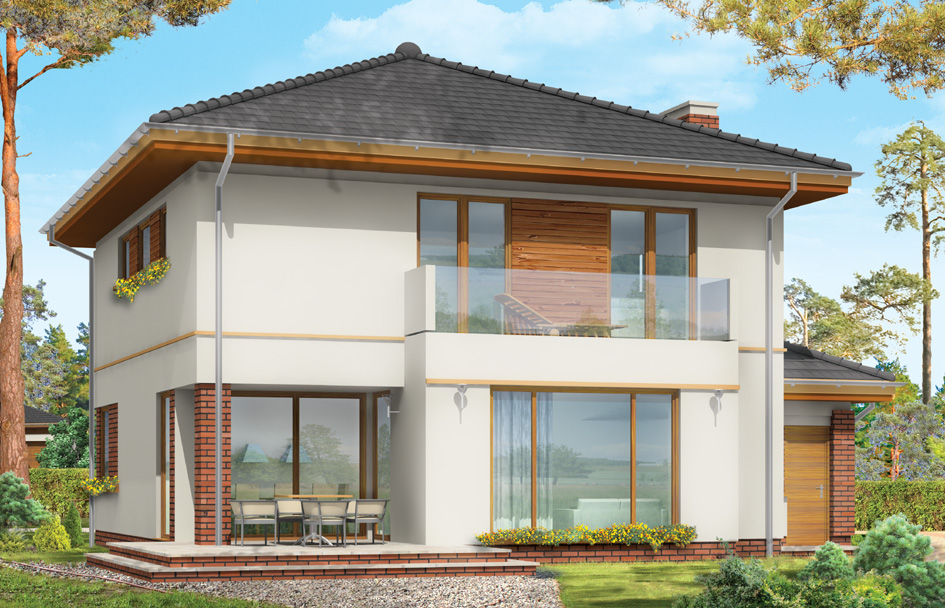

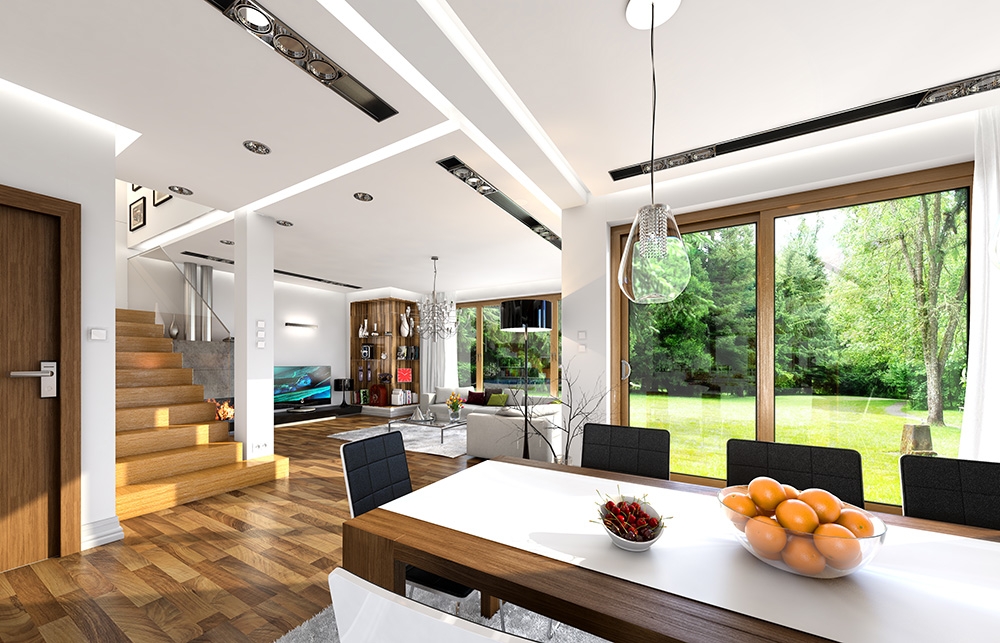

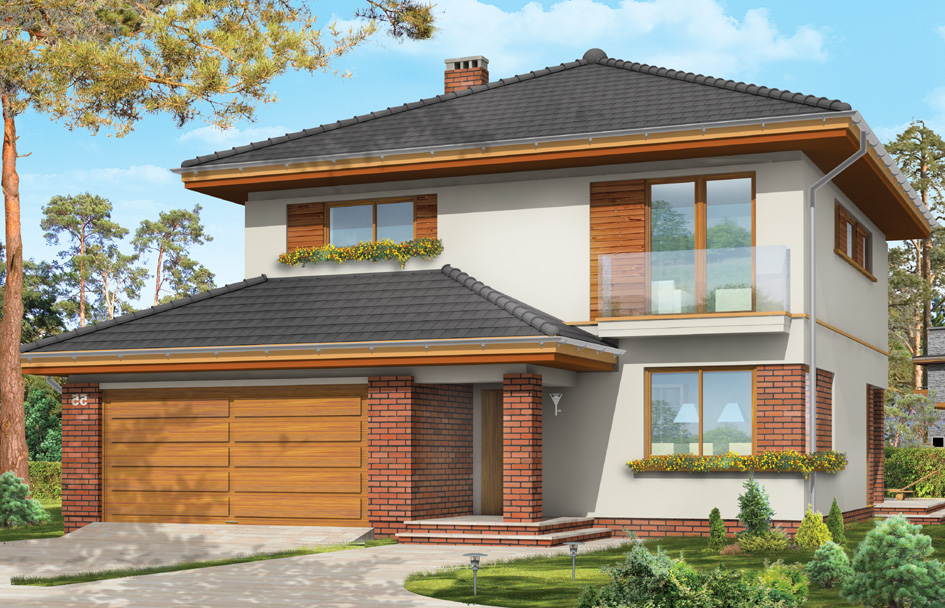

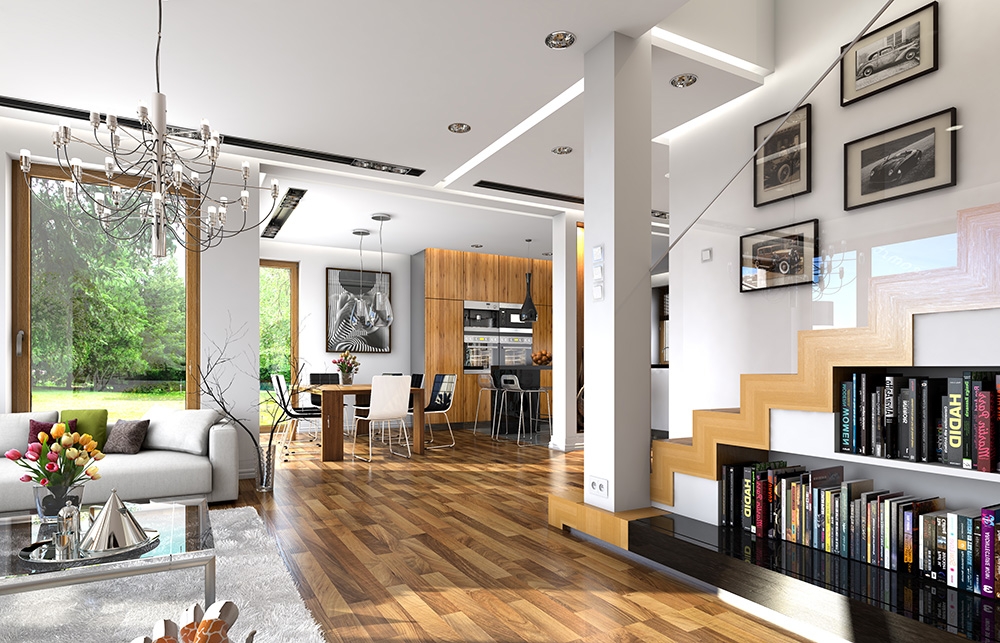

Emerald house plan is one of our latest projects. The modern form of the building with attractive details harmonizes with the simple form, built on a square body, covered by envelope roof. The principal body of house is enriched with partially protruding garage, entrance arcade and garden, bay window and balcony. Emerald, as a whole, creates a coherent, clear composition. The modern appearance of the building in a harmonious way corresponds to the interior, where on the ground floor is a single, open, daily space: hall, dining room and living room, with large glazed to garden. Dining room is partially combined with the kitchen. On the ground floor there is also a double garage and boiler room. In an apartment on the first floor there are three bedrooms and a bathroom. There is also an extra room that could serve as an study, guest bedroom or dressing room. Emeral house is available in mirror version or in some other versions: twinned version (Emerald 2) version with an extra room on the ground floor (Emerald 3) modern version (Emerald 4).
Specifications:
- Cubature: 683 m3 / 24116,73 ft3
- Built-up area: 130,3 m2 / 1402,03 ft2
- Total area: 227,52 m2 / 2448,12 ft2
- Net area: 141,45 m2 + garage / 1522,00 ft2 + garage
- Usable area: 133,87 m2/ 1440,44 ft2
- Roof area: 201,89 m2 / 2172,34 ft2
- Roof slope: 25 degrees
- Height of the building: 8,75 m (9,10 m with foundation) / 28,7 ft (29,85 ft with foundation)
- Wide of the building: 11,93 m / 39,13 ft
- Length of the building: 13,31 m / 43,66 ft
- Minimum plot width: 18,93 m / 62,09 ft
- Minimum plot length: 21,31 m / 69,90 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
- Foundations – poured concrete
- External walls – brick walls –porotherm 25 blocks + 18 polystyrene + thin-layer plaster
- Ceiling - reinforced concrete Teriva
- Roof - tile or meatal roofing tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 39 700,00 EUR |
| The raw state closed | 60 800,00 EUR |
| The cost of finishing works | 59 300,00 EUR |
| Execution of turnkey home | 120 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Emerald - detailed file
House plan Emerald - detailed file - mirror
