Houze plan Dream

Usable area: 127.02 m2   /   The cost of the realization: 143 760 EUR

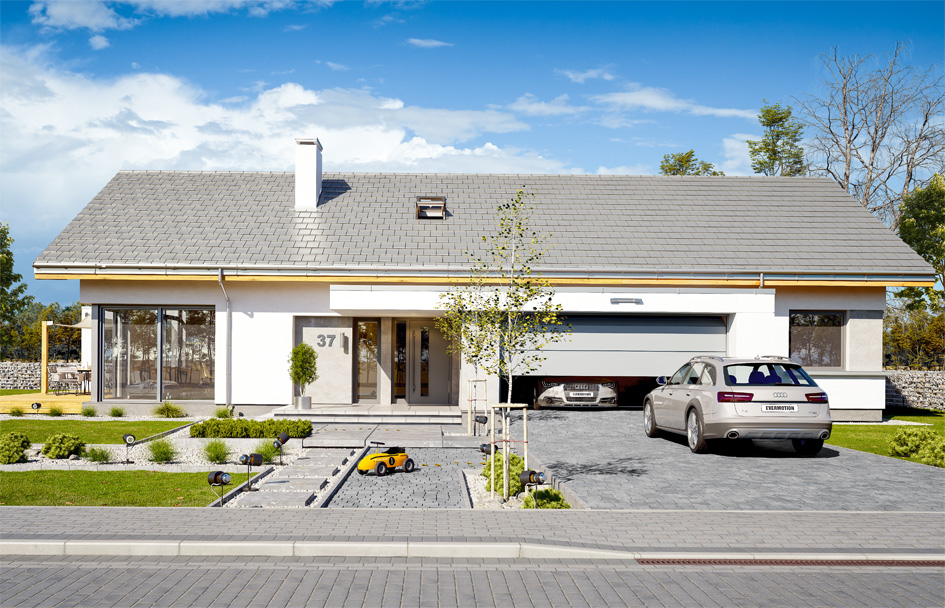

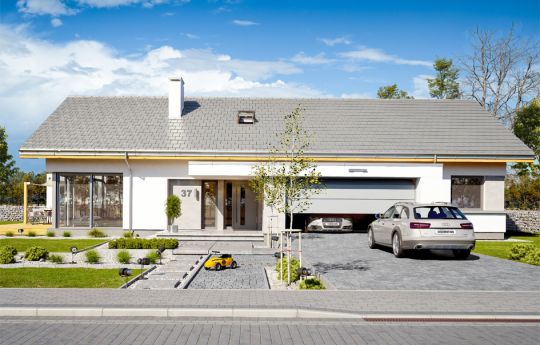

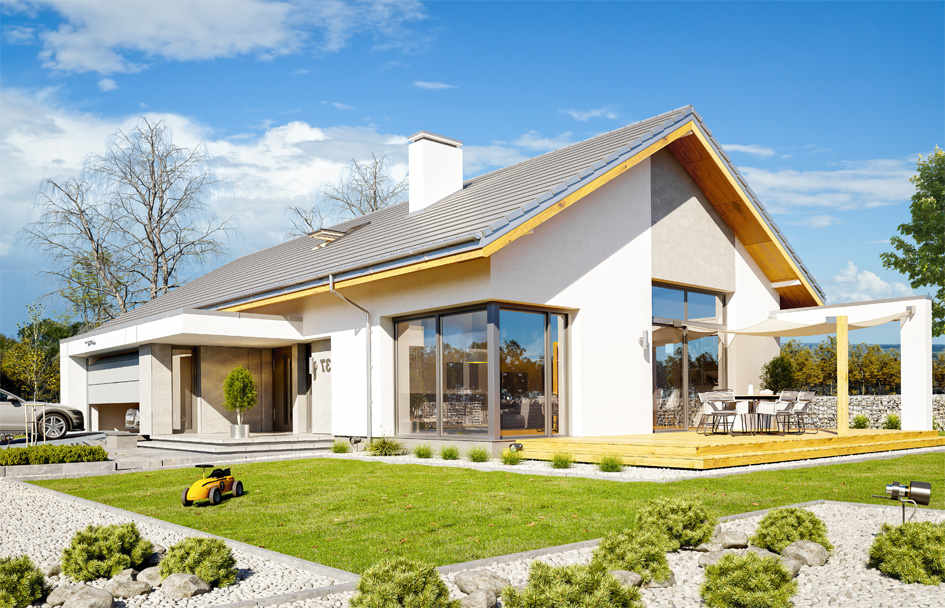

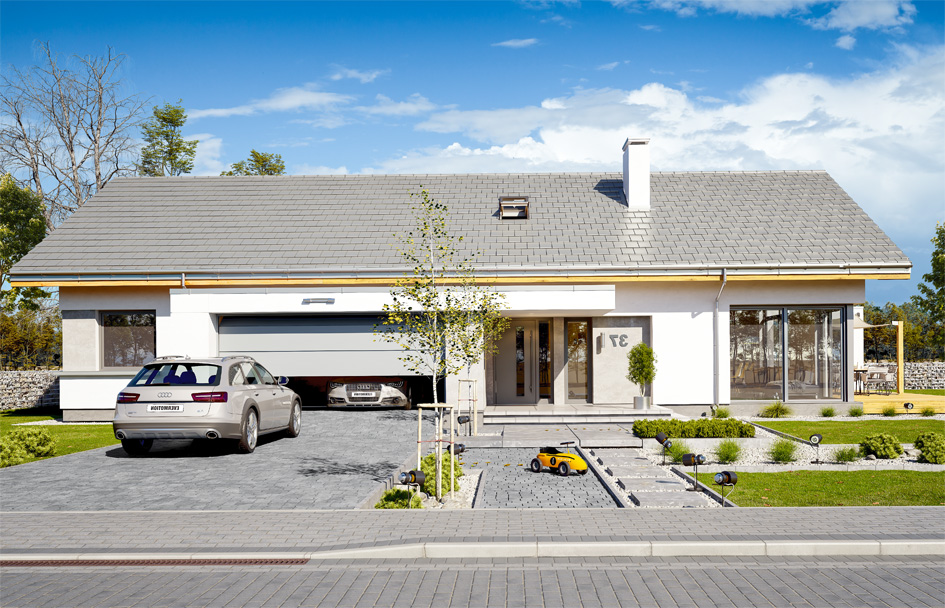

Projekt domu Wymarzony - wizualizacja frontu
Show mirror image

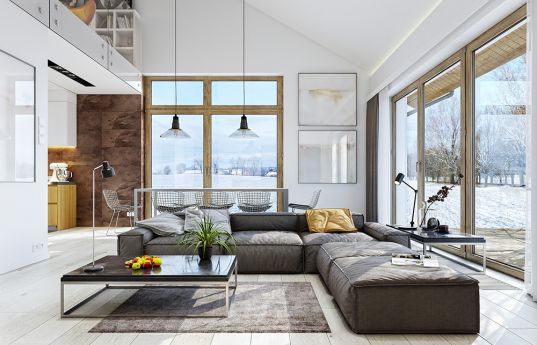

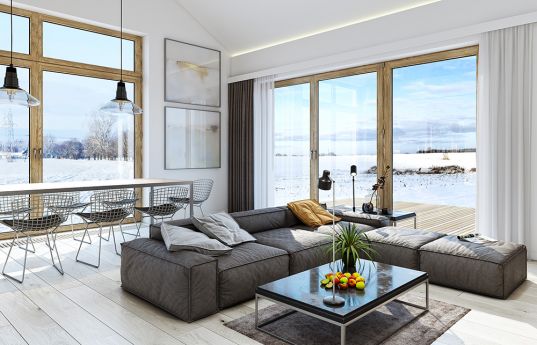

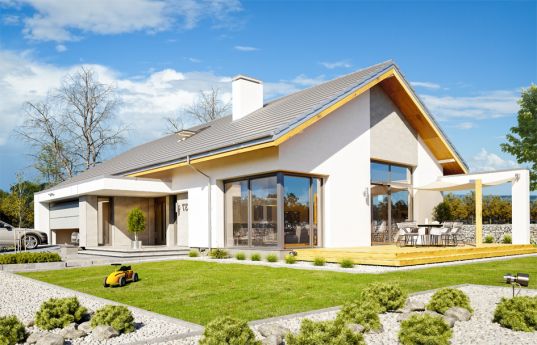

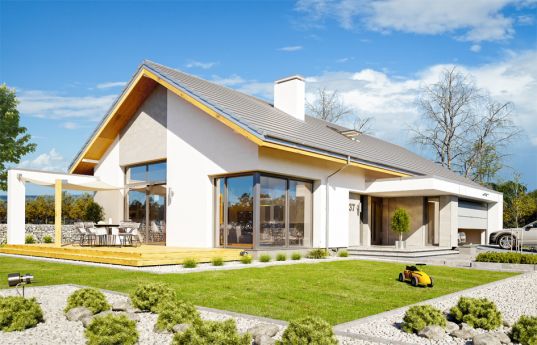

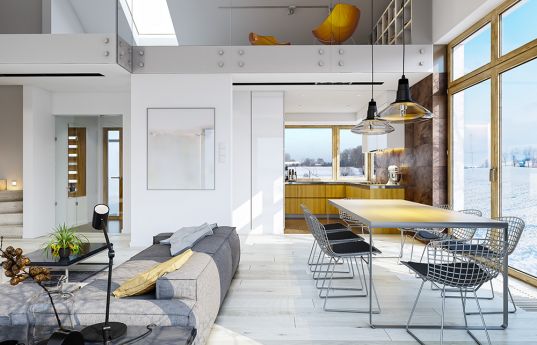

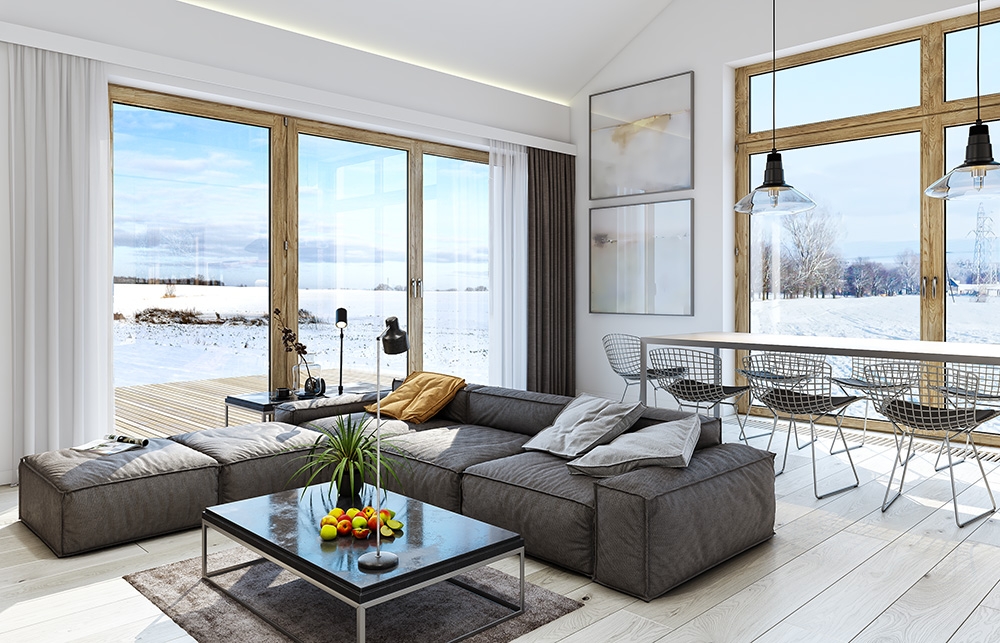

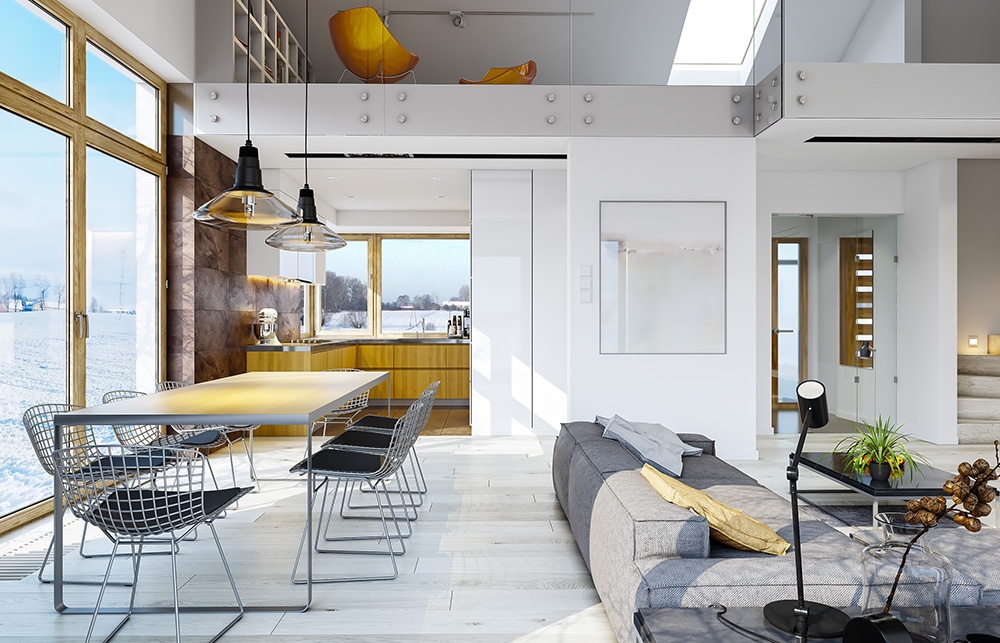

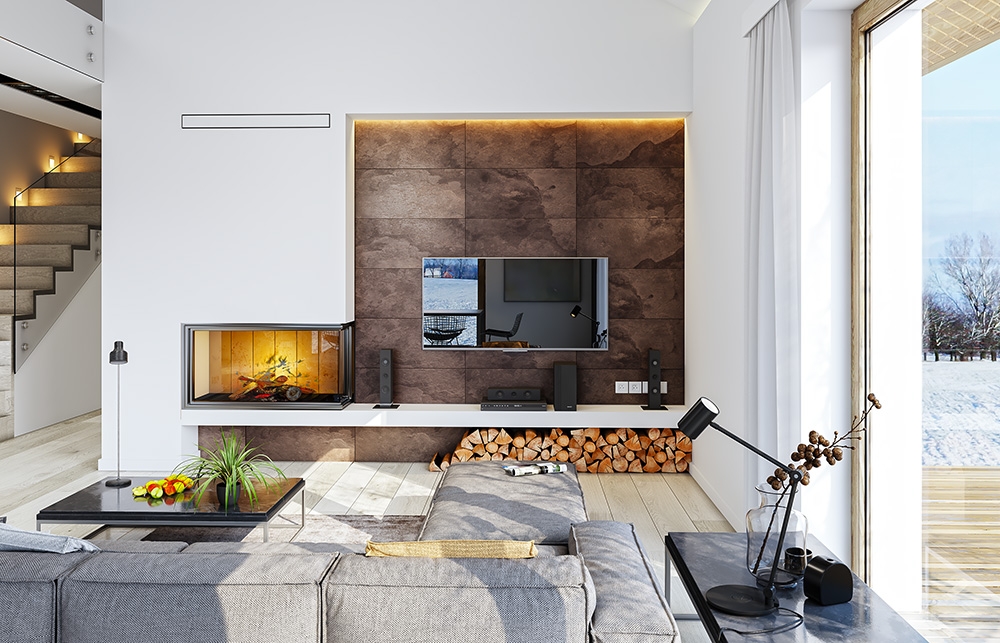

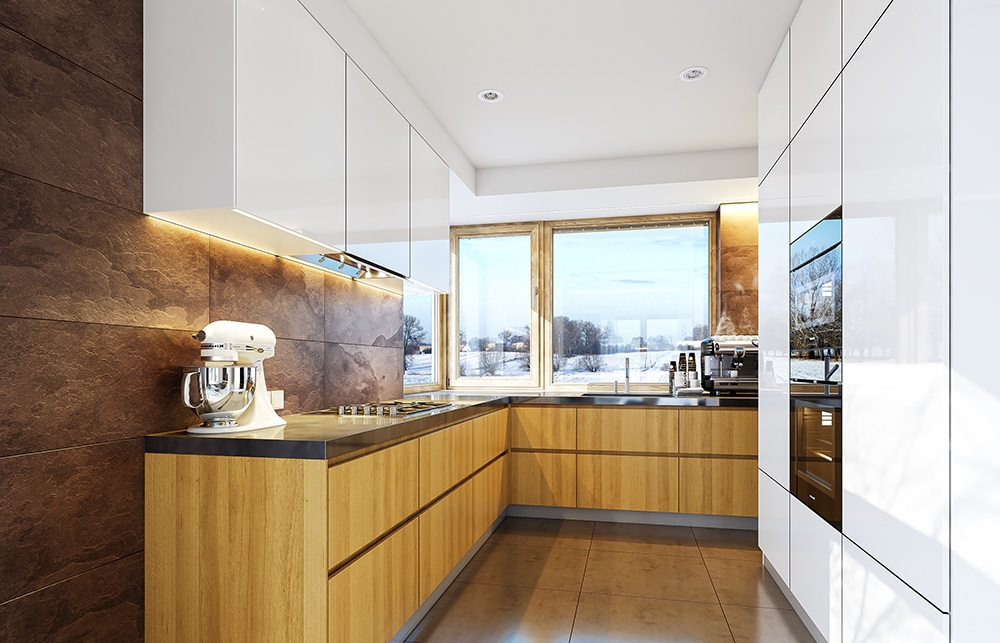

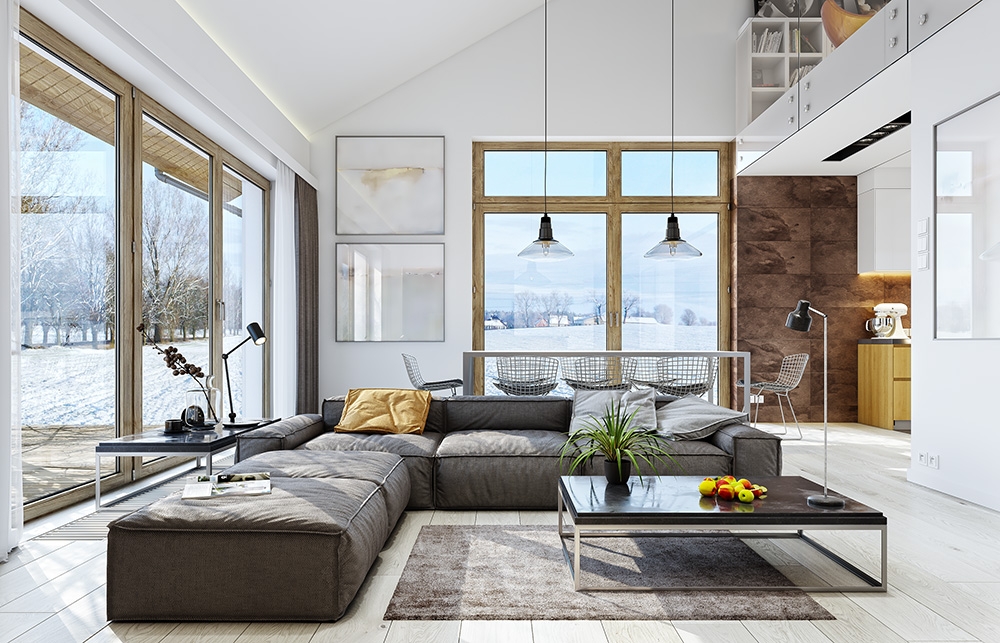

Dream house plan is a basic version from the series of our "Dream Houses". The house is designed for a family of four. A rectangular building with a partially protruding garage. The house is crowned with a gable roof with an angle of 30 degrees. The project combines the simplicity of construction and solid, with interesting details and architectural solutions, creating an extraordinary and original effect. The modern stylistics of the design, obtained by the appropriate selection of materials, cladding, the use of large glazing, opening the interior to the surrounding garden. The main elements that give character to the shape are: a garage with a roof over the entrance arcade protruding from the front wall, a beautifully accented entry door with transoms, and a terrace section extending the living room, which thanks to the location on the side of the building makes the house perfect for various plots - including those with entry from the south. The "Dream" living room is illuminated on three sides, so the house can be located on a plot with a garden on the side or back. The interior of the house: The original garage location, in the central part of the block, allows easy communication access between the garage, vestibule and boiler room, which is rarely found in rectangular-shaped one-story houses (usually the garage is cut off from the block, or located behind the bedrooms). Here, the garage is in a perfect place - at the entrance, close to the lobby and the kitchen. The boiler room next to the living room and the fireplace makes us have one common chimney in the whole building. From the vestibule, we enter the lobby and the living area, with a nice kitchen with a peninsula, pantry, laundry and garden entrance. Next we have a living room with a raised ceiling. The void above the living room visually enlarges this beautiful room, and the high window at the top lets in a lot of light and opens the living room to the garden and terrace with a roof - a sail. On the other side of the house we have three bedrooms, a bathroom and a dressing room. Above the ground floor is designed ceiling and rafter roof truss, thanks to which there is an additional large attic - warehouse, for any arrangement. Of course, you can also re-design the roof structure for truss trusses and disable this space from any use. Dream house is a very comfortable, comfortable home for four people. He has everything a family can need. The building has a simple structure, it will be easy to build, and thanks to a compact body and great materials and insulation it is energy-saving and will be cheap to maintain.

Specifications:
  • Cubature: 989 m3 / 34921,59 ft3
  • Built-up area: 207,35 m2 / 2231,09 ft2
  • Total area: 207,35 m2 / 2231,09 ft2
  • Net area: 132,65 m2 + garage 33,63 m2 / 1427,31 ft2 + garage 361,86 ft2
  • Usable area: 127,02 m2 / 1366,74 ft2
  • Roof area: 276,5 m2 + flat roof 25,40 m2 /  2975,14 ft2 + flat roof 273,30 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,57 m (6,87 m with foundation) / 21,55 ft (22,53 ft with foundation)
  • Building dimensions: 23,00 x 13,05 m / 75,44 x 42,80 ft
  • Plot dimensions: 29,00 x 21,05 m / 95,12 x 69,04 ft
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls – brick walls – aerated 24 blocks + polystyrene + thin-layer plaster
  •     Ceiling - monolithic reinforced concrete
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - ceramic tile




The costs of implementing:
The raw state open 49 770,00 EUR
The raw state closed 74 480,00 EUR
The cost of finishing works 69 290,00 EUR
Execution of turnkey home 143 760,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Wymarzony - plik szczegółowy

Projekt domu Wymarzony - plik szczegółowy - odbicie lustrzane
