Houze plan Dream 6

Usable area: 123.72 m2   /   The cost of the realization: 137 640 EUR

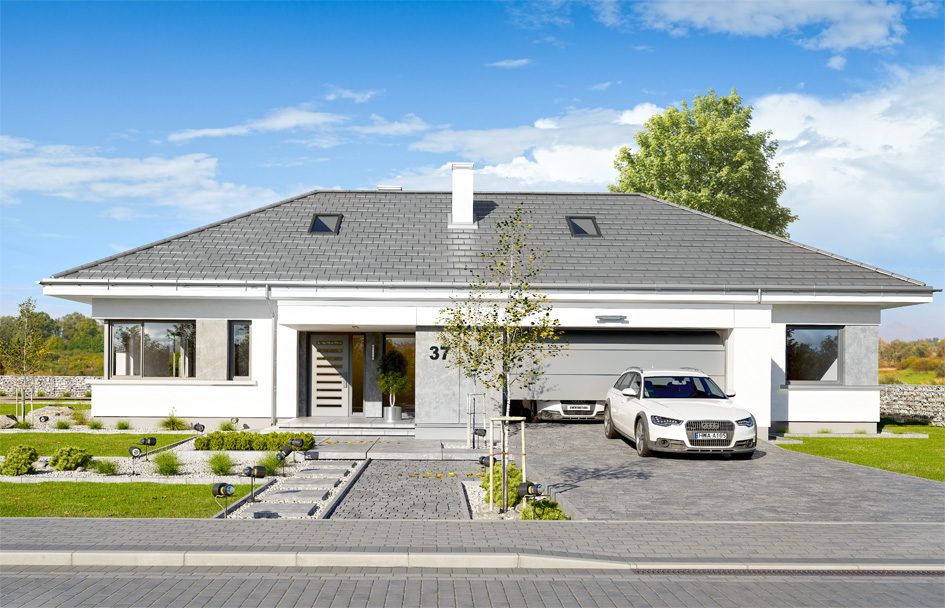

Projekt domu Wymarzony 6 - wizualizacja frontu

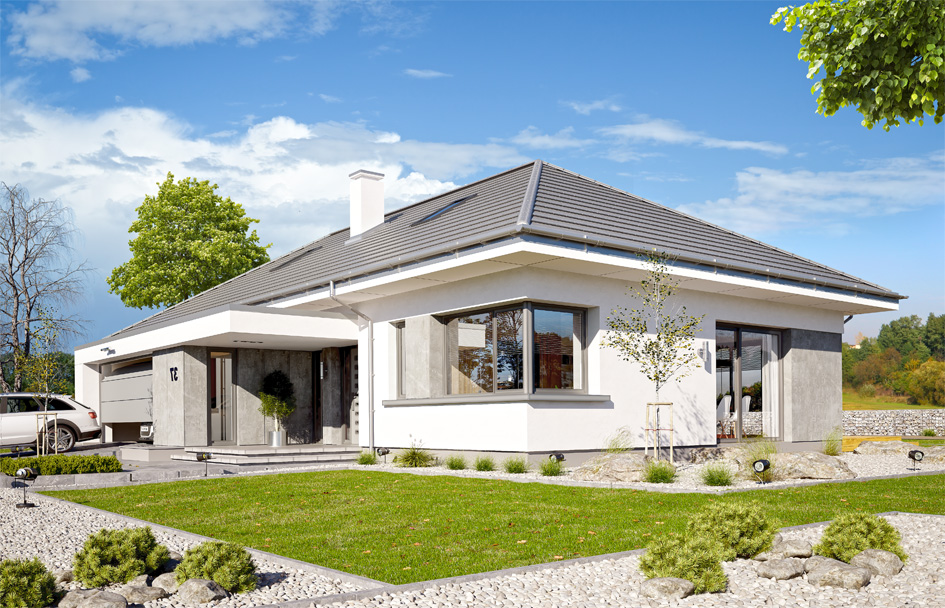

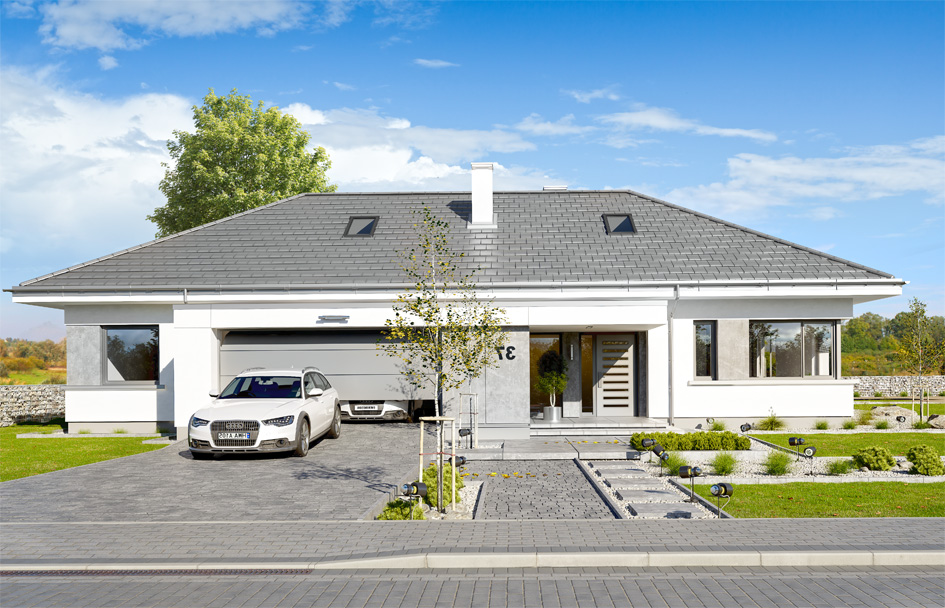

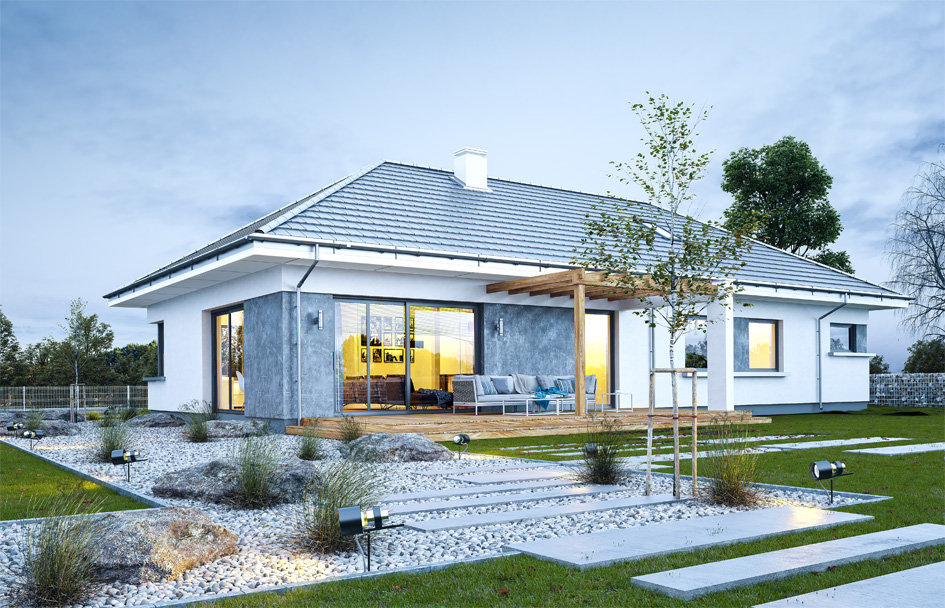

Show mirror image

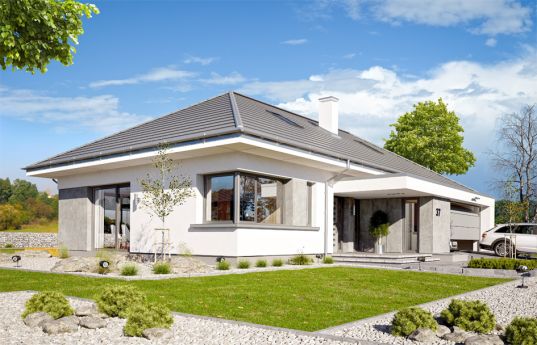

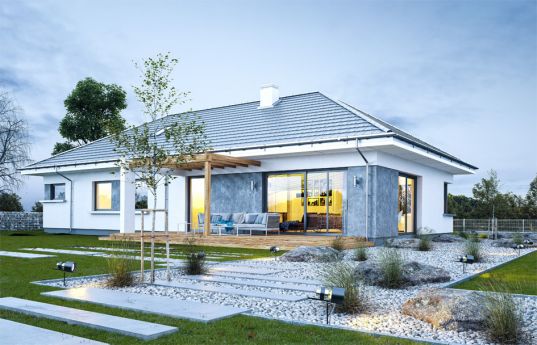

House design Dream 6 is another project from a series of Dream houses from our studio. A one-storey house, with an attic, to be arranged, built on a rectangular plan, with a garage part protruding on the front, covered with a hipped roof with a 30 degree angle of inclination. The design has a modern style and combines a traditional shape with a classic roof, with modern finishing materials and details. The combination of white plastered walls with claddings imitating concrete, as well as gray or graphite tiles give the elegant and representative appearance of the building. Despite the small surface, the house looks very comfortable and larger than it really is. The main stylistic details of the project are: a protruding garage and entrance gate, and a representative front door with transoms. From the garden side we have large glazing that opens the living room to the terrace and garden, and a pergola covering part of the terrace. Interior: other than the location of the garage, in the central part of the block, it facilitates communication between the garage, vestibule and boiler room, which is rarely found in rectangular shaped ground floor houses. The garage is in a great place - at the entrance, near the lobby, kitchen and pantry. From the vestibule, we enter the lobby and straight into the living room. The living room is illuminated from two sides - from the garden with wide terrace doors, and from the top of the building. The attraction of the living room is the emptiness above the living room with a mezzanine in the attic, enlarging the living space visually. On the other side of the house we have four rooms, a bathroom and a wardrobe. Above the ground floor is designed attic, with mezzanine above the living room enlarging its space, and an additional attic space, which can remain a non-usable attic (home storage), or it can be developed into utility rooms - according to the wishes and needs of the owners. Dream 6 house plan is a comfortable, comfortable villa for a family of four - functional and practical. The building is energy-saving, has a simple construction, will be easy to build and cheap to maintain.

Specifications:
  • Cubature: 899 m3 / 31743,69 ft3
  • Built-up area: 206,87 m2 / 2225,92 ft2
  • Total area: 240,56 m2 / 2588,43 ft2
  • Net area: 129,21 m2 + garage 36,39 m2 + attic 32,56 m2 / 1390,30 ft2 + garage 391,56 ft2 + attic 350,35 ft2
  • Usable area: 123,72 m2 /  3003,12 ft2
  • Roof area: 279,1 m2 + flat roof 28,94 m2 / 3003,12 ft2 + flat roof 311,39 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,57 m (6,87 m with foundation) / 21,55 ft (22,53 ft with foundation)
  • Building dimensions: 19,50 x 12,40 m / 63,96 x 40,67 ft
  • Plot dimensions: 26,50 x 20,40 m / 86,92 x 66,91 ft
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls – brick walls – aerated 24 blocks + polystyrene + thin-layer plaster
  •     Ceiling - monolithic reinforced concrete
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - ceramic tile




The costs of implementing:
The raw state open 42 610,00 EUR
The raw state closed 68 200,00 EUR
The cost of finishing works 69 440,00 EUR
Execution of turnkey home 137 640,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Wymarzony 6 - pliki szczegółowe

Projekt domu Wymarzony 6 - pliki szczegółowe- odbicie lustrzane
