Houze plan Dream 5

Usable area: 123.72 m2   /   The cost of the realization: 152 280 EUR

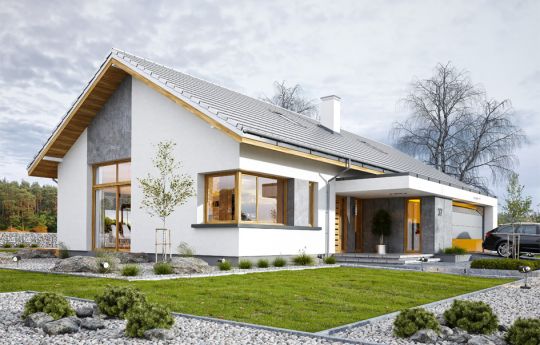

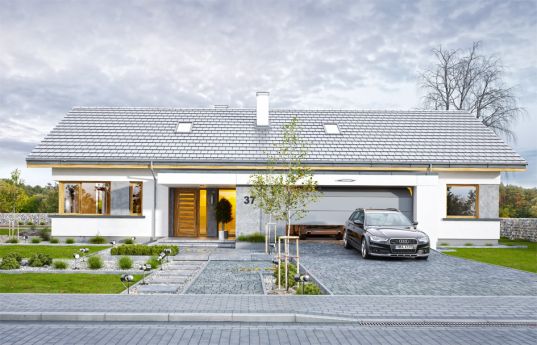

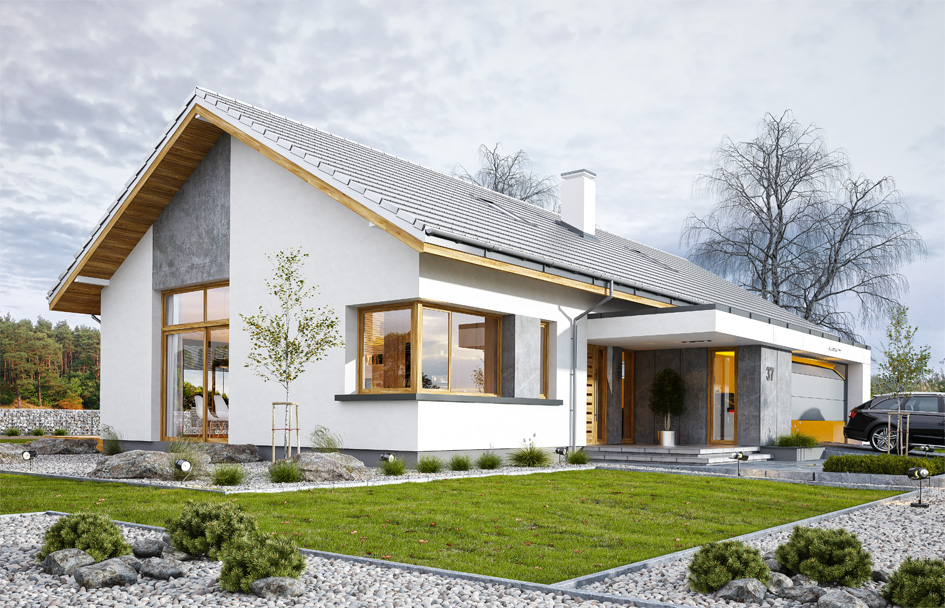

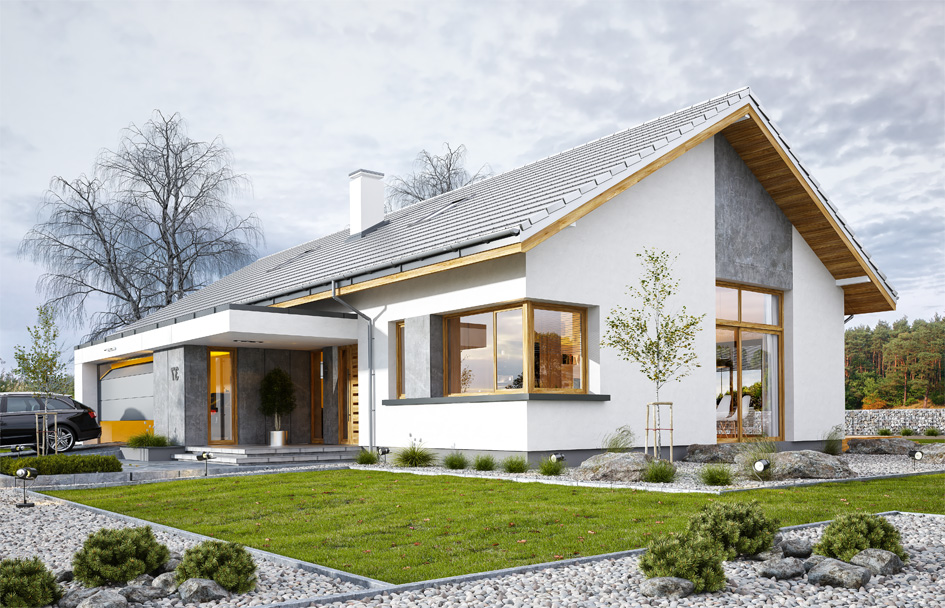

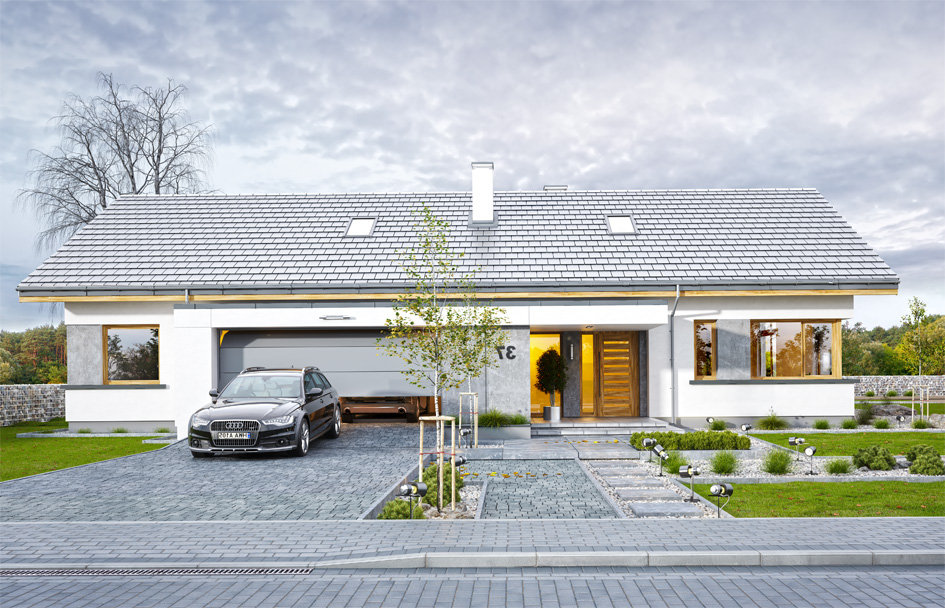

Projekt domu Wymarzony 5 - wizualizacja frontu

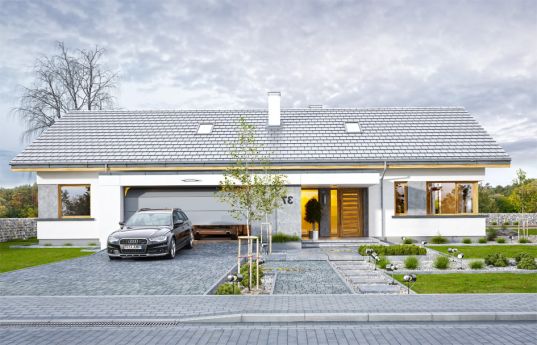

Show mirror image

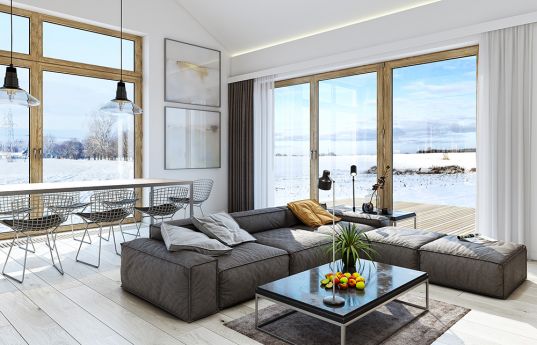

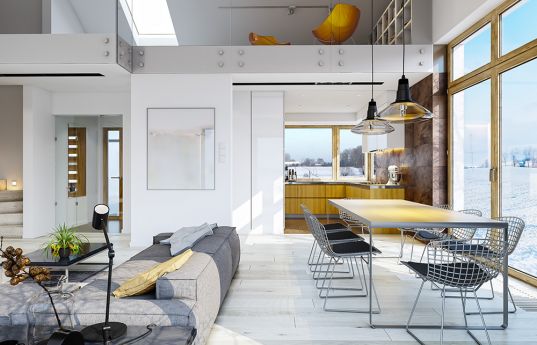

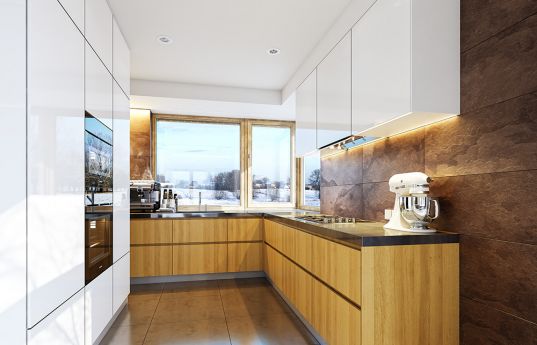

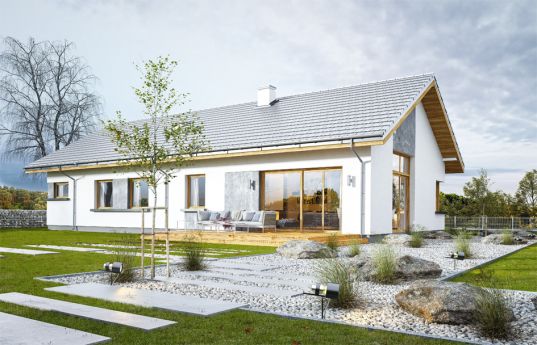

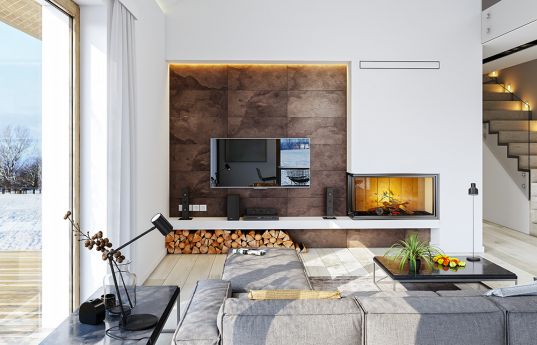

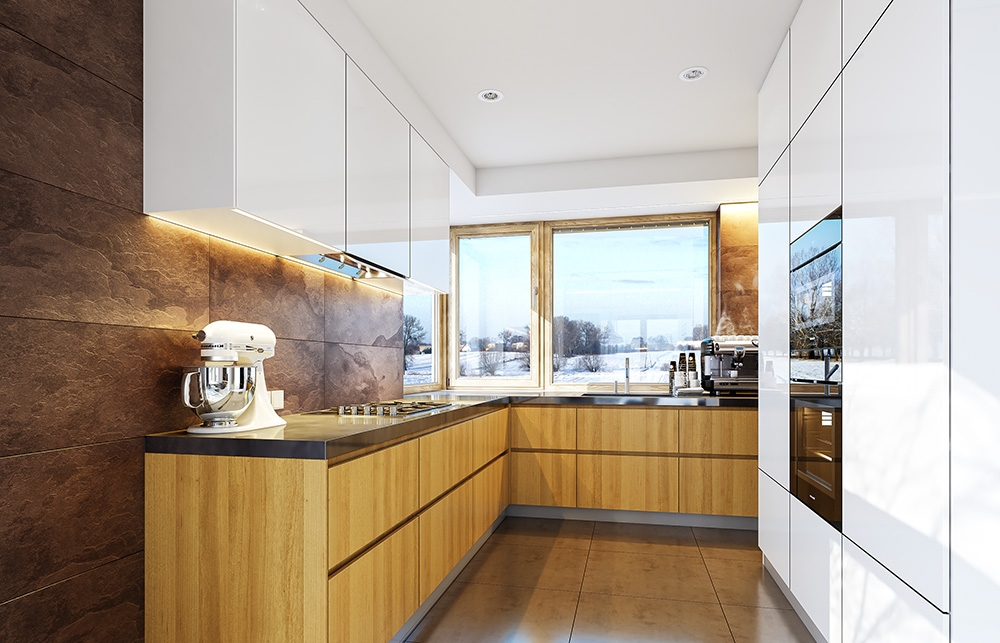

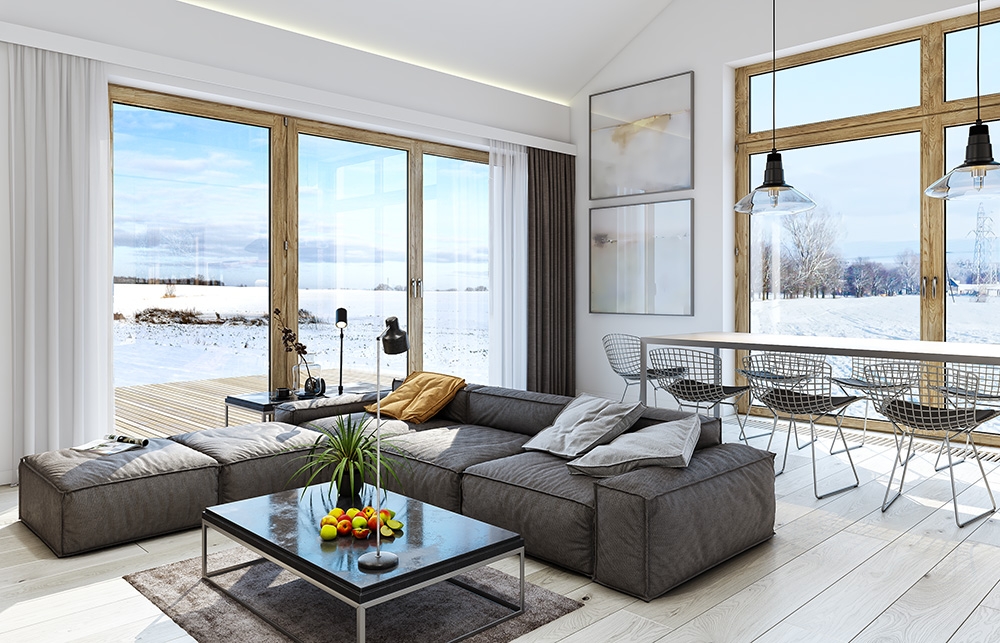

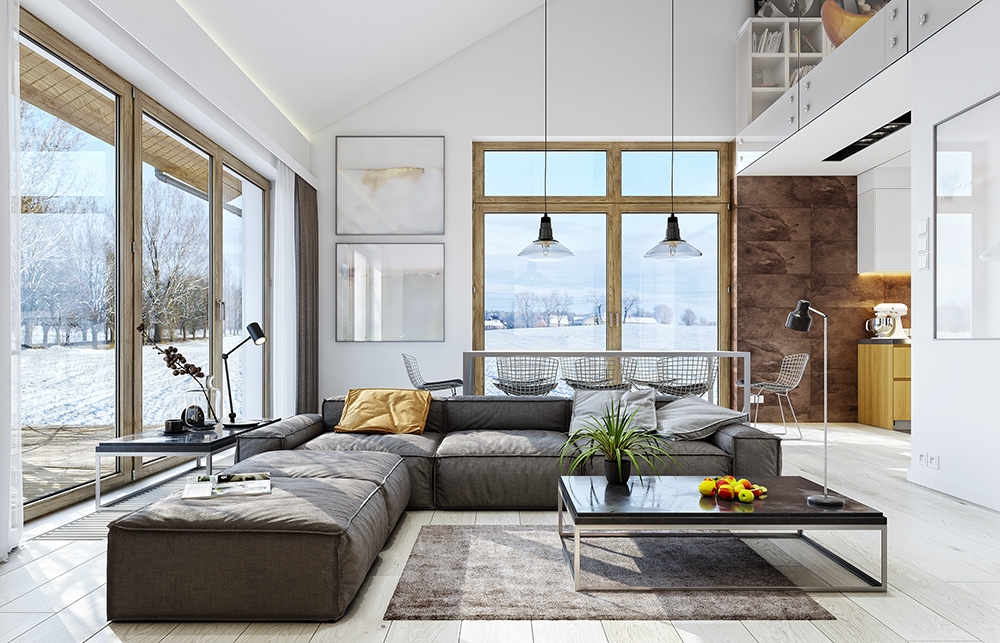

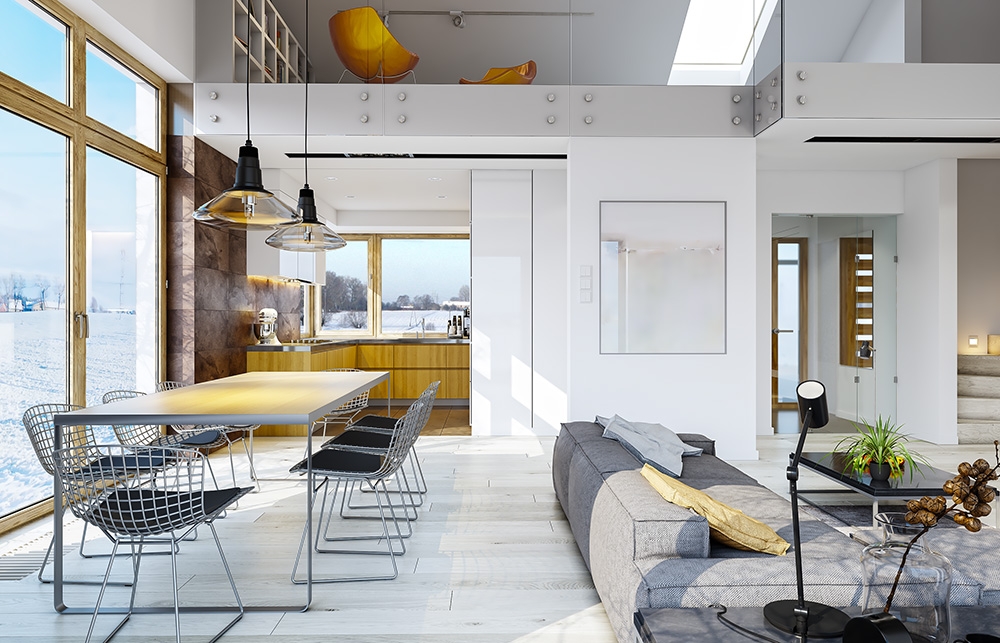

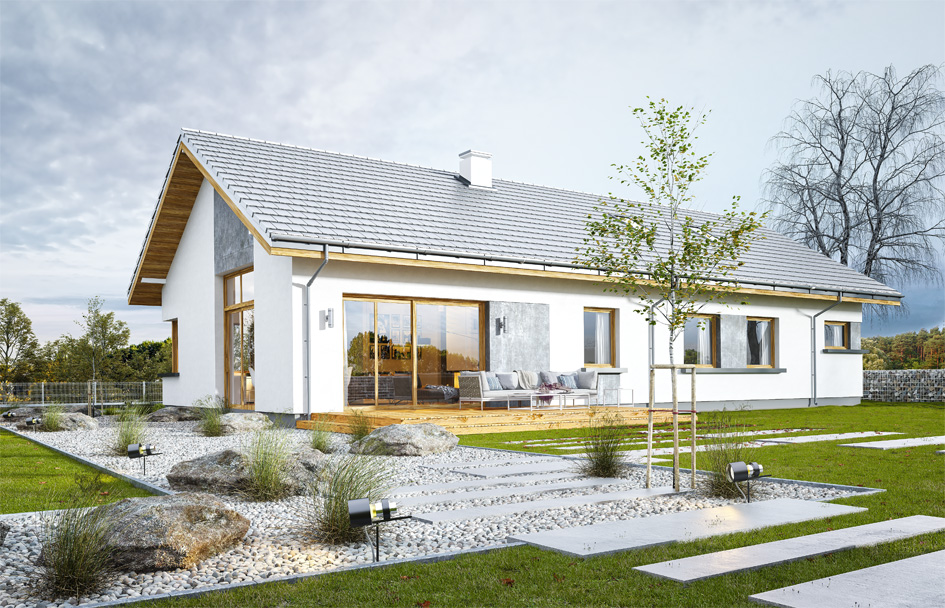

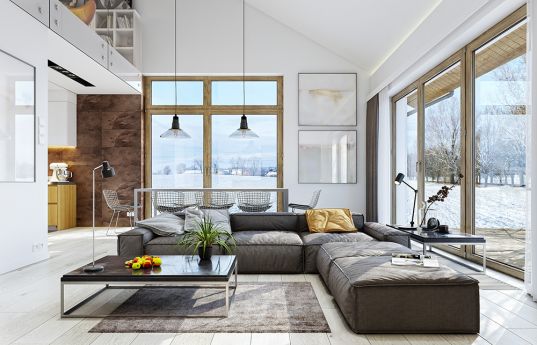

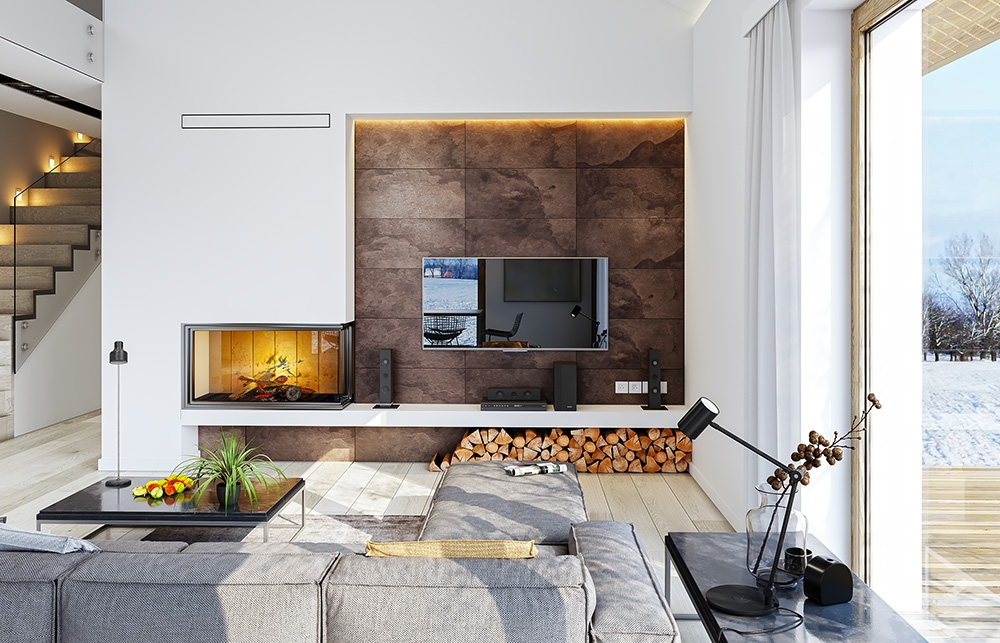

Dream 5 house plan or another project from a series of Dream houses from our studio. The building is one-storey with an attic for development, built on a rectangular plan, with a garage part protruding on the front, covered with a gable roof with a slope of 30 degrees. The design has a modern style and combines a traditional shape with modern finishing materials and details. The combination of plastered wall fragments with cladding imitating concrete, as well as gray or graphite tiles give the elegant and representative appearance of the building. The main stylistic details are: a protruding garage, an entrance gate and a representative front door with transoms. In the top and at the back of the house, the living room is decorated with large glazed windows that open the interior to the surrounding garden. Interior: the original location of the garage, in the central part of the block, facilitates communication between the garage, vestibule and boiler room, which is rare in one-story houses with a rectangular shape. The garage is in a perfect place - at the entrance, near the lobby, kitchen and pantry. From the vestibule, we enter the lobby and straight into the living room. The living room is illuminated from two sides - from the garden with wide terrace doors, and from the top of the building with a raised window with a light letting in a lot of light and being an attraction of the day space. An additional attraction is of course the emptiness above the living room with a mezzanine in the attic. On the other side of the house we have four rooms, a bathroom and a wardrobe. Above the ground floor is designed attic, with mezzanine above the living room enlarging its space, and an additional attic space, which can remain a non-usable attic (home storage), or it can be developed into utility rooms - according to the wishes and needs of the owners. Dream 5 house plan is a comfortable, comfortable and modern villa for a family of four to six - functional and practical. The building is energy-saving, has a simple construction, will be easy to build and cheap to maintain.!

Specifications:
  • Cubature: 985 m3 / 34780,35 ft
  • Built-up area: 206,87 m2 / 2225,92 ft2
  • Total area: 255,78 m2 / 2752,19 ft2
  • Net area: 129,21 m2 + garage 36,39 m2 + attic 43,16 m2 / 1390,30 ft2 + garage 391,56 ft2 + attic 464,40 ft2
  • Usable area:123,72 m2  / 1331,23 ft2
  • Roof area: 276,5 m2 + flat roof 28,94 m2 / 2975,14 ft2 + flat roof 311,39 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,57 m (6,87 m with foundation) / 21,55 ft (22,53 ft with foundation)
  • Building dimensions: 19,50 x 12,40 m  / 63,96 x 40,67 ft
  • Plot dimensions: 26,50 x 20,40 m / 86,92 x 66,91 ft
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •         Foundations - concrete bench and foundation walls with concrete blocks
  •         External walls – brick walls – aerated 24 blocks + polystyrene + thin-layer plaster
  •         Ceiling - monolithic reinforced concrete
  •         Elevation - thin-layer plaster on polystyrene
  •         Roof - ceramic tile




The costs of implementing:
The raw state open 51 570,00 EUR
The raw state closed 76 970,00 EUR
The cost of finishing works 75 320,00 EUR
Execution of turnkey home 152 280,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Wymarzony 5 - plik szczegółowy

Projekt domu Wymarzony 5 - plik szczegółowy - lustro
