House plan Dream 10

Usable area: 119.39 m2   /   The cost of the realization: 130 360 EUR

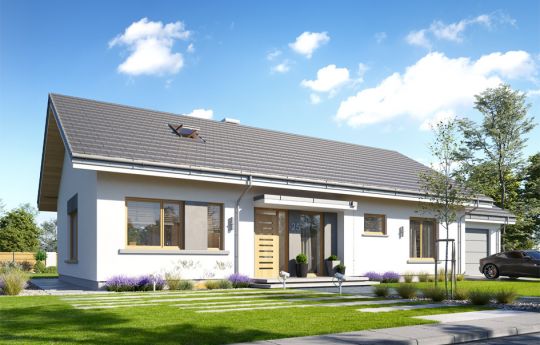

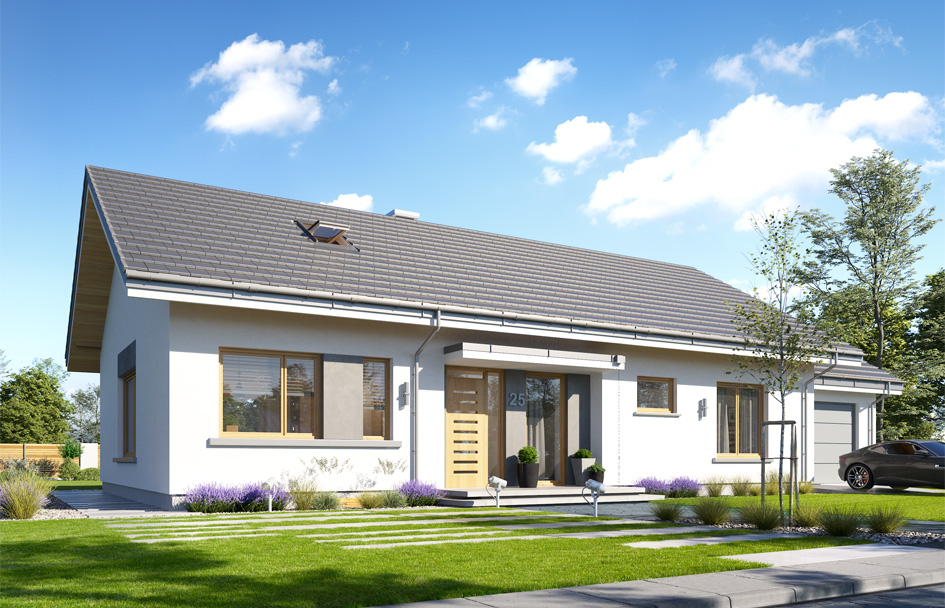

Projekt domu Wymarzony 10 - wizualizacja frontu

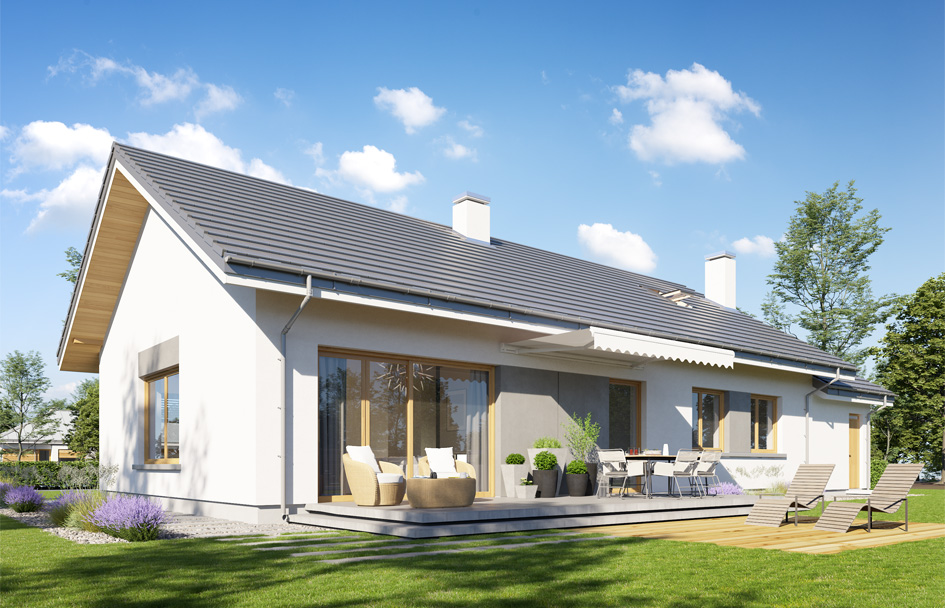

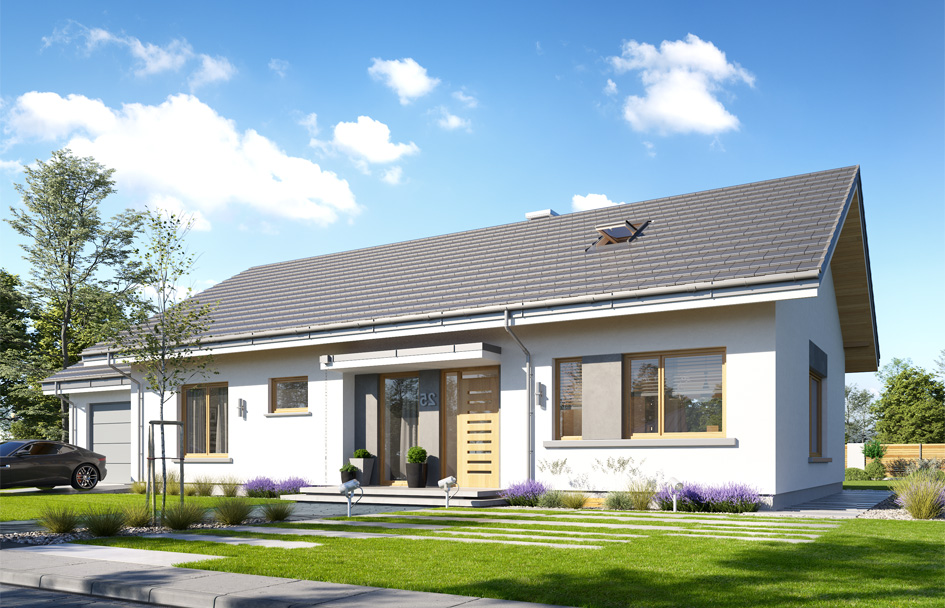

Show mirror image

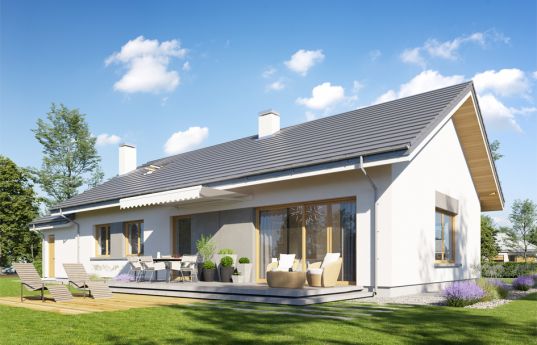

House design Dream 10 is another house from the collection of our Dream projects. This is the simplest and most economical version of this series of homes. A rectangular shape with a built-in garage was covered with two gable roofs with a slope angle of 30 degrees. The design has a modern but restrained style and combines a traditional shape with modern details and finishing materials. The combination of white plastered walls with gray inserts, graphite tiles, and wooden window frames, give the building a clean and elegant look. The main decorations of the façade are: an entrance with a roof and nice front doors, and a terrace zone from the garden with large glazed windows and an awning. The house is designed for a plot with a garden and solar lighting on the back or side of the building. Interior: the house has a comfortable living area, and up to five additional rooms, which is a very good result with a small area of the house. The house can be used freely even by a family of 2 + 4. Rooms can be arranged as children's bedrooms, or one of the rooms - for example the one at the entrance - can remain a home office / study. We enter the house with a comfortable vestibule to the living area, with a living room, dining room and semi-open kitchen. The living room has a fireplace and TV wall, a place for comfortable rest, and wide balcony doors open the living room to the terrace and garden. From the living room hall we get to the part of the night home, with the parents' bedroom with the dressing room, and children slepping. Next is the connection with the garage and business part of the building, through the utility room, to the garage and boiler room. The attic above the ground floor was designed as a storage space, which is reached by ladder stairs. Dream house plan 10 is a comfortable home for up to six people - functional and practical. The building is energy-saving, has a simple construction, will be easy to build and cheap to maintain.

Specifications:
  • Cubature: 930 m3 / 32838,30 ft3
  • Built-up area: 184,22 m2 / 184,22 ft2
  • Total area: 184,22 m2 / 184,22 ft2
  • Net area: 126,39 m2 + garage 20,27 m2 / 1359,96 ft2 + garage 218,11 ft2
  • Usable area: 119,39 m2 /  1284,64 ft2
  • Roof area: 275,20 m2 / 2961,15 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,57 m (6,87 m with foundation) / 21,55 ft (22,53 with foundation)
  • Building dimensions: 19,43 x 9,70 m / 63,73 x 31,82 ft
  • Plot dimensions: 26,43 x 17,70 m / 86,69 x 58,06 ft
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •         Foundations - concrete bench and foundation walls with concrete blocks
  •         External walls – brick walls – aerated 24 blocks + polystyrene + thin-layer plaster
  •         Ceiling - monolithic reinforced concrete
  •         Elevation - thin-layer plaster on polystyrene
  •         Roof - ceramic tile




The costs of implementing:
The raw state open 40 470,00 EUR
The raw state closed 64 010,00 EUR
The cost of finishing works 66 360,00 EUR
Execution of turnkey home 130 360,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Wymarzony 10 - pliki szczegółowe

Projekt domu Wymarzony 10 - pliki szczegółowe- odbicie lustrzane
