Usable area: 207.24 m2 / The cost of the realization: 177 600 EUR
Show mirror image
Price: 1040 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (9) Detailed drawings
List of materials
Comments (3)

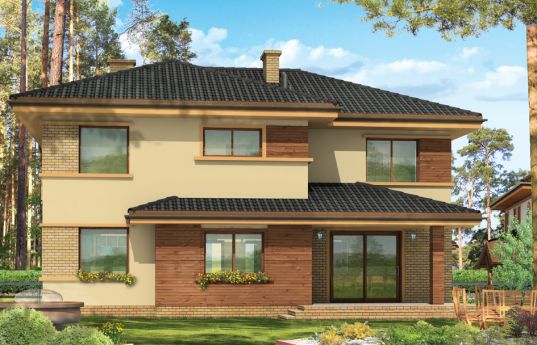

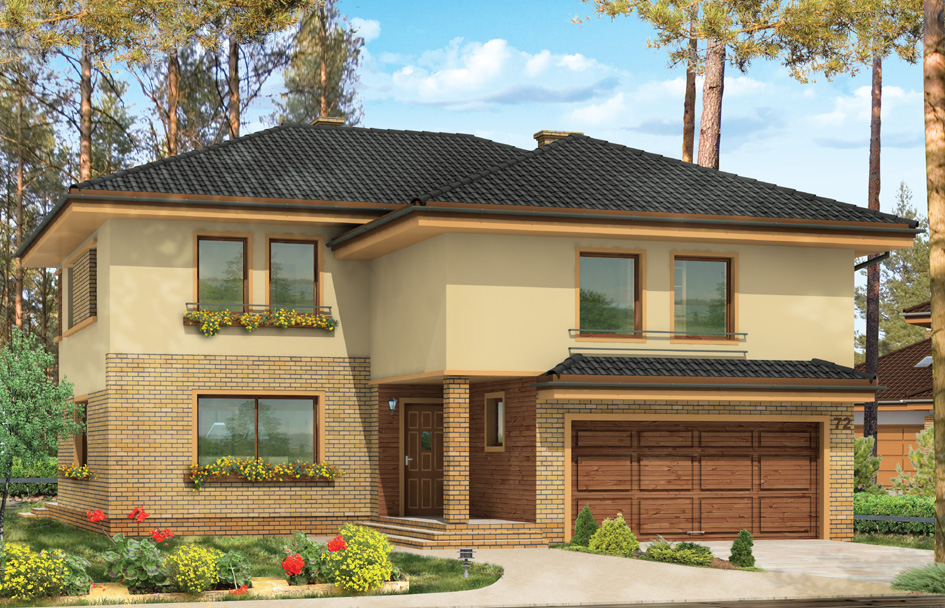

Coral house plan is a storey house for a family of 4 to 6 person. The architecture of the building is maintained in a modern style, combining simplicity with fine tune the detail. The building consists of two blocks - residential and garage. From the front is scheduled entrance arcade and an from the terrace ther is also a garden arcade. Corner windows, cornices, protruding hoods give the impression of modernity, horizontal divisions of the facade visually lower the two-storey high wall. The interior of the house is designed so that living room is illuminated from three sides and an thanks to that even with unfavorable location relative to the sides of the world the interior will be well-lit.

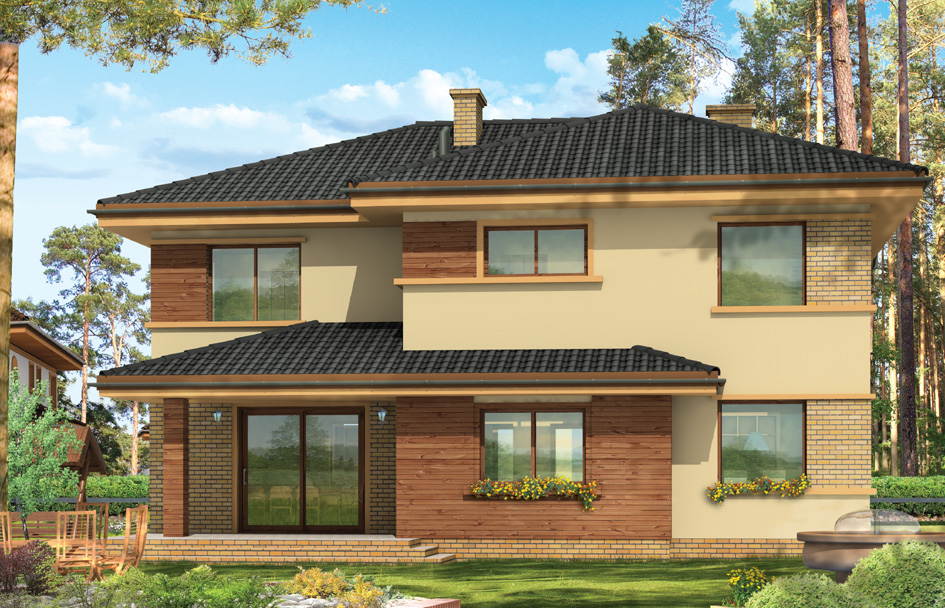

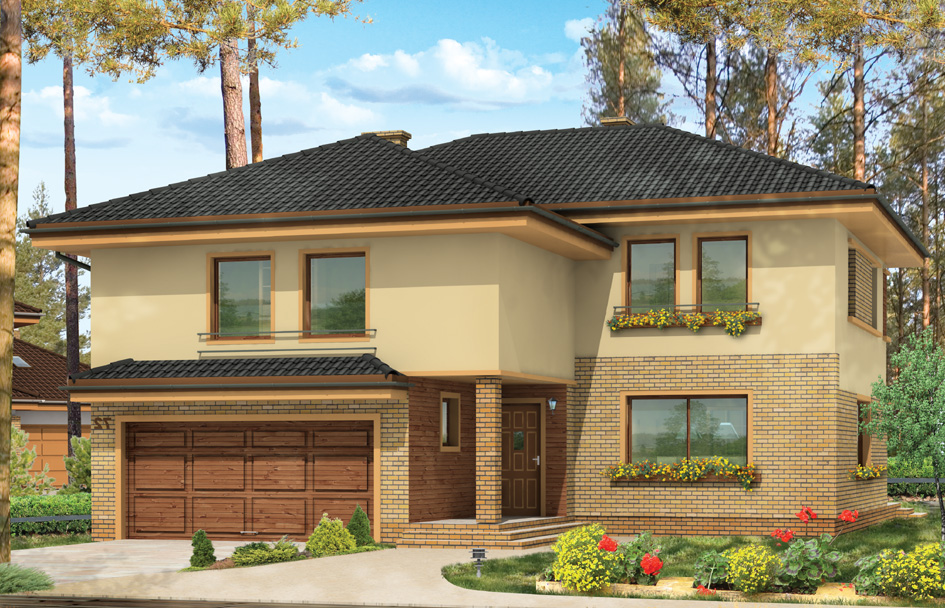

A kitchen, located on the ground floor is well lighted by the window opening it to the garden and it is separated from the living room. On the ground an extra room was designed. On the first floor there are four rooms with two bathrooms and an dressing rooms and laundry. Coral house plan is also available in mirror version.
Specifications:
- Cubature: 979 m3/ 34568,49 ft3
- Built-up area: 159,9 m2/ 1720,52 ft2
- Total area: 324,5 m2/ 3491,62
- Net area: 221,62 m2 + garage/ 2384,63 ft2 + garage
- Usable area:: 207,24 m2/ 2229,90 ft2
- Roof area: 272,7 m2/ 2934,25 ft2
- Roof slope: 24 degrees
- Height of the building: 8,34 m (8,84 m with foundation)/ 27,35 ft (28,99 ft with foundation)
- Wide of the building: 12,97 m/ 42,54 ft
- Length of the building: 15,96 m/ 52,35 ft
- Minimum plot width: 20,27 m/ 66,49 ft
- Minimum plot length: 23,96 m/ 78,59 ft
- Height of rooms: 2,8 m/ 9,18 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – bilayer porotherm + polystyrene
- Internal walls - porotherm
- Ceiling - Teriva
- Roof - tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 55 400,00 EUR |
| The raw state closed | 79 500,00 EUR |
| The cost of finishing works | 98 200,00 EUR |
| Execution of turnkey home | 177 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Coral - detailed file
House plan Coral - detailed file - mirror
