Riviera house plan

Usable area: 204.31 m2   /   The cost of the realization: 189 800 EUR

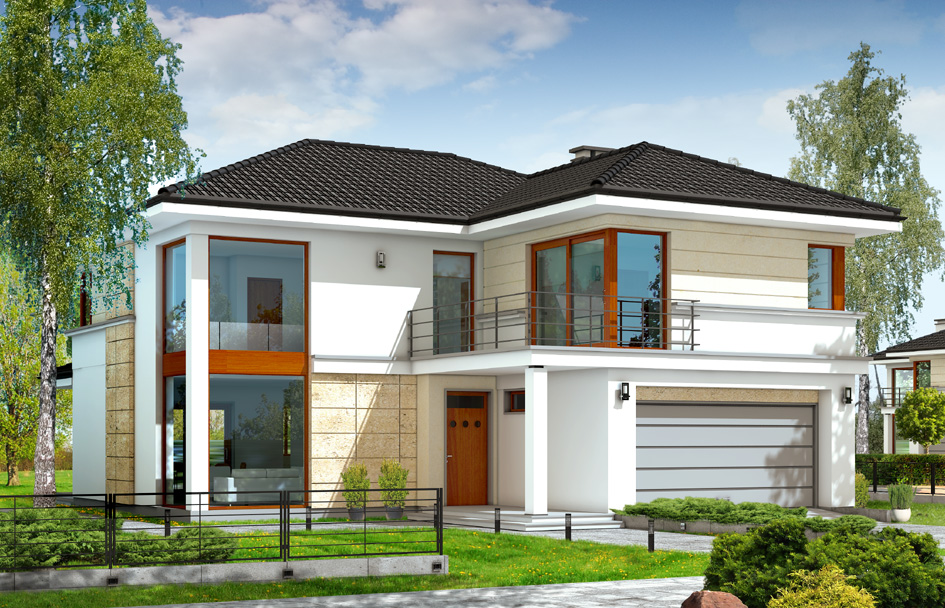

House plan Riviera - front visualization
Show mirror image

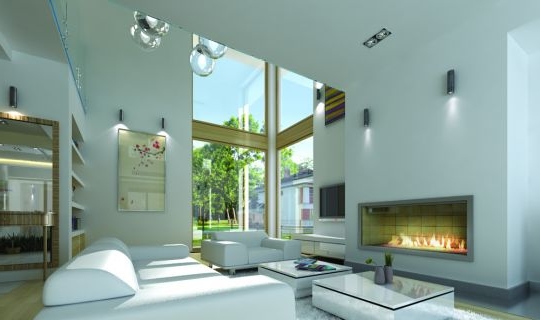

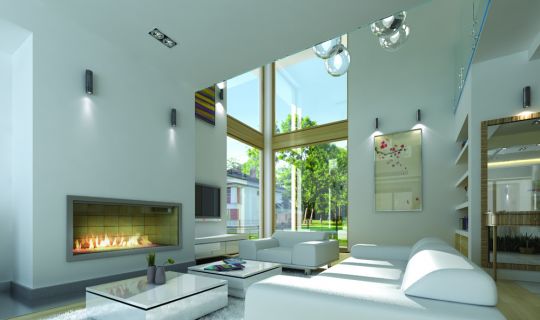

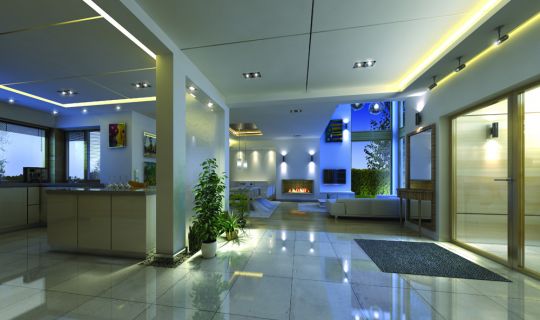

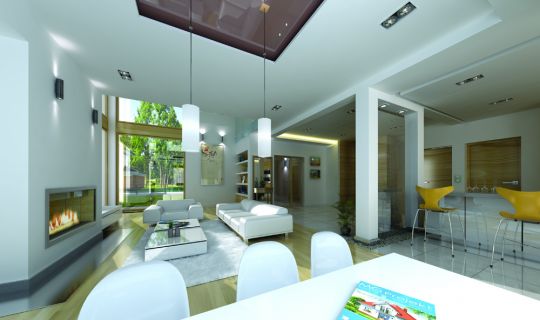

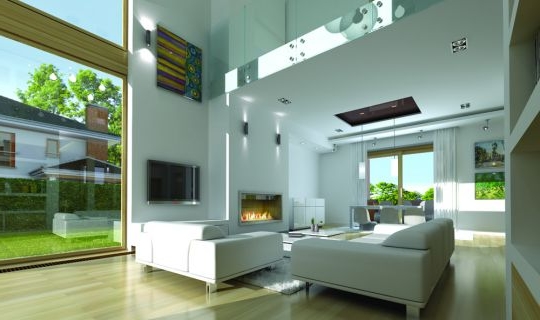

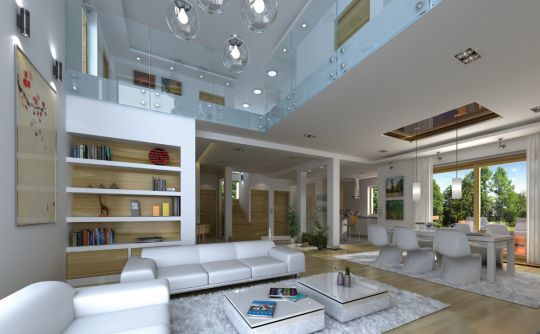

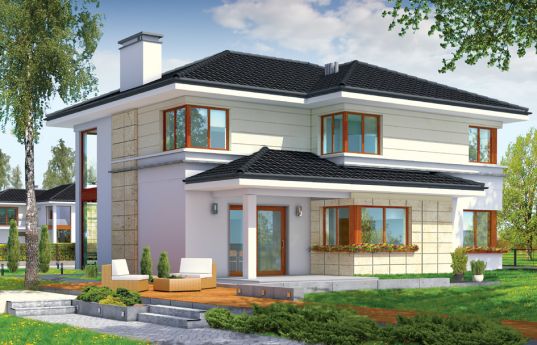

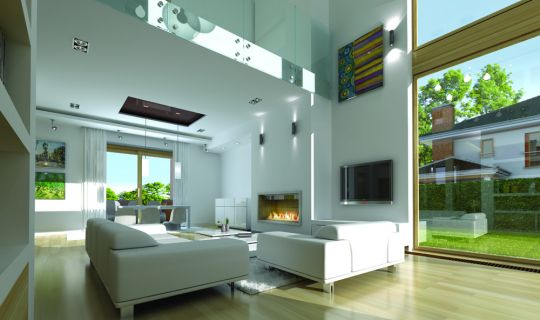

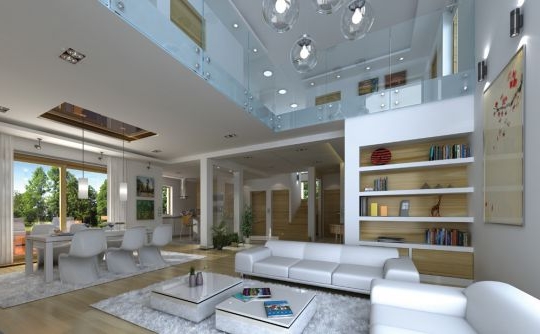

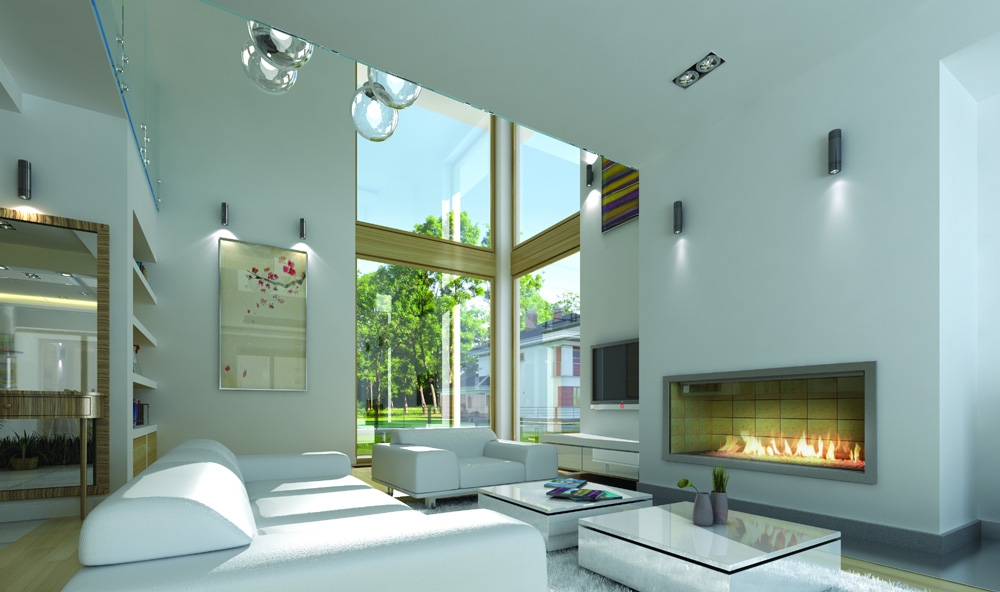

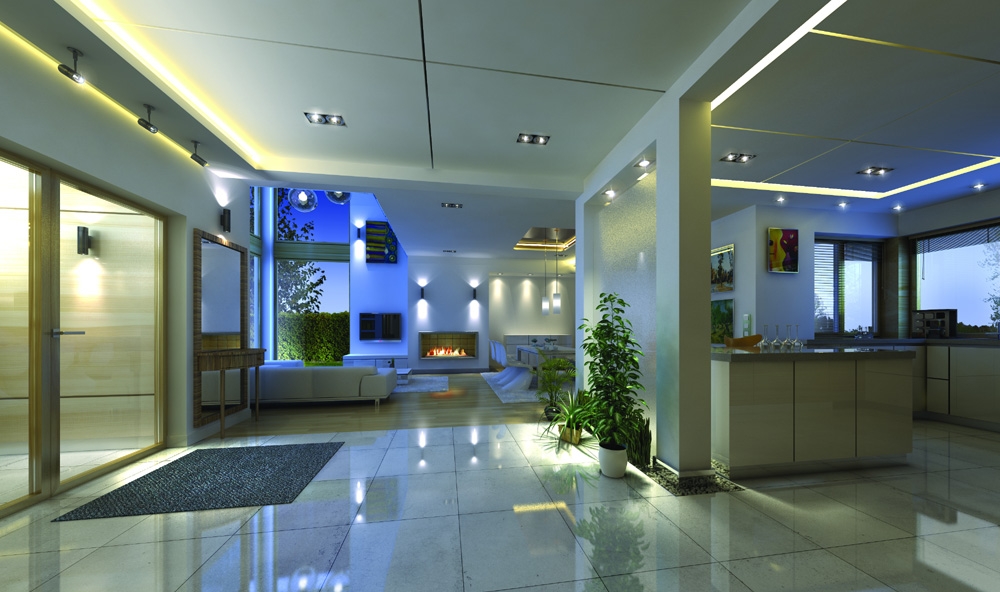

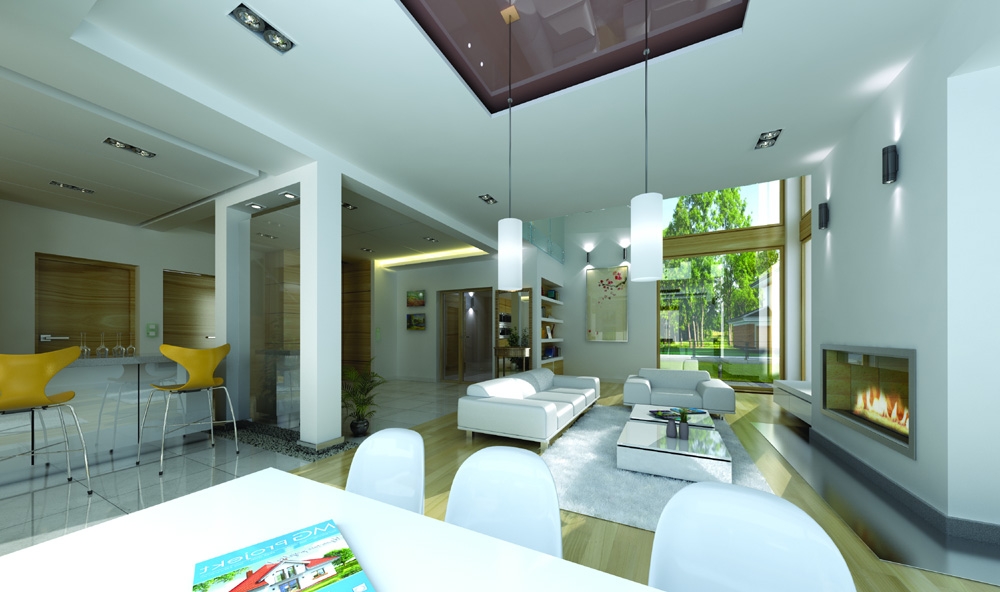

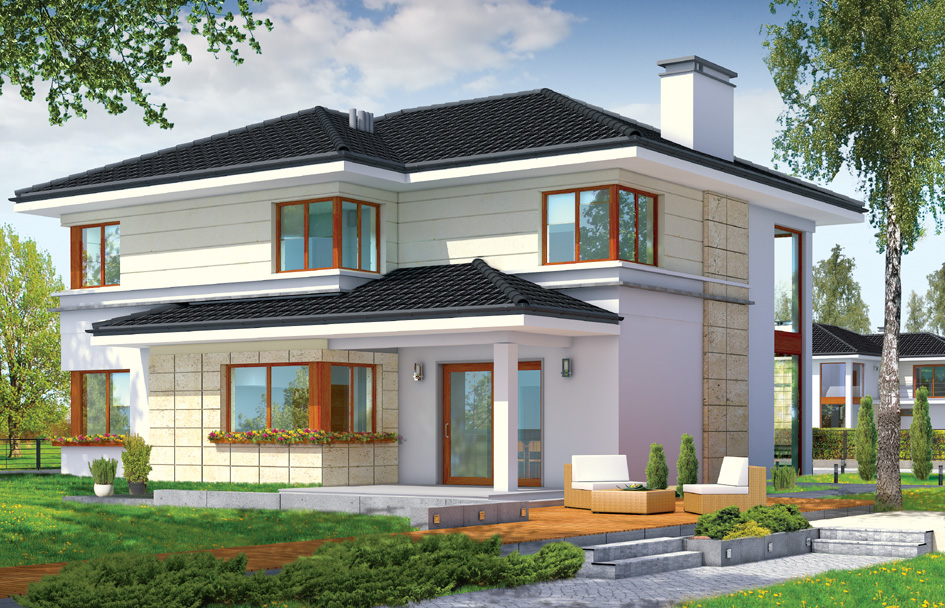

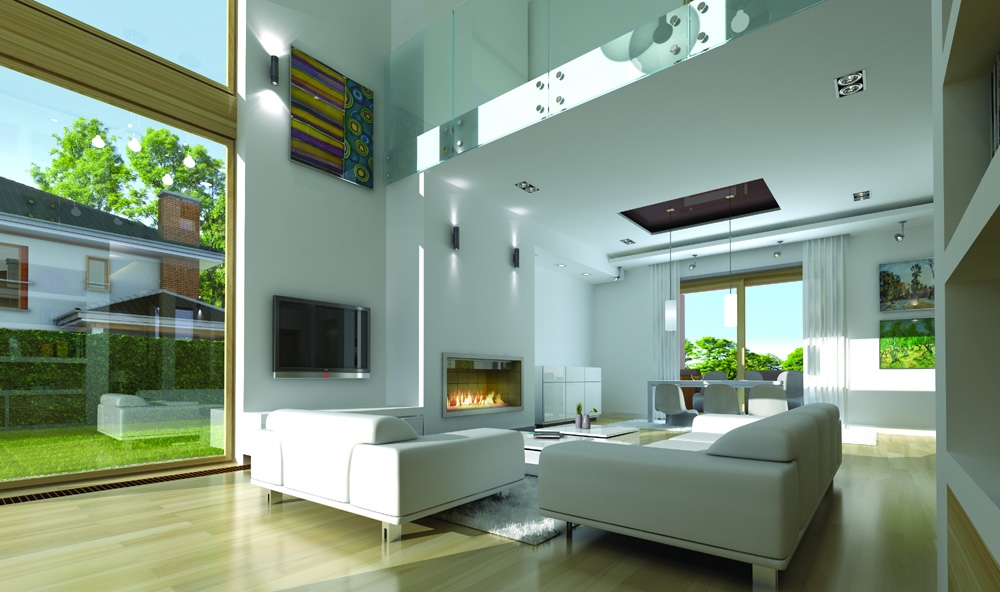

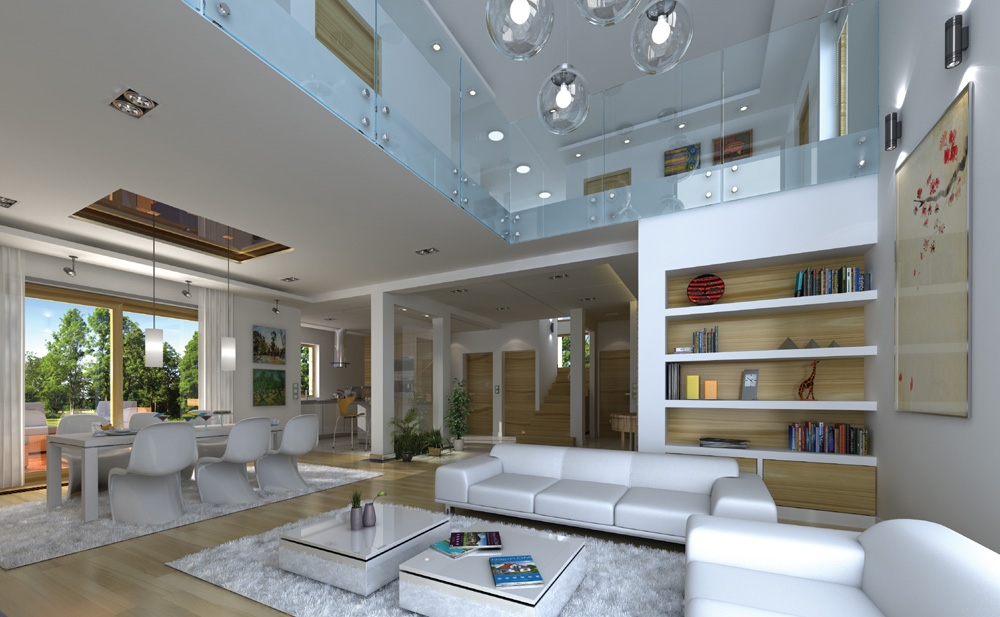

Riviera house is the original one-story house designed for a family of four to six people.. The building is designed as a one-storey body in the T-shaped covered by mild hipped roof. House with its style is trying to establish to the nature of the urban villa, combining elements of modernist architecture with modern details and materials. As a result of this combination we succeeded obtained an elegant form. Building has been designed in such way that it can be located also at unfavorable in relation to the world side plot. Even at the entrance on the south side in the living room will be a lot of light - thanks to large glazing. From the garden side was designed cozy terrace covered by the partly roof arcades. Riviera house plan inside is divided on functional zones. On the ground floor most of the space it occupies by living space with a beautiful two-storey living room - with an entresol on the first floor, dining room, lobby with representational staircase and partly open kitchen. In addition, on the ground floor provides room - office or spare bedroom and a garage. By stairs we go down to the basement, where are technical rooms. On the ground floor there are three bedrooms with wardrobes, two bathrooms (one belonging to an isolated parents' apartment with terrace) and a laundry room. Large hall - entresol of is natural extension of the living room. There is also available mirror version of this house plan.

Specifications:
  • Cubature: 1096 m3 / 38699,76 ft3
  • Built-up area: 158,85 m2 / 1709,23 ft2
  • Total area: 364,5 m2 / 3922,02 ft2
  • Net area: 238,51 m2 + basement / 2566,37 ft2 + basement
  • Usable area: 204,31 m2 / 2198,38 ft2
  • Roof area: 249,57 m2 / 2685,37 ft2
  • Roof slope: 24 and 20 degrees
  • Height of the building: 8,55 m (8,80 m with foundation) / 28,04 ft (28,86 ft with foundation)
  • Wide of the building: 13,09 m / 42,93 ft
  • Length of the building: 16,08 m / 52,74 ft
  • Minimum plot width: 19,99 m / 65,57 ft
  • Minimum plot lengthi: 24,08 m / 78,98 ft
  • Height of rooms: 2,8 i 2,6 m / 9,18 and 8,53 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Roof - tile
  • Elevation - thin-layer plaster on polystyrene






The costs of implementing:
The raw state open 67 900,00 EUR
The raw state closed 96 800,00 EUR
The cost of finishing works 93 000,00 EUR
Execution of turnkey home 189 800,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Riviera - detailed file - mirror

House plan Riviera - detailed file
