Usable area: 109.19 m2 / The cost of the realization: 119 400 EUR

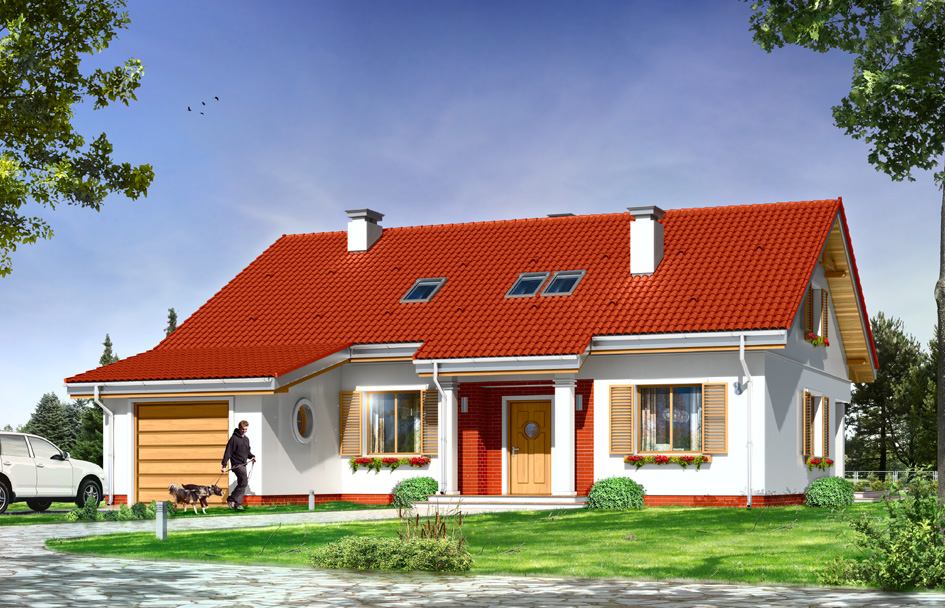

Show mirror image
Price: 1000 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (5) Detailed drawings
List of materials
Comments (3)

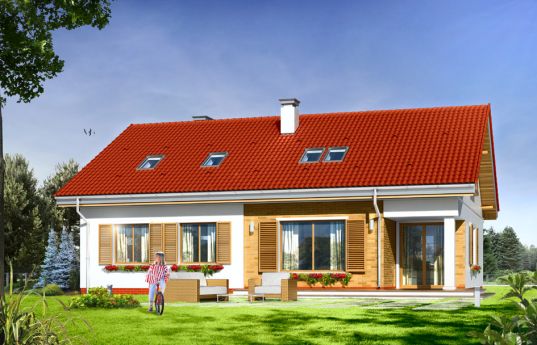

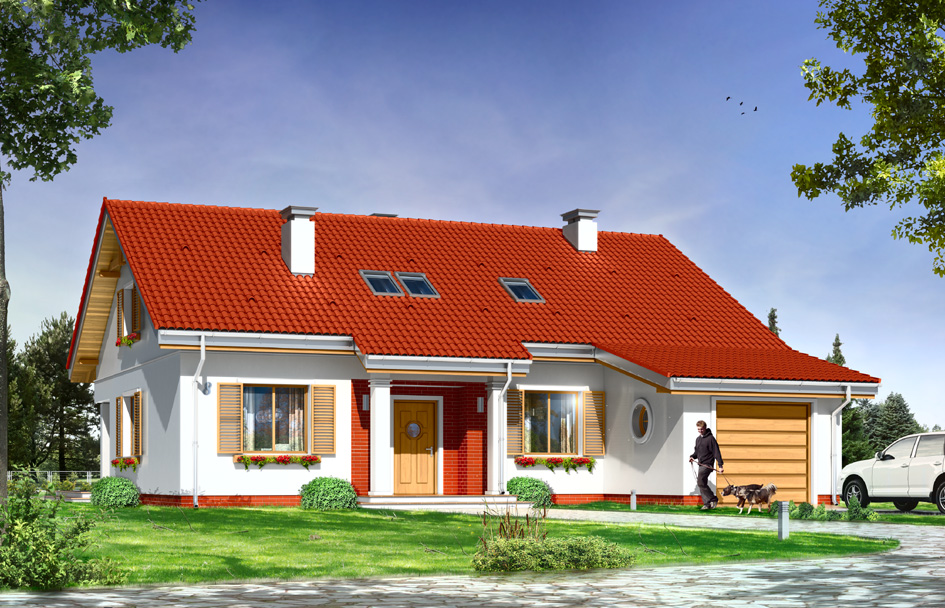

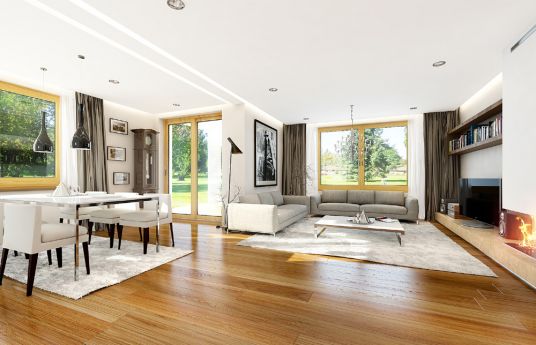

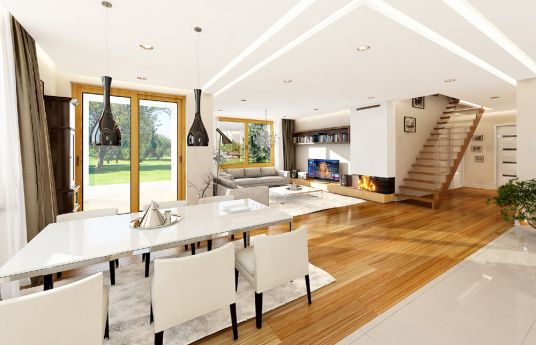

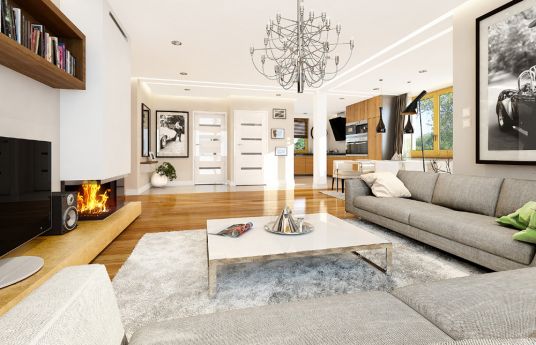

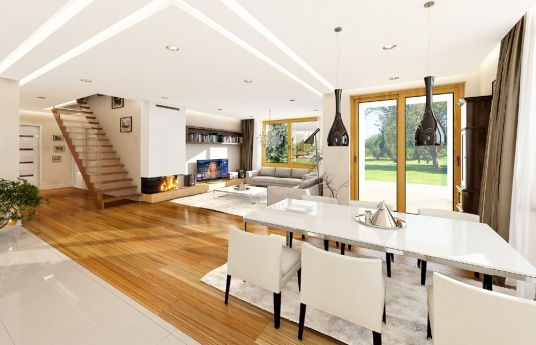

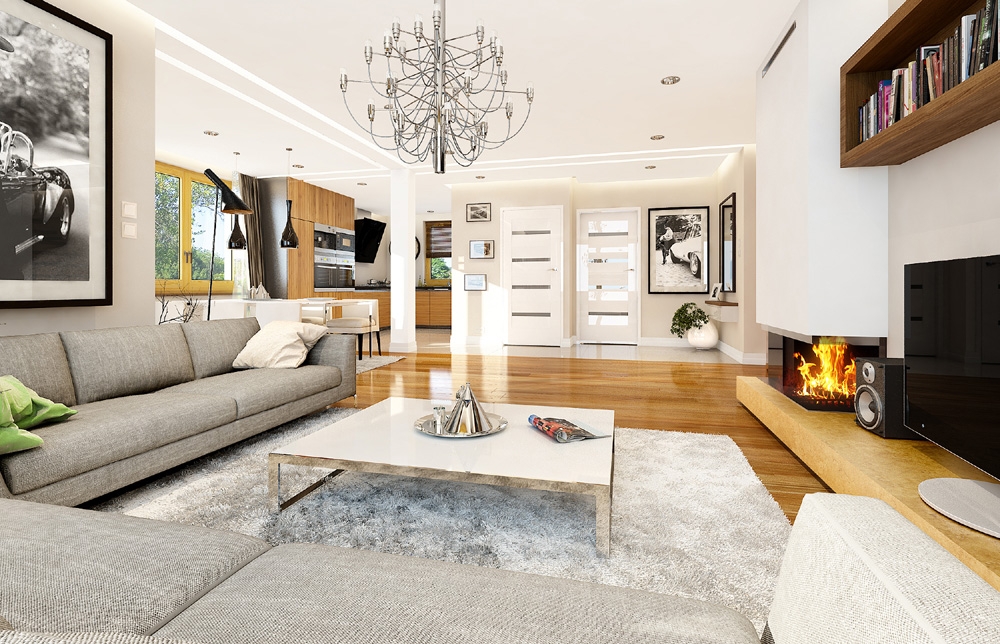

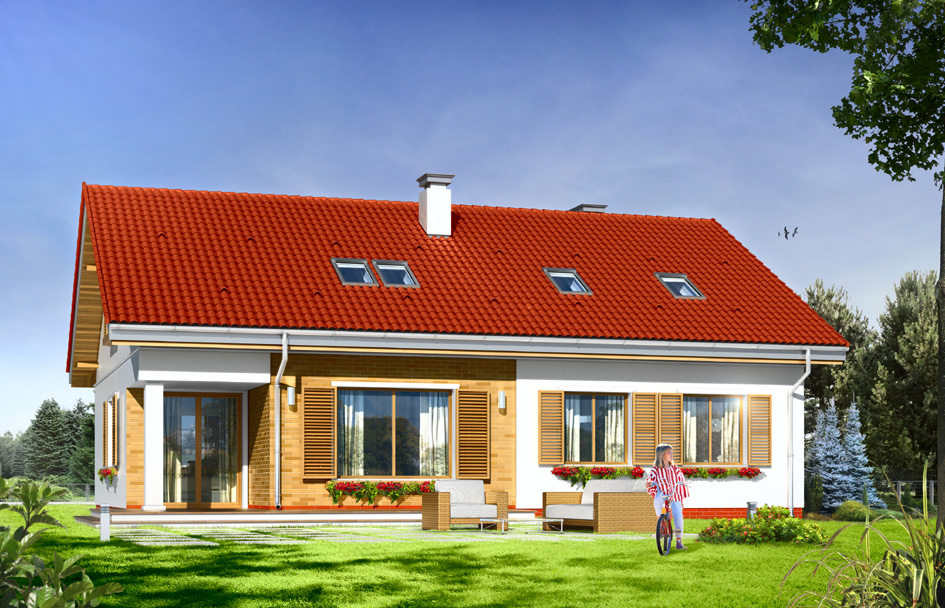

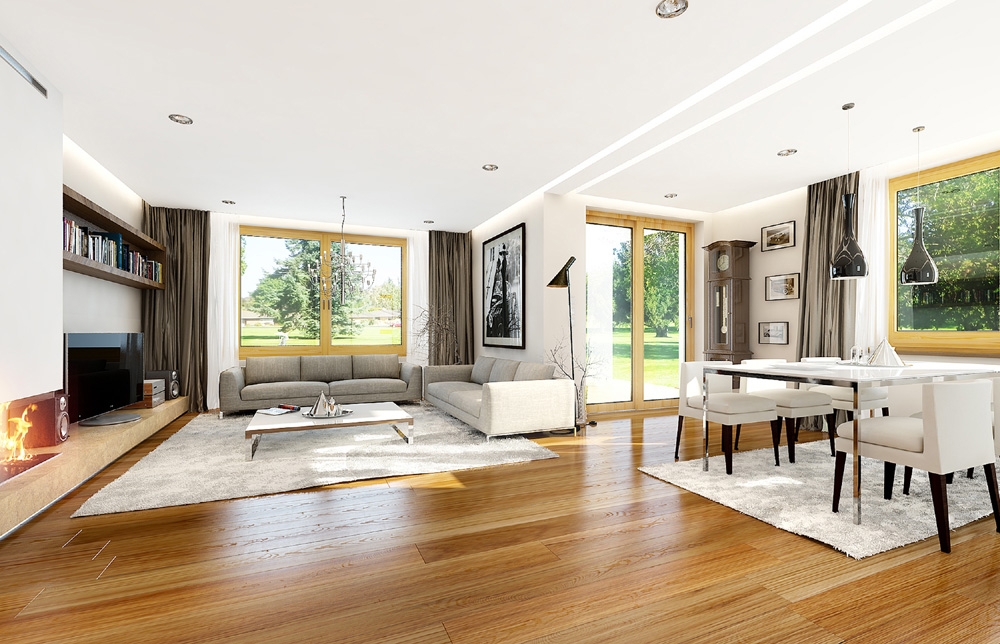

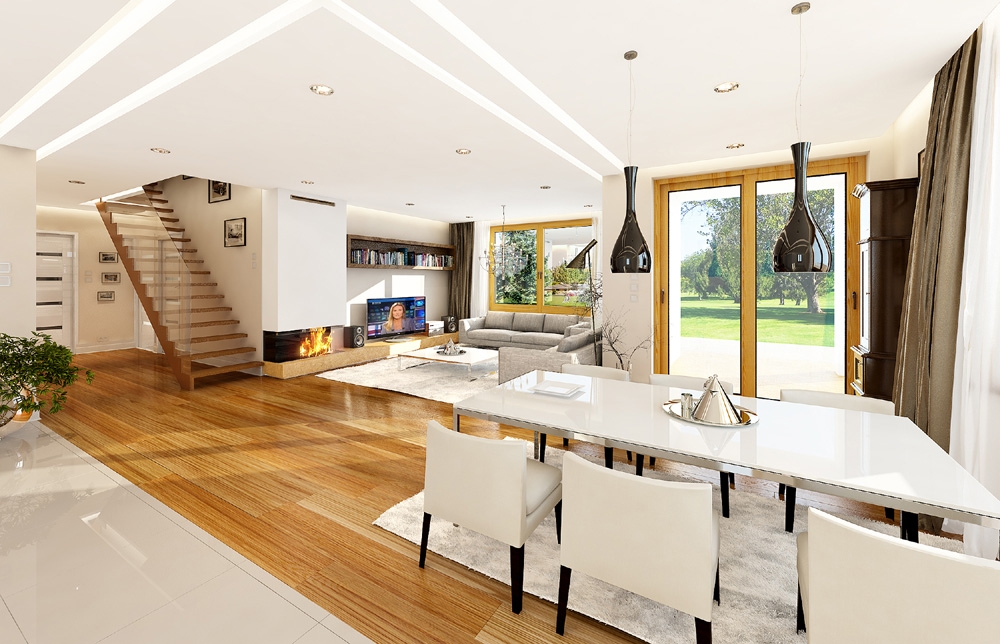

Nectarine is a lovely detached house, suitable for a family of 4 people, which "grows" and may need over time more extra space. This is a storey house covered by a gable roof with the attic to adapt to the usable attic - in the second stage. Architecture of Nectarine house is traditional, referring to the language of Polish manor houses details. The simple shape of the building and well-balanced proportions, give calm and not overdone effect. Front elevation decorated with a roofing over the entrance arcade, supported by two columns. From the garden side, elevation is diversified by arcade in the corner of the house, beautiful window from the living room to the garden and part of the clinker facade. The interior of the house: all rooms are designed on the ground floor and the attic is provided as additional space for future any development. The ground floor is separated on the living area - living room, dining annex, hall, kitchen and night part - with three bedrooms and a bathroom. Additionally, it is also part of the utility area with a garage and boiler room. By incorporating a garage in the width of the living area of the building you can fit the house on the narrower grounds than many of these houses with garage later extension to the side. There is also a mirror version of the Nectarine house plan.
Specifications:
- Cubature: 706 m3 / 24928,86 ft3
- Built-up area: 166,22 m2 / 1788,53 ft2
- Total area: 166,22 m2 / 1788,53 ft2
- Net area: 114,27 m2 + garage / 1229,55 ft2 + garage
- Usable area: 109,19 m2 / 1174,88 ft2
- Roof area: 248,14 m2 / 2669,99 ft2
- Roof slope: 30 degrees
- Height of the building: 7,08 m (7,38 m with foundation) / 23,22 ft (24,21 ft with foundation)
- Wide of the building: 14,07 m / 46,15 ft
- Length of the building: 14,97 m / 49,10 ft
- Minimum plot width: 22,07 m / 72,39 ft
- Minimum plot length: 22,97 m / 75,34 ft
- Height of rooms: 2,60 m / 8,53 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 43 100,00 EUR |
| The raw state closed | 62 000,00 EUR |
| The cost of finishing works | 57 400,00 EUR |
| Execution of turnkey home | 119 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Nectarine - detailed file
House plan Nectarine - detailed file - mirror
