Anatol house plan

Usable area: 103.04 m² / The cost of the realization: 121 300 EUR

Show mirror image

Price: 970 EUR

Description Plans Elevations Situations Animation Variants (2) Realizations (33) Detailed drawings List of materials Comments (3)

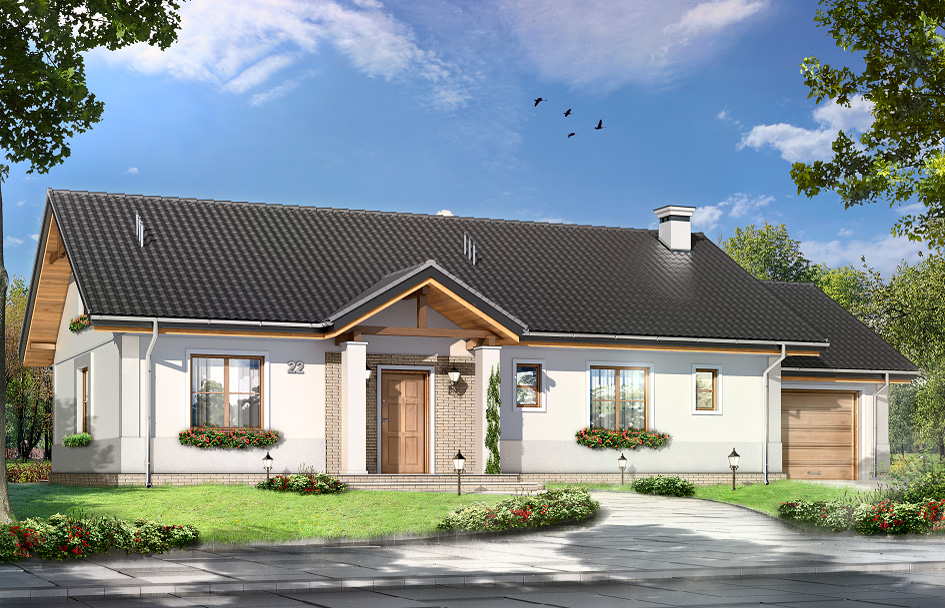

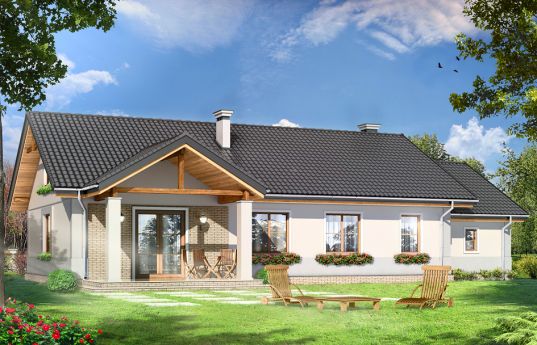

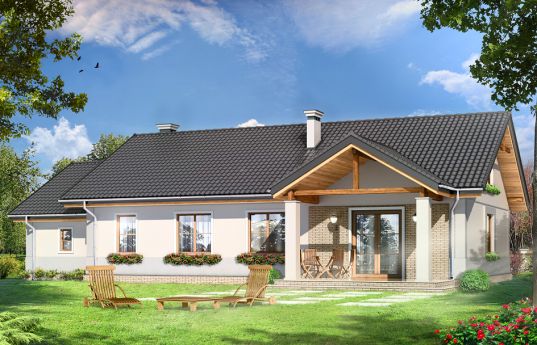

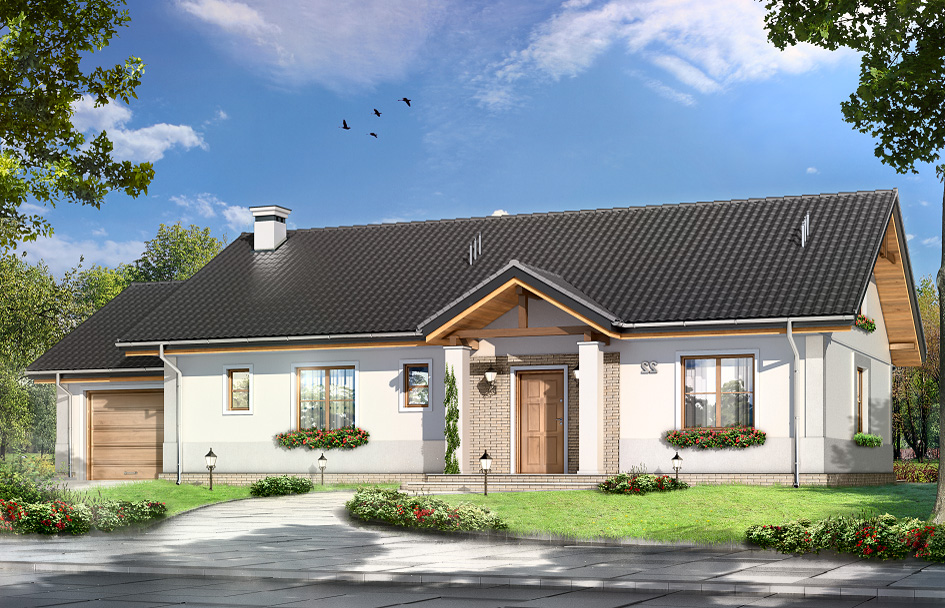

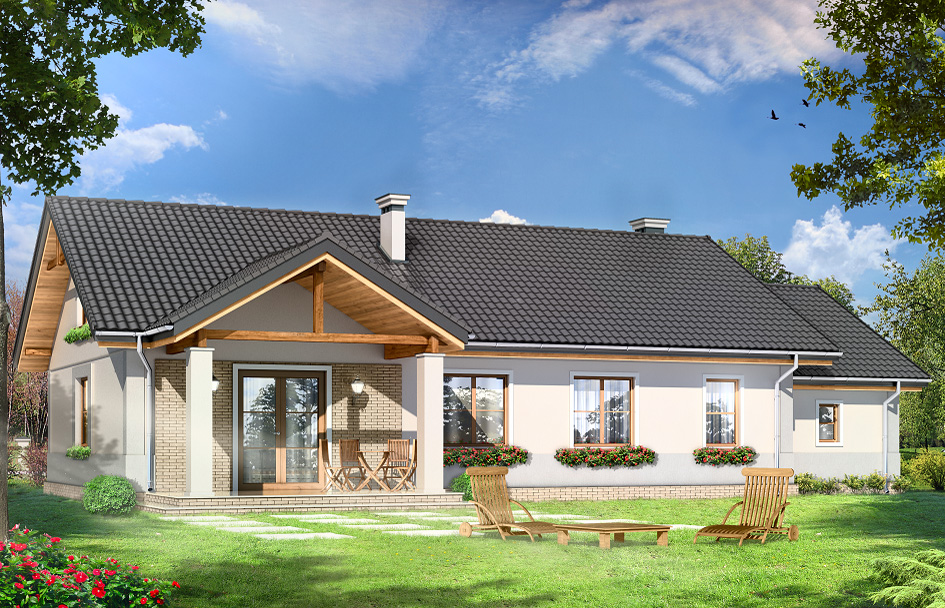

Anatol house plan is a convenient, one-story house for a family of 4 - 6 people, with a very toned down architecture. This house plan is a combination of the simplicity, modern rationality and traditional architectural detail. The one-storey body of the building was covered by the gable roof and hide itself an additional space of attic which, after adaptation can serve as usable attic. Thanks to the thoughtful proportions, and additives such as front porch on small columns, and a large garden veranda, covered by a gable roof - the house Anatol is both simple, interesting and elegant. Inside the house, besides a spacious living room connected with hall and kitchen, four additional rooms, large utility room, two bathrooms and a toilet was planned. That's enough room even for a fairly large family. Adjoined to the main body of the house garage is extended by an additional utility room. The stairs to the attic lead from the utility room - boiler room. In the case of adaptation of attic to usable attic the layout of the partition walls of the bathroom and boiler room should be changed and turn the stairs into the lobby. There is also a mirror version of the Anatol house plan.

Specifications:

Cubature: 653 m³/ 23057,43 ft³
Built-up area: 166,71 m²/ 1793,80 ft²
Total area: 166,71 m²/ 1793,80 ft²
Net area: 111,41 m² + garage / 1198,77 ft² + garage
Usable area: 103,04 m²/ 1108,71 ft²
Roof area: 262,15 m² / 2820,73 ft²
Roof slope: 30 degrees
Height of the building: 6,13 m (6,58 m with foundation) / 20,111 ft (21,58 ft with foundation)
Wide of the building: 18,57 m / 60,91 ft
Length of the building: 9,3 m / 30,50 ft
Minimum plot width: 25,57 m / 83,87 ft
Minimum plot length: 18,87 m / 61,89 ft
Height of rooms: 2,65 m / 8,69 ft

Materials:

• Foundations - Concrete benches and foundation walls of concrete blocks
• Walls - brick walls - porotherm 25 block + polystyrene + thin-layer plaster
• Ceiling - wooden beam
• Elevation - thin-layer plaster on polystyrene
• Roof - tile

The costs of implementing:

The raw state open	41 800,00 EUR
The raw state closed	58 600,00 EUR
The cost of finishing works	62 800,00 EUR
Execution of turnkey home	121 300,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Projekt domu Anatol - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Anatol - detailed file

House plan Anatol - detailed file - mirror
