Usable area: 91.43 m2 / The cost of the realization: 95 600 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (40) Detailed drawings
List of materials
Comments (3)

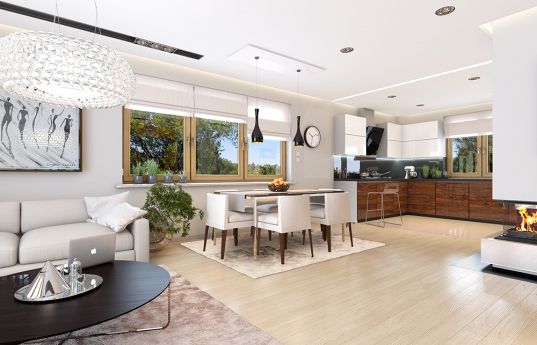

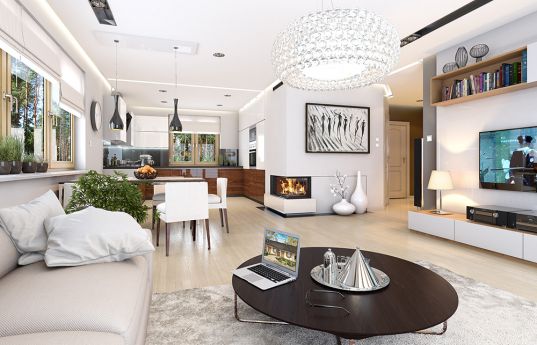

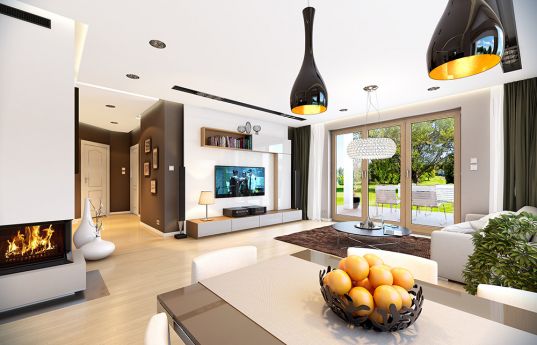

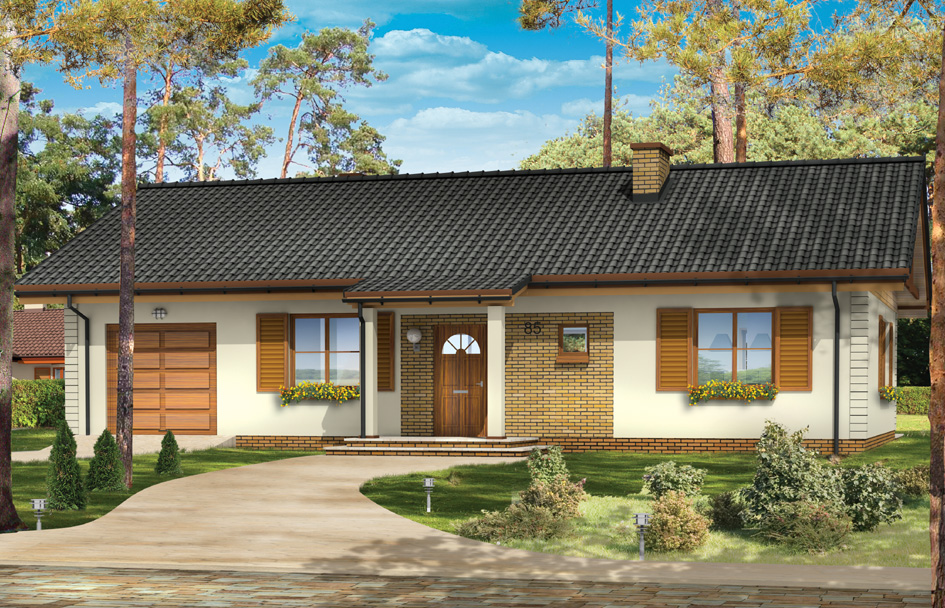

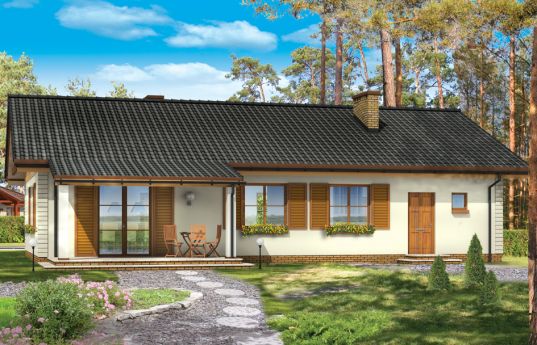

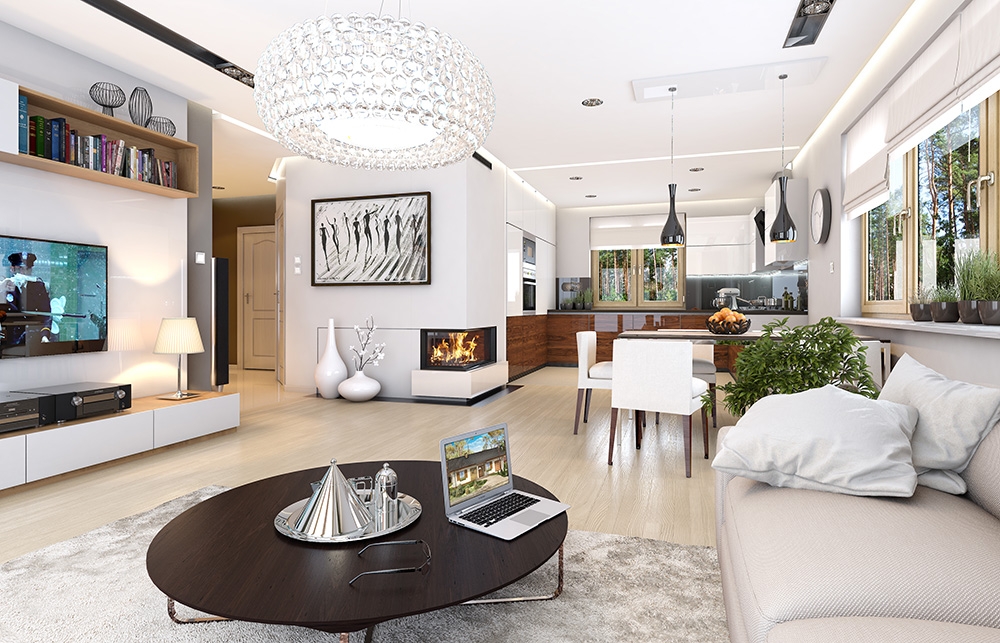

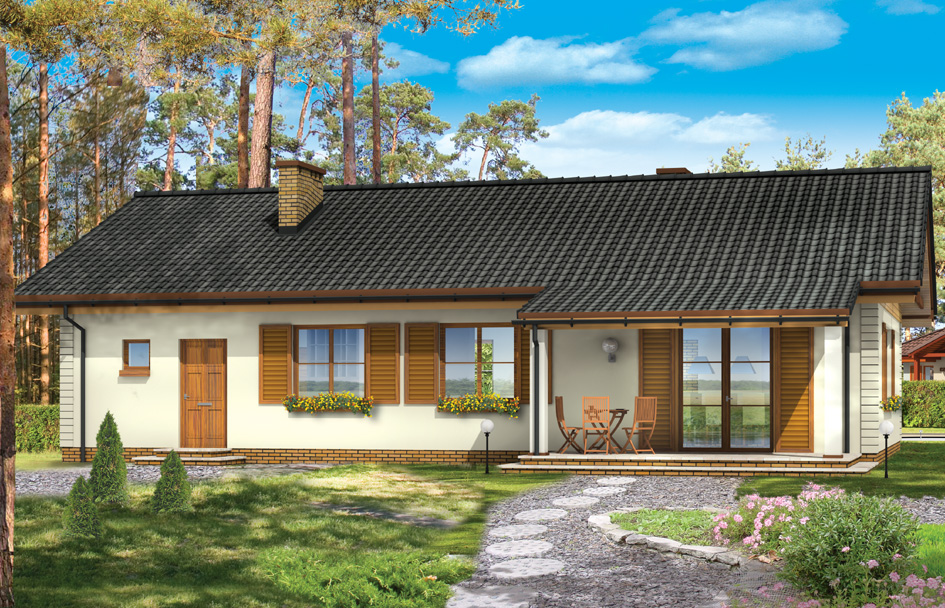

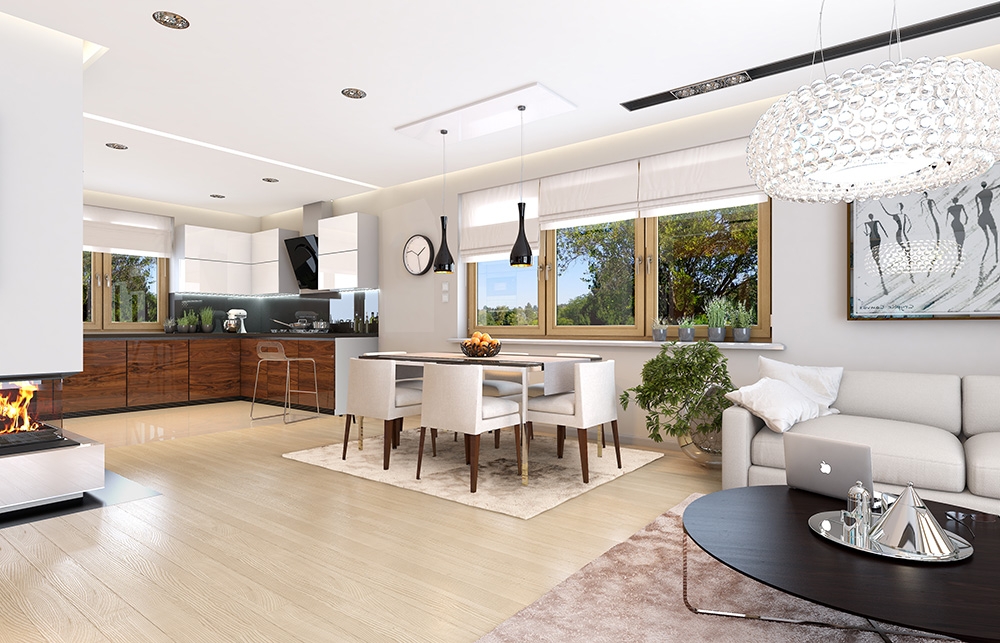

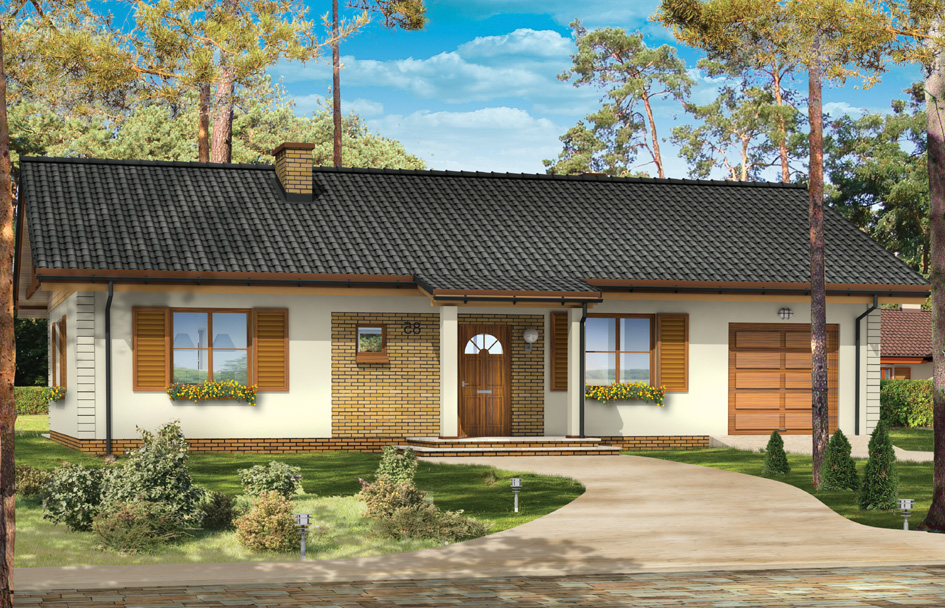

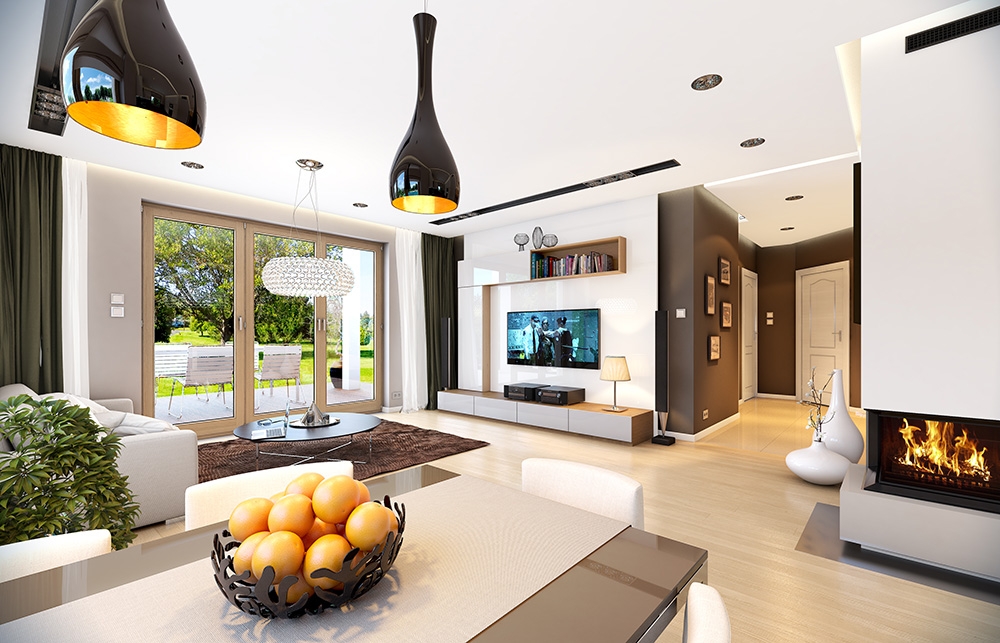

Amber house plan is a single-family house for 4 - 5 people. This house plan has a simple body covered by a gable roof. Amber is an economical and simple in building. Inside the house besides spacious living room there are also three bedrooms, bathroom and utility room. In this house plan the central heating boiler may be alternatively in the room next to the entrance, or in case of solid fuel boiler room - in the room behind the garage. There is also a mirror version of this house plan..
Specifications:
- Cubature: 447 m3/ 1578,,57 ft3
- Built-up area: 154,63 m2/ 1663,82 ft2
- Total area: 154,63 m2/ 1663,82 ft2
- Net area: 105,16 m2 + garage / 1131,52 ft2 + garage
- Usable area: 91,43 m2 / 983,79 ft2
- Roof area: 229,3 m2/ 2467,27 ft2
- Roof slope: 24 degrees
- Height of the building: 5,46 m (5,78 m with foundation) / 17,91 ft (18,96 ft with foundation)
- Wide of the building: 15,64 m / 51,30 ft
- Length of the building: 9,89 m / 32,44 ft
- Minimum plot width: 22,64 m / 74,26 ft
- Minimum plot length: 20,27 m / 66,49 ft
- Height of rooms: 2,61 m / 8,56 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - brick walls - porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 28 800,00 EUR |
| The raw state closed | 43 700,00 EUR |
| The cost of finishing works | 52 000,00 EUR |
| Execution of turnkey home | 95 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Amber - detailed file
House plan Amber - detailed file - mirror
