Opal 2 house plan

Usable area: 185.75 m2   /   The cost of the realization: 175 800 EUR

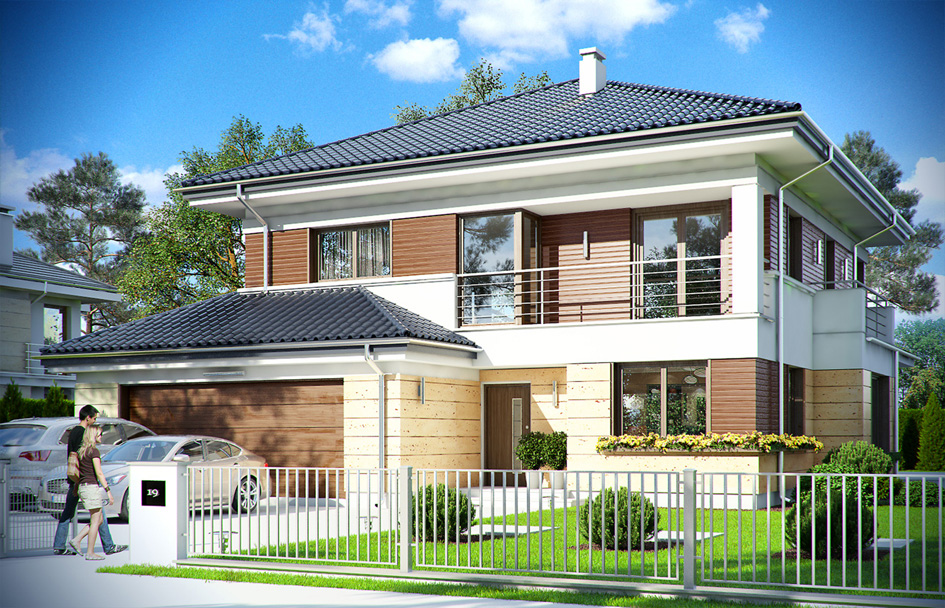

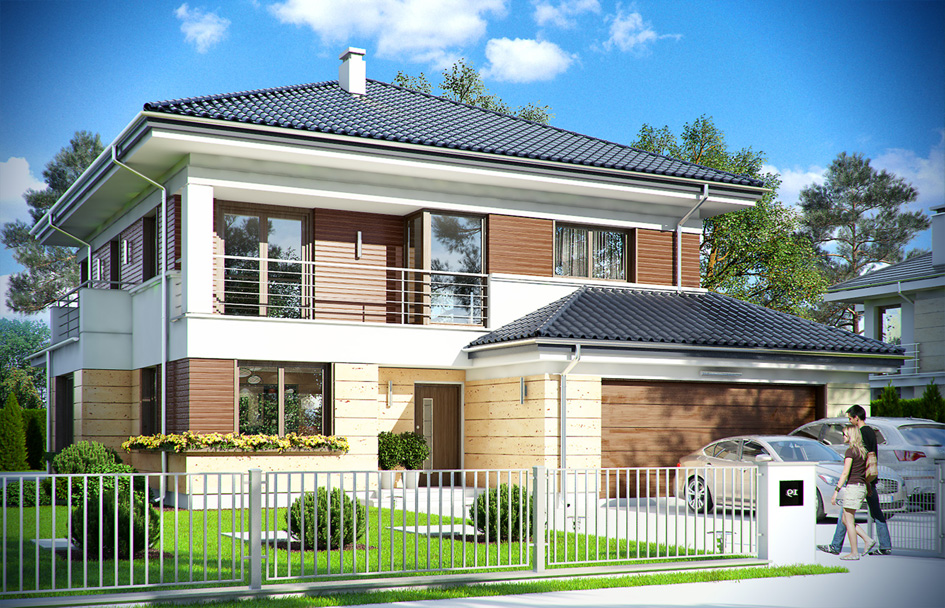

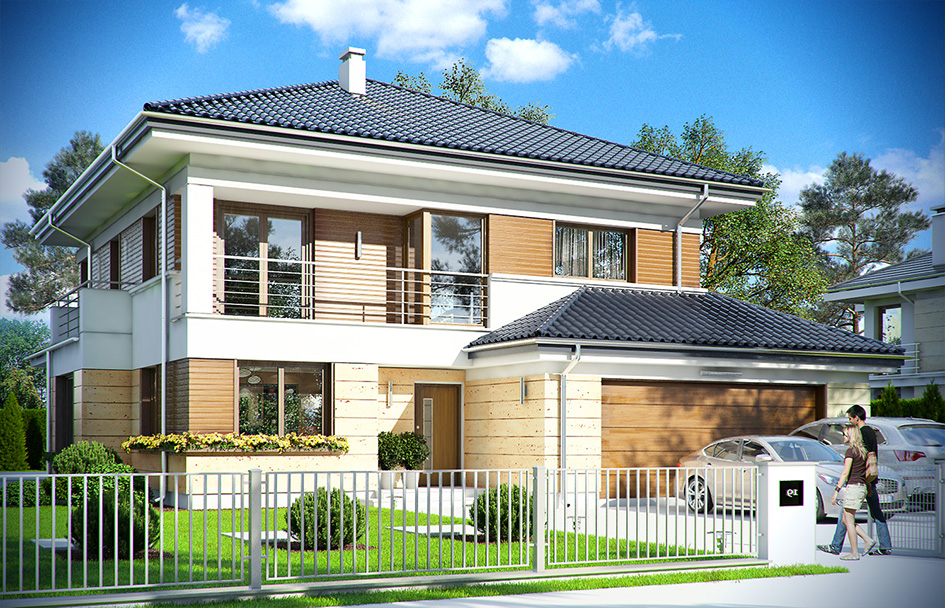

House plan Opal 2 - front visualization

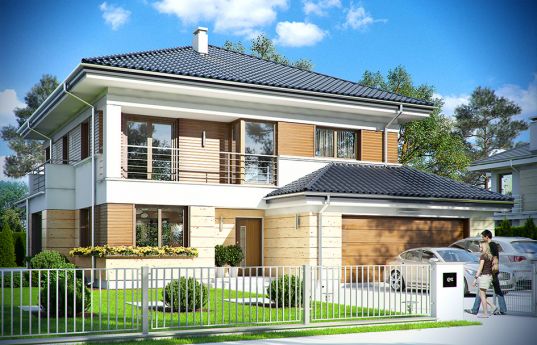

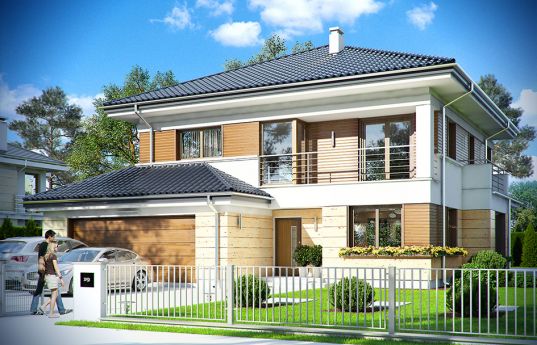

Show mirror image

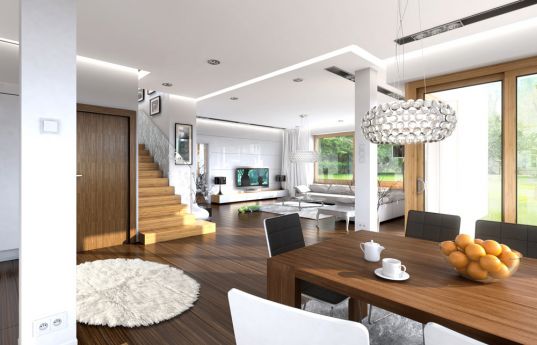

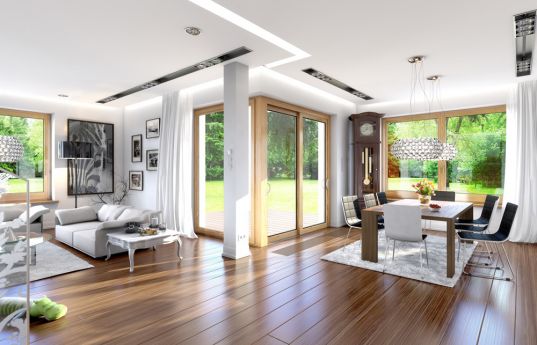

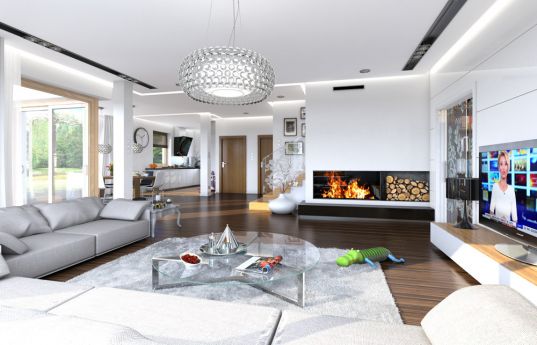

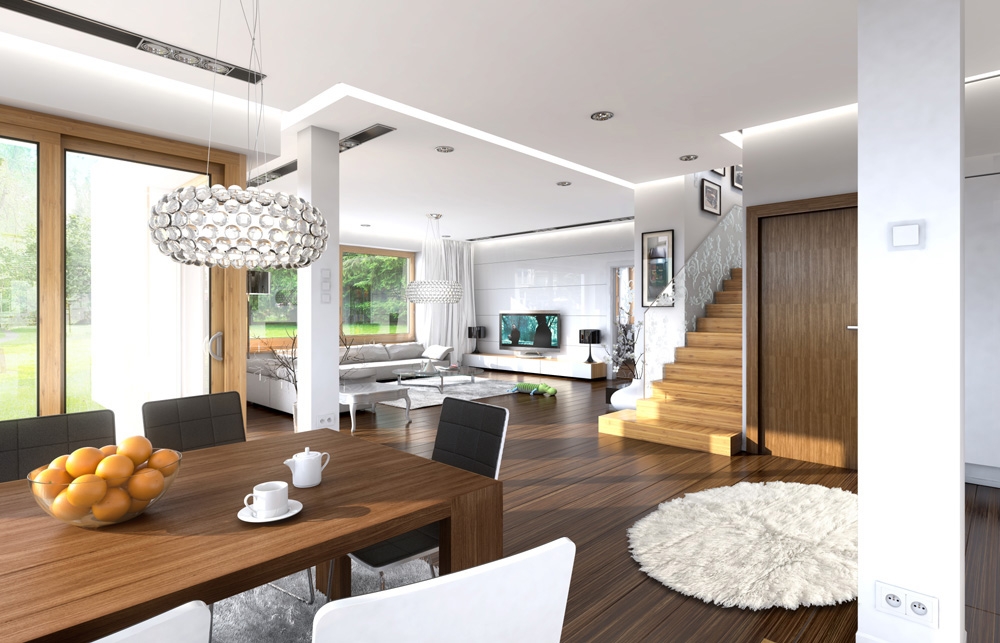

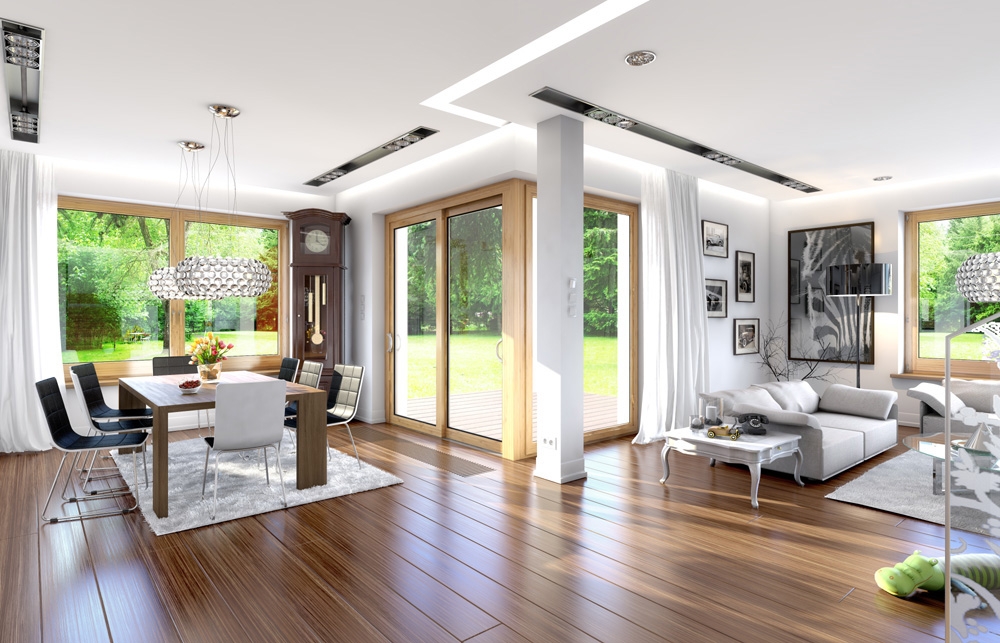

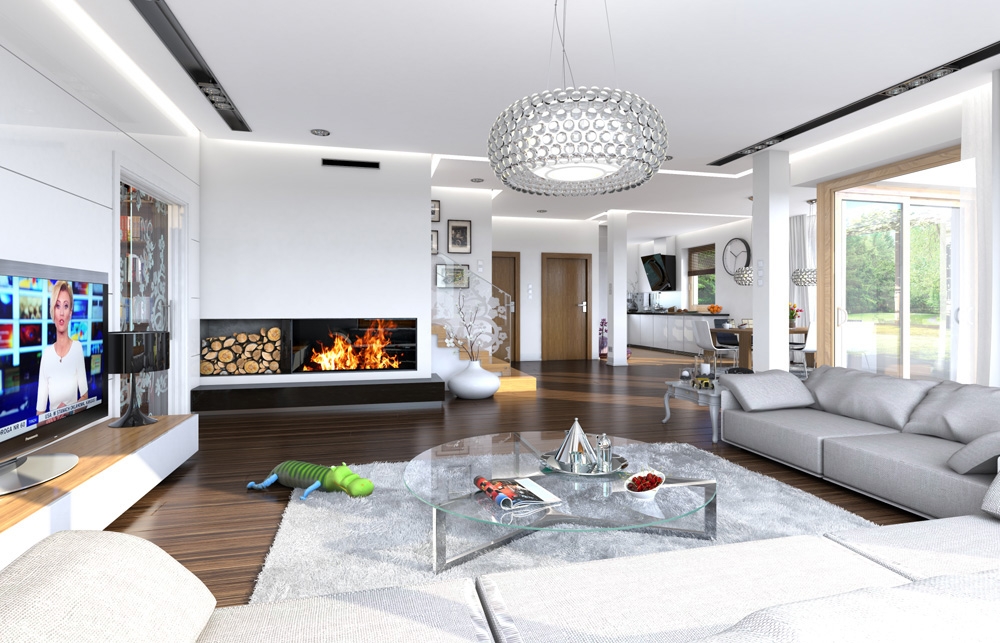

Opal 2 house plan is a modified version of the popular detached house Opal. The house was a little enlarged in comparison to its predecessor. Opal 2 has a larger garage and utility part. The external appearance of the building has changed - Opal 2 is even more presentable and comfortable. The house was designed for a family of four to six people who prefer storey buildings, without the "slant", who appreciate the toned modern architecture, with interesting glazing, facades decorated by diverse finishing materials, such as wood or stone. The clear shape of the building consists of storey part covered by roofed envelope, and built another garage and bay windows. The interior of the house is divided into a living area on the ground floor (with adjoining utility rooms), and the bedrooms upstairs. One space of the living room, dining room, hall and kitchen creates a comfortable surface area. Centrally located representative stairs, or fireplace wall - are decorations of the ground floor interior. On the ground floor there were also a place for additional space - office or guest bedroom. Truly great is here the garage, with plenty of space for additional equipment. There is also quite big boiler room. On the first floor we have the luxury apartment of parents - with its own bathroom and dressing room, and two bedrooms for children with bathrooms and dressing rooms. There is also room for an extra small room, for example, laundry-room, drying-room, freely according to the wishes of the Investor. In the attic an extra space can be utilized for utility purposes. Energy efficient solutions in the house will significantly reduce the cost of exploitation of your house - especially heating costs.

Specifications:
  • Cubature: 880 m3 / 31072,8 ft3
  • Built-up area: 184,60 m2 (with arcades: 192,85 m2) / 1986,30 ft2 (with arcades: 2075,07 ft2)
  • Total area: 305,20 m2 / 3283,95 ft2
  • Net area: 193,26 m2 + garage 43,09 m2 /2079,48 ft2 + garage 463,65 ft2
  • Usable area:
    • 185,75 m2 wg PN-70/B-02365 / 1998,67 ft2 wg PN-70/B-02365
    • 196,65 m2 + garage wg PN-ISO 9836:1997 / 2115,95 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 252,58 m2 / 2717,76 ft2
  • Roof slope: 25 degrees
  • Height of the building: 9,45 m (9,75 m with foundation) / 30,99 ft (31,98 m with foundation)
  • Wide of the building: 15,00 m / 49,2 ft
  • Length of the building: 15,60 m / 51,17 ft
  • Minimum plot width: 22,60 m / 74,13 ft
  • Minimum plot length: 23,60 m / 77,41 ft
  • Height of rooms: 2,8 i 2,6 m / 9,18 and 8,53 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 61 800,00 EUR
The raw state closed 89 200,00 EUR
The cost of finishing works 86 600,00 EUR
Execution of turnkey home 175 800,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Opal 2 - plik szczegółowy

Projekt domu Opal 2 - plik szczegółowy - odbicie lustrzane
