Usable area: 184 m2 / The cost of the realization: 141 600 EUR

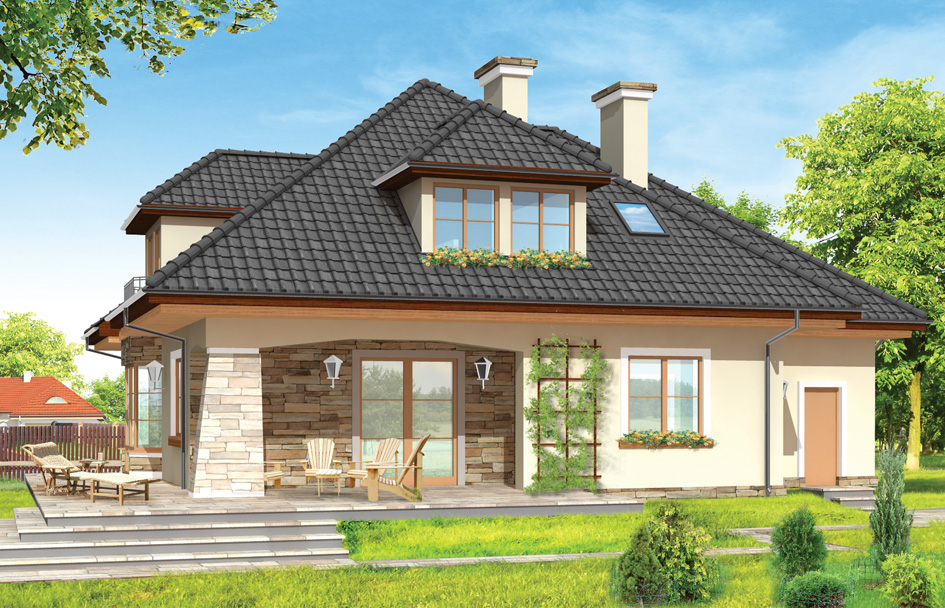

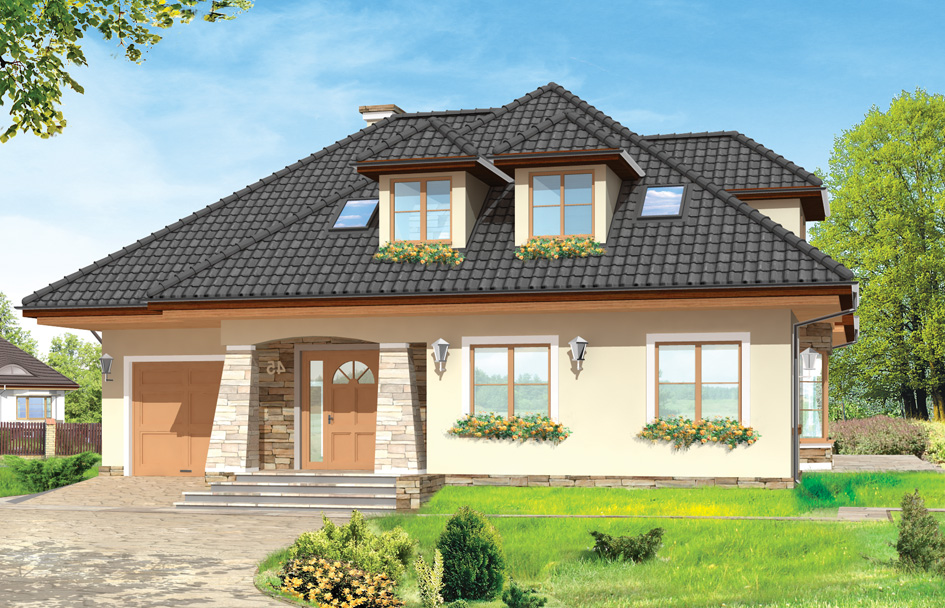

Show mirror image
Price: 1040 EUR
Description
Plans
Elevations
Situations
Animation Variants (3)
Realizations (14) Detailed drawings
List of materials
Comments (3)

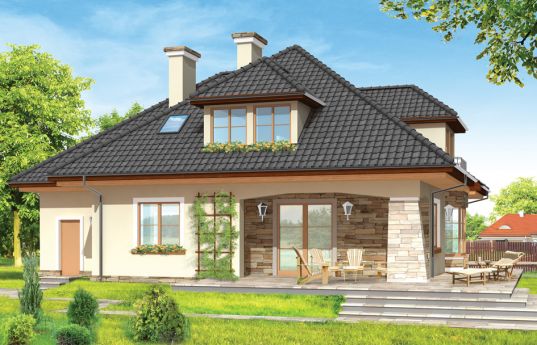

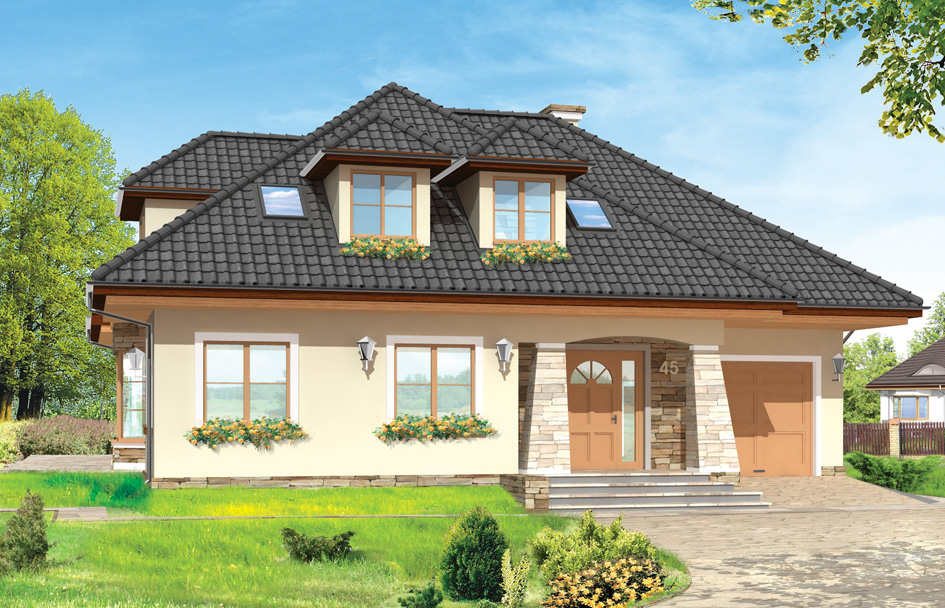

House plan Agnes 2 is a variant version of the house plan Agnes. The house has been reduced, but there has been planned a single garage. The building has acquired a new exterior appearance: changed roof dormers, arcade entrance with additional columns with buttresses. Fragments of walls and socle have been covered with stone, which fits well with the smooth surfaces of the walls and roof. The interior of the house on the ground floor is a large living room with dining area, connected to the lobby and spacious kitchen with an island. On the ground floor extra room with a separate bathroom and a garage with boiler room has been designed. On the attic four bedrooms and two bathrooms has been design. Parents’ bedroom has its own bathroom and dressing room. Above the garage is an attic to any adaptation. Agnes house plan is available in 2 versions to choose from for oil or gas boiler installation, and in a mirror version.
Specifications:
- Cubature: 783 m3 / 27647,73 ft3
- Built-up area: 156,51 m2 / 1684,05 ft2
- Total area: 270,99 m2 / 2915,85 ft2
- Net area: 221,28 m2 / 2380,97 ft2
- Usable area: 184 m2 + garage + attic / 1979,84 ft2 with garage and attic
- Roof area: 291 m2 / 3131,16 ft2
- Roof slope: 40 degrees
- Height of the building: 8,63 m (9,33 m with foundation)/ 28,31 ft with fundation
- Wide of the building: 14,92 m / 48,94 ft
- Length of the building: 13,12 m / 43,03 ft
- Minimum plot width: 21,92 m / 71,90 ft
- Minimum plot lengthi: 21,12 m / 69,27 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
• Foundations - concrete
• External walls – bilayer porotherm + wool
• Ceiling - Teriva
• Elevation - thin-layer plaster
• Roof - Ceramic tile
The costs of implementing:
| The raw state open | 47 100,00 EUR |
| The raw state closed | 71 300,00 EUR |
| The cost of finishing works | 70 300,00 EUR |
| Execution of turnkey home | 141 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Agnes 2 - detailed file
House plan Agnes 2 - detailed file - mirror
