By using this website you consent to the use of cookies, according to the current browser settings.Edith house plan
Usable area: 197.12 m2 / The cost of the realization: 190 200 EUR
Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (32) Detailed drawings
List of materials
Comments (3)

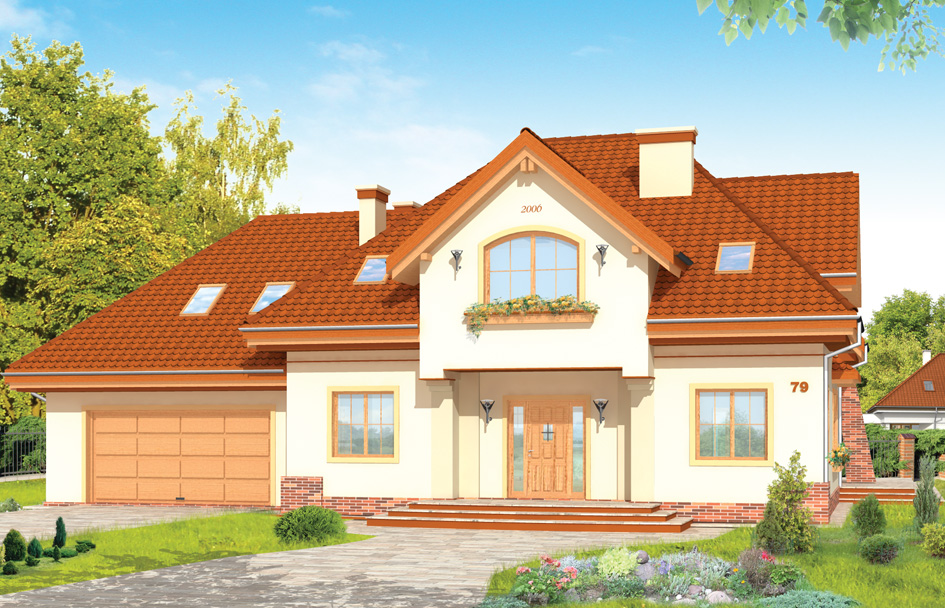

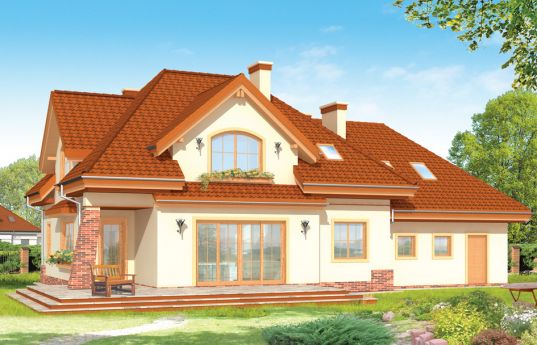

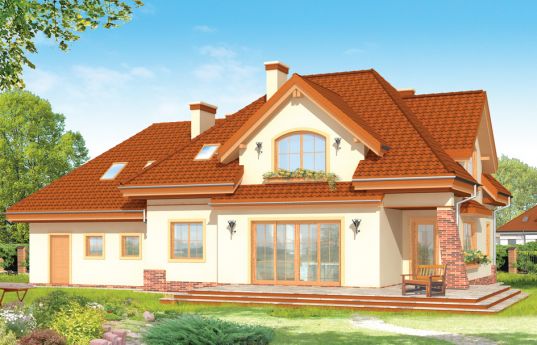

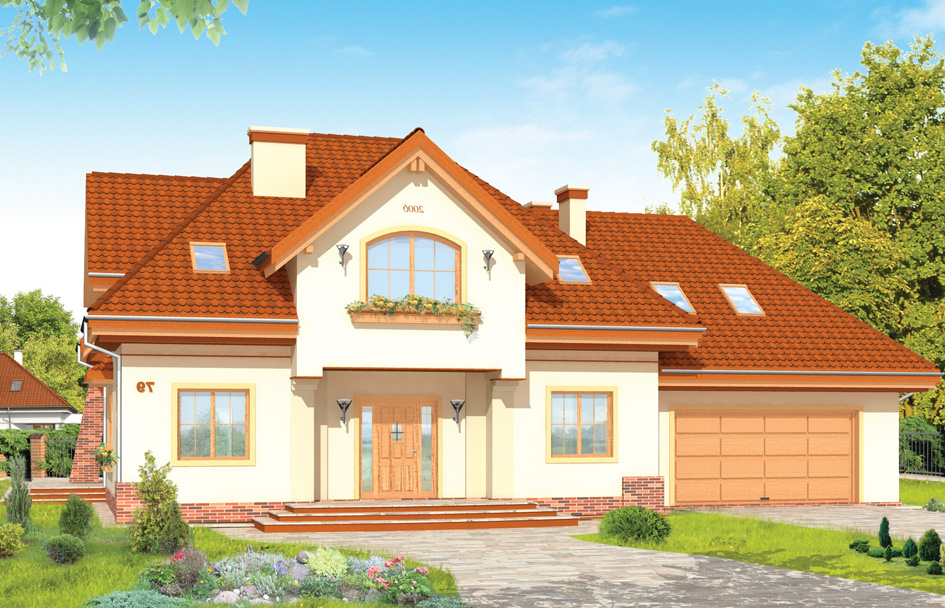

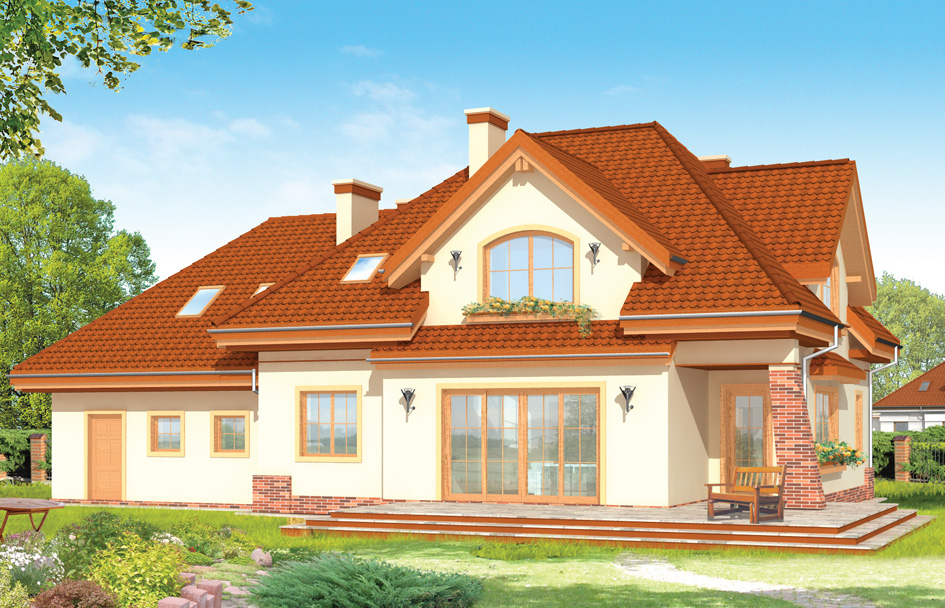

Edith house is a comfortable family house for a family of 4-5 people. This house has extensive the garage part with an attic that can be finished at a later stage. The house was designed on a rectangular shape covered by a hipped roof with large dormers. To the Edith house the garage part with a large attic for any use was built into. The architecture of the house is traditional, but includes also modern elements such as large glass living room, or finesse support arcades. On the ground floor there is a salon with dining area and a partially open kitchen, hall with ornate staircase, extra room and large utility room, with a large garage and boiler room. At the attic three bedrooms, one with private bathroom and dressing room was designed. The attic can be of course used e.g. for a gym or a sauna. This house is also available in a mirror version.
Specifications:
- Cubature: 954 m3/ 33685,74 ft3
- Built-up area: 210,03 m2/ 2259,92 ft2
- Total area: 362,99 m2/ 3905,77 ft2
- Net area: 261,96 m2 + garage/ 2818,69 ft2 + garage
- Usable area: 197,12 m2 + garage + attic/ 2121,01 ft2+ garage + attic
- Roof area: 363,47 m2/ 3910,94 ft2
- Roof slope: 37 and 47 degrees
- Height of the building: 9,41 m (9,71 m with foundation)/ 30,86 ft (31,85 ft with foundation)
- Wide of the building: 19 m / 62,32 ft
- Length of the building: 12,5 m / 41 ft
- Minimum plot width: 26 m / 85,28 ft
- Minimum plot length: 20,05 m / 65,76 ft
- Height of rooms: 3,00 m / 9,84 ft
Materials:
• Foundations - Concrete
• External walls - bilayer walls – ceramic blocks + mineral wool
• Internal walls – porotherm
• Ceiling - Teriva
• Roof - ceramic tile
The costs of implementing:
| The raw state open | 61 500,00 EUR |
| The raw state closed | 92 800,00 EUR |
| The cost of finishing works | 97 500,00 EUR |
| Execution of turnkey home | 190 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Edith - detailed file
House plan Edith - detailed file - mirror
