Usable area: 176.42 m2 / The cost of the realization: 143 100 EUR

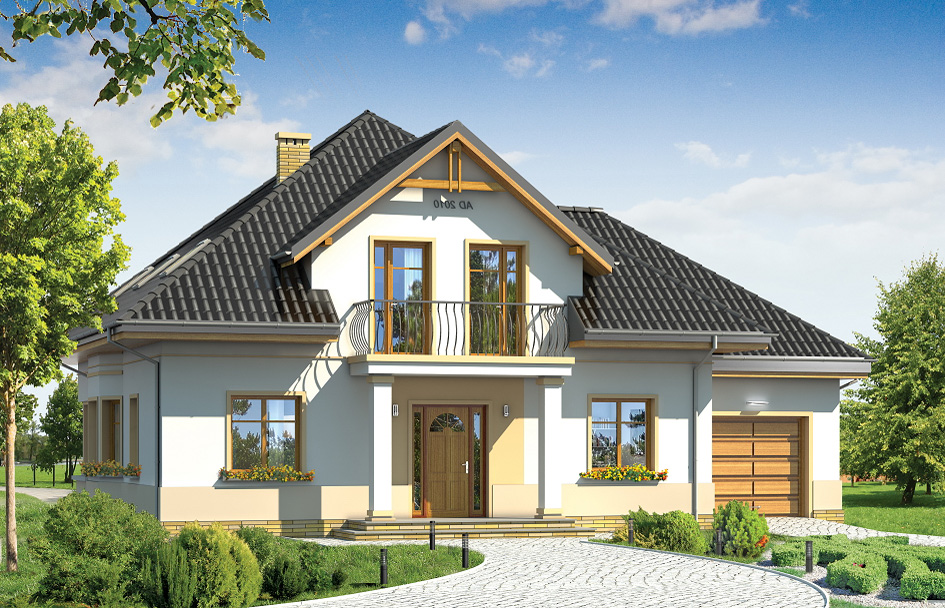

Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (1)
Realizations (8) Detailed drawings
List of materials
Comments (3)

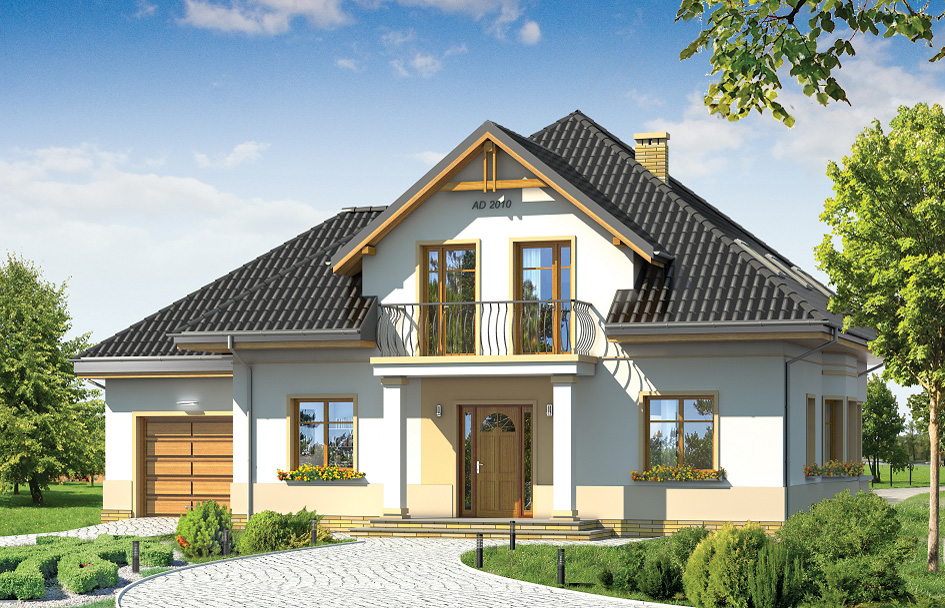

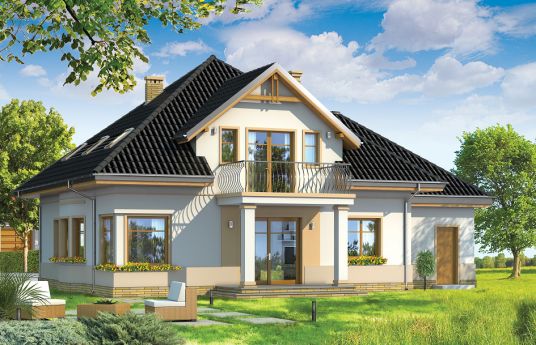

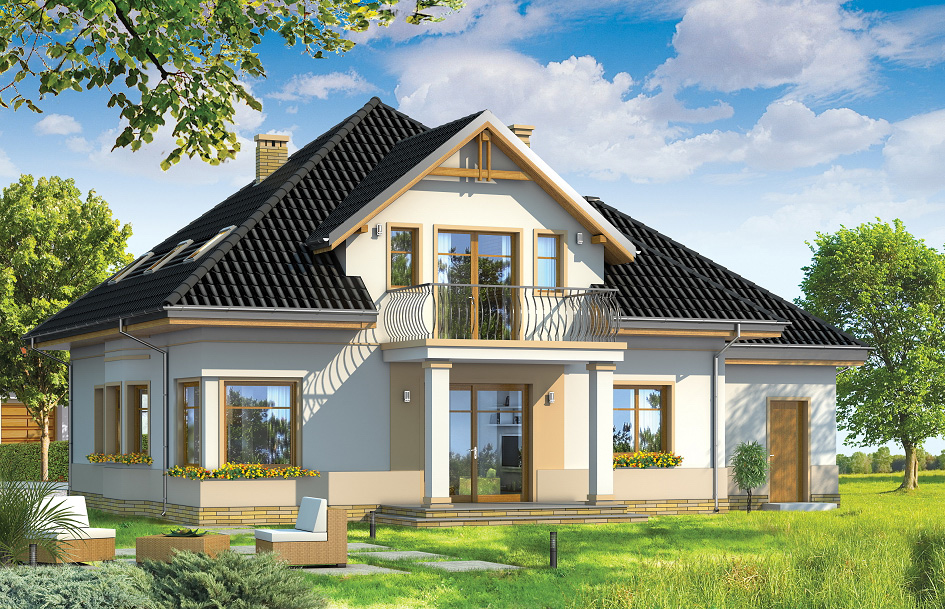

Amanda is a house plan for a family of 4-6 people. Amanda is the house with an attic, covered with a hipped roof. This house plan is a modern suburban villa with a quiet architecture. Compact body of building with build on garage and a large covered arcade on the back of the house, was curiously decorated with clinker and wooden Elevation facade, loggias and entrance arcade. Massive decorative internal and external fireplace chimney, or corner windows – are additional decorations of the building. Architectural thought out body of building creates a cohesive and calm compositionally whole. On the ground floor a large living room with dining area and lobby, with a partially open kitchen and an extra room - study or guest bedroom was designed. On the top floor are bedrooms, with a separate parents apartment, with its own bathroom, dressing room and balcony overlooking the garden. In the Amanda house plan, through the wide glass on the ground floor, the exit from the living room to large arcade and a garden terrace was planned. Amanda house plan is also available in a mirror version.
Specifications:
- Cubature: 938 m3/ 33120,78 ft3
- Built-up area: 164,42 m2/ 1769,16 ft2
- Total area: 283,37 m2/ 3049,06 ft2
- Net area: 192,61 m2 + garage + attic / 2072,48 ft2 + garage + attic
- Usable area: 176,42 m2 / 1898,28 ft2
- Roof area: 261,7 m2/ 2815,89 ft2
- Roof slope: 38 degrees
- Height of the building: 9,02 m (9,37 m with foundation) / 29,59 ft ( 30,73 ft with foundation)
- Wide of the building: 15,79 m / 57,79 ft
- Length of the building: 11,46 m / 37,59 ft
- Minimum plot width: 22,79 m / 74,75 ft
- Minimum plot length: 20,76 m / 68,09 ft
- Height of rooms: 2,7 i 2,6 m / 8,85 ft and 8,52 ft
Materials:
• Foundations - concrete bench and foundation walls with concrete blocks or bed plate,
• External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 42 500,00 EUR |
| The raw state closed | 66 300,00 EUR |
| The cost of finishing works | 76 900,00 EUR |
| Execution of turnkey home | 143 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Amanda - detailed file
House plan Amanda - detailed file - mirror
Classic version with foundation slab - sections
