Usable area: 209.43 m2 / The cost of the realization: 164 500 EUR
Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (31) Detailed drawings
List of materials
Comments (3)

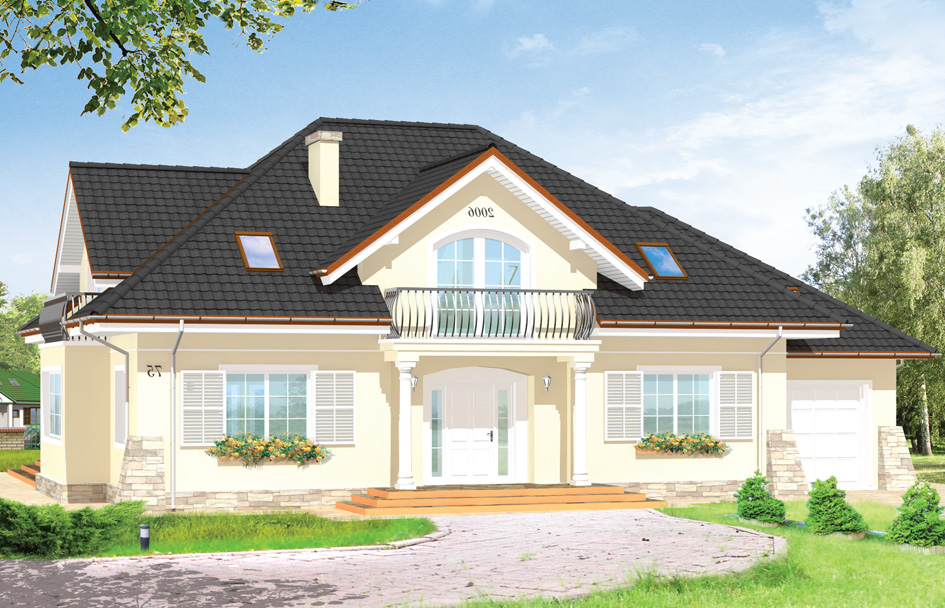

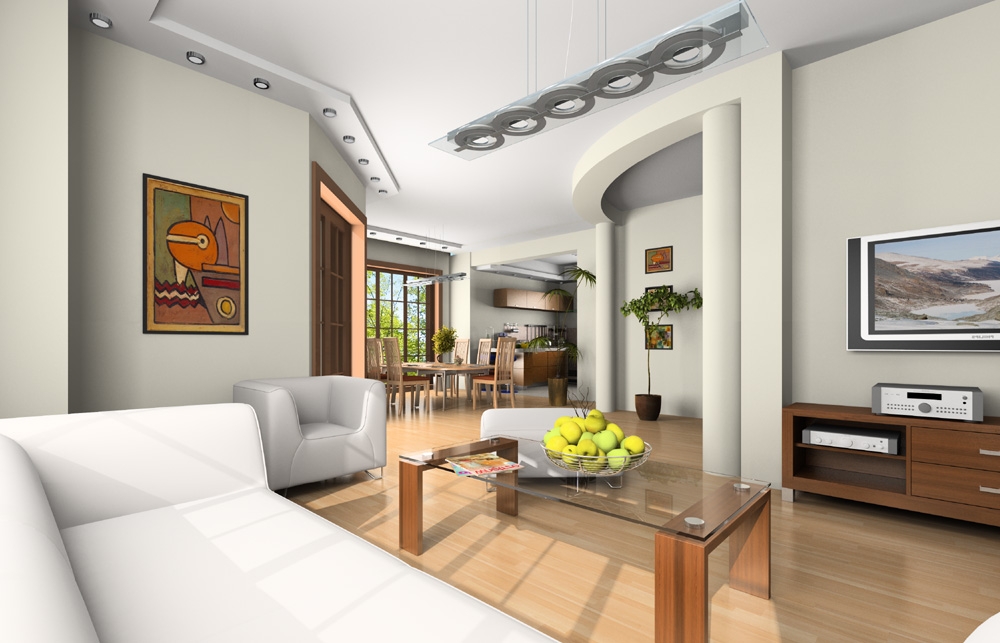

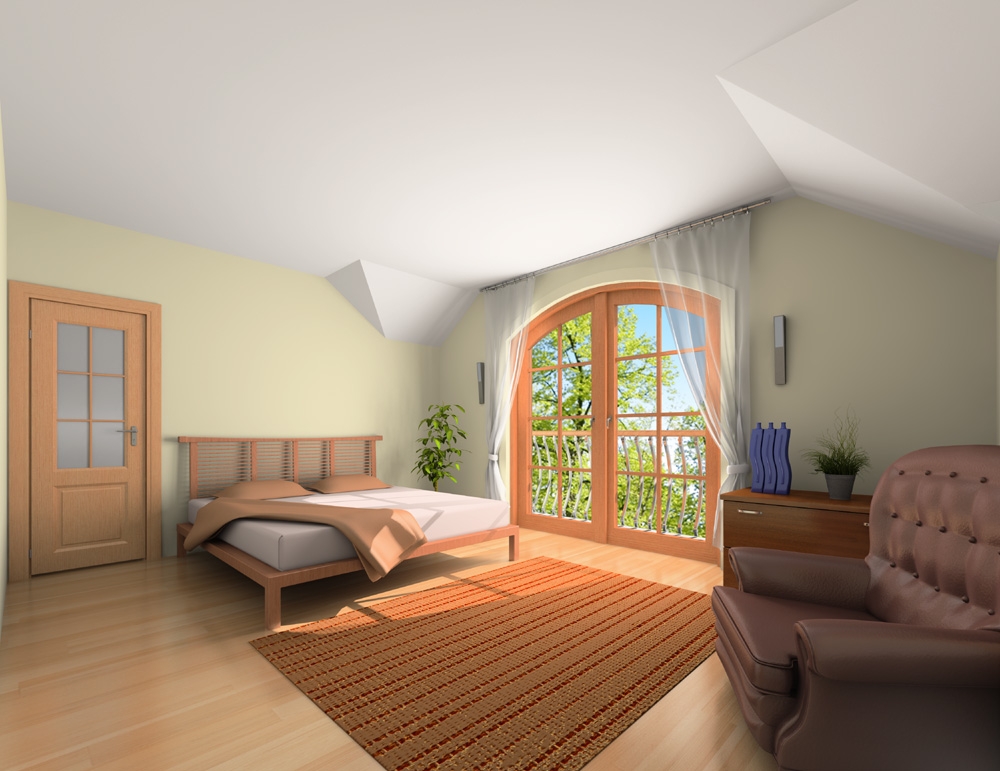

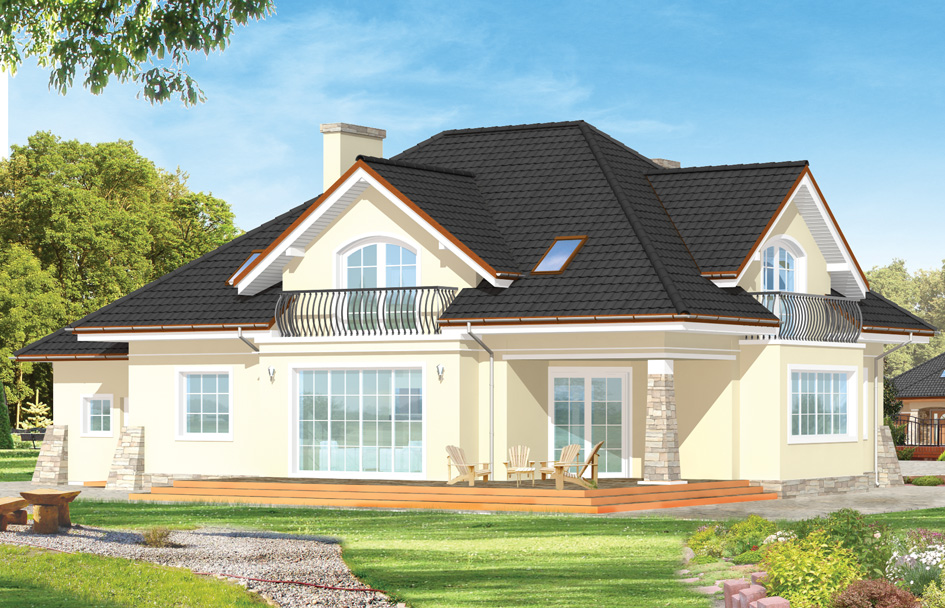

Benedict 3 house plan is a variant version of Benedict. This is a comfortable family house, designed on a rectangular plan, covered by a hip roof with dormers. This is perfect house for a family of 4 - 6 people. On the ground floor bedsides the living room with dining room and an extra room and large boiler - laundry room was designed. The living room opens into a terrace by a wide glazing and by a quite arcade. There are three bedrooms on the attic, one with private bathroom and dressing room, extra room that could be e.g. a guest bedroom and a room over the garage. There is also a mirror version of Benedict 3 house plan.
Specifications:
- Cubature: 894 m3/ 31567,14
- Built-up area: 193,13 m2/ 2078,08 ft2
- Total area: 320,34 m2/ 3446,86 ft2
- Net area: 265,6 m2 + garage / 2857,86 ft2 + garage
- Usable area: 209,43 m2 + garage + attic / 2253,47 ft2 + garage + attic
- Roof area: 352 m2/ 3787,52 ft2
- Roof slope: 36 and 38 degrees
- Height of the building: 8,41 m (8,81 m with foundation) / 27,58 ft (28,90 ft with foundation)
- Wide of the building: 19,23 m / 63,07 ft
- Length of the building: 12,2 m / 40,01 ft
- Minimum plot width: 26,23 m / 86,03 ft
- Minimum plot length: 20,2 m / 66,26 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
• Foundations - Concrete
• Bilayer walls - aerated concrete + mineral wool or polystyrene
• Ceiling - Teriva
• Roof - ceramic tile
The costs of implementing:
| The raw state open | 56 300,00 EUR |
| The raw state closed | 84 800,00 EUR |
| The cost of finishing works | 79 700,00 EUR |
| Execution of turnkey home | 164 500,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Benedict 3 - detailed file
House plan Benedict 3 - detailed file - mirror
