Usable area: 234.63 m2 / The cost of the realization: 185 000 EUR
Show mirror image
Price: 1110 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (23) Detailed drawings
List of materials
Comments (3)

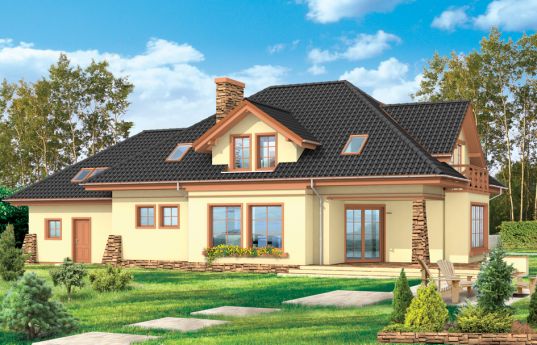

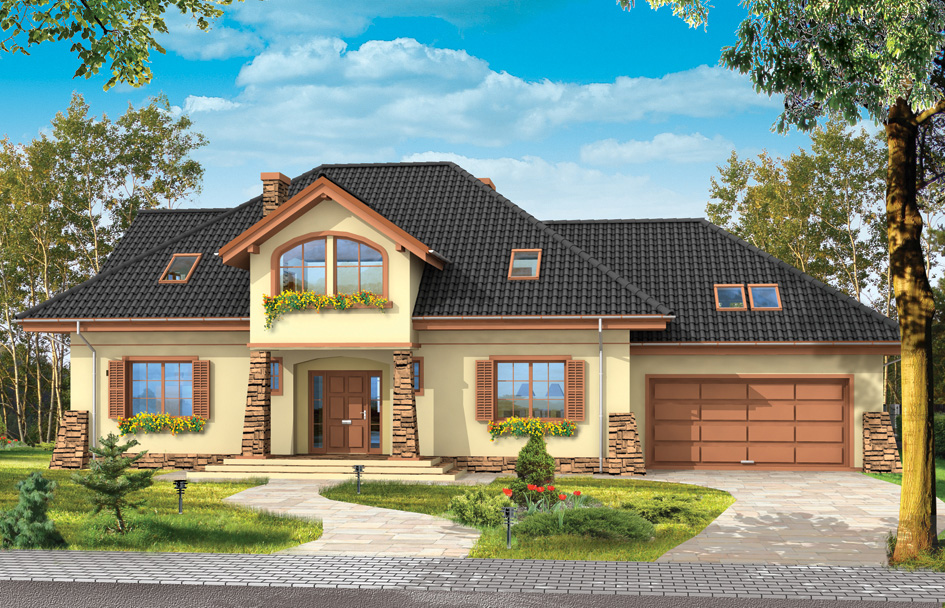

Benedict 4 house plan is a variant version of Benedict house. In this house plan the garage part was expanded and elevations were varied by three additional dormer windows in the main body of the building - one on each facade of the house. Thanks to this, none of attic bedrooms have slanted walls. This house plan have two versions of the adaptation of the attic. There is also available a mirror version of Benedict 4.
Specifications:
- Cubature: 1042 m3/ 36793,02 ft3
- Built-up area: 214,55 m2/ 2308,56 ft2
- Total area: 361,87 m2/ 3893,72 ft2
- Net area: 243,11 m2 + garage + attic / 2615,86 ft2 + garage + attic
-
Usable area:
- 234,63 m2 by PN-70/B-02365/ 2524,62 ft2 by PN-70/B-02365
- 243,11 m2 + garage+ attic by PN-ISO 9836:1997/ 2615,86 ft2 + garage+ attic by PN-ISO 9836:1997
- Roof area: 356,4 m2/ 3834,86 ft2
- Roof slope: 36 and 38 degrees
- Height of the building: 8,61 m (9,01 m with foundation) / 28,24 ft (29,55 ft with foundation)
- Wide of the building: 21,73 m / 71,27 ft
- Length of the building: 12,21 m / 40,05 ft
- Minimum plot width: 28,73 m / 94,23 ft
- Minimum plot length: 20,45 m / 67,08 ft
- Height of rooms: 2,90 i 2,60 m / 9,51 ft and 8,53 ft
Materials:
• Foundations - Concrete benches and walls of concrete blocks
• External walls - bilayer walls made of cellular concrete
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 63 100,00 EUR |
| The raw state closed | 93 900,00 EUR |
| The cost of finishing works | 91 100,00 EUR |
| Execution of turnkey home | 185 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Benedict 4 - detailed file
House plan Benedict 4 - detailed file - mirror
