Usable area: 227.64 m2 / The cost of the realization: 165 100 EUR

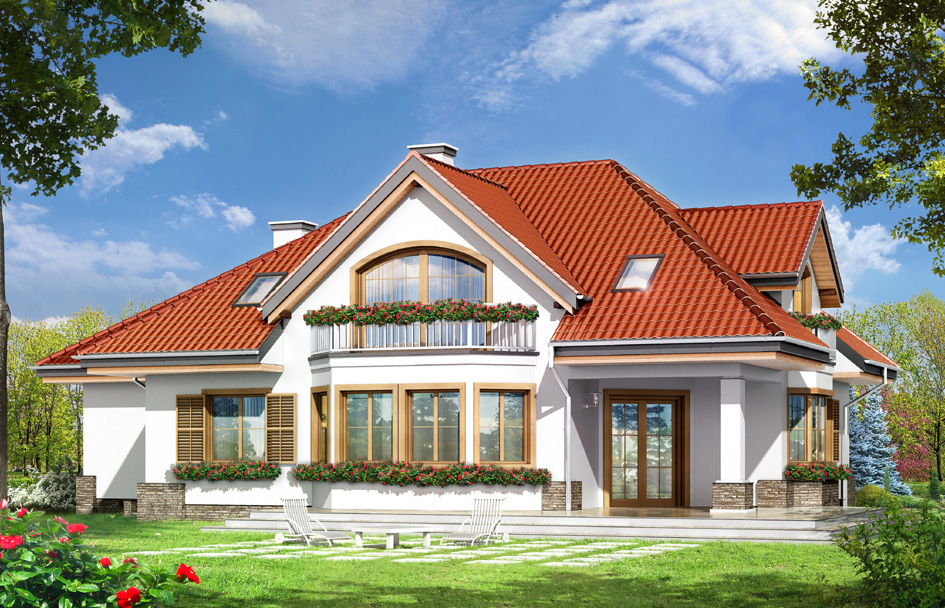

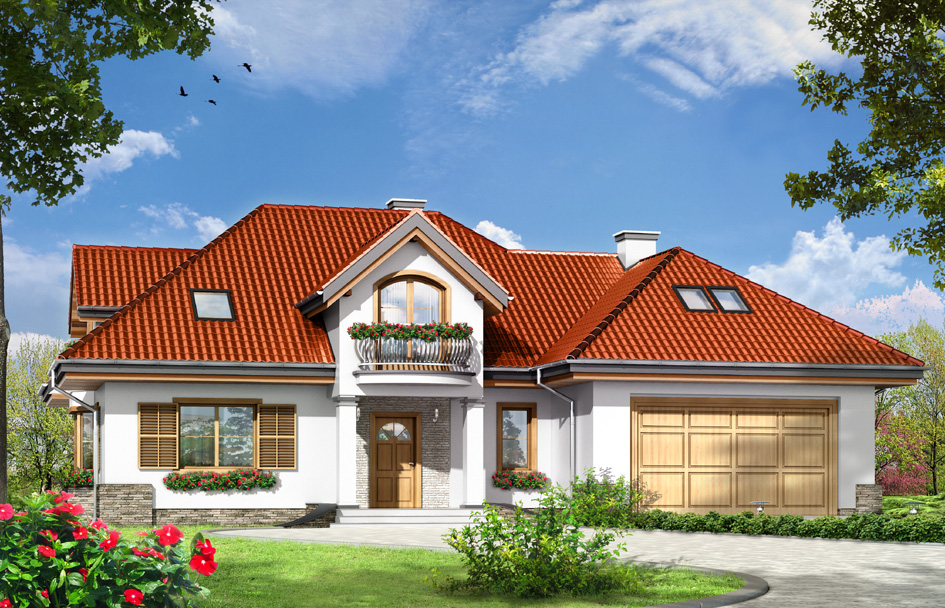

Show mirror image
Price: 1040 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (19) Detailed drawings
List of materials
Comments (3)

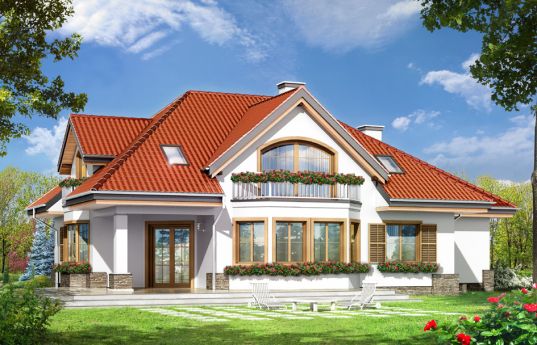

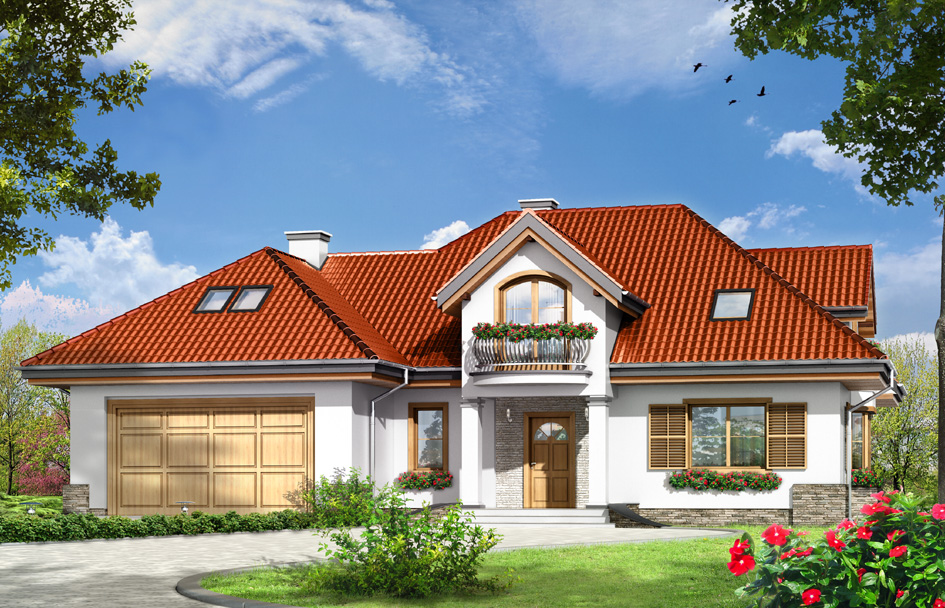

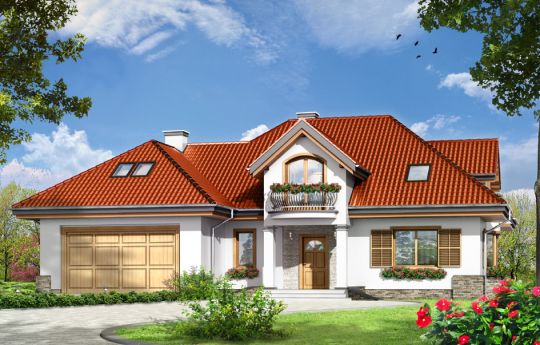

Maja 4 house plan is another variant version of the popular house plan Maja. This project was enlarged in relation to its predecessors. The building was expanded, it was also raised elbow wall in the attic, which limited range squints in the bedrooms. The house has been designed for a family of four to six- people. Rectangular main body of the building with an added part of the garage is covered with a hipped roof with dormers in the attic. Architecturally, the house Maja 4 is maintained in the style of a typical "Polish roofers", varied by many decorative details, such as bay windows, arcades with columns, dormers with balconies, arched windows on the first floor. The house has been open onto the garden - large glazed of the living room, a very nice terrace, and practical arcade result that the garden becomes an extension of the interior. Maja 4 house plan is an idea for a very convenient and comfortable house, even for a large family. On the ground floor besides the living area, which consists of: living room, dining room, lounge and partially open kitchen, also designed an additional, independent room and the technical part of the house with a garage for two cars. On the top floor are four bedrooms and a bathroom. There is also available mirror version of Maja 4 house plan.
Specifications:
- Cubature: 880,8 m3 / 31101,048 ft3
- Built-up area: 193,3 m2 / 2079,91 ft2
- Total area: 315,3 m2 / 3392,63 ft2
- Net area: 242,38 m2 + garage / 2608,01 ft2 + garage
- Usable area: 227,64 m2 / 2449,64 ft2
- Roof area: 335 m2 / 3604,60 ft2
- Roof slope: 35, 36 and 40 degrees
- Height of the building: 8,06 m (8,53 m with foundation) / 26,44 ft (27,98 ft with foundation)
- Wide of the building: 17,98 m / 58,97 ft
- Length of the building: 14,96 m / 49,07 ft
- Minimum plot width: 25,98 m / 85,21 ft
- Minimum plot length: 22,96 m / 75,31 ft
- Height of rooms: 2,78 i 2,65 m / 9,12 and 8,69 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 55 000,00 EUR |
| The raw state closed | 84 500,00 EUR |
| The cost of finishing works | 80 600,00 EUR |
| Execution of turnkey home | 165 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Maja 4 - detailed file
House plan Maja 4 - detailed file - mirror
Related Projects
2012.10.02 11
Hi all, I see that this house plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.
2012.03.12 11
Hello I have a question, if anyone already put raw state of this house? I would like to assess the size of the house in live before buying the same.
2012.03.07 6
I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
