Usable area: 131.72 m2 / The cost of the realization: 129 000 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (34) Detailed drawings
List of materials
Comments (3)

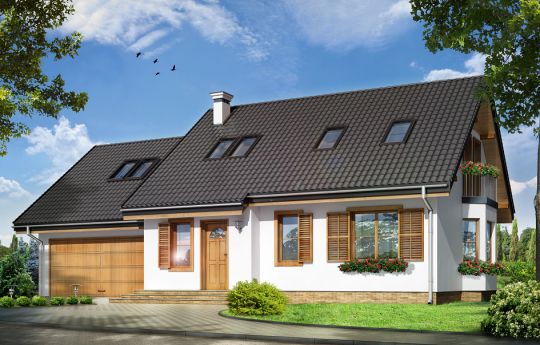

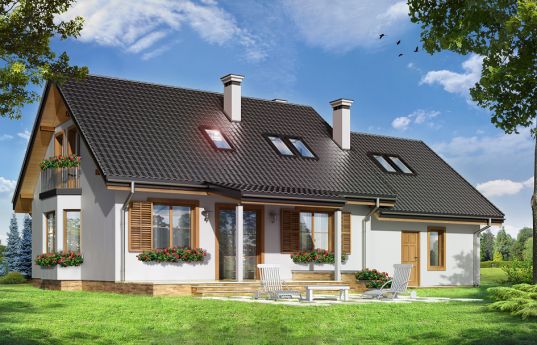

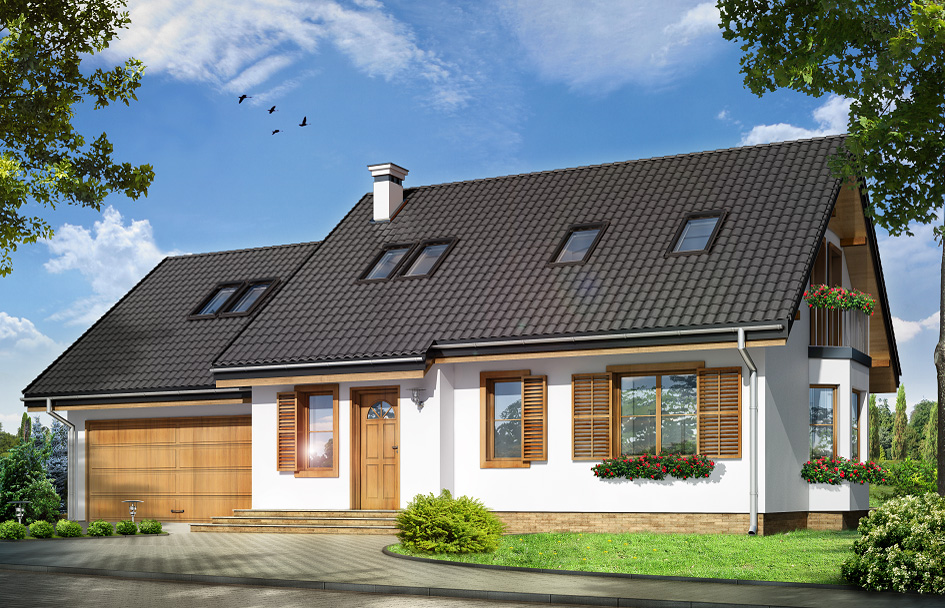

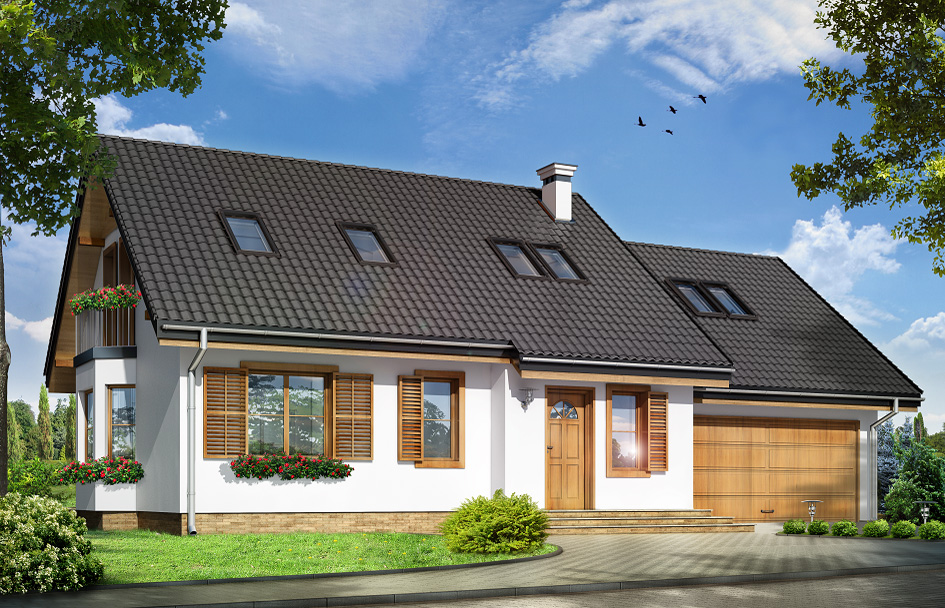

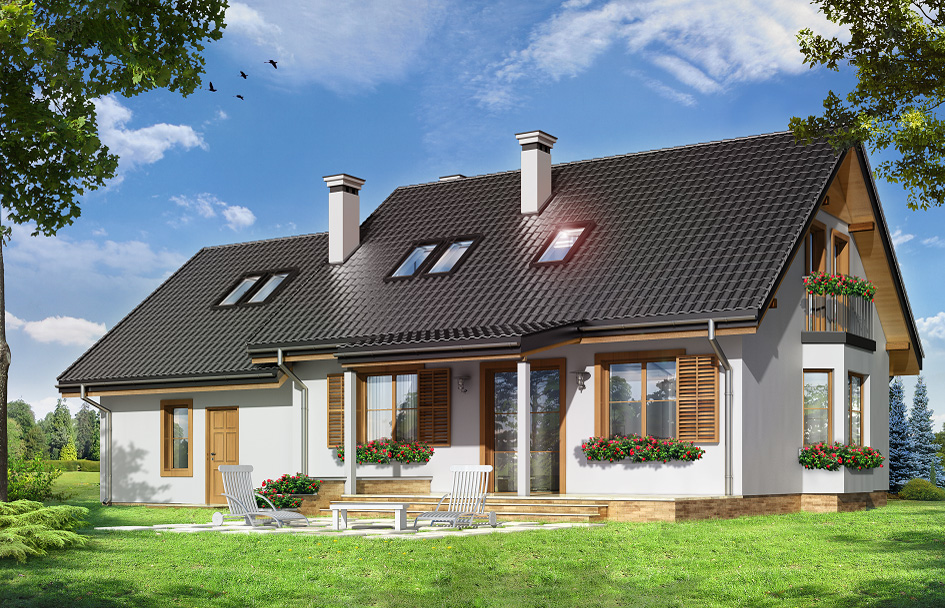

Breeze 2 house plan is a variant version of the Breeze house. From the basic version of Breeze, Breeze 2 house plan differs it enlarged, garage for two cars. Breeze 2 is a small house for the family of 4 – 5 people, which can be adapted even on a small plot. Simple, easy to build body of house has been covered by a gable roofs. This house plan allows on connection of two semi-detached houses in the semi-detached house contacting by garages. On the surface of less than 140 m2 three rooms on the top floor, a living room and an extra room on the ground floor have been designed. In the attic of the house, above the garage, the attic can be adapted for two additional rooms. In this house plan two utility rooms available from the garage have been designed. There is also a mirror version of the Breeze 2 house plan.
Specifications:
- Cubature: 668 m3/ 23587,08 ft3
- Built-up area: 142,75 m2/ 1535,99 ft2
- Total area: 220,12 m2/ 2368,49 ft2
- Net area: 152,24 m2 + garage / 1638,10 ft2 +garage
- Usable area: 131,72 m2/ 1417,31 ft2
- Roof area: 257,32 m2/ 2768,76 ft2
- Roof slope: 38 degrees
- Height of the building: 7,20 m (7,50 m wit foundation) / 23,62 ft (24,6 ft with foundation)
- Wide of the building: 16,51 m / 54,15 ft
- Length of the building: 9,73 m / 31,91 ft
- Minimum plot width: 23,51 m / 76,13 ft
- Minimum plot length: 18,98 m / 62,25 ft
- Height of rooms: 2,7 i 2,5 m / 8,86 and 8,2 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• Walls - brick walls - aerated concrete blocks 24 cm + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 39 200,00 EUR |
| The raw state closed | 63 000,00 EUR |
| The cost of finishing works | 66 000,00 EUR |
| Execution of turnkey home | 129 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Breeze 2 - detailed file
House plan Breeze 2 - detailed file - mirror
