Usable area: 139.29 m2 / The cost of the realization: 137 700 EUR

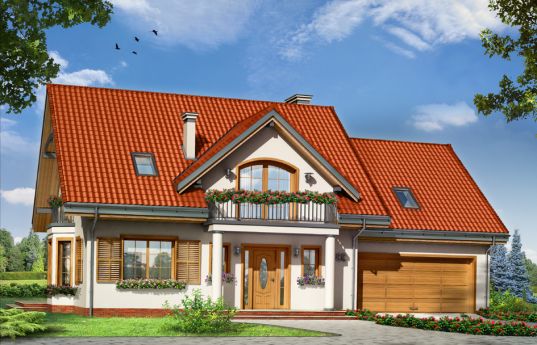

Show mirror image
Price: 1110 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (2)
Realizations (76) Detailed drawings
List of materials
Comments (3)

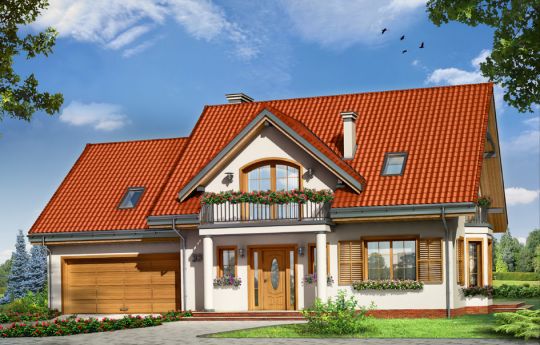

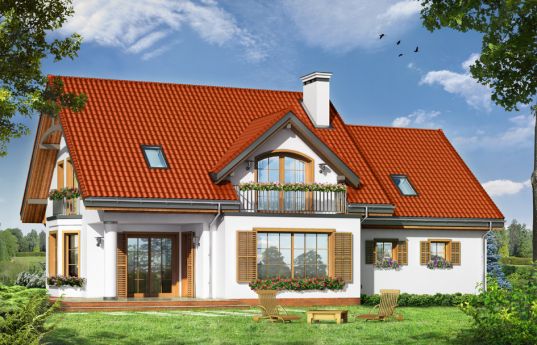

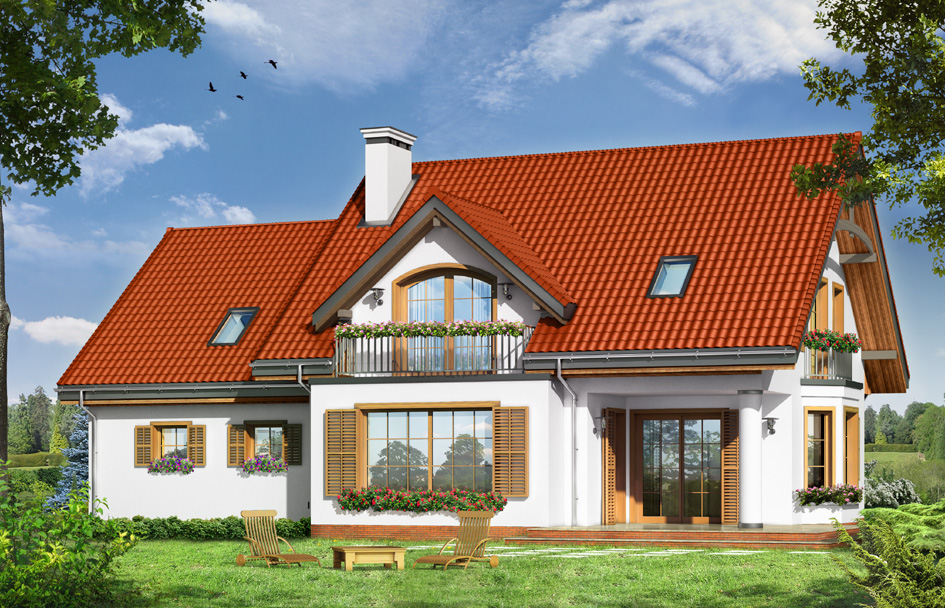

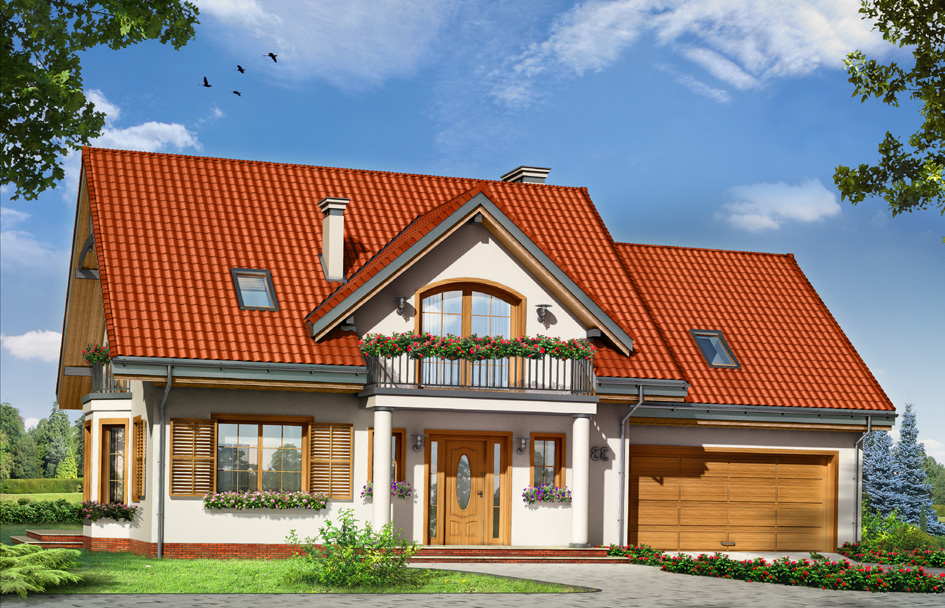

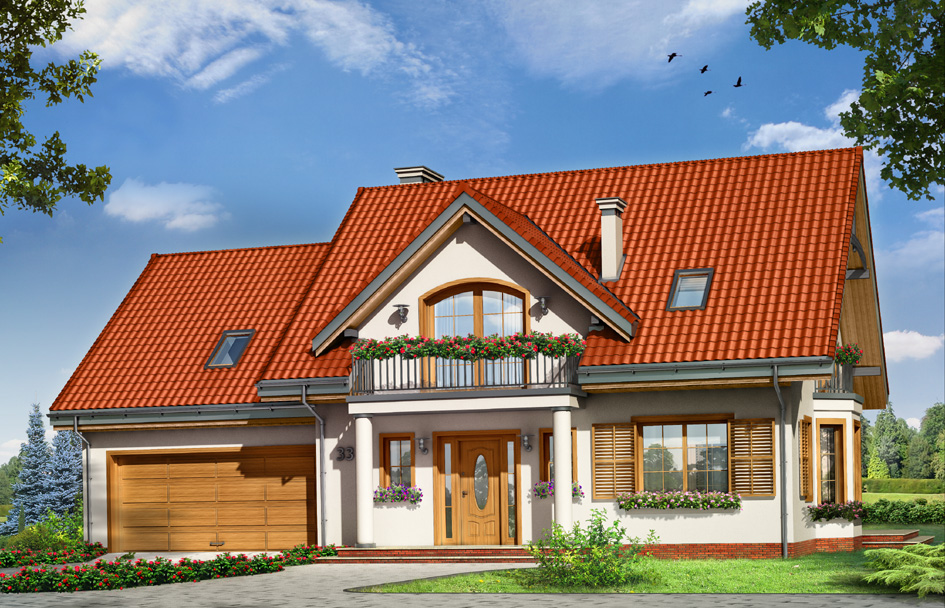

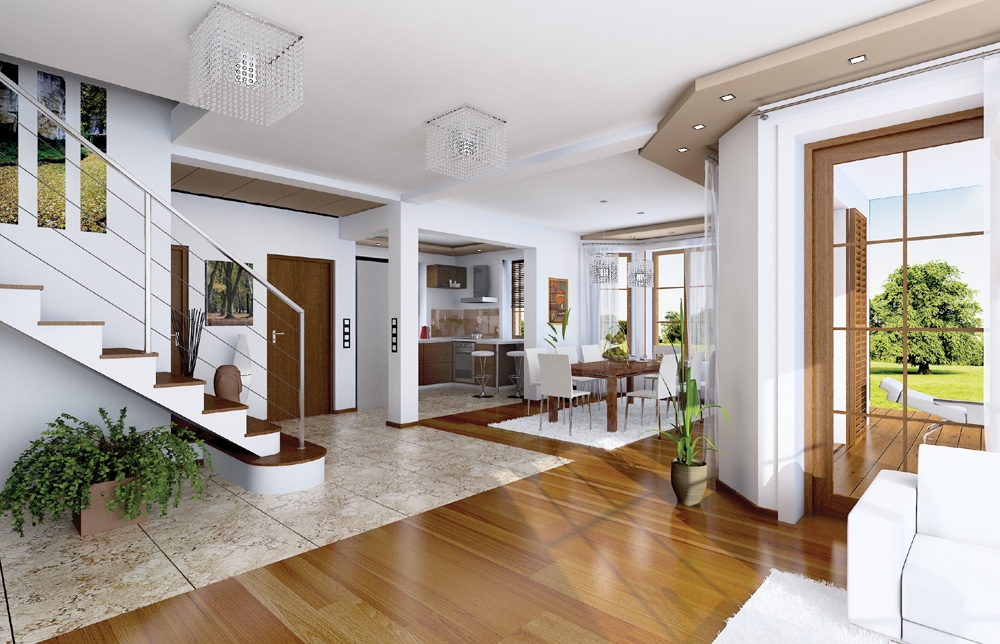

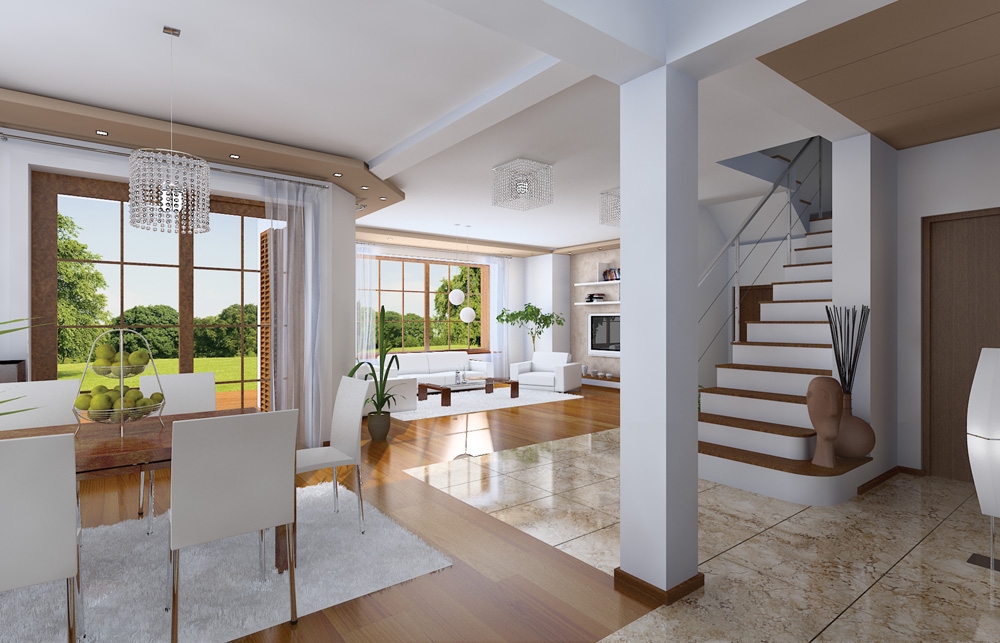

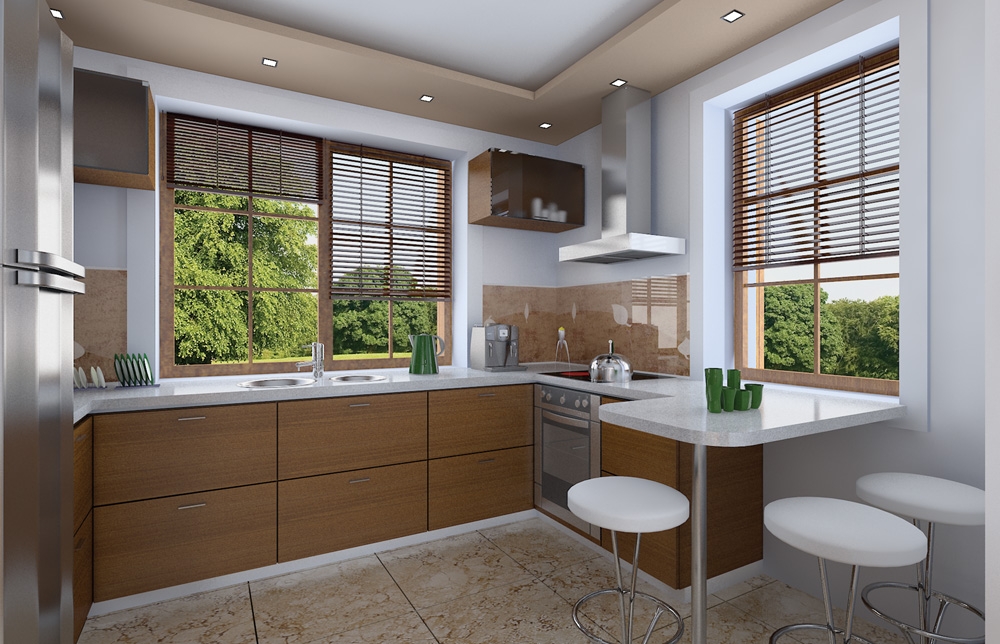

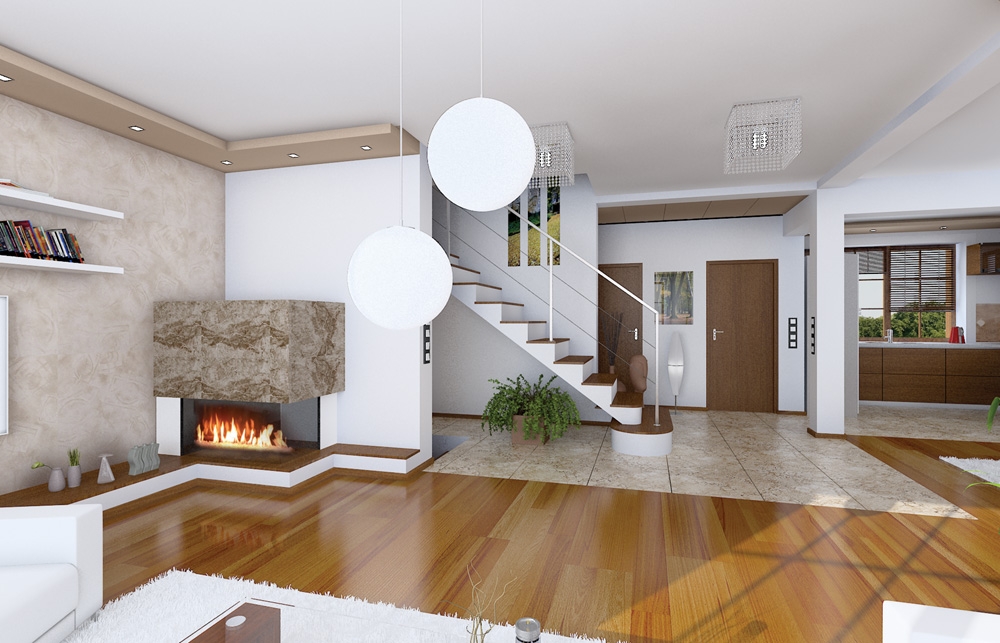

House plan Julka 3 is a variant version of the house Julka. The building has a similar interior layout on the ground floor and the attic, like the basic version, but is covered by a gable roofs. Thanks to this the house can be located on plots where laws require gable roofs, and prohibit homes with hipped roofs. Julka 3 house, despite the simplification of the body looks very attractive. In the resulting lateral peaks an extra windows and little balcony over the dining room bay window have been placed. The front and rear dormer with balconies embellish the other facades. Garden arcade built into the body of house allows to use the terrace on rainy days. Inside, there is still a primary - as in the Julka house - the division on the living space on ground floor, with a living room, a dining room, a hall with exposed stairs and partially open kitchen, and bedrooms in the attic. In this version of house plan bedrooms and a bathroom can be a little bigger, because by using a gable roof part of the "slant" was eliminate. Also the attic above the garage is bigger and now it can be successfully adapted for two additional rooms. Julka 3 house plan is also available in mirror version.
Specifications:
- Cubature: 781 m3/ 27577,11 ft3
- Built-up area: 147,97 m2/ 1592,16 ft2
- Total area: 261,19 m2/ 2810,40 ft2
- Net area : 149,02 m2 + garage/ 1603,46 ft2+garage
- Usable area: 139,29 m2/ 1498,76 ft2
- Roof area: 256,55 m2/ 2760,48 ft2
- Roof slope: 40 degrees
- Height of the building: 8,39 m (8,74 m with foundation)/ 27,52 ft (28,67 ft with foundation)
- Wide of the building: 16,61 m/ 54,49 ft
- Length of the building: 10,81 m/ 35,46 ft
- Minimum plot width 23,61 m/ 77,44 ft
- Minimum plot length: 18,96 m/ 62,19 ft
- Height of rooms: 2,7 and 2,6 m/ 8,86 and 8,53 ft
Materials:
- Foundations - concrete benches and foundation walls with concrete blocks
- Exterior walls - brick walls - airbricks porotherm 25 + polystyrene + plaster thin
- Ceiling – TERIVA
- Elevation - thin-layer plaster on polystyrene
- Roof – tile
The costs of implementing:
| The raw state open | 47 800,00 EUR |
| The raw state closed | 71 300,00 EUR |
| The cost of finishing works | 66 500,00 EUR |
| Execution of turnkey home | 137 700,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Julka 3 - detailed file
House plan Julka 3 - detailed file - mirror
