Breeze house plan

Usable area: 127.28 m² / The cost of the realization: 116 700 EUR

Show mirror image

Price: 940 EUR

Description Plans Elevations Situations Animation Variants (0) Realizations (10) Detailed drawings List of materials Comments (3)

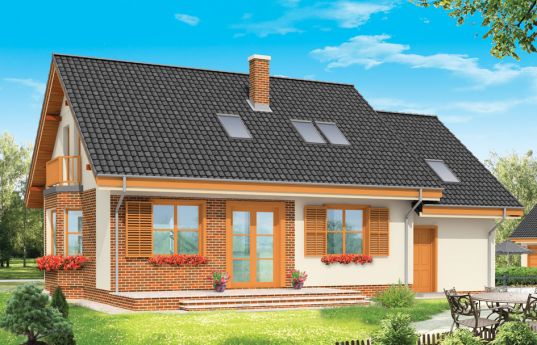

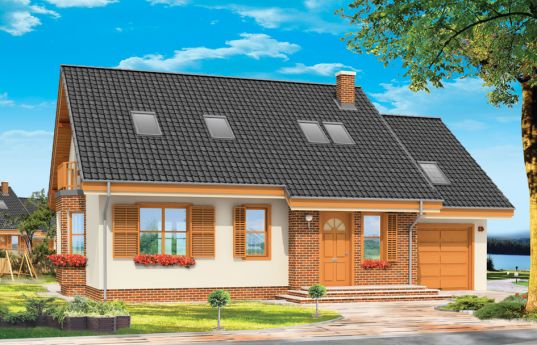

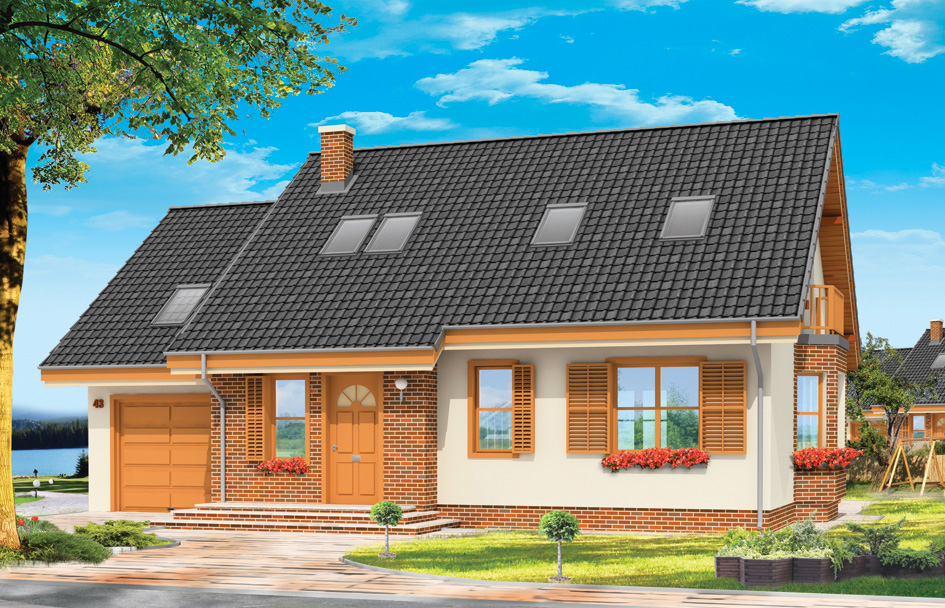

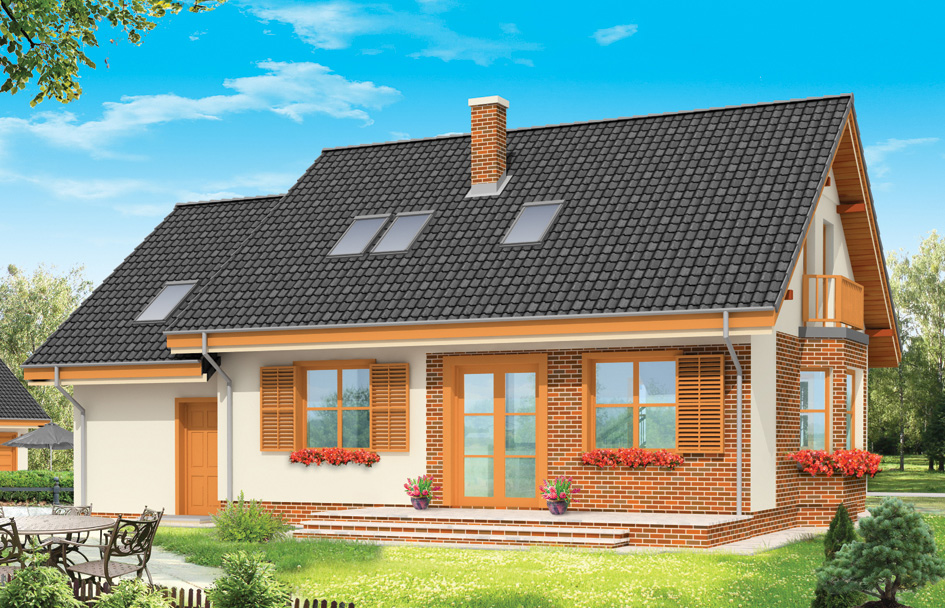

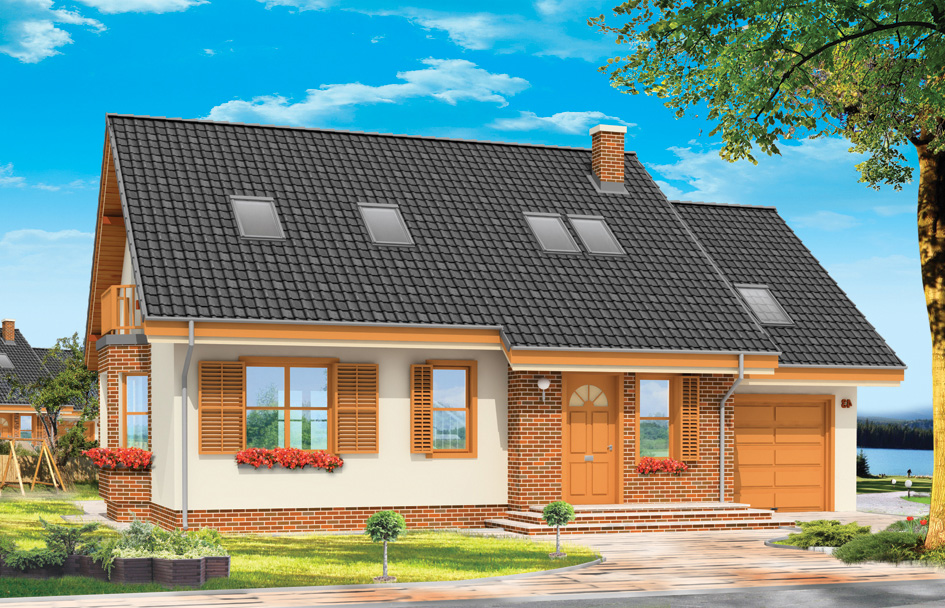

Breeze house plan is a nice, small house for a family of 4-5 people. The house is suitable even for a small plot. The project is distinguished by simple body, easy to build and a gabled roof. The house can be combined in a semi-detached house, contacting by garages. On the surface of less than 140 m2 four rooms on the attic and a living room and an extra room on the ground floor has been designed. Breeze house has two utility rooms, available from the garage. There is also a mirror version of Breeze house plan.

Specifications:

Cubature: 527 m³/ 18608,37 ft³
Built-up area: 121,73 m²/ 1309,81 ft²
Total area: 172,68 m²/ 1858,04 ft²
Net area: 139,44 m²+ garage / 1500,37 ft²+ garage
Usable area: 127,28 m²/ 1369,53 ft²
Roof area: 201 m²/ 2162,76 ft²
Roof slope: 38 degrees
Height of the building: 7,20 m (7,60 m with foundation) / 23,62 ft (24,92 ft with foundation)
Wide of the building: 14,11 m / 46,28 ft
Length of the building: 9,73 m / 31,91 ft
Minimum plot width: 22,11 m / 72,52 ft
Minimum plot length: 17,73 m / 58,15 ft
Height of rooms: 2,70 i 2,50 m / 8,86 and 8,2 ft

Materials:

• Foundations - Concrete benches and walls of concrete blocks
• Walls - bilayer walls made of cellular concrete
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile

The costs of implementing:

The raw state open	33 300,00 EUR
The raw state closed	52 500,00 EUR
The cost of finishing works	64 200,00 EUR
Execution of turnkey home	116 700,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Bryza - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Breeze - detailed file

House plan Breeze - detailed file - mirror
