Usable area: 124.32 m2 / The cost of the realization: 122 800 EUR

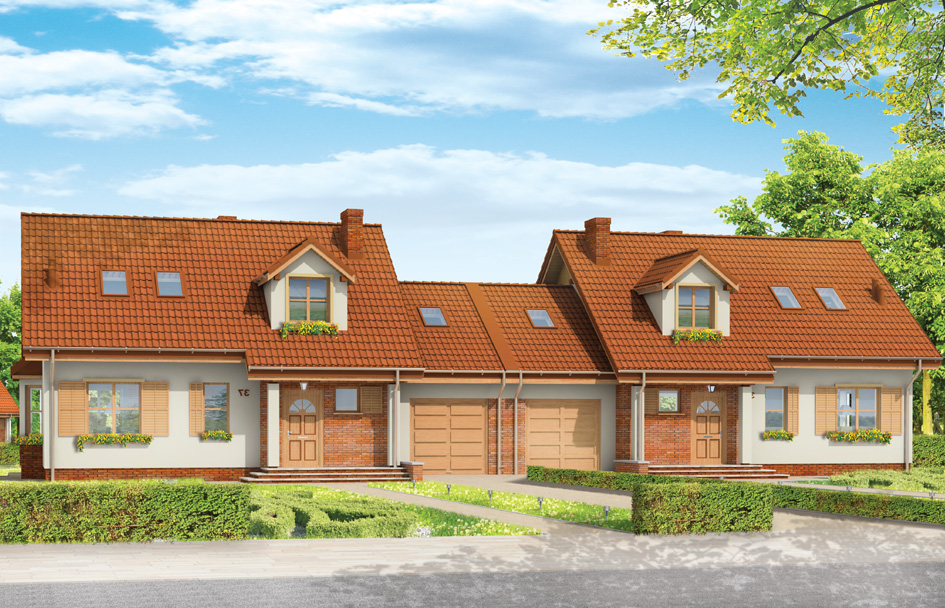

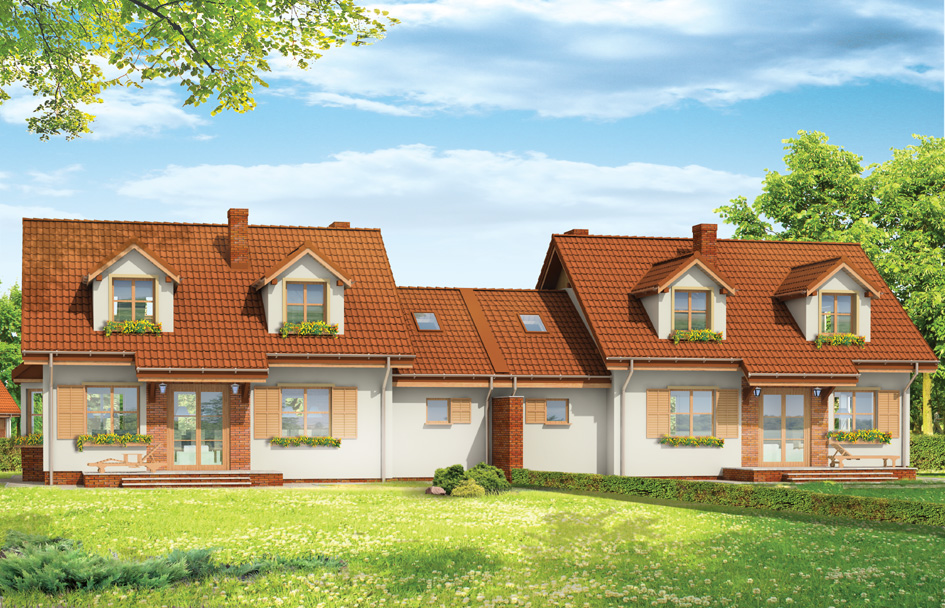

Show mirror image
Price: 1250 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Detailed drawings
List of materials
Comments (3)

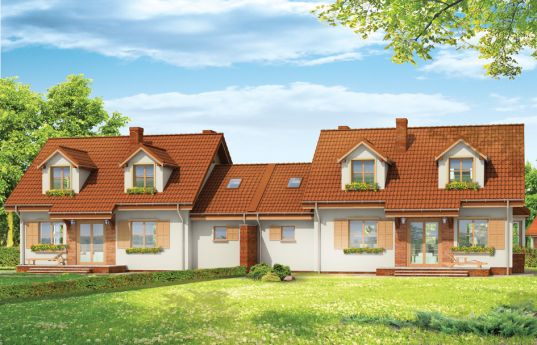

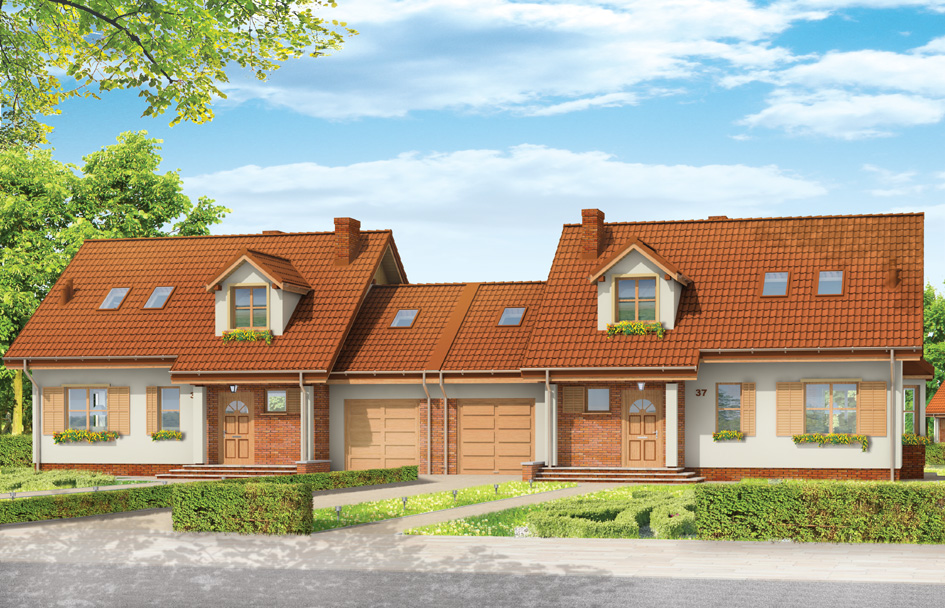

House plan Squall is another project from our series "sea pearls" (see: Breeze and Cliff). This time, a very successful form of the house and the interior we managed to compose as twin building. Two identical half of the building are combined with garages. Squall house plan is a peaceful form - covered by a gable roof, diversified by dormers and extensions of arcades roofs. The simple shape of the building and uncomplicated construction facilitate built and reduce the cost of execution. The interior of house Squall is designed to provide maximum functional. On the ground floor is a living room with a dining area connected to the hall, partially open kitchen, and an extra room - which could serve as a bedroom or e.g. study. In the attic are planned three comfortable bedrooms. Built another garage with utility room and boiler room on the ground floor crowned the attic. It is possible to adapt the utility room, for example an extra room. There is also available mirror version of this house plan
Specifications:
- Cubature: 553 m3 / 19526,43 ft3
- Built-up area: 121,97 m2 / 1312,40 ft2
- Total area: 199,46 m2 / 2146,19 ft2
- Net area: 135,74 m2 + garage+ attic / 1460,56 ft2 + garage+ attic
- Usable area: 124,32 m2 / 1337,68 ft2
- Roof area: 197,31 m2 / 2123,06 ft2
- Roof slope: 38 and 32 degrees
- Height of the building 7,50 m (7,90 m with foundation) / 24,6 ft (25,91 ft with foundation)
- Wide of the building: 13,95 m / 45,76 ft
- Length of the building: 9,58 m / 31,42 ft
- Minimum plot width: 17,95 m / 58,88 ft
- Minimum plot length: 17,58 m / 57,66 ft
- Height of rooms: 2,68 m / 8,79 ft
Materials:
- Foundations – poured concrete
- External walls – brick walls - aerated concrete 24 + polystyrene or mineral wool + thin-layer plaster
- Ceiling - reinforced concrete Teriva
- Roof - tile or meatal roofing tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 40 600,00 EUR |
| The raw state closed | 58 400,00 EUR |
| The cost of finishing works | 64 400,00 EUR |
| Execution of turnkey home | 122 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Squall - detailed file
