Usable area: 95.37 m2 / The cost of the realization: 77 000 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (1)
Detailed drawings
List of materials
Comments (3)

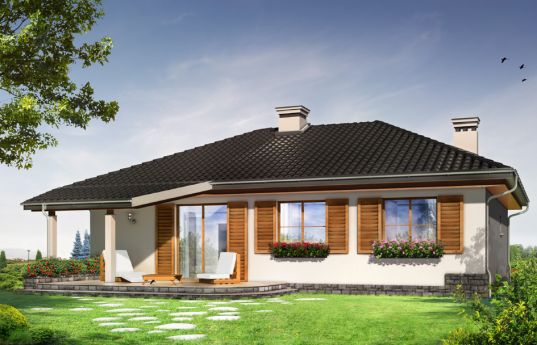

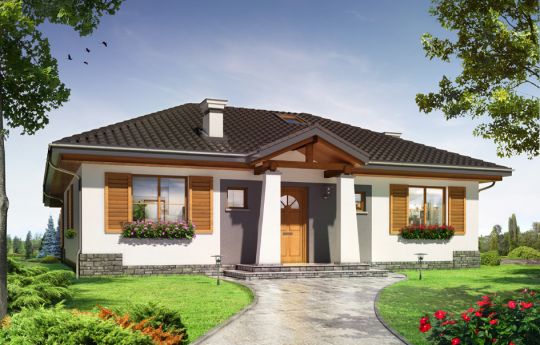

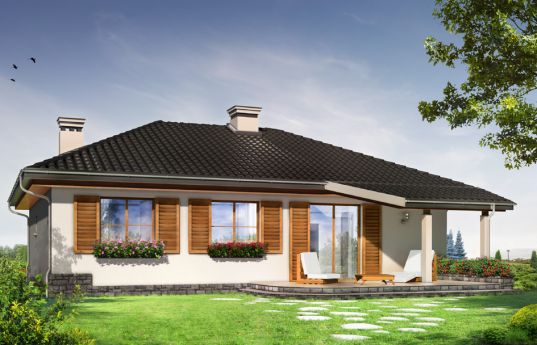

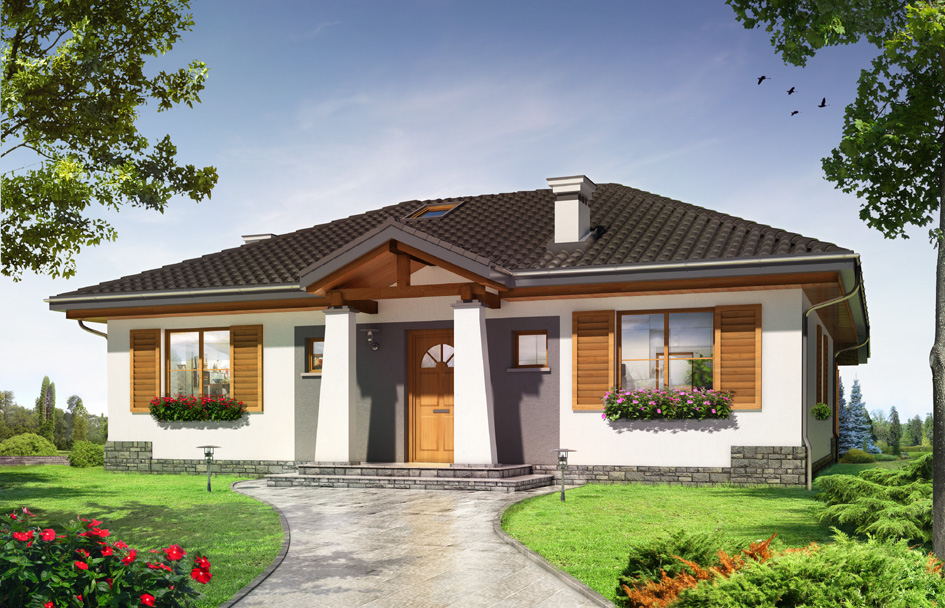

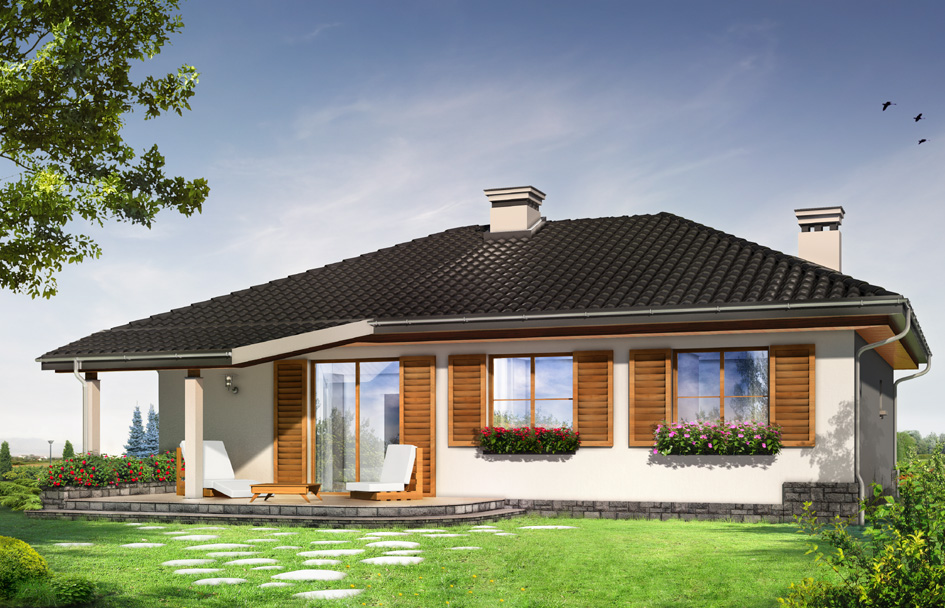

Four corners 4 house plan was made for a family of 3 – 4 people. This house plan is a one-storeyed house covered by a hipped roof, with a covered entrance portico and terraced arcade from the garden side. The compact rectangular body of building is easy to build and inexpensive to use. Above the celling over the ground floor the attic is hidden for use as a magazine, what compensates the lack of other utility rooms in the house. Calm, traditional architectural form of the building will fit perfectly in any suburban landscape. The house is cozy and proportionate. The interior of house is divided into a living area with a living room, hall and semi-open kitchen, and night part with three bedrooms, a bathroom and a small boiler room. The entrance to the boiler room can be designed from the outside then the house can be heated by solid fuel boiler. The living room comes out by a wide door to the partially covered terrace and to the garden. There is a mirror version of this house.
Specifications:
- Cubature: 402 m3/ 14194,62 ft3
- Built-up area: 120,44 m2/ 1295,93 ft2
- Total area: 120,44 m2/ 1295,93 ft2
- Net area: 98,54 m2/ 1060,29 ft2
- Usable area: 95,37 m2/ 1026,18 ft2
- Roof area: 180,61 m2/ 1943,36 ft2
- Roof slope: 24 i 28 stopni / 24 and 28 degrees
- Height of the building: 5,53 m (5,83 m z podmurówką)/ 18,14 ft (19,12 ft with foundation)
- Wide of the building: 12,24 m / 40,15 ft
- Length of the building: 9,84 m / 32,27 ft
- Minimum plot width: 20,24 m / 66,39 ft
- Minimum plot length: 19,16 m / 62,84 ft
- Height of rooms: 2,6 m / 8,53 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - brick walls - aerated concrete blocks 24 cm + polystyrene + thin-layer plaster
• Ceiling - a wooden beams
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 24 600,00 EUR |
| The raw state closed | 34 900,00 EUR |
| The cost of finishing works | 42 100,00 EUR |
| Execution of turnkey home | 77 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Four corners 4 - detailed file
House plan Four corners 4 - detailed file - mirror
