Four corners house plan

Usable area: 102.07 m² / The cost of the realization: 108 400 EUR

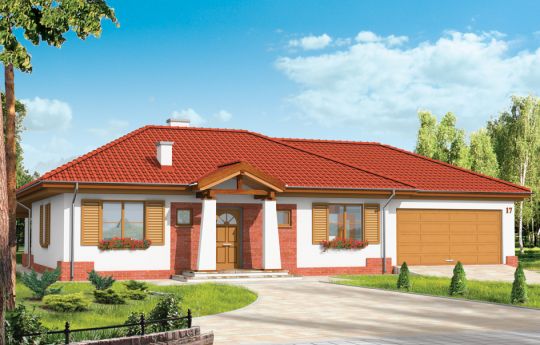

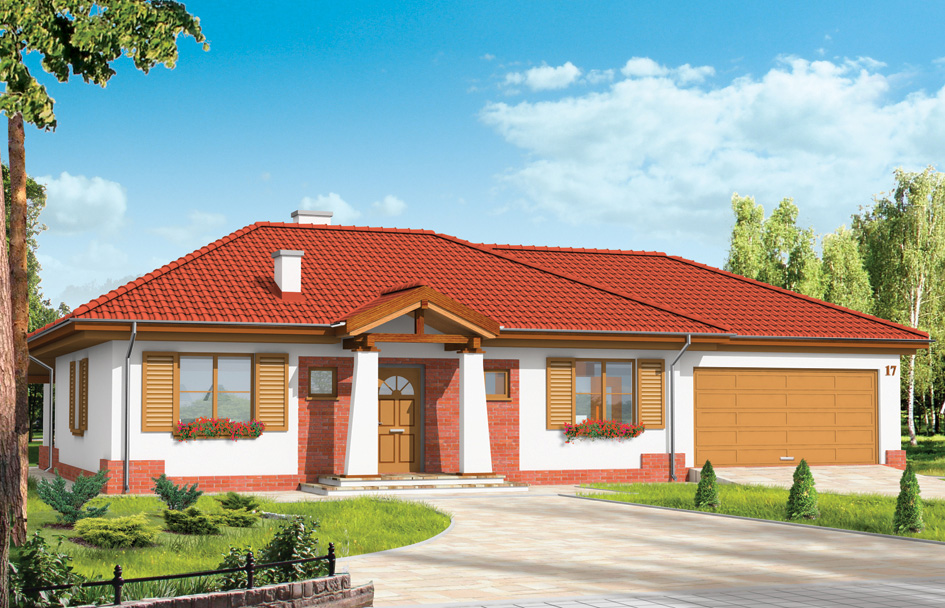

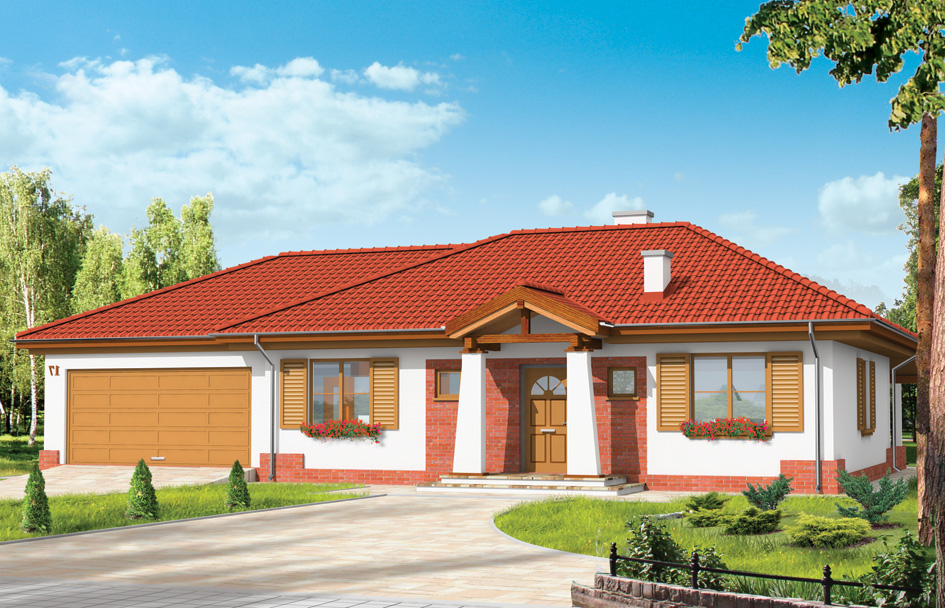

House plan Four corners - front visualization

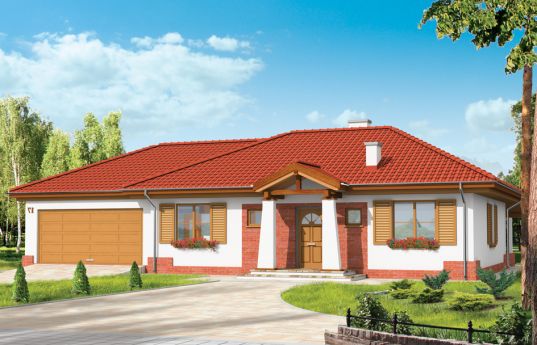

Show mirror image

Price: 970 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Animation Interiors Variants (1) Realizations (10) Detailed drawings List of materials Comments (3)

Four Corners house plan is a one-storeyed, comfortable house for a family of four. Besides to a spacious living room and three bedrooms in the house are designed an expanded utility part, consisting of two rooms and garage for two cars. From the garden a terrace with arcade is planned. Four Corners is a proposal for a medium-sized comfortable one-storeyed house for investors who do not like walking up the stairs. Thanks to a simple construction the house is very easy to build. There is also a mirror version of the Four Corners house plan.

Specifications:

Cubature: 492 m³/ 17372,52 ft³
Built-up area: 177,75 m²/ 1912,59 ft²
Total area: 177,75 m²/ 1912,59 ft²
Net area: 152,19 m²( w tym garaż )/ 1637,56 ft² with garage
Usable area: 102,07 m²/ 1098,27 ft²
Roof area: 242,44 m²/ 2608,65 ft²
Roof slope: 24 i 26,2 stopni / 24 and 26,2 degrees
Height of the building:: 5,55 m (5,85 m z podmurówką)/ 18,20 ft (19,19 ft with foundation)
Wide of the building: 18,24 m / 59,83 ft
Length of the building: 9,84 m / 32,27 ft
Minimum plot width: 26,24 m / 86,07 ft
Minimum plot length: 19,16 m / 62,84 ft
Height of rooms: 2,61 m / 8,56 ft

Materials:

• Foundations - Concrete benches and walls of concrete blocks
• External walls – bilayer walls of aerated concrete
• Ceiling - wooden girders truss
• Elevation - thin-layer plaster on polystyrene
• Roof - tile

The costs of implementing:

The raw state open	33 300,00 EUR
The raw state closed	55 300,00 EUR
The cost of finishing works	53 200,00 EUR
Execution of turnkey home	108 400,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Projekt domu Cztery kąty - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Four corners - detailed file - mirror

House plan Four corners - detailed file
