house plan Dream 11

Usable area: 119.39 m2   /   The cost of the realization: 137 710 EUR

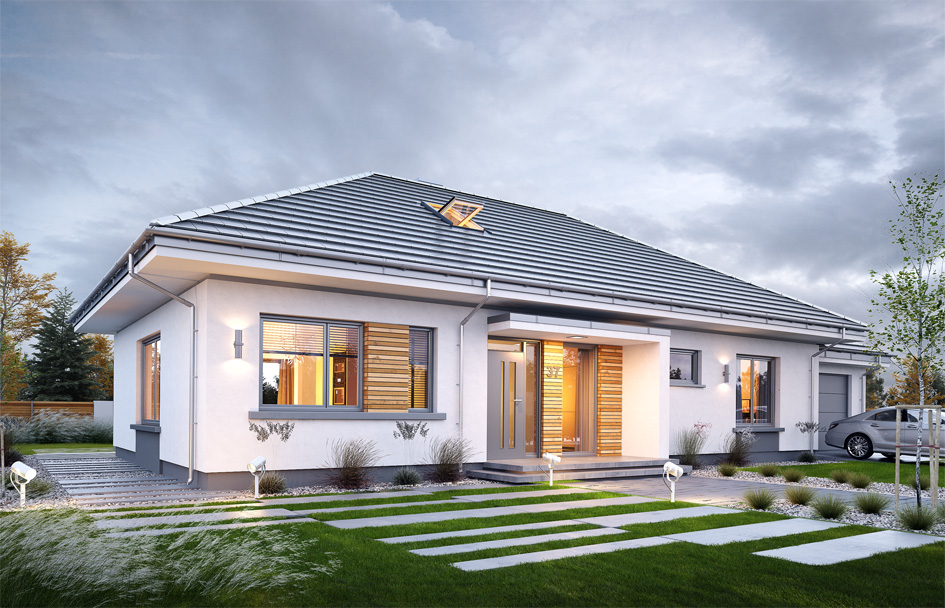

Projekt domu Wymarzony 11 - wizualizacja frontu
Show mirror image

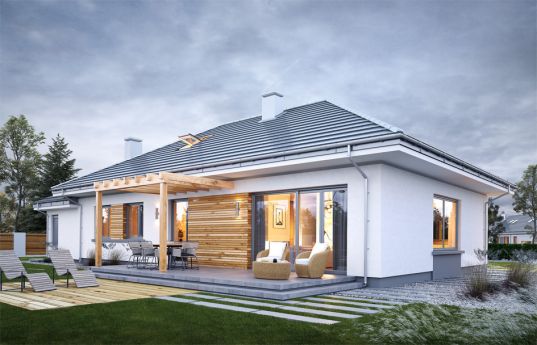

Dream house plan 11 is a charming single-family house from the collection of our projects Dream houses. This is one of the least developed versions of the designs of this series, at the same time one of the prettiest and most exquisite. The rectangular shape with the garage was covered with two hipped roofs with an angle of inclination of 30 degrees. The design has a modern style and combines a traditional figure with modern details and finishing materials. The combination of white plastered walls with grey additions, grey tiles and window frames give the interior appearance full of elegance and elegance. The main decorations of the façade are: an entrance with an L-shaped roof and nice front doors, and a terrace zone on the garden side with large glazing from the living room and pergola. The house is designed for a plot with garden and solar lighting on the back or side of the building. The interior of the house has a comfortable living space, as well as five additional rooms, which is a very good result with a small area of the house. The house can be used freely even by a family of 2 + 4. Rooms can be arranged as children's bedrooms. One of the rooms can remain a home office / cabinet. We enter the interior with a comfortable vestibule to the living area, with a living room, dining room and open kitchen. The living room has a fireplace and TV wall, a place for comfortable rest, and wide balcony doors open the living room to the terrace and garden. From the living room through the hallway we get to the part of the house with the bedroom of parents with a dressing room, and children slepping. Further, the house connects with the garage and business part of the building, through the utility room, with the garage and boiler room. The attic above the ground floor was designed as a storage space, which is reached by ladder stairs. "Dream 11" is an elegant, comfortable home for a family of four and six. Its functionality and practicality of interior design is combined with a solid construction and simplicity of architecture. The building is energy-saving, it has an easy to build structure, it will be inexpensive to maintain.

Specifications:
  • Cubature: 904 m3 / 31920,24 ft
  • Built-up area: 184,22 m2 / 1982,21 ft2
  • Total area: 184,22 m2 / 1982,21 ft2
  • Net area: 126,39 m2 + garage 20,27 m2 / 1359,96 ft2 + garage 218,11 ft2
  • Usable area:119,39 m2 / 1284,64 ft2
  • Roof area: 269,80 m2 / 2903,05 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,57 m (6,87 m with foundation) / 21,55 ft (22,53 ft with foundation)
  • Building dimensions: 19,43 x 10,40 m / 63,73 x 34,11 ft
  • Plot dimensions: 26,43 x 18,40 m / 86,69 x 60,35 ft
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •         Foundations - concrete bench and foundation walls with concrete blocks
  •         External walls – brick walls –  aerated 24 blocks + polystyrene
  •         Ceiling - monolithic reinforced concrete
  •         Elevation - thin-layer plaster on polystyrene
  •         Roof - ceramic tile




The costs of implementing:
The raw state open 41 770,00 EUR
The raw state closed 67 070,00 EUR
The cost of finishing works 68 920,00 EUR
Execution of turnkey home 137 710,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Wymarzony 11 - pliki szczegółowe

Projekt domu Wymarzony 11 - pliki szczegółowe- odbicie lustrzane
