Fantasy house plan

Usable area: 155.59 m2   /   The cost of the realization: 146 500 EUR

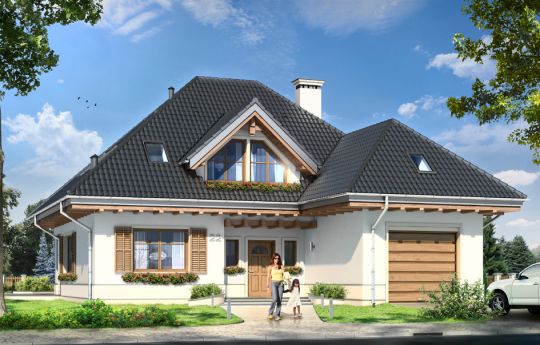

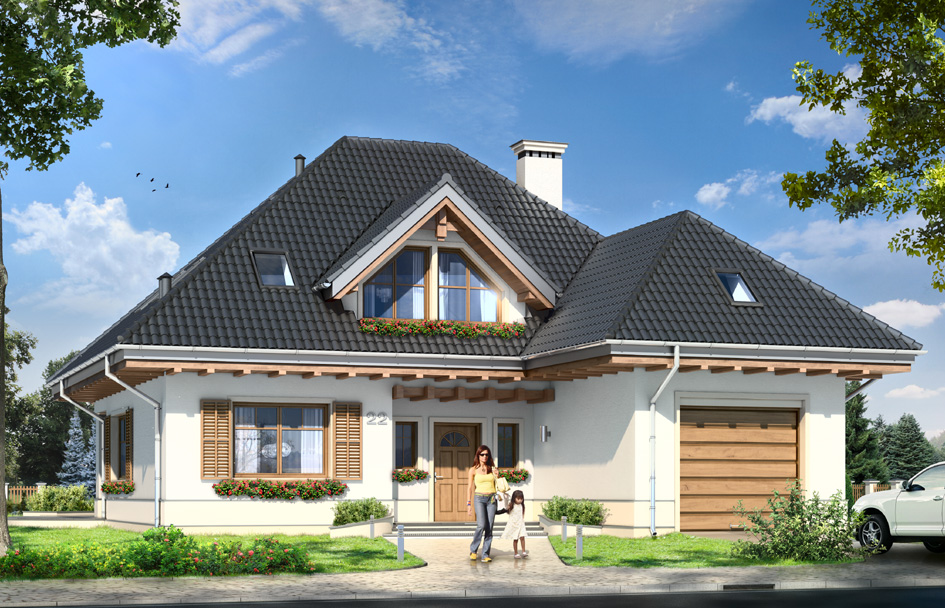

House plan Fantasy - front visualization

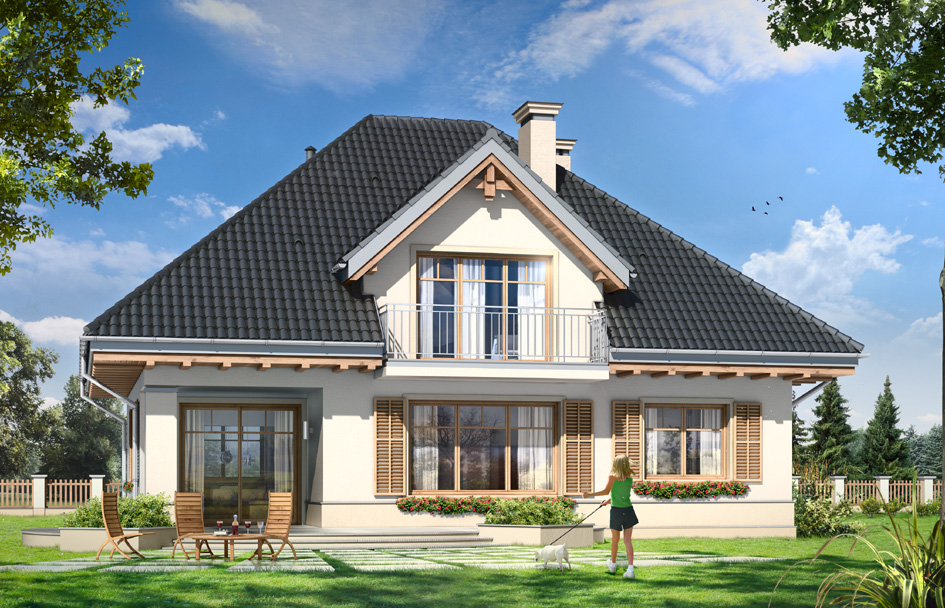

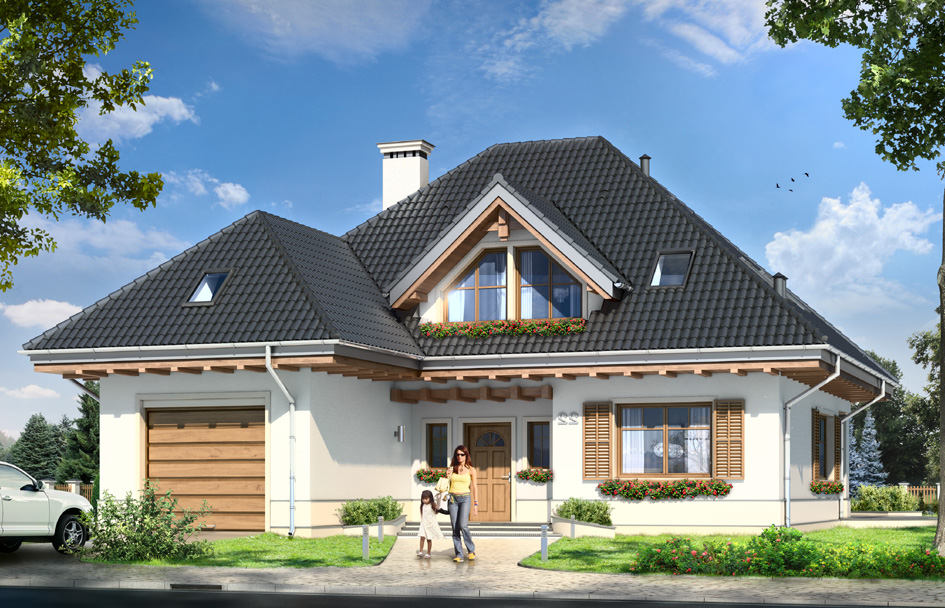

Show mirror image


Fantasy house plan is a beautiful suburban villa with refined architectural details and functional interior. Fantasy house is a one-storey building, with an attic. It is designed for a family of 4 – 5 people. The main body of the building is covered with a hipped roof. The garage is composed to the building and two large skylights - from the front and from the garden was added. The shape of the roof, dormers, eaves, walls of the ground floor with a wide belt of foundation, massive chimneys - all these elements evoke the memory of the pre-war houses - robust and long-lived, ingrown in the environment. The combination of historical details and modern materials create a harmonious whole. The interior of the house is divided into a living area on the ground floor and bedrooms on the top floor. At the bottom of one living space create living room, dining room, lounge with beautiful exhibited staircase and central fireplace, and partly open kitchen. An extra room by the stairs can be used as an office or bedroom. In this house plan, on the ground floor also planned garage, utility room - boiler room and porch. In the attic three very comfortable and spacious bedrooms was designed. Parent’s bedroom - is a separate apartment - with a balcony overlooking the garden, private bathroom and a large dressing room. Children’s bedrooms have en-suite bathroom and large cavity built-in wardrobe. From one of bedrooms you can get to the attic over the garage. The interior of the house is connected to the garden through large windows and a wide exit to partly covered terrace. We also have the Fantasy house plan in a mirror version.

Specifications:
  • Cubature: 795 m3/ 28071,45 ft3
  • Built-up area: 138,37 m2/ 1488,86 ft2
  • Total area: 234,59 m2/ 2524,19 ft2
  • Net area: 162,87 m2 + garage + attic/ 1752,48 ft2 + garage + attic
  • Usable area: 155,59 m2/ 1674,15 ft2
  • Roof area: 270,83 m2/ 2914,13 ft2
  • Roof slope: 42 degrees
  • Height of the building: 8,86 m (9,16 m with foundation)/ 29,06 ft (30,05 ft with foundation)
  • Wide of the building: 12,72 m/ 41,72 ft
  • Length of the building: 14,25 m/ 46,74 ft
  • Minimum plot width: 20,72 m/ 67,96 ft
  • Minimum plot length: 22,25 m/ 72,98 ft
  • Height of rooms:  2,75 m/ 9,02 ft
Materials:

• Foundations - Concrete benches and foundation walls of concrete blocks
• Walls - brick walls - porotherm 25  blocks + polystyrene + thin-layer plaster
• Ceiling -  Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof -  tile




The costs of implementing:
The raw state open 47 100,00 EUR
The raw state closed 68 800,00 EUR
The cost of finishing works 77 800,00 EUR
Execution of turnkey home 146 500,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Fantasy - detailed file

House plan Fantasy - detailed file - mirror

Comment
Fantasy house plan 5529 Elizabetaa
2013.09.08 0 Pozytywny komentarz Negatywny komentarz

The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.

Fantasy house plan 2660 Milla
2012.03.15 2 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Fantasy house plan 235 Allida
2012.02.02 0 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.
