Villa Julia house plan

Usable area: 134.12 m2   /   The cost of the realization: 145 220 EUR

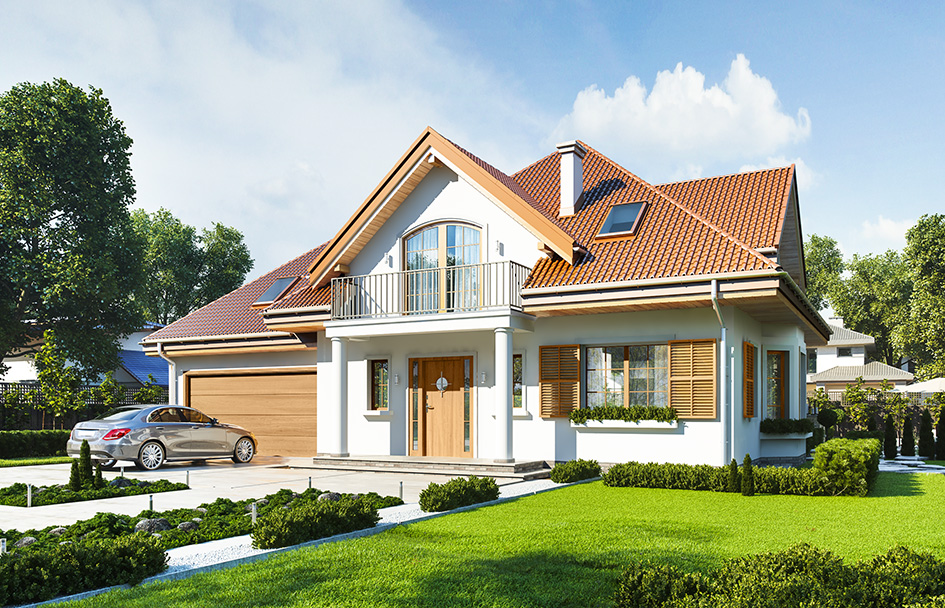

House plan Villa Julia - front visualization

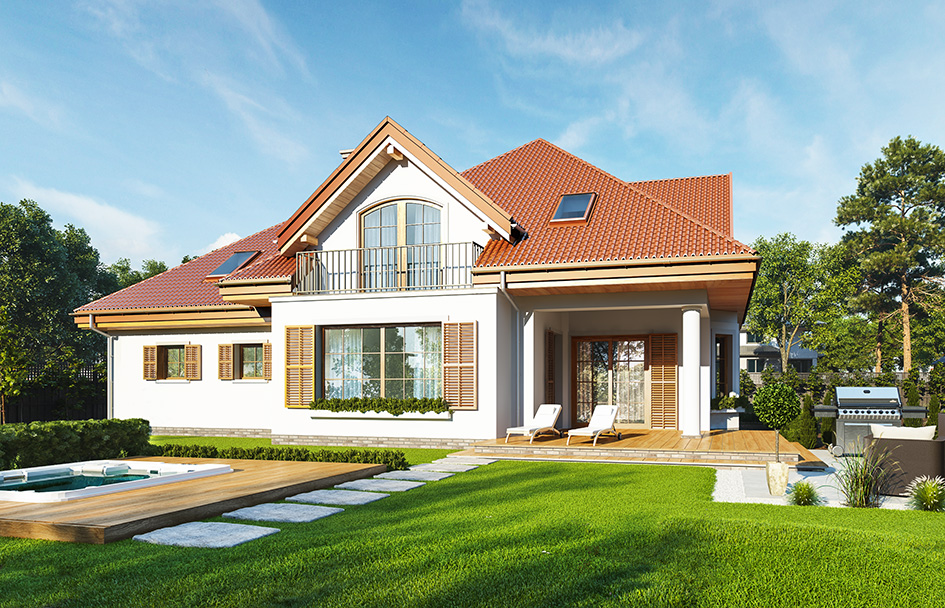

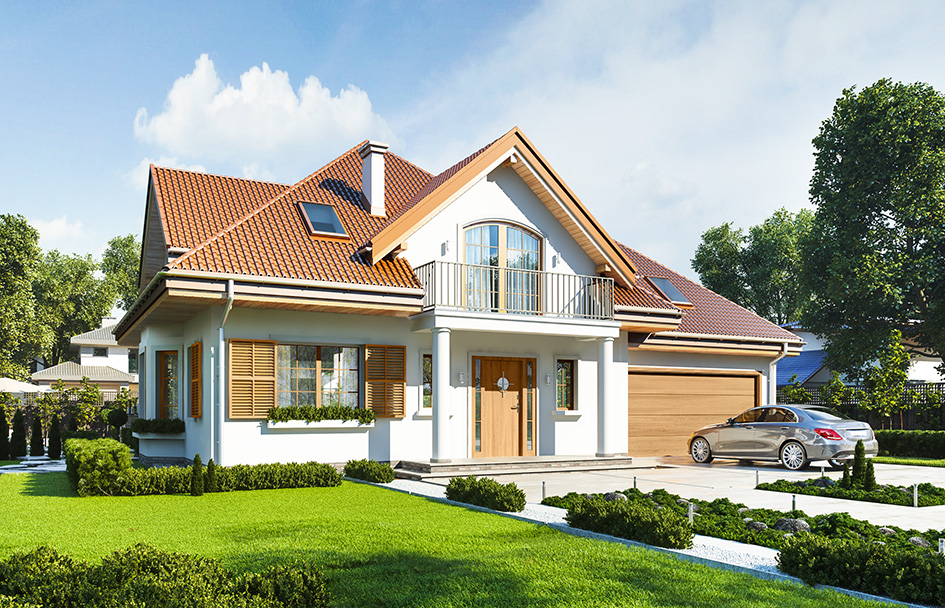

Show mirror image

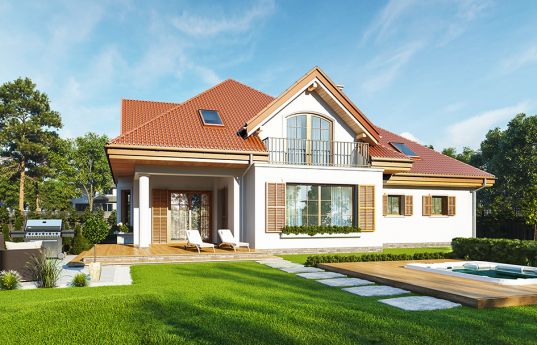

House plan Villa Julia is one of the two most recent versions of more popular house plan Julka. The houses are very similar to the original, we changed them a little bit, and improved some things, introducing solutions Investors building earlier Julka. Villa Julia is a bungalow with usable attic covered by a hipped roof, with build another part of the garage with a large double garage and attic. Architecture of the house is a combination of traditional form of classic Polish roofer, with hipped roof varied by wide dormer windows, with modern details and materials used in the building. Front is emphasized by entrance arcades with a balcony on columns. From here by wide doors we go into the house. From the garden side was designed comfortable arcade - roofed terrace and beautiful window of living room. Large glazed areas with nice divisions are the decoration of house. Well-balanced proportions of the walls and roof, make Villa Julia does not lose the human scale. Interior: on the ground floor we predicted a large living area with living room, dining room, hall and kitchen. Near to the kitchen was designed pantry. At the entrance to the house we have a small room - for example, home office (which can serve occasionally as a guest bedroom). Under the stairs is toilet and passage to the garage and utility part of house. Behind large garage is a boiler room. In the attic we designed three comfortable bedrooms: children's bedrooms with built-in wardrobes, and parents' bedroom with walk-in closet. In addition, there is a large bathroom. Above garage is located the attic for any development. Villa Julia is energy efficient building, very well insulated, with a compact bod. The house will be easy to build and inexpensive to use later.

Specifications:
  • Cubature: 711 m3/25105 ft3
  • Built-up area: 150,15 m2/1615,61 ft2
  • Total area: 242,83 m2/2612,85 ft2
  • Net area: 144,47 m2 + garage /1554,50 ft2 + garage
  • Usable area: 134,12 m2/1443,13 ft2
  • Roof area: 251,60 m2/2707,22 ft2
  • Roof slope: 40 degrees
  • Height of the building: 8,39 m (8,74 m with foundation)/27,52 ft (28,67 ft with foundation)
  • Building dimensions: 16,69 m/54,74 ft x 10,89 m/35,72 ft
  • Plot dimensions: 24,12 m/79,11 ft x 19,00 m/62,32 ft
  • Height of rooms: 2,7 m/8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls – brick walls – porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling - Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile




The costs of implementing:
The raw state open 47 580,00 EUR
The raw state closed 72 390,00 EUR
The cost of finishing works 67 660,00 EUR
Execution of turnkey home 145 220,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Villa Julia - detail drawings

House plan Villa Julia - detail drawings - mirror
