Columbine house plan

Usable area: 128.73 m2   /   The cost of the realization: 112 300 EUR

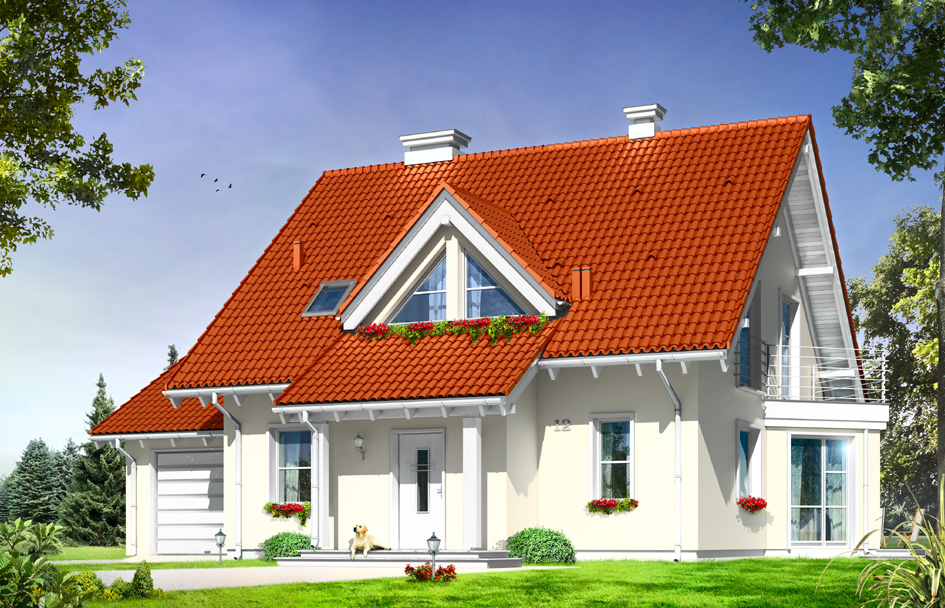

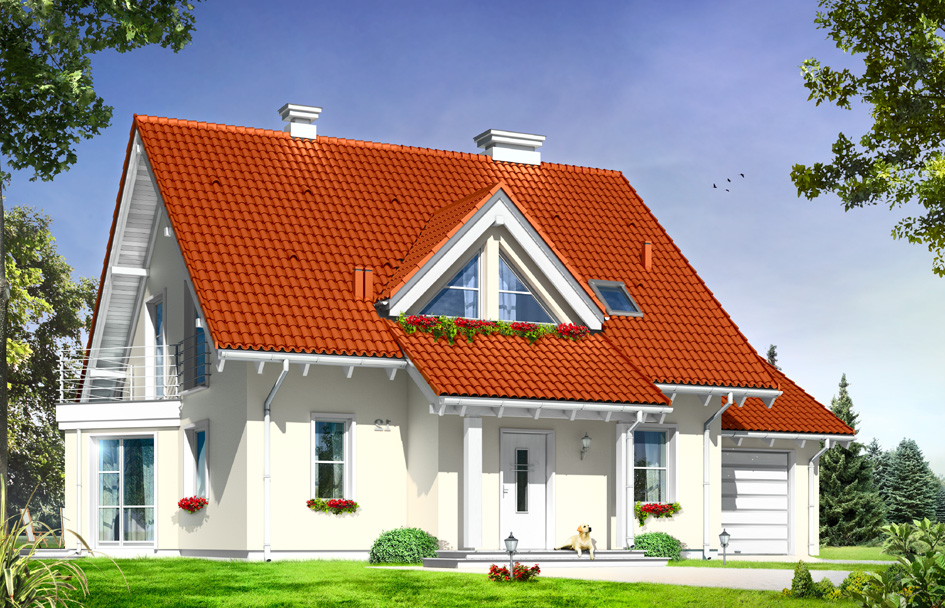

House plan Orlik - front visualization

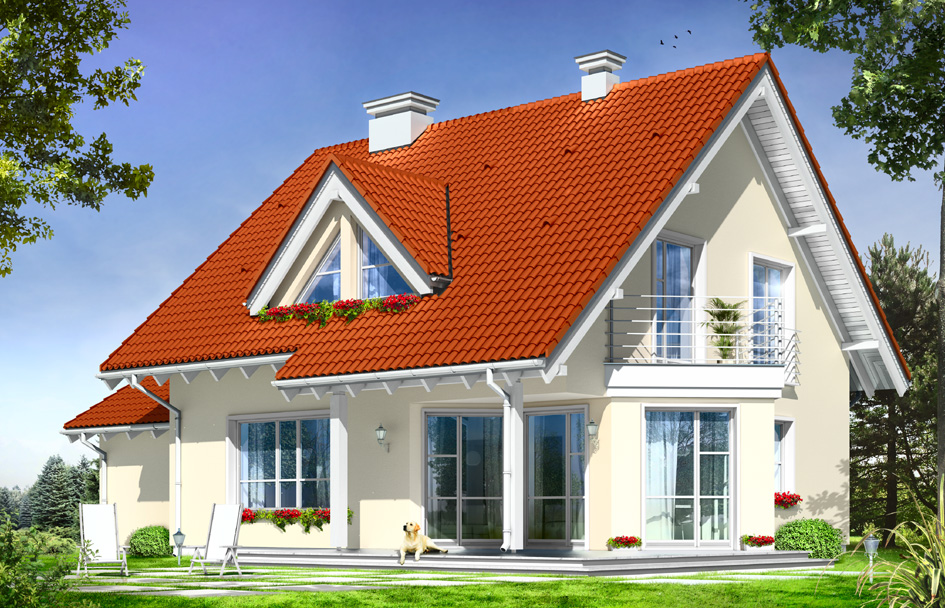

Show mirror image

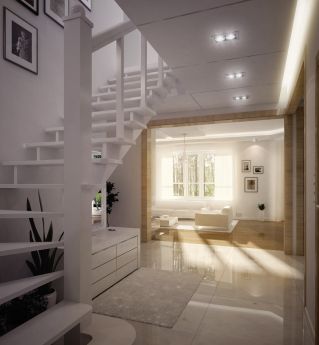

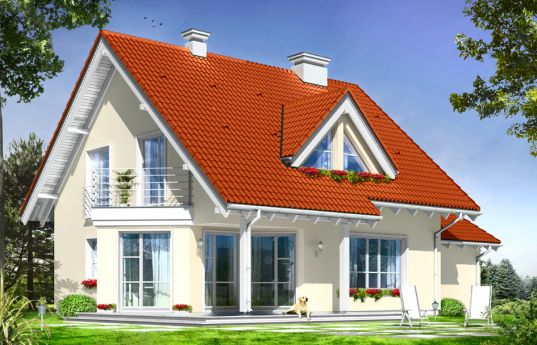

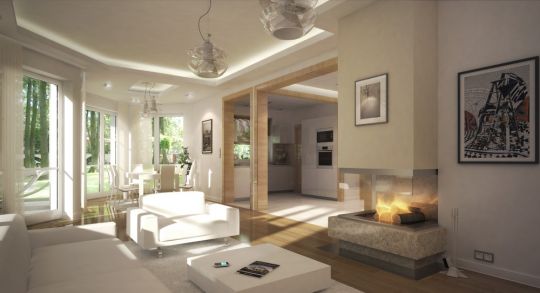

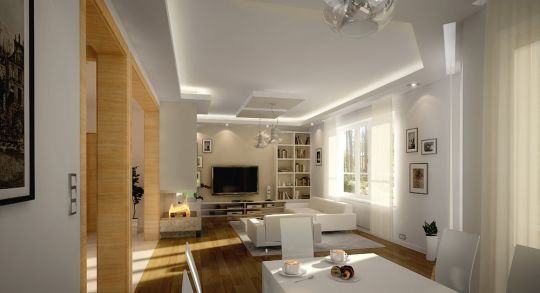

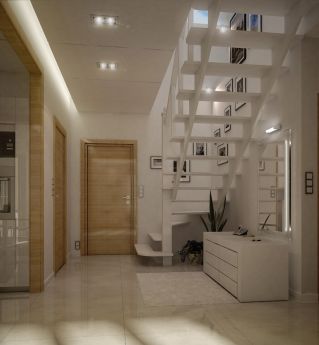

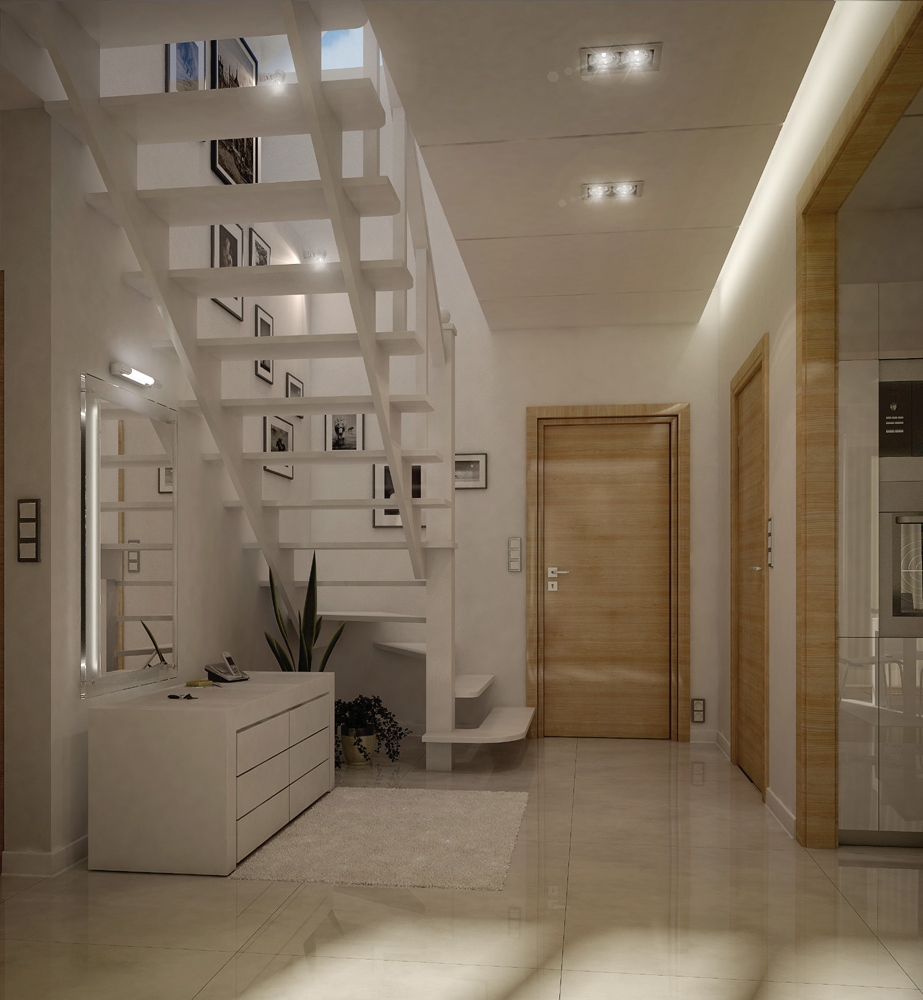

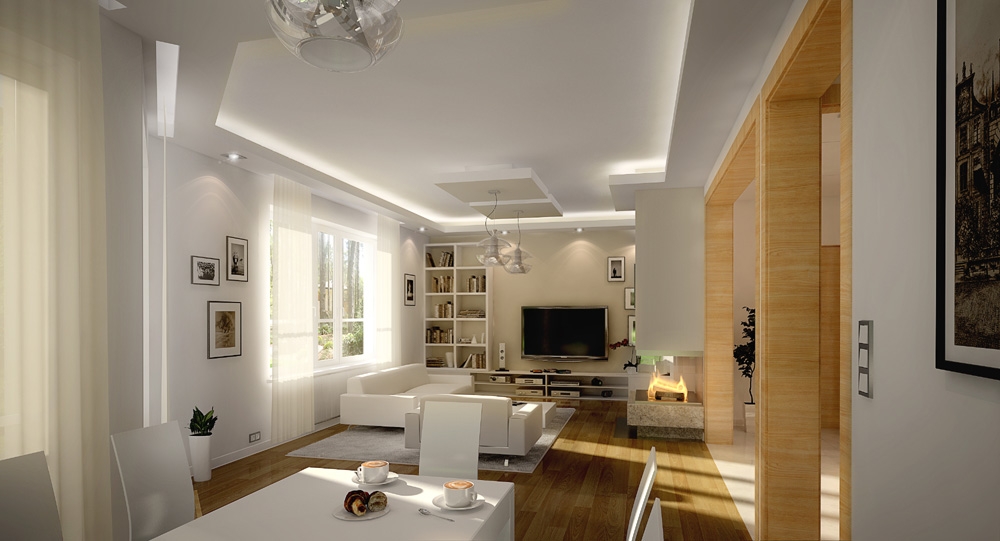

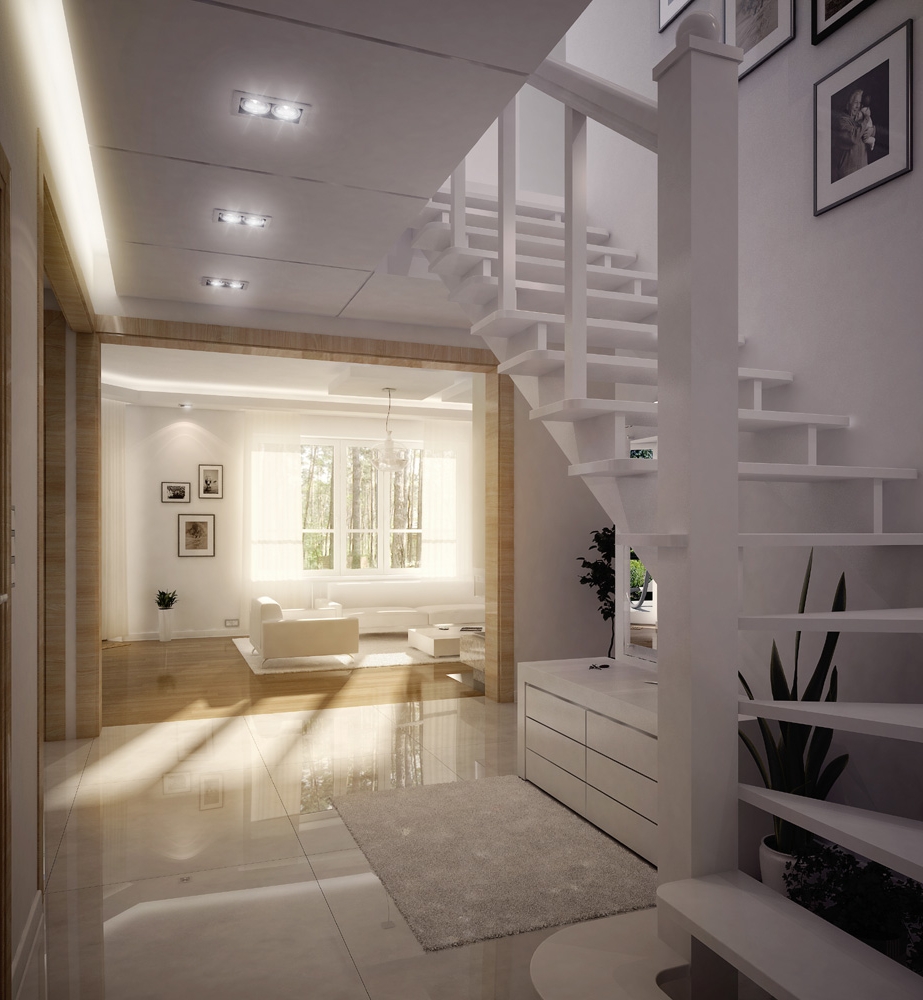

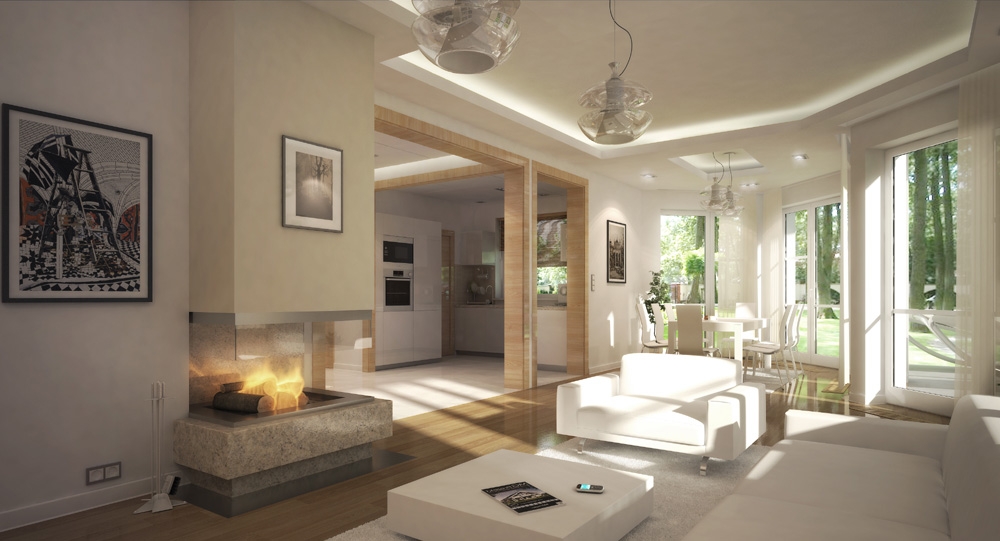

Columbine house plan is a charming detached house, suitable for a family of four to five people. Columbine is a one-story house with usable attic, built on a plan similar to the square. Covered by a gable roof with dormers. It has also built another garage covered by gable roof. A simple traditional building structure is enriched by additions: entrance vestibule with a roofed arcade supported by two columns, triangular dormers with large windows in the front and from the garden, interesting bay window dining room connected to of living room with an arcade and a partial roofed garden terrace. The whole body, its details, materials and colors create a successful matching whole. Interior of Columbine is divided into living and usable on the ground floor and bedrooms in the attic. One space combined of living room, dining room and hall with nice staircase form daily part of the house. This includes the little cut off from the living room kitchen with a pantry (it can be easily combined with the dining room doing a hole in the wall). On the ground floor there was designed also an extra room - bedroom or office, bathroom, boiler room and garage. In the attic there are three bedrooms - two equal-sized for children, and one bigger for parents. All rooms have  place for large built-in wardrobes. The rooms are so proportionate, that you can also try to separated wardrobes from them. Interior of the attic completes the beautiful, well-lit bathroom. Above the attic inhabitants are still have quite big attic - very useful in a small house. Columbine is the perfect choice for small, energy-efficient, cheap to build and maintain house in which there is enough space and room for a family of two-three children. There is also available a mirror version of this house plan.

Specifications:
  • Cubature: 652 m3 / 23022,12 ft3
  • Built-up area: 125,70 m2 / 1329,94 ft2
  • Total area: 198,58 m2 / 2136,72 ft2
  • Net area: 135,11 m2 + garage / 1419,46 ft2 + garage
  • Usable area: 128,73 m2 / 1380,51 ft2
  • Roof area: 231,48 m2 / 2490,72 ft2
  • Roof slope: 42, 45 and 30 degrees
  • Height of the building: 8,54 m (8,80 m with foundation) / 28,01 ft  (28,86 ft with foundation)
  • Wide of the building: 13,12 m / 42,80 ft
  • Length of the building: 10,96 m / 35,69 ft
  • Minimum plot width 21,64 m / 70,62 ft
  • Minimum plot length: 19,09 m / 62,62 ft
  • Height of rooms:  2,60 m / 8,53 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster
  • Roof - tile




The costs of implementing:
The raw state open 46 100,00 EUR
The raw state closed 65 000,00 EUR
The cost of finishing works 47 400,00 EUR
Execution of turnkey home 112 300,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Orlik - detailed file

House plan Orlik - detailed file - mirror

Comment
Columbine house plan 5436 Zebek
2013.08.11 0 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.

Columbine house plan 3092 Heniek Z
2012.10.02 1 Pozytywny komentarz Negatywny komentarz

Hello everyone! I already ordered the project. We are currently awaiting for a building permit. This house is ideal in every respect, and most importantly, that we can build it without taking a loan.

Columbine house plan 2040 Grzegorz Nowak
2012.03.19 0 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.
