Usable area: 130.96 m2 / The cost of the realization: 139 700 EUR
Show mirror image
Price: 1110 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (98) Detailed drawings
List of materials
Comments (3)

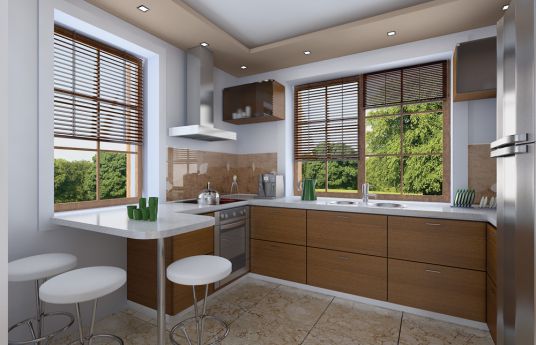

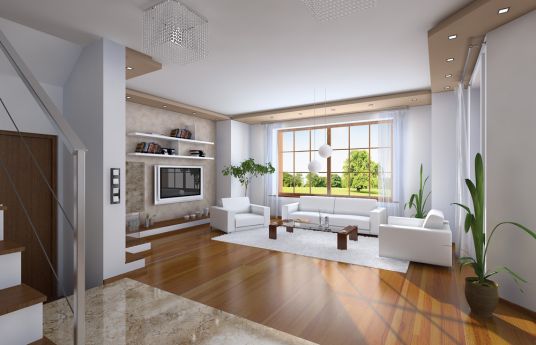

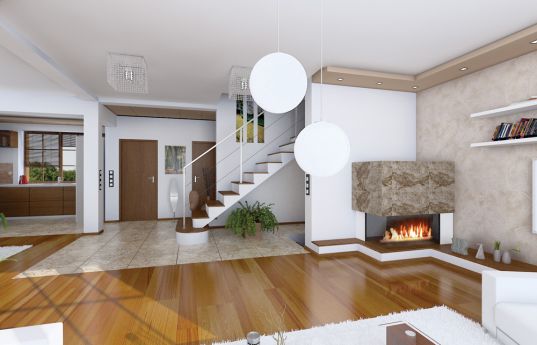

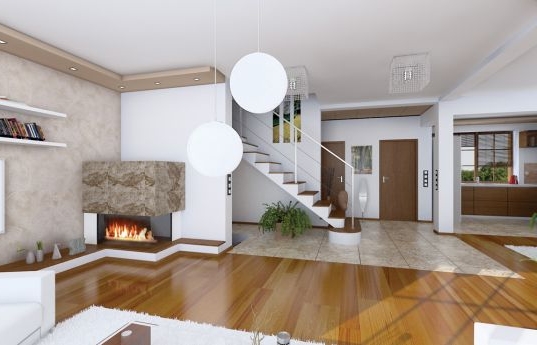

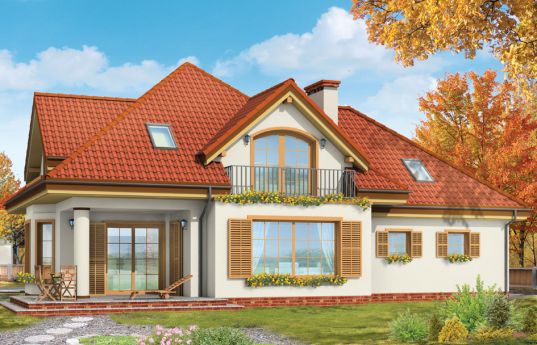

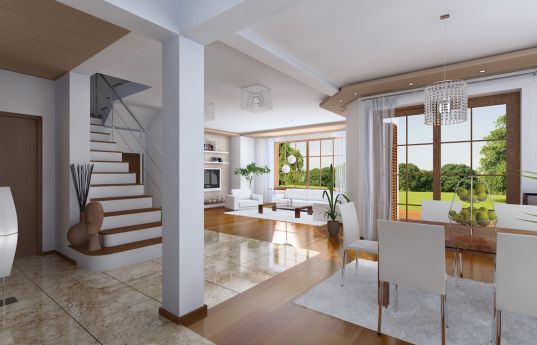

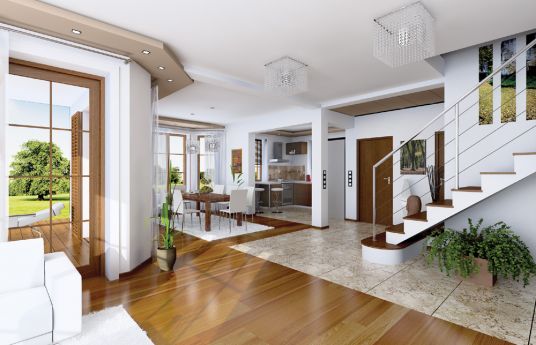

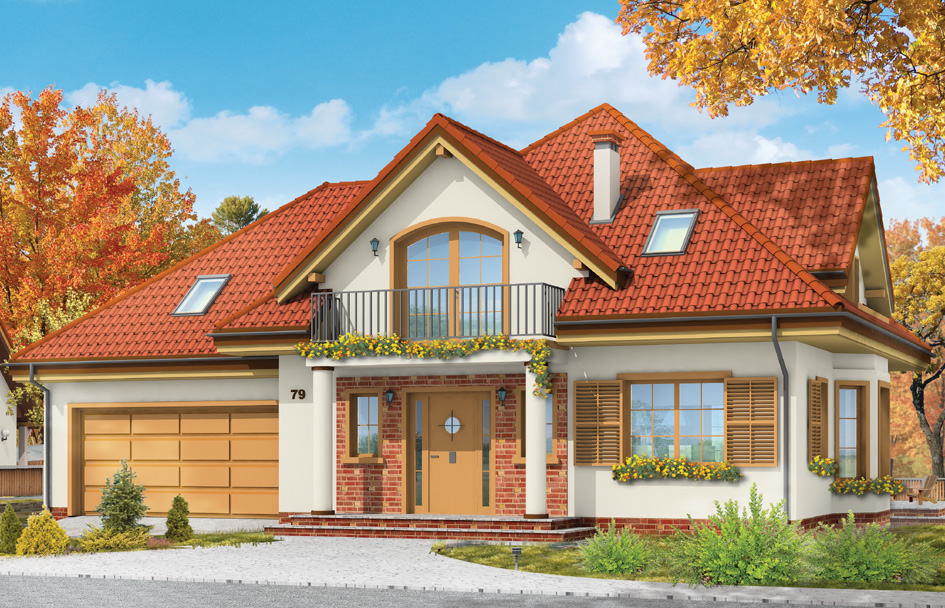

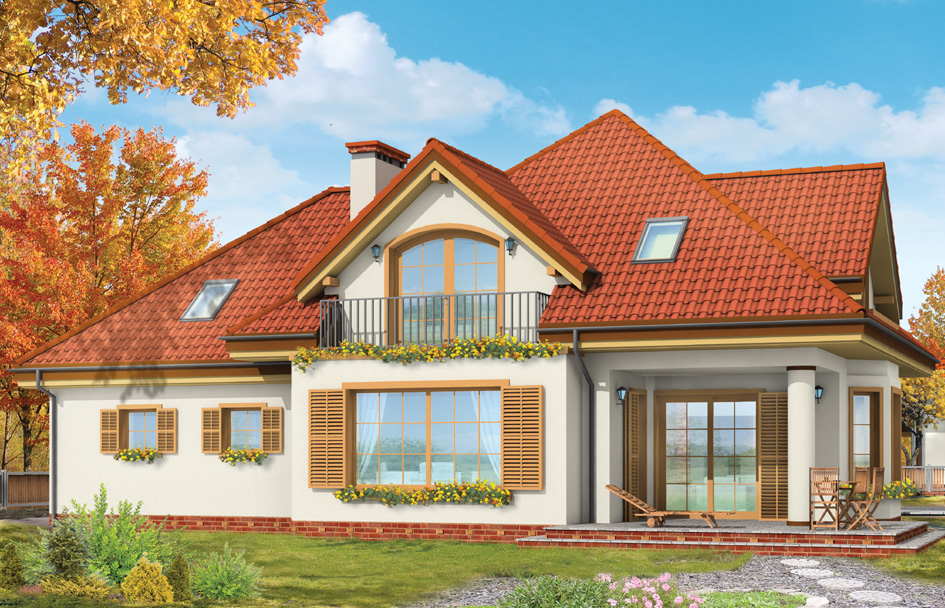

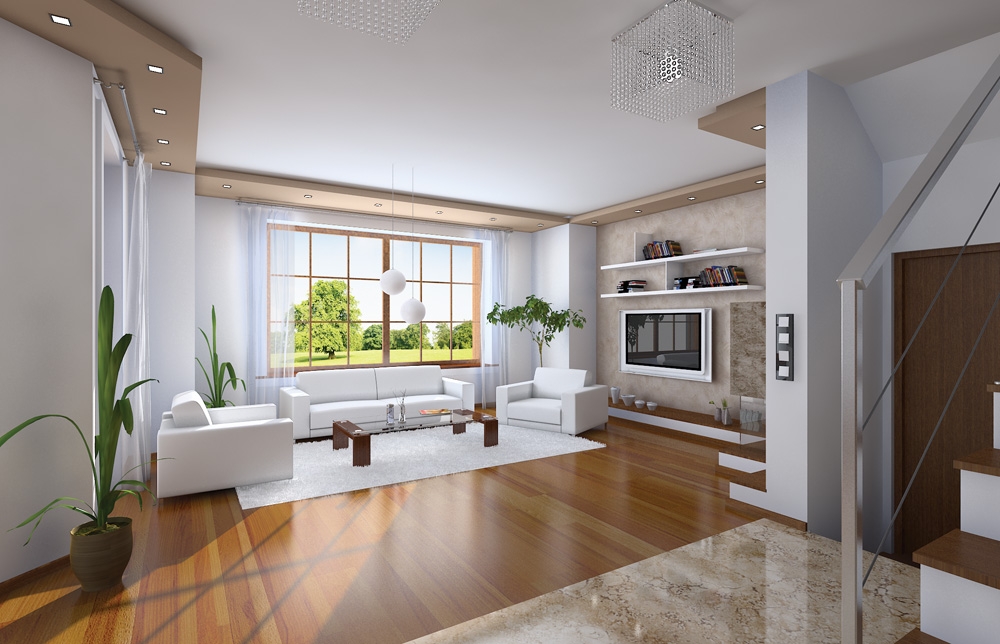

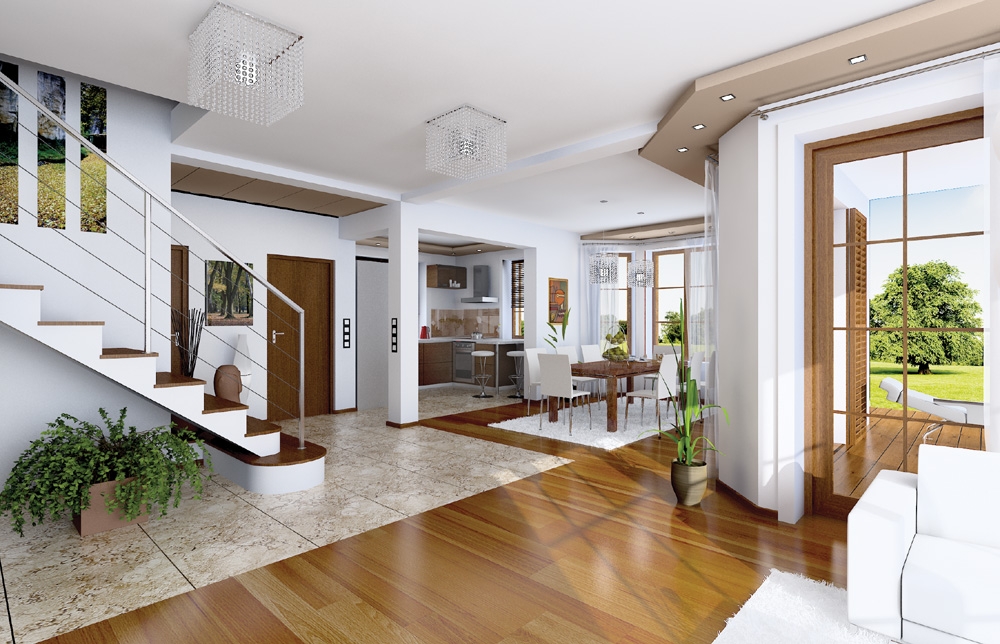

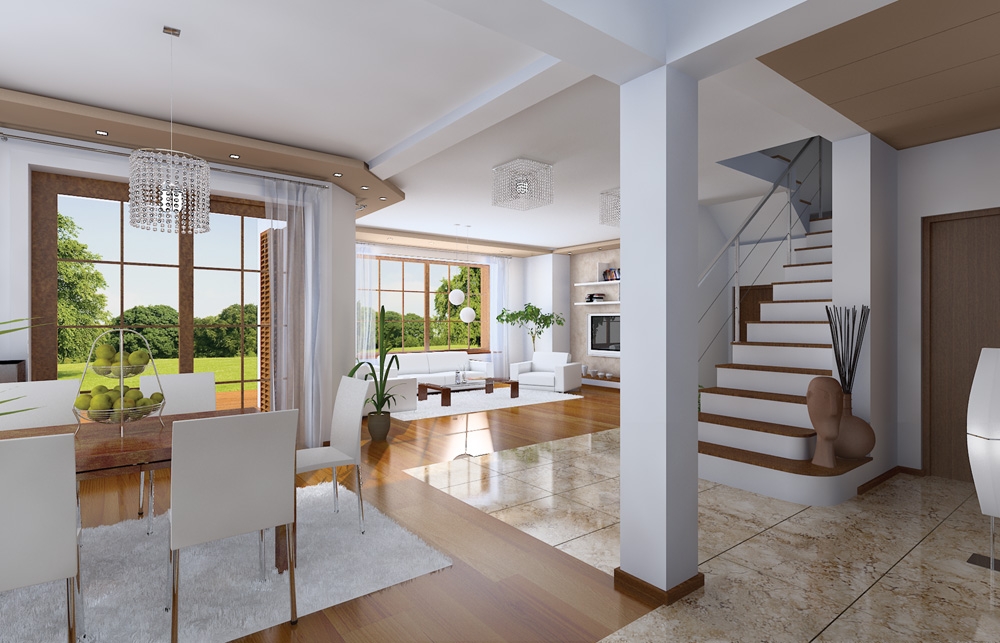

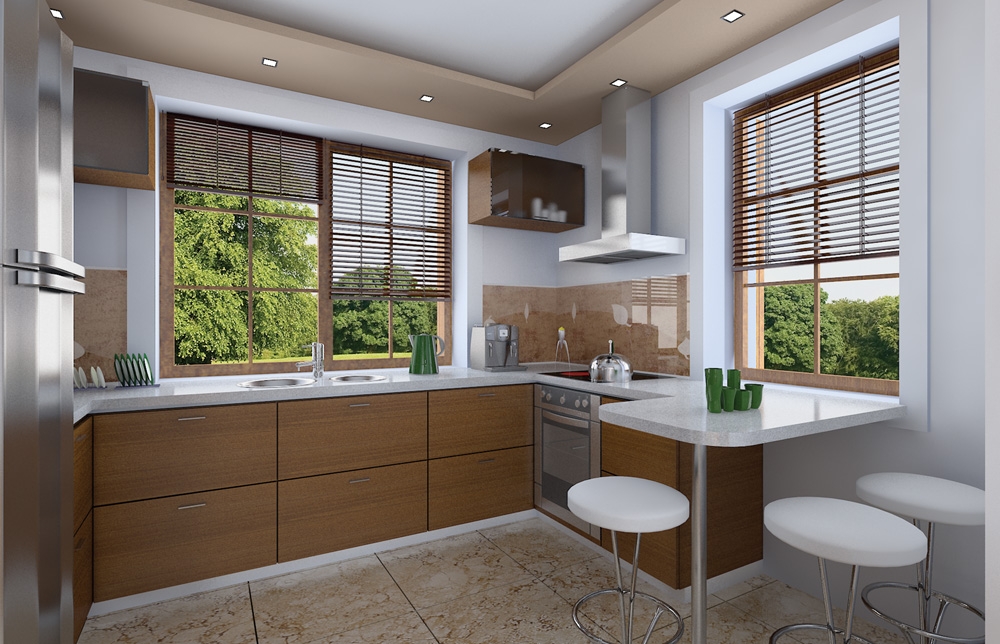

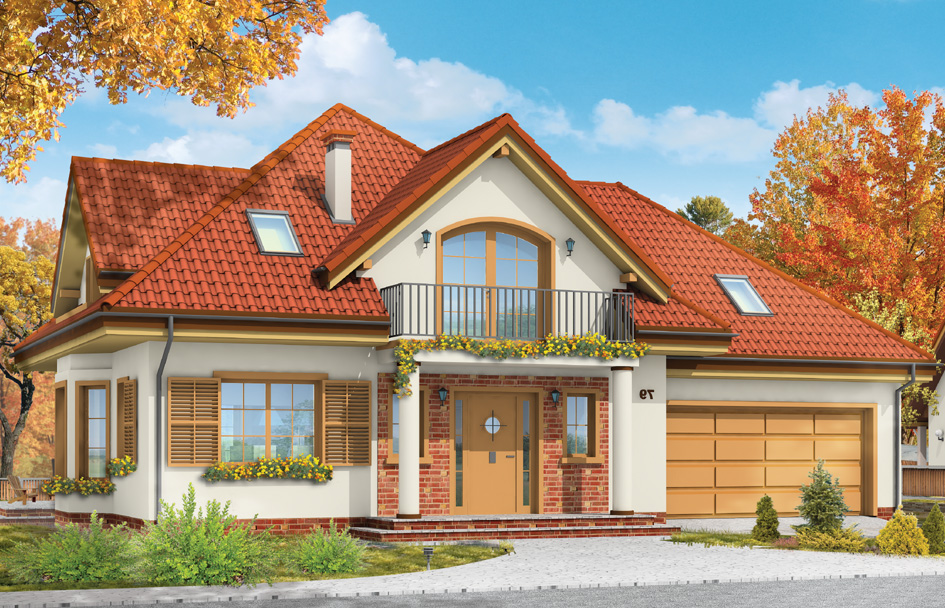

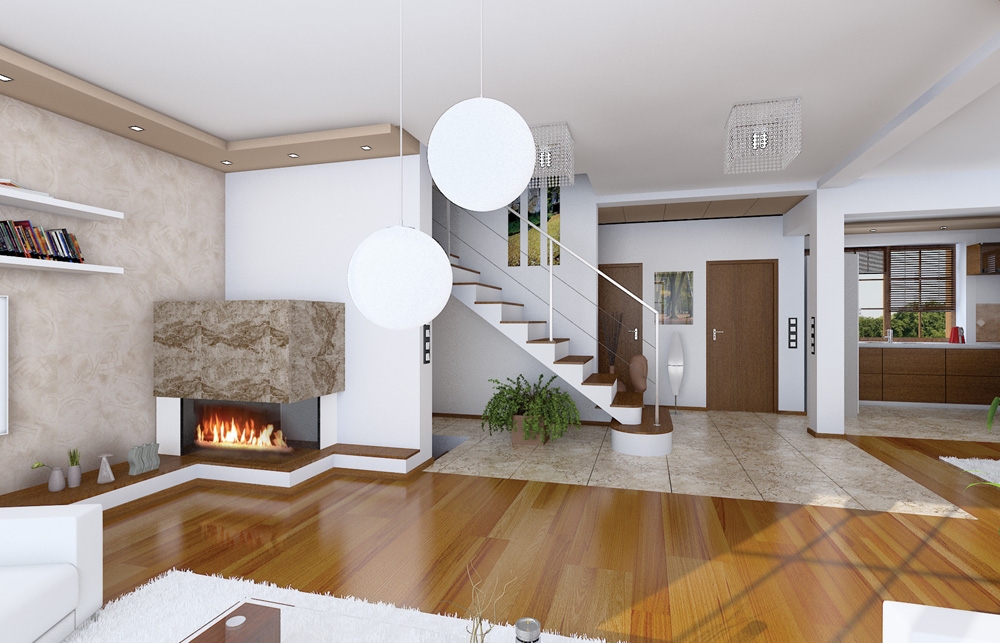

Julka house plan is a family building with attic for a family of four to five people. Architectural of this house plan is modeled on a series of popular house plan Benedict. Julka, however has a smaller area. External dimensions of the building will allow to build house on a small plot. Despite the small usable space house is very functional inside, and looks very dignified on the outside. Envelope roof with an added garage is decorate by the wide dormer windows with balconies. From the entrance balcony was supported on columns forming entrance arcades, from the garden a beautiful bay window of the living room was designed. Additionally elegance to the house adds a bay window in the dining room, and garden arcade from the living room, supported by the column underpin the corner of the house. On the ground floor living room with dining area connected to the hall and partly open kitchen was planned. An elegant staircase will create a decoration on the ground floor. Next to the entrance an extra room was designed that can be used for utility purposes (when combined with a garage), or may be possibly a little room to work – office. There is also a convenient double car garage and two storage rooms including the boiler room. In this house plan on the attic there are three spacious bedrooms and comfortable bathroom. Each of the bedrooms has provided a wall with built-in wardrobes - you can also separate them in a dressing room.
Specifications:
- Cubature: 711 m3/ 25105,41 ft3
- Built-up area: 147,98 m2/ 1592,26 ft2
- Total area: 240,14 m2/ 2583,91 ft2
- Net area : 140,7 m2 + acttic + garage/ 1513,93 ft2 + acttic + garage
- Usable area: 130,96 m2/ 1409,13 ft2
- Roof area: 251,6 m2/ 2707,22 ft2
- Roof slope: 40 degrees
- Height of the building: 8,39 m (8,74 m with foundation)/ 27,52 ft ( 28,67 ft with foundation)
- Wide of the building: 16,61 m/ 54,48 ft
- Length of the building: 10,81 m/ 35,46 ft
- Minimum plot width: 23,61 m/ 77,40 ft
- Minimum plot length: 18,96 m/ 62,19 ft
- Height of rooms: 2,70 m/ 8,86 ft
Materials:
- Foundations - poured concrete
- External walls - bilayer porotherm 25 + 18 polystyrene (or mineral wool)
- Ceiling - reinforced concrete TERIVA
- Roof - metal tile or tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 47 100,00 EUR |
| The raw state closed | 71 200,00 EUR |
| The cost of finishing works | 68 500,00 EUR |
| Execution of turnkey home | 139 700,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Julka - detailed file
House plan Julka - detailed file - mirror
