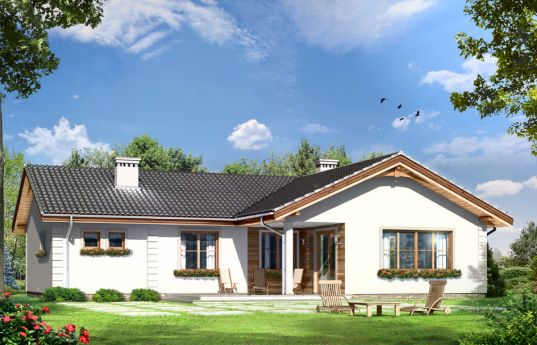

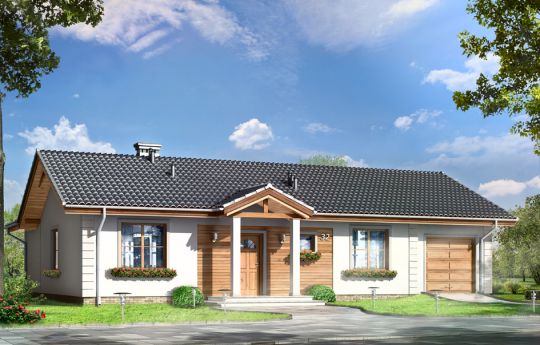

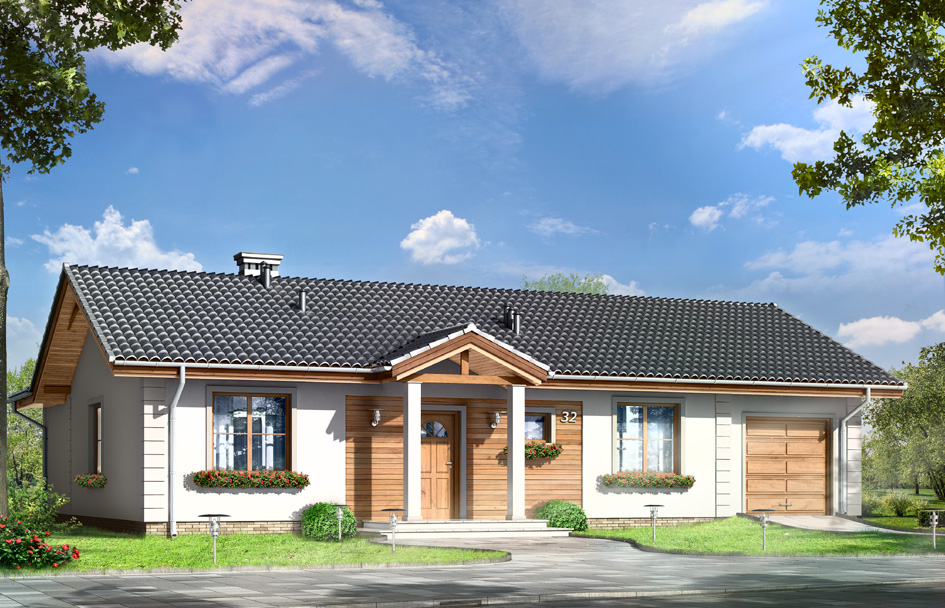

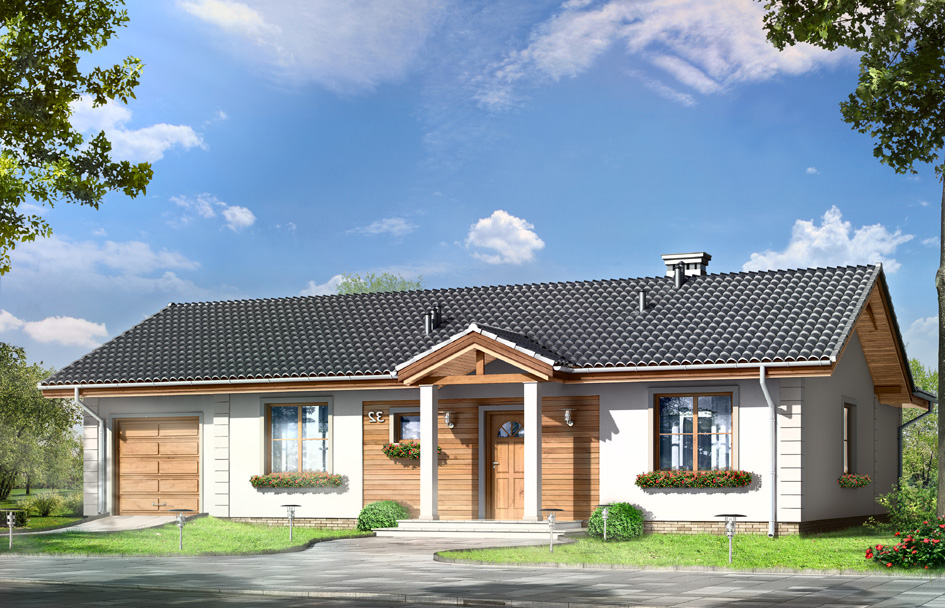

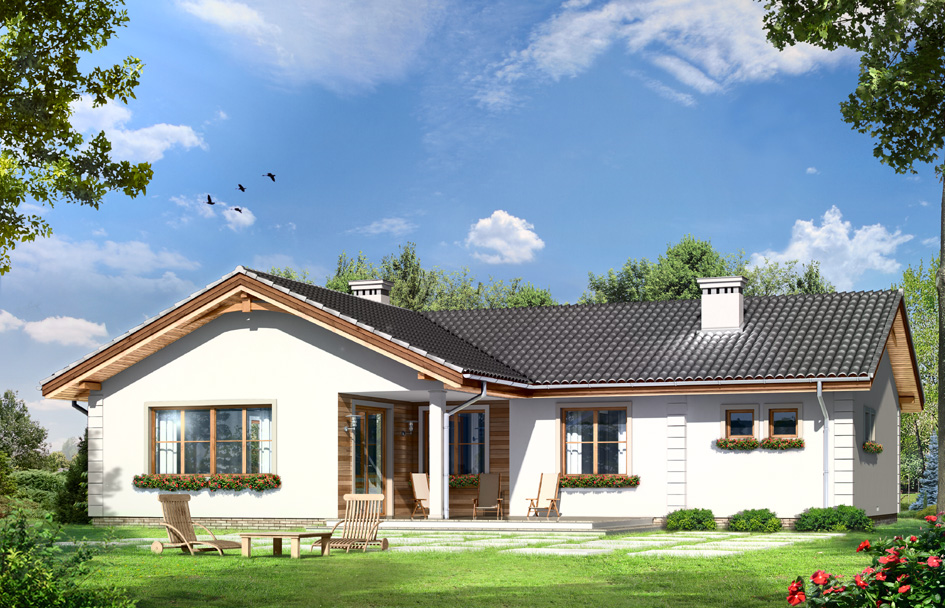

Miluś house design it enlarged version of the of Ray house. This house was designed as a ground-floor covered by mild gable roofs, with garage. Protruding beyond the outline of the house living room from the garden creating a plan to the letter "L", giving a sense of intimacy and isolate the terrace from neighbors. Architecturally, Miluś is a typical bungalow with a mild roof, wide elevations - front and garden, and large windows. Extras diversifying Milus body, like fragments of walls cladded by wood clad, entrance porch on columns or garden arcade, which is a roffing over part of the terrace, co-create a successful and harmonious whole. The interior of the house is divided into living area, as well as some of the bedrooms. Living room, with a centrally located decorative fireplace, and a large "television" wall is combined with semi-open kitchen and hall. There are also designed three bedrooms with en-suite, and an additional room that could serve as an office or for example a guest bedroom. Next to the garage an utility room - boiler room was planned. In a small space a five-room apartment, with technical background and garage was designed. We also have a this house in a mirror version.
- Cubature: 542 m3 / 19138,02 ft3
- Built-up area: 151,98 m2 / 1635,30 ft2
- Total area: 151,98 m2 / 1635,30 ft2
- Net area: 109,53 m2 + garage / 1178,54 ft2 + garage
- Usable area: 104,63 m2 / 1125,82 ft2
- Roof area: 224,34 m2 / 2413,90 ft2
- Roof slope: 24 degrees
- Height of the building: 5,12 m (5,44 m with foundation) / 16,79 ft (17,84 ft with foundation)
- Wide of the building: 15,68 m / 51,43 ft
- Length of the building 12,04 m / 39,49 ft
- Minimum plot width: 23,68 m / 77,67 ft
- Minimum plot length: 20,37 m / 66,81 ft
- Height of rooms: 2,6 m / 8,53 ft
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls - aerated concrete 24 cm + polystyrene + thin-layer plaster
- Ceiling - wooden truss
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The raw state open | 30 800,00 EUR |
The raw state closed | 47 300,00 EUR |
The cost of finishing works | 50 800,00 EUR |
Execution of turnkey home | 98 000,00 EUR |
Net notified costs, do not include VAT
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Milus - detailed file
House plan Milus - detailed file - mirror
