Usable area: 120.23 m2 / The cost of the realization: 137 300 EUR
Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (24) Detailed drawings
List of materials
Comments (3)

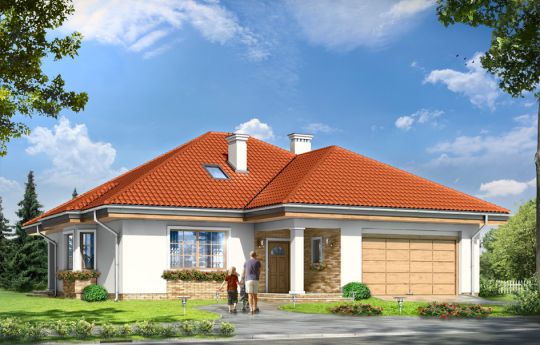

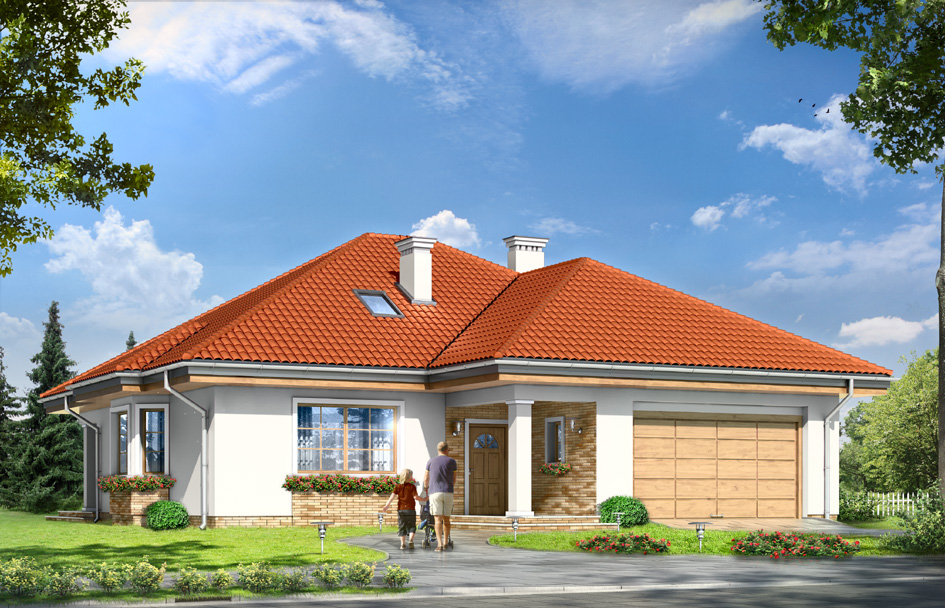

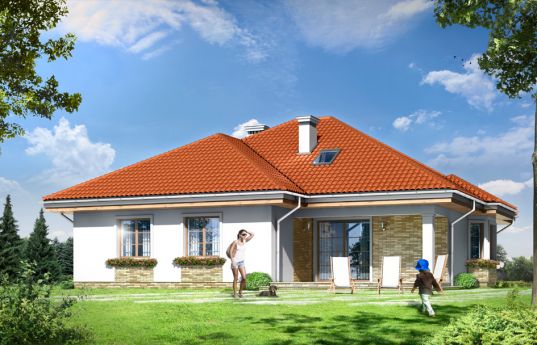

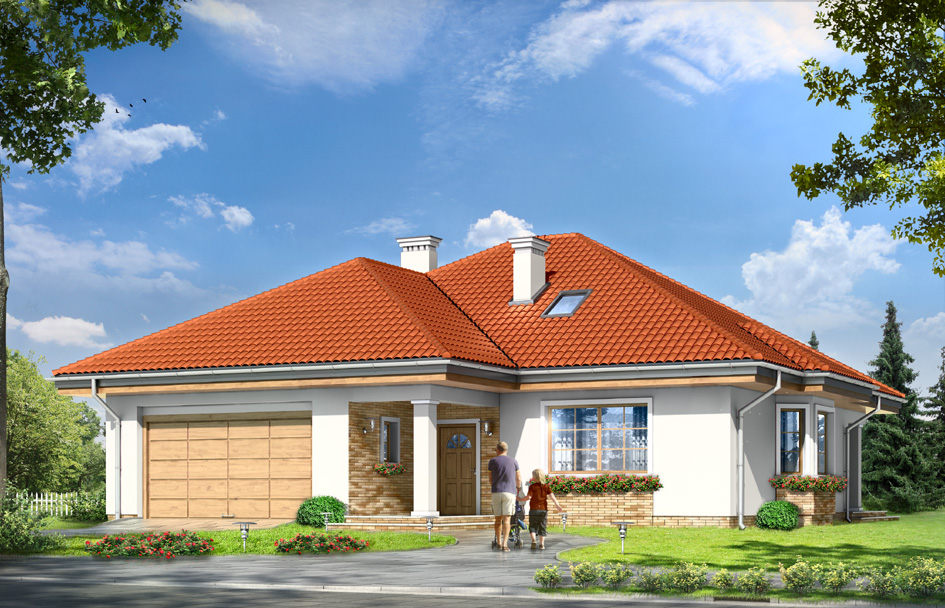

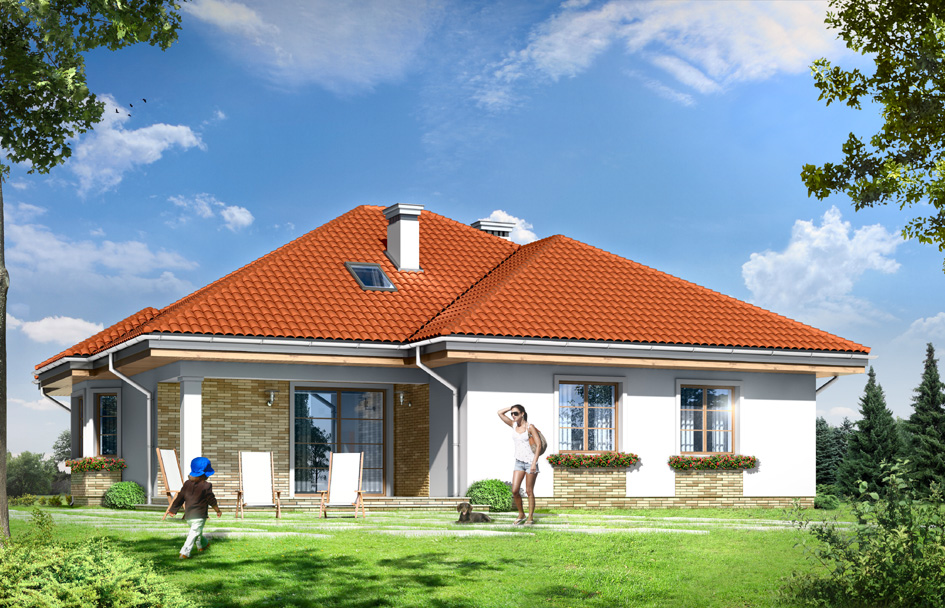

Natalie 3 is a variant version of the Natalie house plan. While retaining the same shape body of the building, and the layout of the rooms we were able to design an additional - third bedroom on the ground floor, so in the house can live a family of four people living only on the ground floor, leaving an unfinished attic. Natalia 3 is therefore a one-story house with an attic possible to adapt for utility purposes in the second stage. In the project of house, on the ground floor, designed open day space - a living room with dining area with bay window, kitchen and hall, and night part - with three bedrooms and a bathroom. In addition, on the ground floor there is a garage for two cars and boiler room - accessible from the atrium. The attic can be used as an usable attic with additional rooms. Stairs can be built or left open, as an additional decoration of the living room, next to a corner fireplace, a television wall, bay window of dining room or wide balcony door, opening the room to the partially covered terrace and garden. There is also a mirror version of the Natalie 3 house plan.
Specifications:
- Cubature: 758 m3 / 26764,98 ft3
- Built-up area: 195,55 m2 / 2104,12 ft2
- Total area: 252,77 m2 / 2719,81 ft2
- Net area: 127,74 m2 + garage + attic / 1374,48 ft2 + garage + attic
- Usable area: 120,23 m2 / 1293,67 ft2
- Roof area: 306,44 m2 / 3297,29 ft2
- Roof slope: 30 degrees
- Height of the building: 7,12 m (7,42 m with foundation) / 23,35 ft (24,34 ft with foundation)
- Wide of the building 14,48 m / 47,49 ft
- Length of the building: 17,3 m / 56,74 ft
- Minimum plot width: 22,48 m / 73,73 ft
- Minimum plot length: 25,3 m / 82,98 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 50 400,00 EUR |
| The raw state closed | 72 600,00 EUR |
| The cost of finishing works | 64 700,00 EUR |
| Execution of turnkey home | 137 300,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Natalie 3 - detailed file
House plan Natalie 3 - detailed file - mirror
Related Projects
2012.03.13 1
Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)
2012.02.09 3
This is a hit project. I appeal to people who have already built it or are during the building of the opportunity to see it in live. Thank you in advance!
2012.02.09 1
The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.
